Diesel Fuel System Pressure Loss: 9 Causes & Diagnosis Guide

Diesel fuel system pressure loss is the inability of your fuel system to maintain adequate pressure throughout the fuel delivery chain, from tank to injectors. This critical issue can cause hard starting, power loss, rough idle, and complete engine failure if left unaddressed.

What Is Diesel Fuel System Pressure Loss and Why Does It Matter?

Diesel fuel system pressure loss occurs when your fuel system cannot maintain the precise pressure required for proper fuel delivery and injection. Modern diesel engines require specific fuel pressures at different stages: lift pumps typically operate at 5-15 PSI, while common rail systems can require up to 30,000 PSI at the injectors.

Unlike gasoline engines that can tolerate some pressure variations, diesel engines are extremely sensitive to fuel pressure changes. The high compression ratios and precise injection timing in diesel engines mean that even small pressure drops can cause significant performance issues.

The fuel system pressure requirements vary by engine type. Older mechanical injection systems typically need 10-15 PSI from the lift pump, while modern electronic diesel injection systems require much higher pressures for optimal performance.

How Do You Know If Your Diesel Has Fuel Pressure Problems?

Diesel fuel system pressure loss manifests through several distinct symptoms that progressively worsen as the problem develops. The most common early warning signs include hard starting, especially when the engine is cold, and a noticeable loss of power during acceleration or under load.

Here are the primary symptoms of diesel fuel system pressure loss:

• Hard starting or extended cranking: The engine takes longer to fire up, particularly on cold mornings
• Power loss under load: Reduced performance when towing, climbing hills, or accelerating
• Rough idle or engine stumbling: Inconsistent engine operation at idle or low RPM
• Black or white smoke from exhaust: Incomplete combustion due to inadequate fuel delivery
• Engine stalling: Complete loss of power, especially during idle or deceleration
• Fuel knock or unusual engine noise: Abnormal combustion sounds due to improper fuel delivery timing

Advanced symptoms may include complete engine shutdown, inability to restart, or damage to injection components. At our Woodland shop, we’ve seen cases where continued operation with low fuel pressure resulted in injection pump failure and injector damage.

What Are the 9 Most Common Causes of Diesel Fuel Pressure Loss?

Based on over 30 years of diesel fuel injection experience, we’ve identified nine primary causes of diesel fuel system pressure loss. Each cause affects different components and requires specific diagnostic approaches.

1. Failed or Weak Lift Pump

The lift pump (also called feed pump or transfer pump) is responsible for moving fuel from the tank to the injection pump. When it fails or weakens, the entire fuel system suffers from inadequate pressure.

Lift pump failure symptoms include:

• Hard starting, especially after sitting overnight
• Power loss at higher RPMs
• Engine stalling during acceleration
• Fuel starvation under load

2. Clogged or Restricted Fuel Filter

Fuel filters protect injection components from contamination, but they can become clogged with debris, water, or fuel gel. A restricted filter creates a bottleneck that reduces fuel flow and pressure throughout the system.

Signs of fuel filter restriction:

• Gradual power loss over time
• Improved performance immediately after filter replacement
• Hard starting that worsens progressively
• Engine performance that varies with fuel tank level

3. Air in the Fuel System

Air infiltration is one of the most common causes of diesel fuel system pressure loss. Even small amounts of air can disrupt fuel delivery and cause significant performance issues.

Common air entry points include:

• Loose fuel line connections
• Cracked fuel lines or fittings
• Faulty fuel tank cap or vent
• Damaged fuel pump seals
• Worn injection pump seals

If you suspect air in your fuel system, our guide on how to bleed a diesel fuel system provides step-by-step instructions for removing air bubbles.

4. Injection Pump Problems

The injection pump is the heart of the diesel fuel system, creating the high pressure needed for proper fuel injection. Injection pump issues can cause complete pressure loss or inconsistent pressure delivery.

Common injection pump problems include:

• Worn internal seals and gaskets
• Damaged pump elements or plungers
• Contaminated fuel causing internal wear
• Electrical issues in electronic pumps

Our Bosch injection pump specialists can diagnose and repair most injection pump issues, often saving thousands compared to replacement costs.

5. Worn or Faulty Fuel Injectors

Fuel injectors that are worn, clogged, or damaged can cause pressure loss by allowing fuel to leak internally or failing to maintain proper spray patterns. This is particularly common in high-mileage diesel engines.

Injector-related pressure loss symptoms:

• Uneven engine operation
• Excessive black smoke
• Poor fuel economy
• Rough idle or misfiring

6. Damaged or Leaking Fuel Lines

Fuel lines carry pressurized fuel throughout the system. Cracks, corrosion, or loose connections can cause external leaks or allow air to enter the system, both of which reduce fuel pressure.

Inspect fuel lines regularly for:

• External fuel leaks
• Cracked or brittle rubber lines
• Corroded metal lines
• Loose or damaged fittings

7. Faulty Fuel Pressure Regulator

The fuel pressure regulator maintains consistent fuel pressure by returning excess fuel to the tank. When it fails, the system may experience pressure spikes, drops, or complete pressure loss.

Pressure regulator failure often causes:

• Inconsistent engine performance
• Fuel pressure that varies with RPM
• Hard starting or stalling
• Excessive fuel return to tank

8. Contaminated or Poor-Quality Fuel

Contaminated fuel can clog filters, damage injection components, and cause fuel system pressure loss. Common contaminants include water, dirt, algae, and fuel additives that have gelled or separated.

9. Electrical Issues

Modern diesel fuel systems rely heavily on electrical components including fuel pumps, pressure sensors, and electronic control modules. Electrical problems can cause complete fuel system shutdown or erratic pressure control.

Common electrical issues include:

• Failed fuel pump relays or fuses
• Damaged wiring harnesses
• Faulty pressure sensors
• ECM communication errors

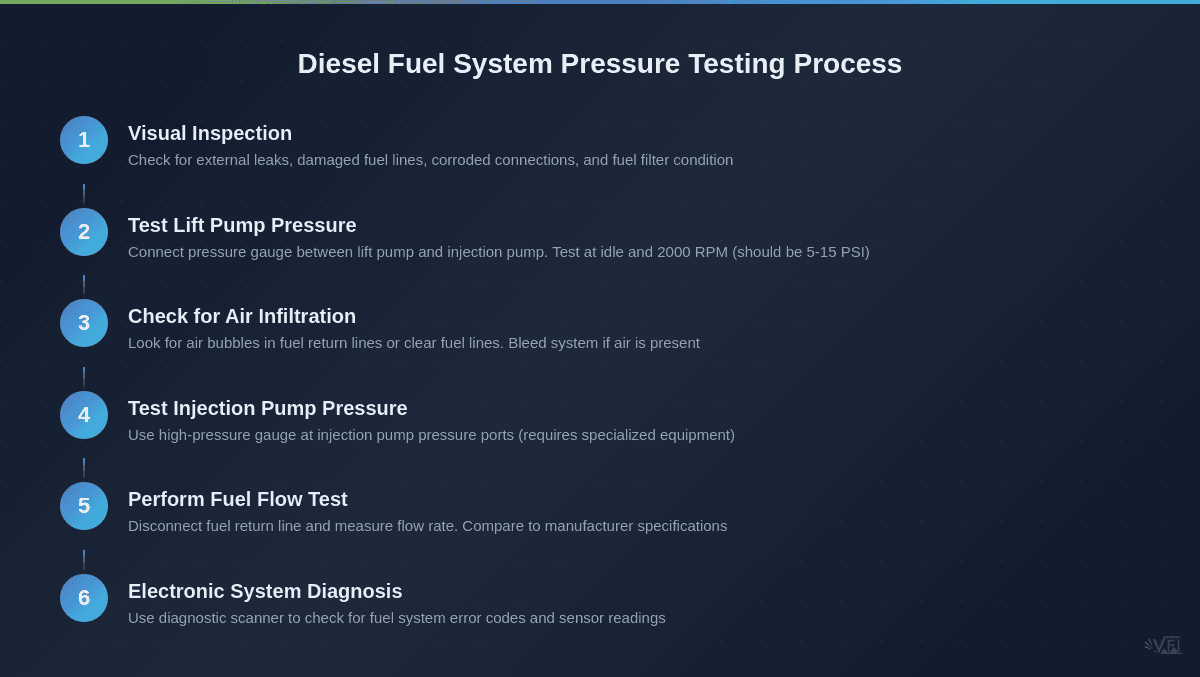

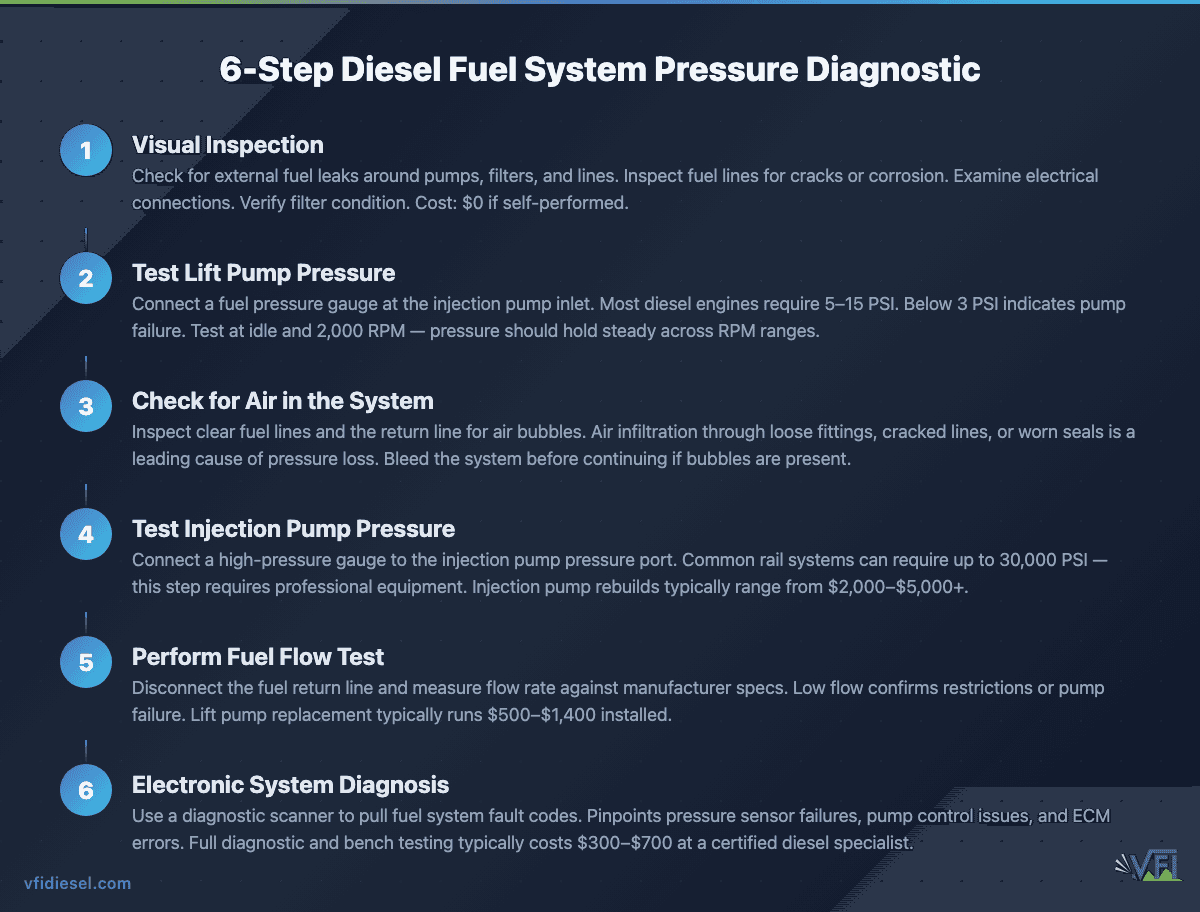

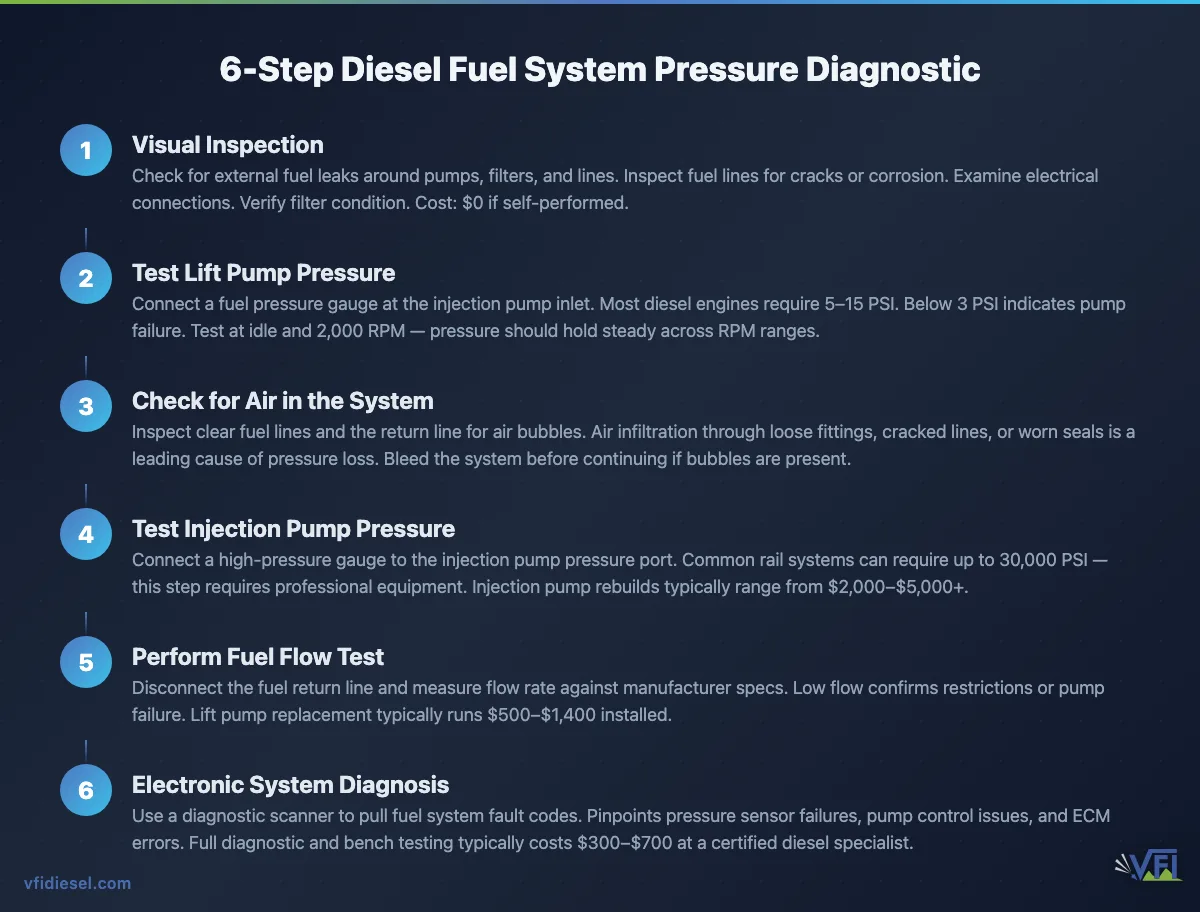

How Do You Test Diesel Fuel System Pressure Step-by-Step?

Proper diagnosis of diesel fuel system pressure loss requires systematic testing at multiple points in the fuel system. This methodical approach helps identify the exact location and cause of pressure loss.

Here’s our professional diagnostic procedure:

Step 1: Visual Inspection

Start with a thorough visual inspection of the entire fuel system:

• Check for external fuel leaks around pumps, filters, and lines
• Inspect fuel lines for cracks, corrosion, or damage
• Examine electrical connections for corrosion or damage
• Verify fuel filter condition and replacement date

Step 2: Test Lift Pump Pressure

Connect a fuel pressure gauge to the fuel line between the lift pump and injection pump. Most diesel engines require 5-15 PSI from the lift pump.

Step 3: Check for Air in the System

Look for air bubbles in the fuel return line or clear fuel lines. Air bubbles indicate air infiltration somewhere in the system. You may need to bleed the fuel system to remove air before continuing diagnosis.

Step 4: Test Injection Pump Pressure

For engines with accessible injection pump pressure ports, connect a high-pressure gauge to measure injection pressure. This requires specialized equipment and should typically be performed by professionals.

Step 5: Perform Fuel Flow Test

Disconnect the fuel return line and measure fuel flow rate. Compare the measured flow to manufacturer specifications. Low flow rates indicate restrictions or pump problems.

Step 6: Electronic System Diagnosis

Use a diagnostic scanner to check for fuel system-related error codes. Modern diesel engines store fault codes that can pinpoint specific pressure sensor or pump control issues.

For complex diagnostics or if you’re not comfortable performing these tests, schedule a diagnostic with our certified technicians. We have the specialized equipment and experience to quickly identify fuel system pressure issues.

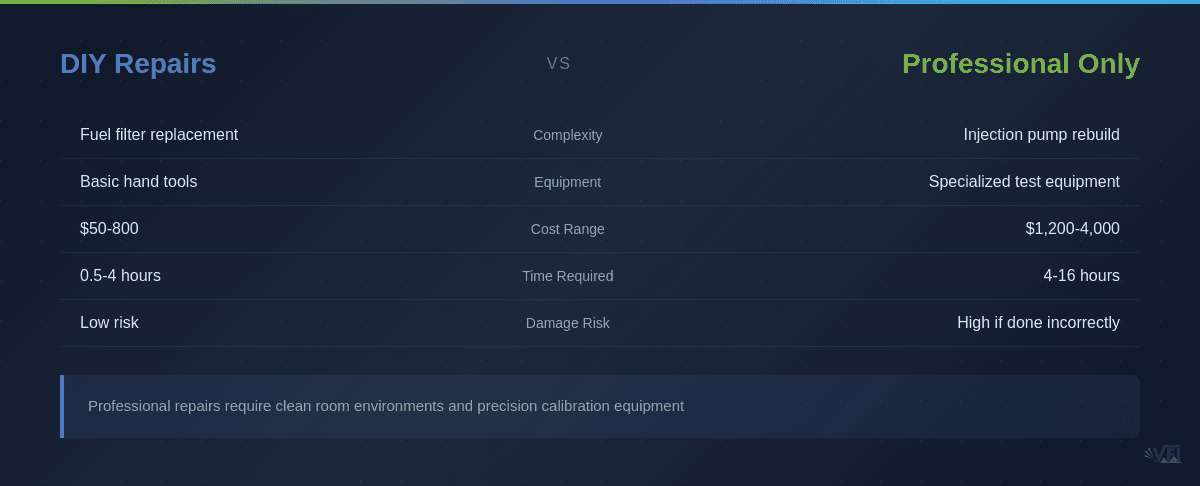

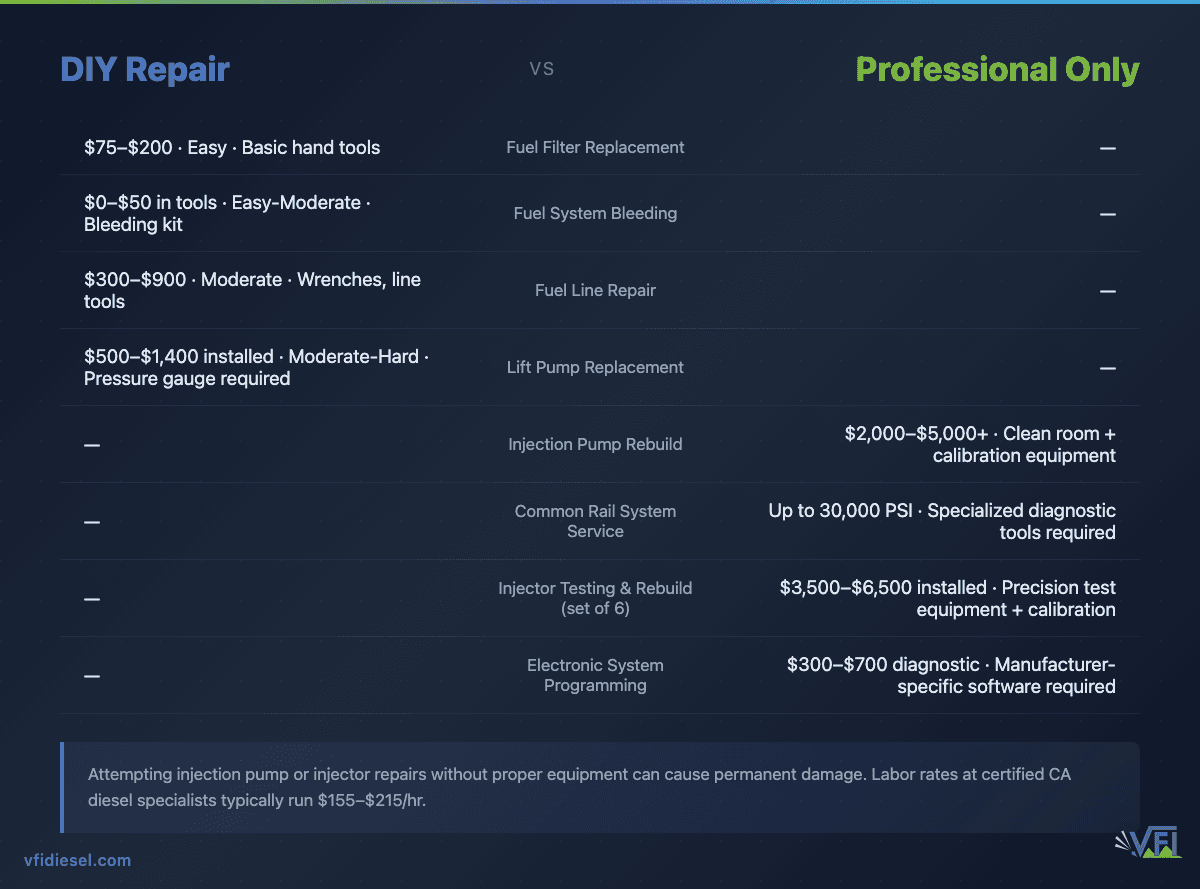

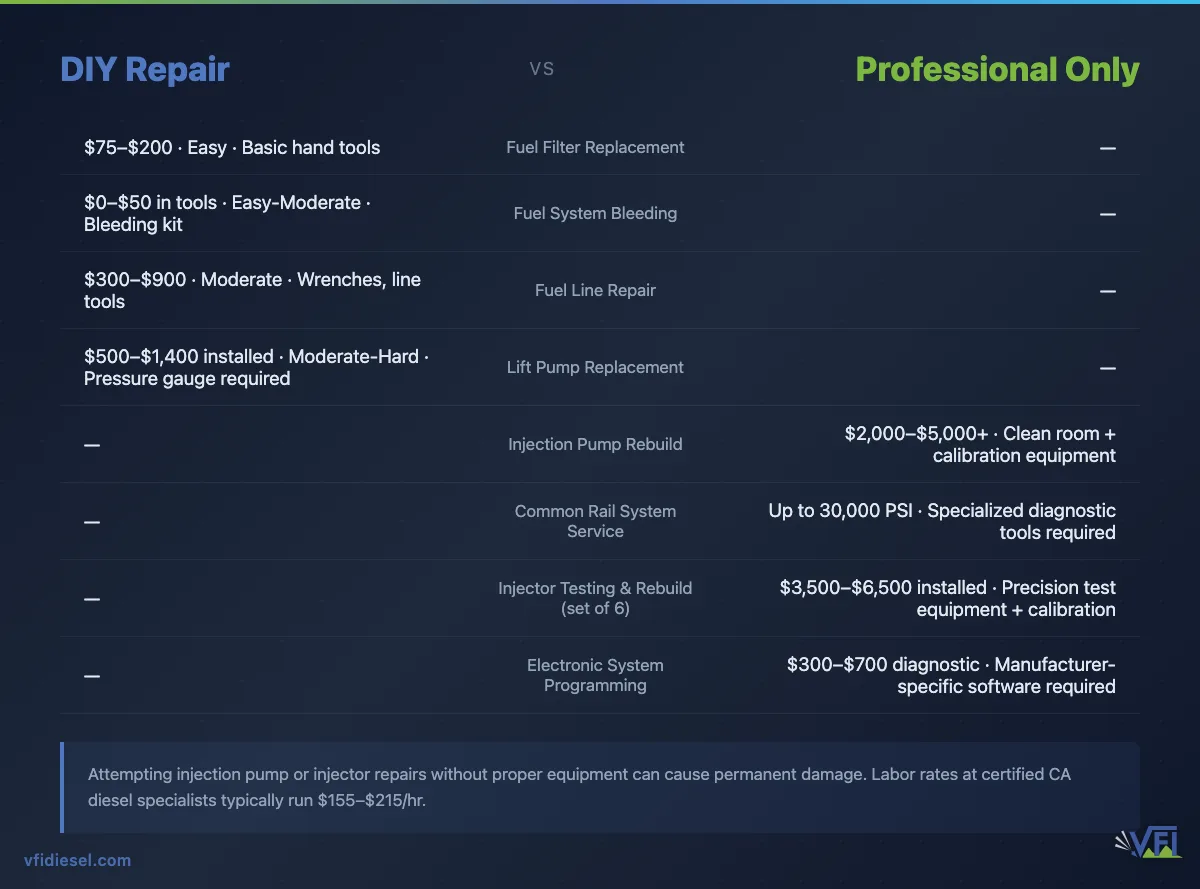

Which Fuel Pressure Problems Can You Fix vs. Need Professional Help?

Some diesel fuel system pressure issues can be addressed by experienced DIY mechanics, while others require professional diagnosis and repair. Understanding the difference can save you time and prevent costly mistakes.

DIY-Friendly Repairs

These fuel pressure issues can typically be handled by mechanically inclined diesel owners:

Professional-Only Repairs

These issues require specialized equipment, training, and certification:

• Injection pump rebuild or repair: Requires clean room environment and precision calibration equipment
• Common rail system service: Involves extremely high pressures and specialized diagnostic tools
• Injector testing and rebuilding: Needs precision test equipment and calibration standards
• Electronic system programming: Requires manufacturer-specific diagnostic software

At Valley Fuel Injection, we’re Bosch-certified for injection pump and injector service, with the specialized equipment needed for proper diagnosis and repair. Our technicians have over 30 years of experience with diesel fuel systems.

For Kubota equipment owners, we also provide specialized service – check our Kubota fuel system bleeding guide for model-specific procedures.

How Much Does Diesel Fuel System Pressure Repair Cost?

Diesel fuel system pressure repair costs vary significantly depending on the root cause, engine type, and extent of damage. Understanding typical cost ranges helps you budget for repairs and make informed decisions about repair versus replacement.

Common Repair Cost Ranges

Factors Affecting Repair Costs

Several factors influence the final cost of diesel fuel system pressure repairs:

• Engine type and age: Newer common rail systems are more complex and expensive to repair
• Extent of damage: Catching problems early prevents cascading failures
• Parts availability: Some older injection pumps require specialized or rebuilt components
• Labor rates: Certified diesel specialists typically charge $100-150 per hour
• Geographic location: Repair costs vary by region and shop overhead

For detailed cost analysis of injection pump repairs, see our comprehensive guide on diesel fuel injection pump rebuild costs.

When to Repair vs. Replace

The decision between repairing and replacing fuel system components depends on several factors:

Repair makes sense when:

• The engine has low to moderate mileage
• Only one component has failed
• The cost is less than 50% of replacement
• Parts and service are readily available

Replacement may be better when:

• Multiple components have failed
• The engine has very high mileage
• Repair costs exceed 70% of replacement cost
• Reliability is critical for your operation

Our experienced technicians can help you make this decision based on your specific situation and budget. We provide honest assessments and work with you to find cost-effective solutions.

If you’re experiencing diesel fuel system pressure loss, don’t wait for the problem to worsen. Early diagnosis and repair can prevent expensive component damage and keep your diesel running reliably. Call us at 530-668-0818 to schedule a comprehensive fuel system diagnostic, or visit our Woodland, CA shop for immediate service.
