Cummins Fuel Injectors

Which Cummins injectors do I need?

Cummins injectors change with engine family, model year and, on Ram trucks, whether it is a pickup or a cab & chassis. Those last two use different injectors in the same years and it is the most common mix-up we see.

Not sure which you have? Call (530) 668-0818 with the VIN or the engine serial and we will match it.

Test first: you often only need two

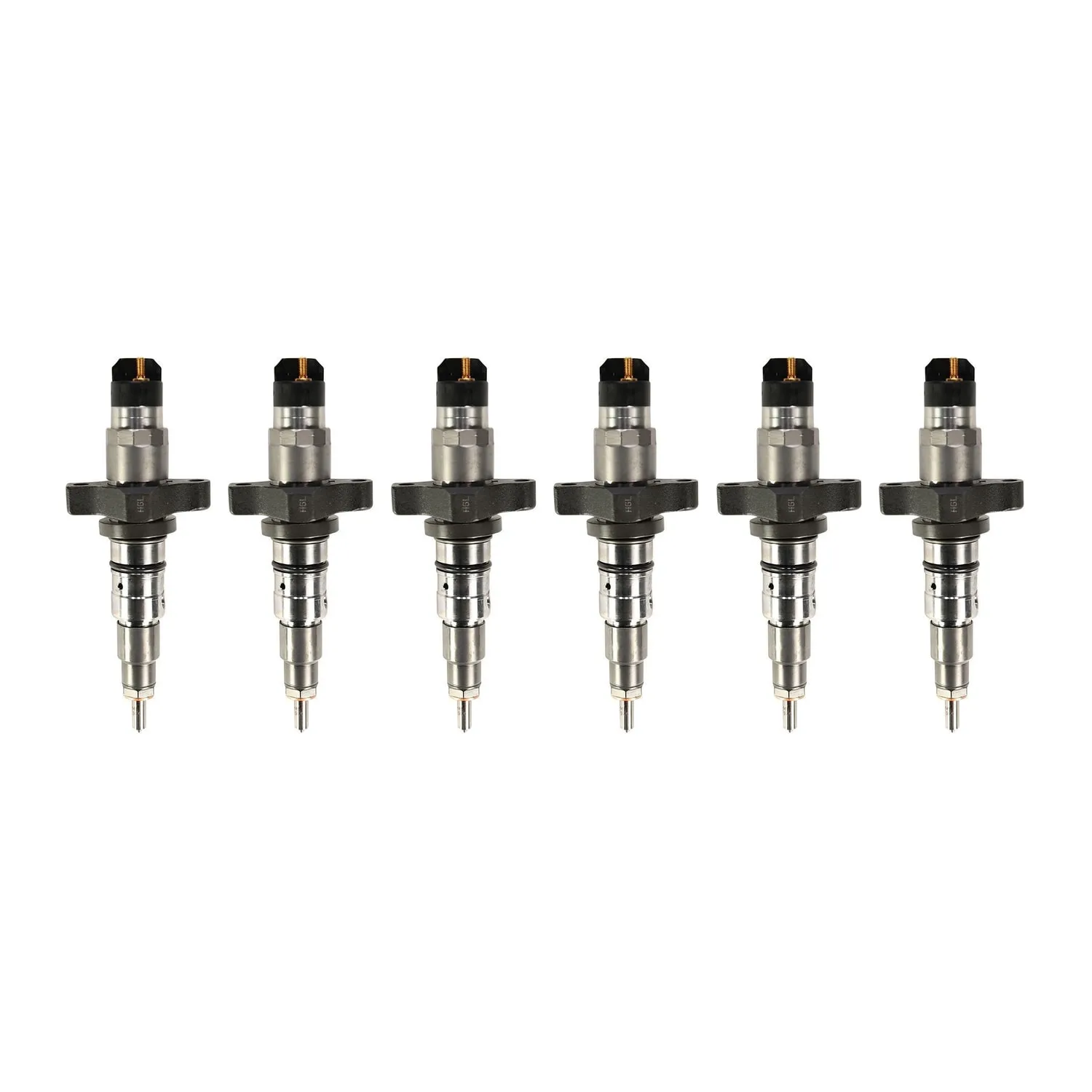

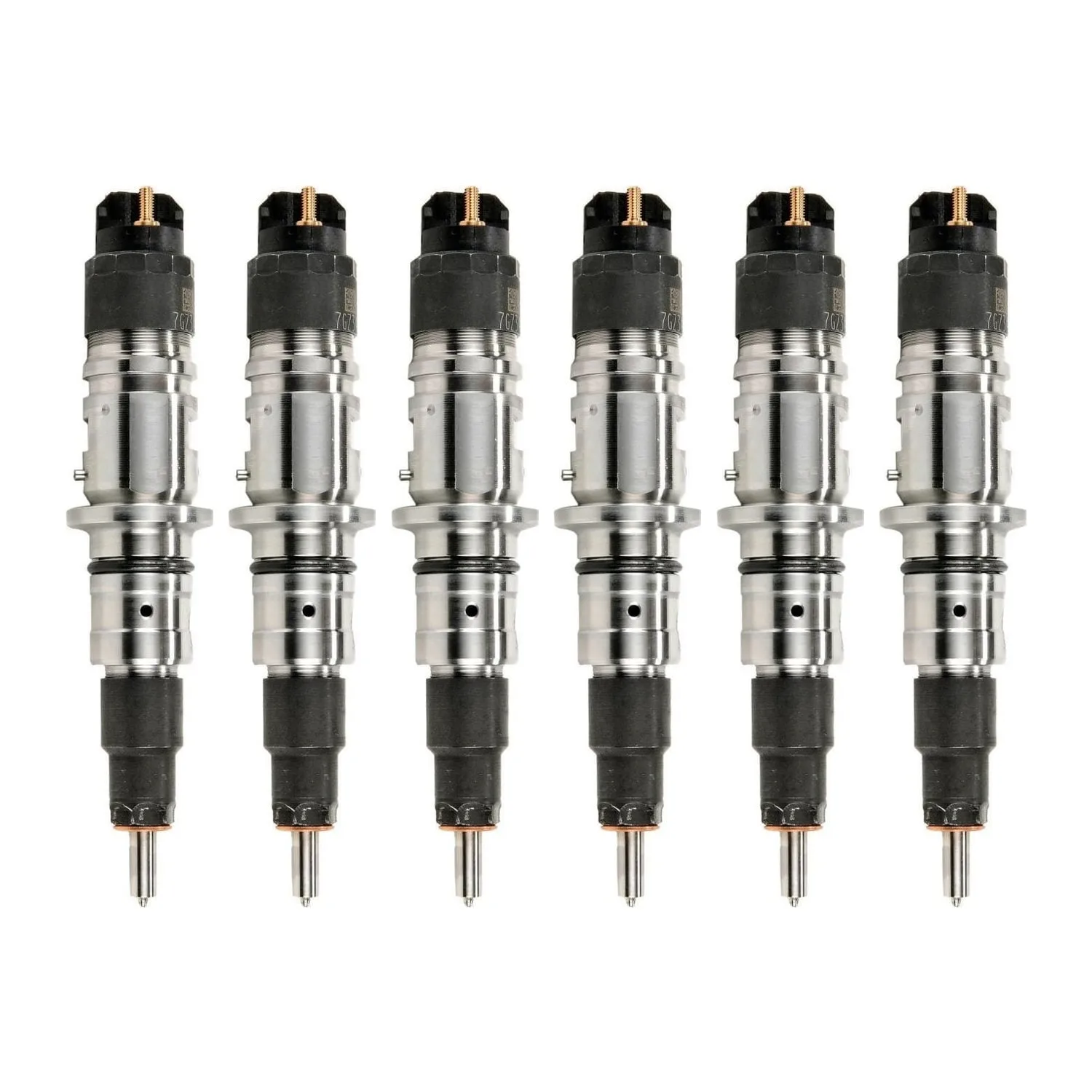

A set of six runs $1,782 to $5,682. We bench-test injectors and hand you the actual flow and return numbers for each one, so you rebuild or replace what has failed and keep what has not. On a high-value set that single decision is usually worth more than the price difference between suppliers.

See common rail injector testing and rebuild, or ship them to us through the mail-in service.

Symptoms that point at injectors

• Hard starting, worse when hot. Injectors leaking down between starts.
• Rough idle or a miss that clears under load. Usually one injector, not six.
• White smoke at idle that burns off with temperature.
• Fuel diluting the engine oil. Check the level and smell it: an internally leaking injector puts diesel past the rings.
• Knock or rattle on one cylinder under load.

On a VP44-era 24-valve truck, the same symptoms can come from the pump instead. See VP44 injection pumps. Testing sorts it out without guessing.

What kills them

Water and particulate. The clearances inside a common-rail injector are measured in microns, and contaminated fuel erodes the nozzle and control valve until flow drifts out of spec. A neglected filter or a weak lift pump accelerates it. Fix the fuel supply before you fit new injectors, or you will be doing this again.

Core charge, warranty and shipping

Prices include a refundable core charge. Send the old injectors back within 30 days and it is refunded, provided they are rebuildable. Prepaid return label included. See the exchange program.

Remanufactured injectors carry 12 months, unlimited mileage against defects in materials and workmanship. Full terms. We ship nationwide from Woodland, California; orders process in 1–2 business days. Shipping policy.

Common questions

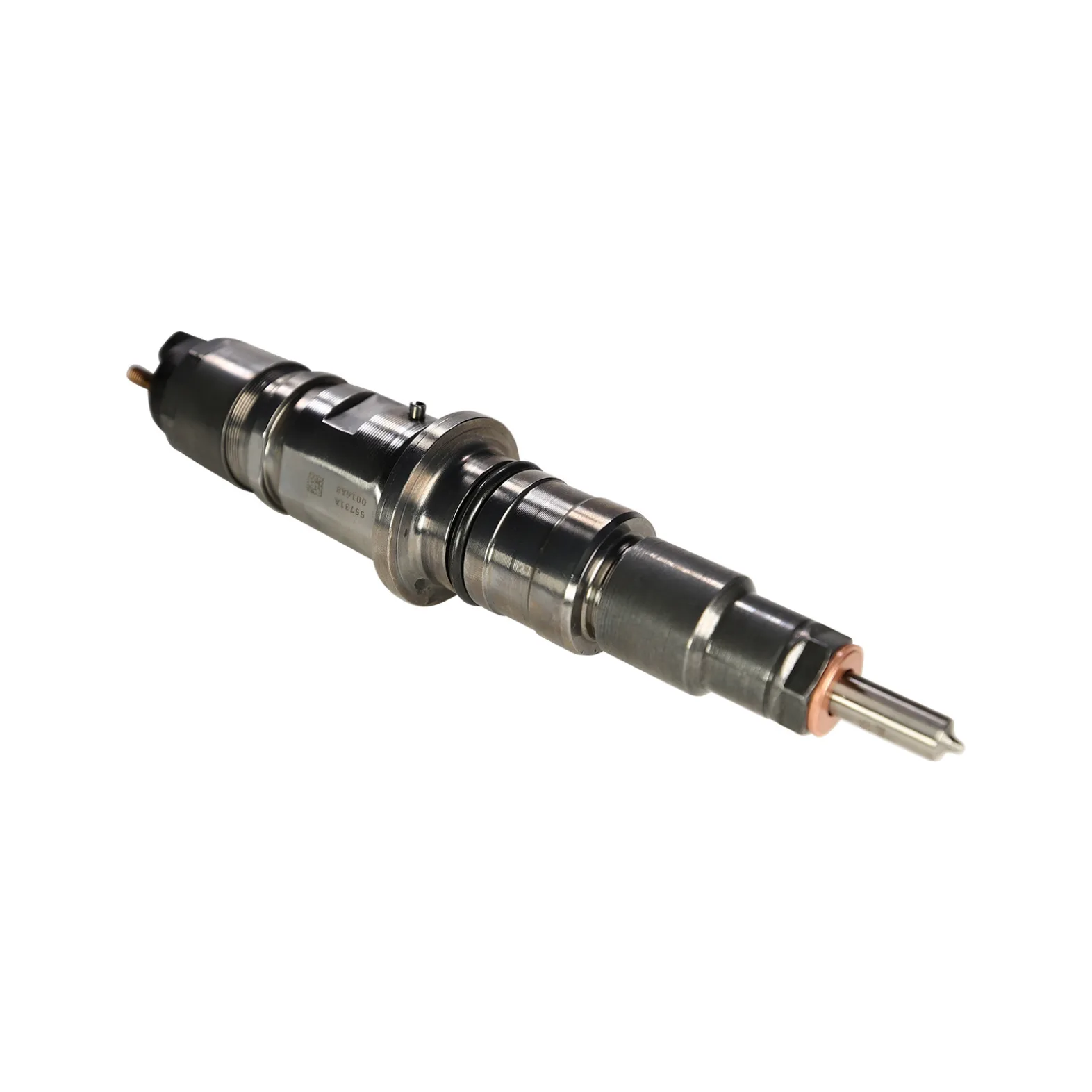

Pickup or cab & chassis: how do I tell? Cab & chassis trucks leave the factory without a bed, for service bodies and flatbeds. Same year, different injector. If you are unsure, give us the VIN.

Do I need to replace all six? High-mileage truck with original injectors: usually yes, they wear together. Low-mile truck with one failure: test first.

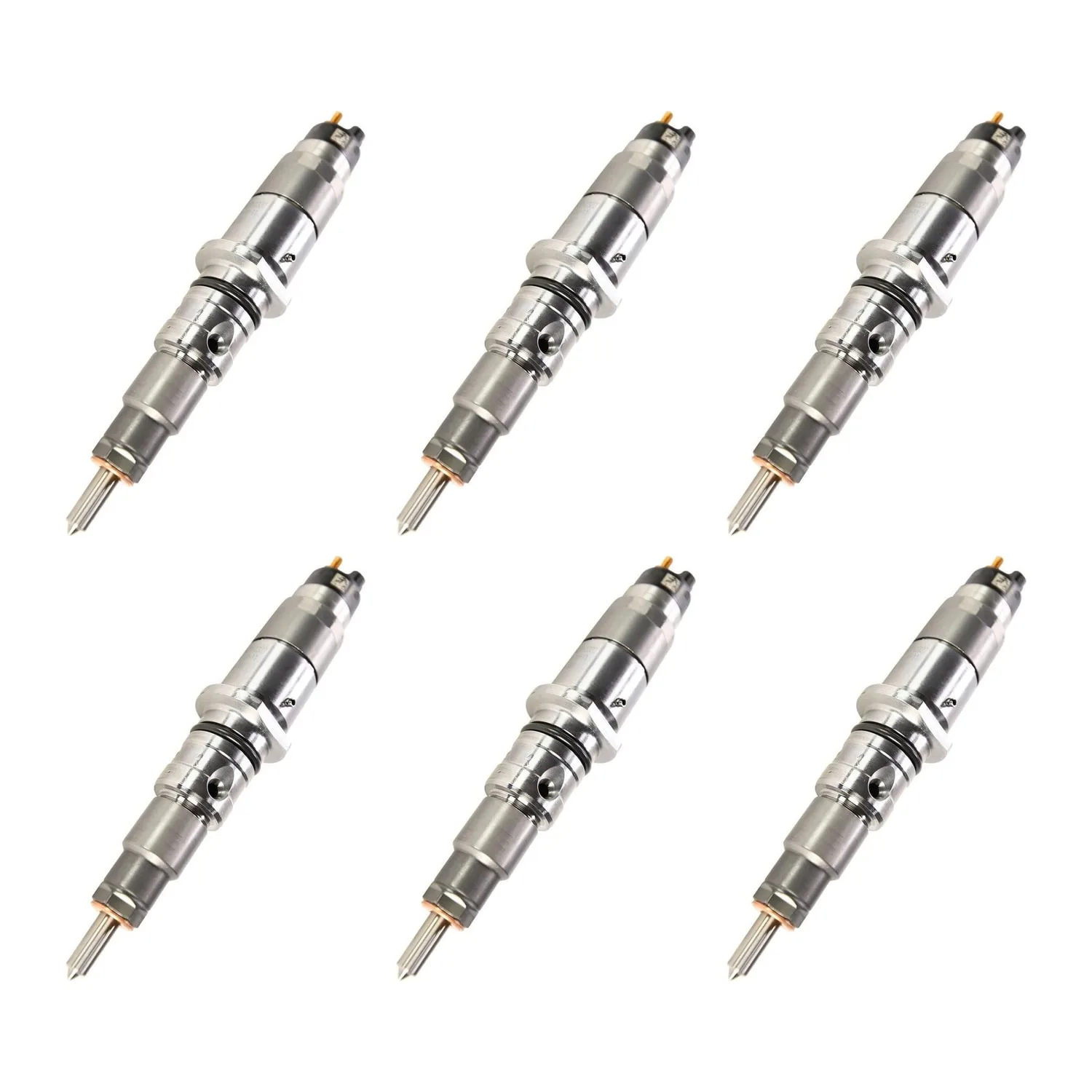

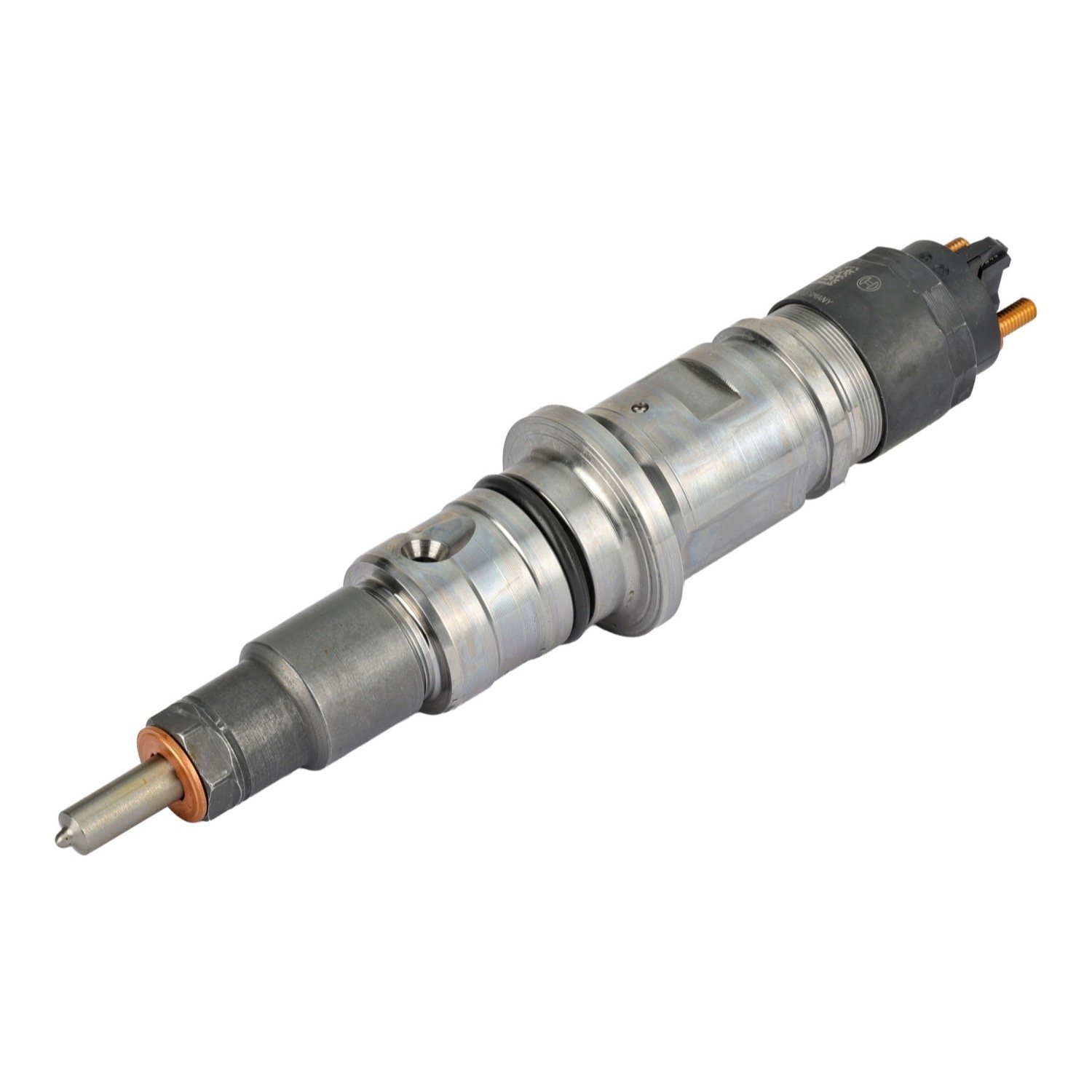

Do you do industrial and ag Cummins? Yes. QSB, ISC, ISB and ISX are regular work here, along with generator sets and Case IH and New Holland equipment.
