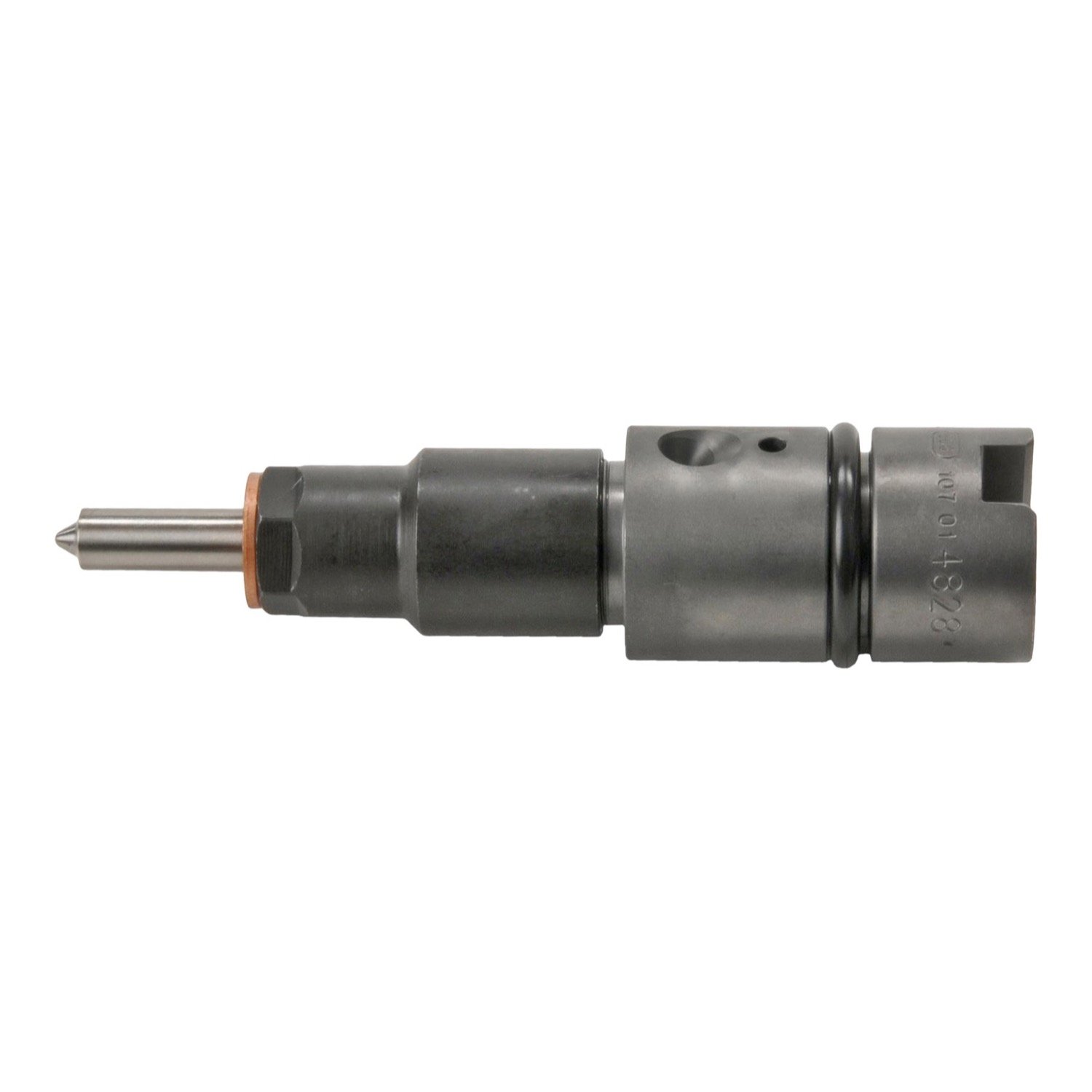

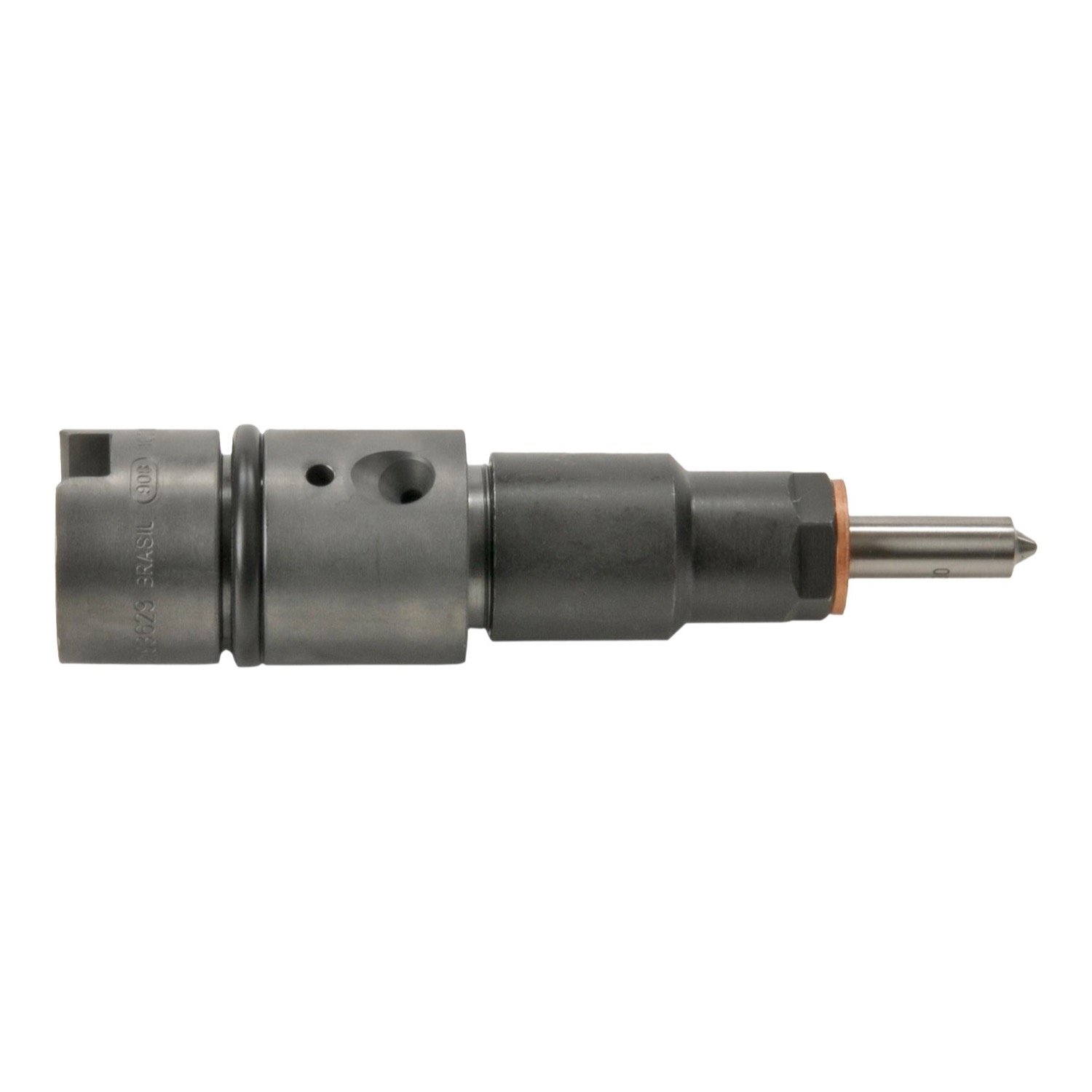

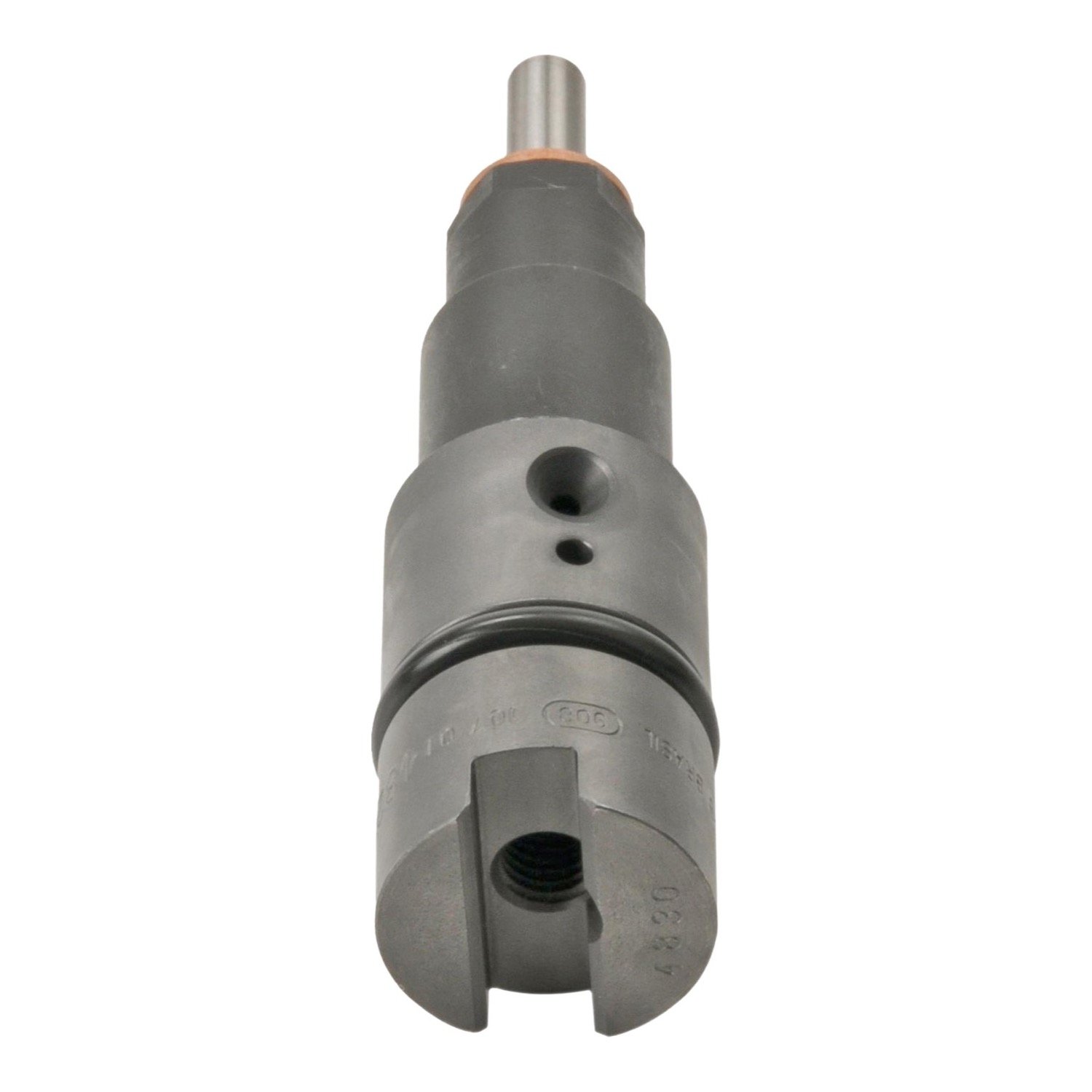

This is the Bosch 0432193629, a new mechanical fuel injector (nozzle and holder assembly) made by Bosch, not a rebuild. It fits the 1998.5 to 2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins ISB 24-valve engine and VP44 injection pump at the 235 hp rating with a manual transmission. Catalogs list trucks with the automatic under a different injector, Bosch 0432193630. It replaces Cummins 3944828 and 3944830 and Mopar 5013847AA and 5011038AA.

A miss at idle, white or gray smoke, a fuel knock, hard starting or fuel in the oil can all come from a worn nozzle or a low opening pressure. On these VP44 engines a weak lift pump or a failing injection pump gives some of the same complaints, so check supply pressure and pump codes before you replace a set. The engine takes six injectors.

Specifications

Fits / Applications

• Dodge Ram 2500 and 3500, 5.9L Cummins ISB 24-valve, 1998.5 to 2002, 235 hp rating with manual transmission
• In 2001 and 2002 that means the 5-speed manual: the 6-speed came with the 245 hp High Output engine, which is listed under Bosch 0432193581
• Trucks with the automatic transmission are listed under Bosch 0432193630
• Six injectors per engine

Fit a new sealing washer under each nozzle, keep the bore clean and torque the hold-down to the engine maker’s figure. On the 24-valve head, fuel reaches the injector through a connector tube in the side of the head: check each tube tip and its o-ring, and replace any that are marked or leaking. The tube is a separate part, Bosch F00ZR20002 (Cummins 3944833, Mopar 5013856AA), one per cylinder. Change the fuel filter at the same time.

Part Numbers & Cross Reference

Bosch 0432193629  ·  Bosch (number with 741 suffix) 0432193629741  ·  Cummins 3944828  ·  Cummins 3944830  ·  Mopar 5013847AA  ·  Mopar 5011038AA

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the Bosch 0432193629 fit my 24-valve Dodge Ram?

It fits the 1998.5 to 2002 Ram 2500 and 3500 5.9L Cummins ISB 24-valve with the VP44 pump at the 235 hp rating with a manual transmission. Automatic trucks are listed under Bosch 0432193630. Check the data plate, or call 530-668-0818 with your VIN.

What numbers does it replace?

Cummins 3944828 and 3944830, and Mopar 5013847AA and 5011038AA.

How is it different from the Bosch 0432193581 and 0432193630?

Catalogs list the 0432193629 for 235 hp trucks with a manual transmission, the 0432193630 for trucks with the automatic and the 0432193581 for the 2001 to 2002 245 hp High Output engine with the 6-speed manual, Cummins 3946306. Run one part number across all six cylinders.

Is it new, and do I send my old injector back?

It is a new injector made by Bosch. It is sold outright, so there is no core to return.
