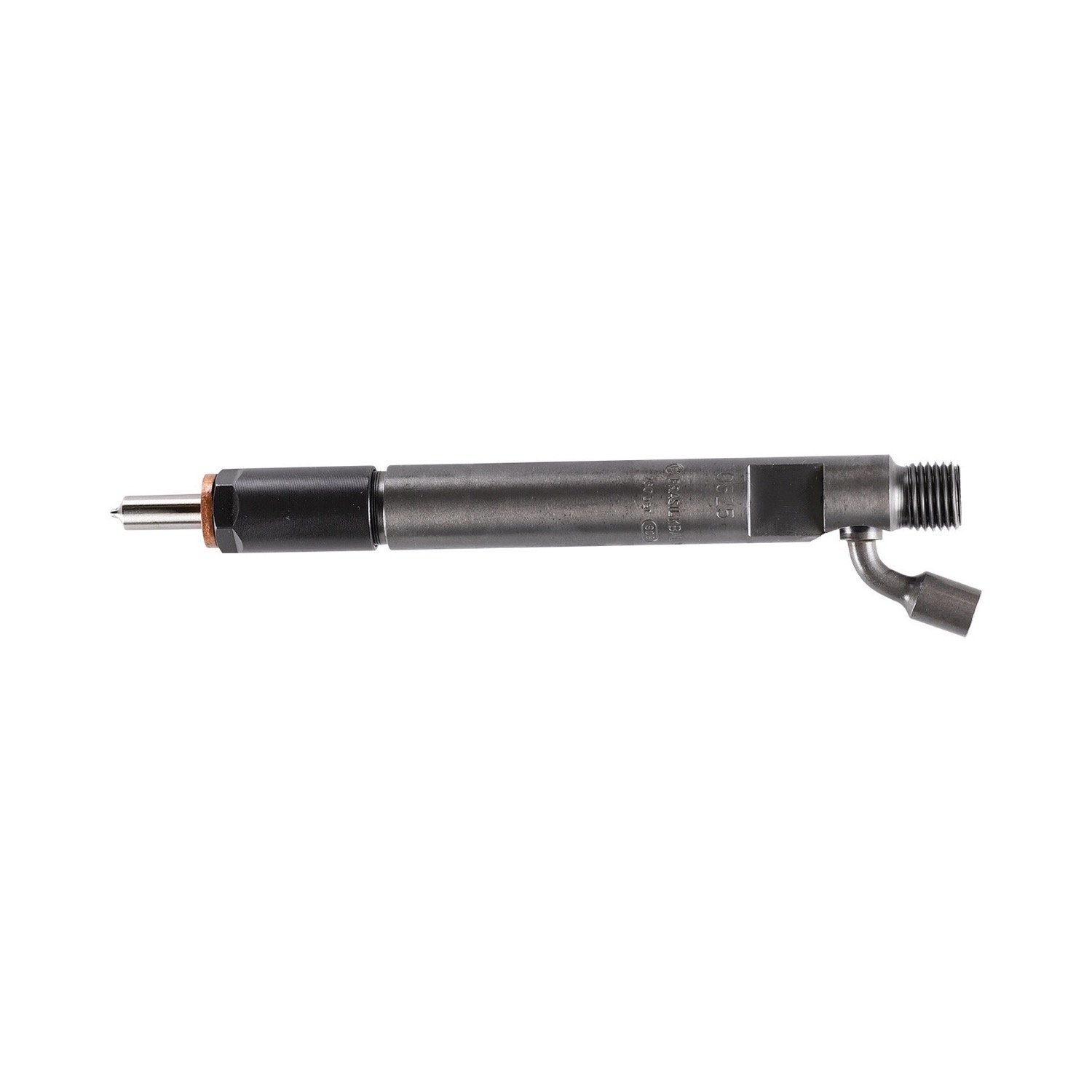

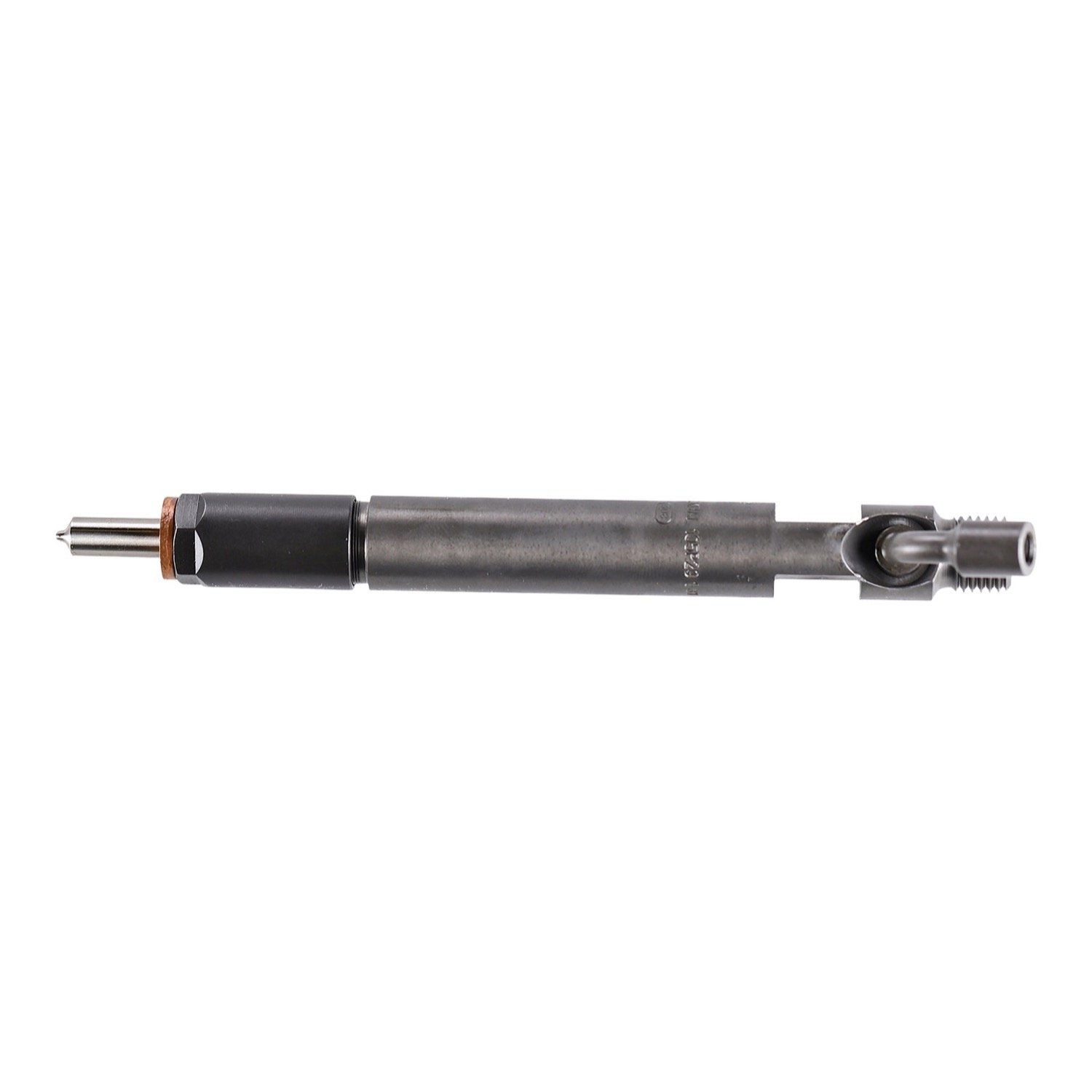

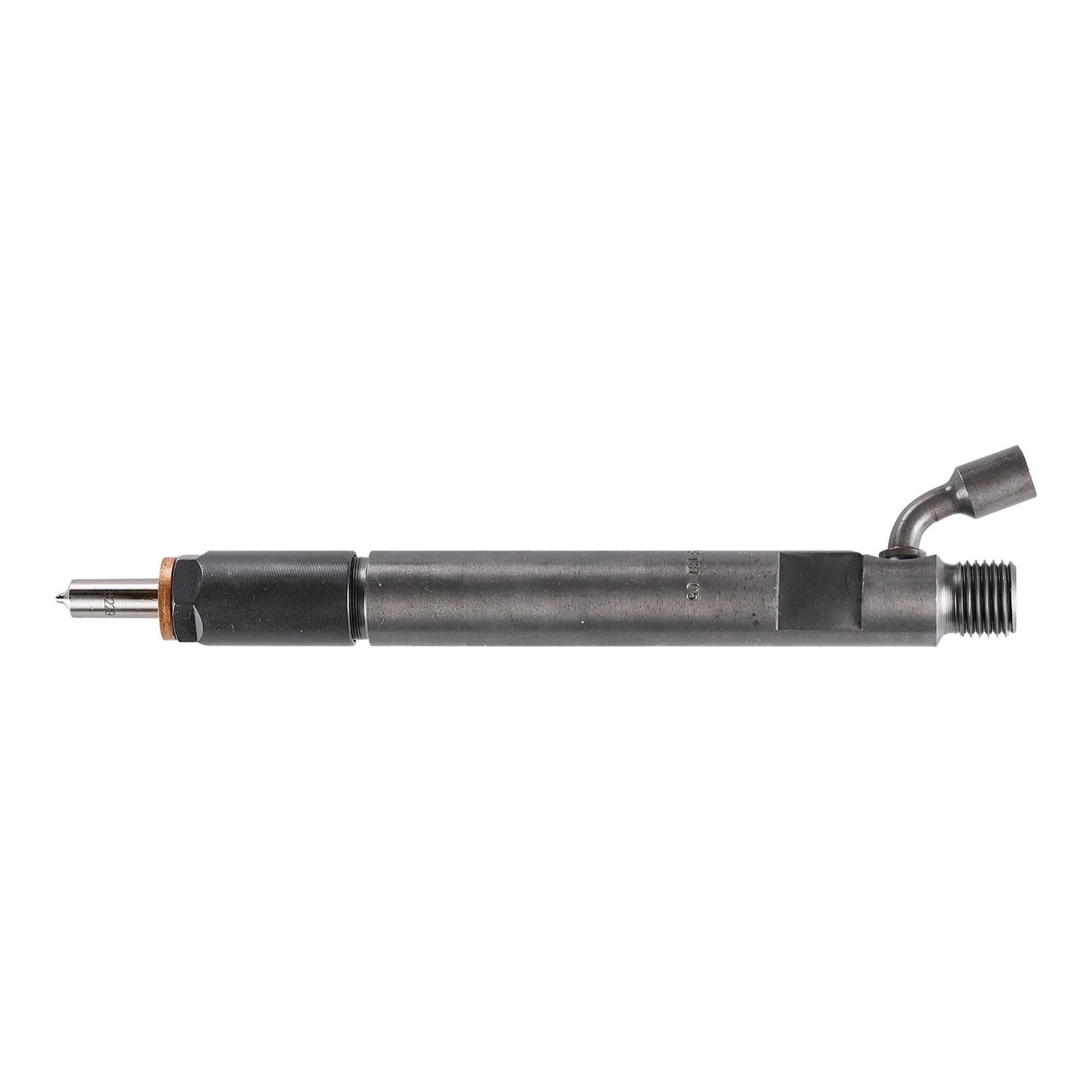

This is the Bosch 0432191595, a new mechanical fuel injector supplied as a complete nozzle and holder assembly for the Cummins 6CT and 6CTA 8.3L, the C Series six that Case calls the 6T-830 or 6TA-830. It is the Bosch-made injector behind Cummins 3930525 and Cummins service number 3802755, and CNH sells it as J930525 (older number J928228). Catalogs list it for Case IH Magnum 7220, 7230, 7240, 8910, 8920, 8930, 8940 and MX180 tractors, 2166 and 2366 Axial-Flow combines, Steiger 9310 and 9330 tractors, Case 721B, 721C, 821B and 821C wheel loaders and the Case 9040B excavator. It is a mechanical injector for the pump, line and nozzle engine, not for the later common-rail ISC or QSC.

Worn mechanical injectors on the 8.3L show up as hard starting, a rough idle, black smoke under load, fuel knock or fuel in the oil, and a pop test shows a low opening pressure or a poor spray pattern. Check the lift pump, filters and pump timing first. Replace all six together so the cylinders stay even, and never mix opening pressures in one engine. This injector opens at 260 to 274 bar, about 3,900 psi.

Specifications

Fits / Applications

• Cummins 6CT and 6CTA 8.3L (C Series, Case 6T-830) with mechanical injection
• Case IH Magnum 7220, 7230 and 7240 tractors (later tractors: catalogs give PIN JJA0064978 as the start on the 7230, so send us the PIN on any 7200 series Magnum)
• Case IH Magnum 8910, 8920, 8930 and 8940 tractors
• Case IH Magnum MX180 tractor
• Case IH 2166 and 2366 Axial-Flow combines
• Case IH Steiger 9310 and 9330 tractors
• Case 721B, 721C, 821B and 821C wheel loaders (821C up to serial number JEE0155000)
• Case 9040B excavator
• Engines that call for Cummins 3930525 or 3802755 or CNH J930525
• Not for common-rail ISC or QSC 8.3L engines
• Six injectors per engine
• Most of these machines used more than one injector over the years: match the number on your old injector or in the parts book

Fit a new sealing washer under each nozzle, clean the injector bore and seat, and cap the lines until they go on. Torque the hold-down to the engine maker’s figure, bleed the high-pressure lines, then check for leaks and an even idle.

Part Numbers & Cross Reference

Bosch 0432191595  ·  Cummins 3930525  ·  Cummins 3802755  ·  Case IH / New Holland (CNH) J930525  ·  Case IH (older number) J928228  ·  Case IH (older kit number) A77851  ·  Komatsu (kit number) 1304899H1

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

What numbers does the Bosch 0432191595 replace?

Cummins 3930525 and 3802755 and CNH J930525, which replaced the older Case IH number J928228. Catalogs also cross it to the older Case IH kit number A77851 and to Komatsu 1304899H1.

Will the 0432191595 fit my Case IH Magnum?

Catalogs list it for the Magnum 7220, 7230, 7240, 8910, 8920, 8930, 8940 and MX180. The 7250, 8950, MX200 and MX220 are listed with the 0432191632 instead. On the 7230, catalogs list it from PIN JJA0064978, and other early 7200 series tractors may differ too, so check the number on your old injector or call 530-668-0818 with the tractor PIN.

How is the 0432191595 different from the 0432191632 and 0432191794?

All three are mechanical injectors for the Cummins 8.3L, but they open at different pressures. The 0432191595 opens at 260 to 274 bar, the 0432191632 at 300 to 314 bar and the 0432191794 at 205 to 219 bar, so fit only the one your engine lists.

Is it new, and is there a core?

It is a new Bosch injector, not a rebuild, and it is sold outright with no core to return.
