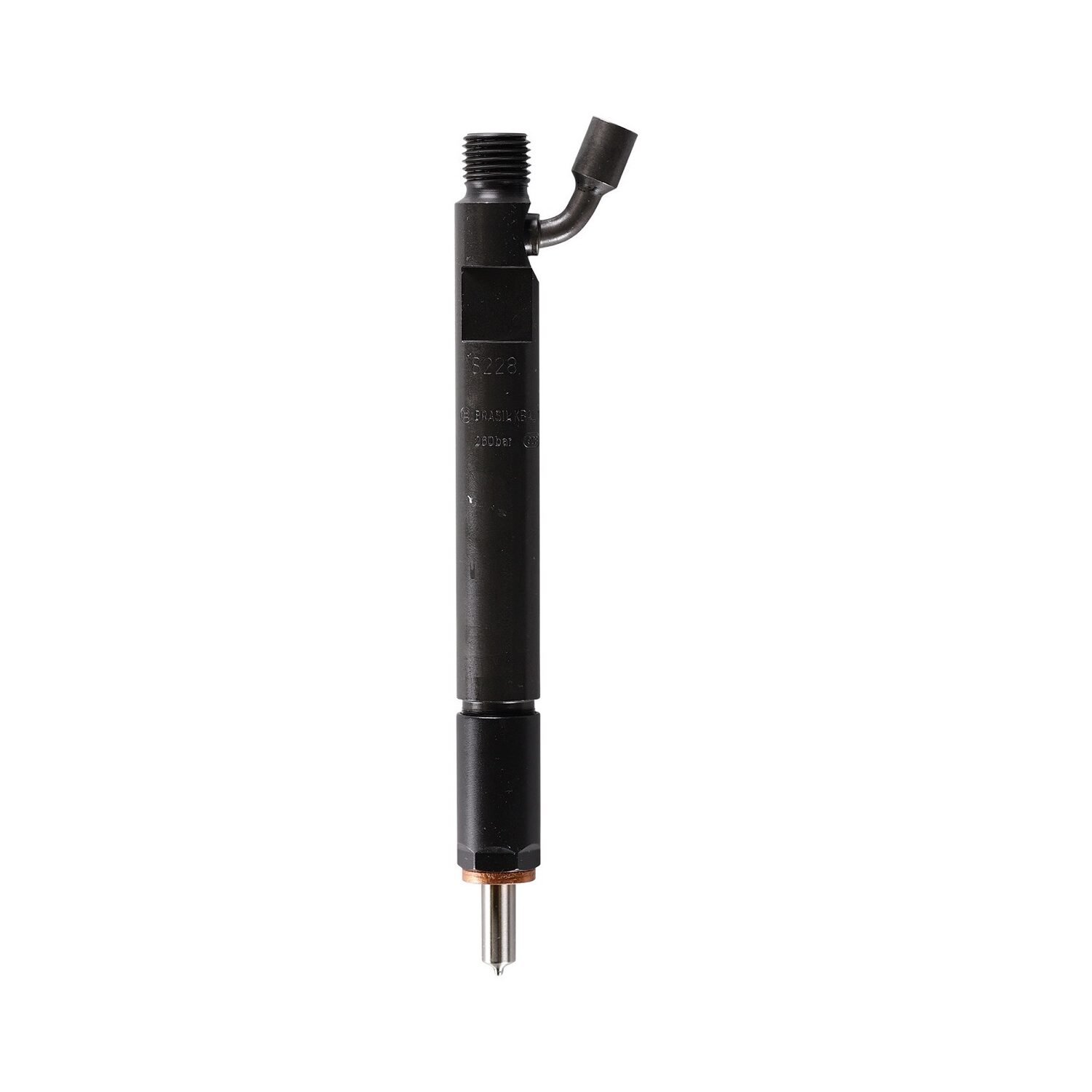

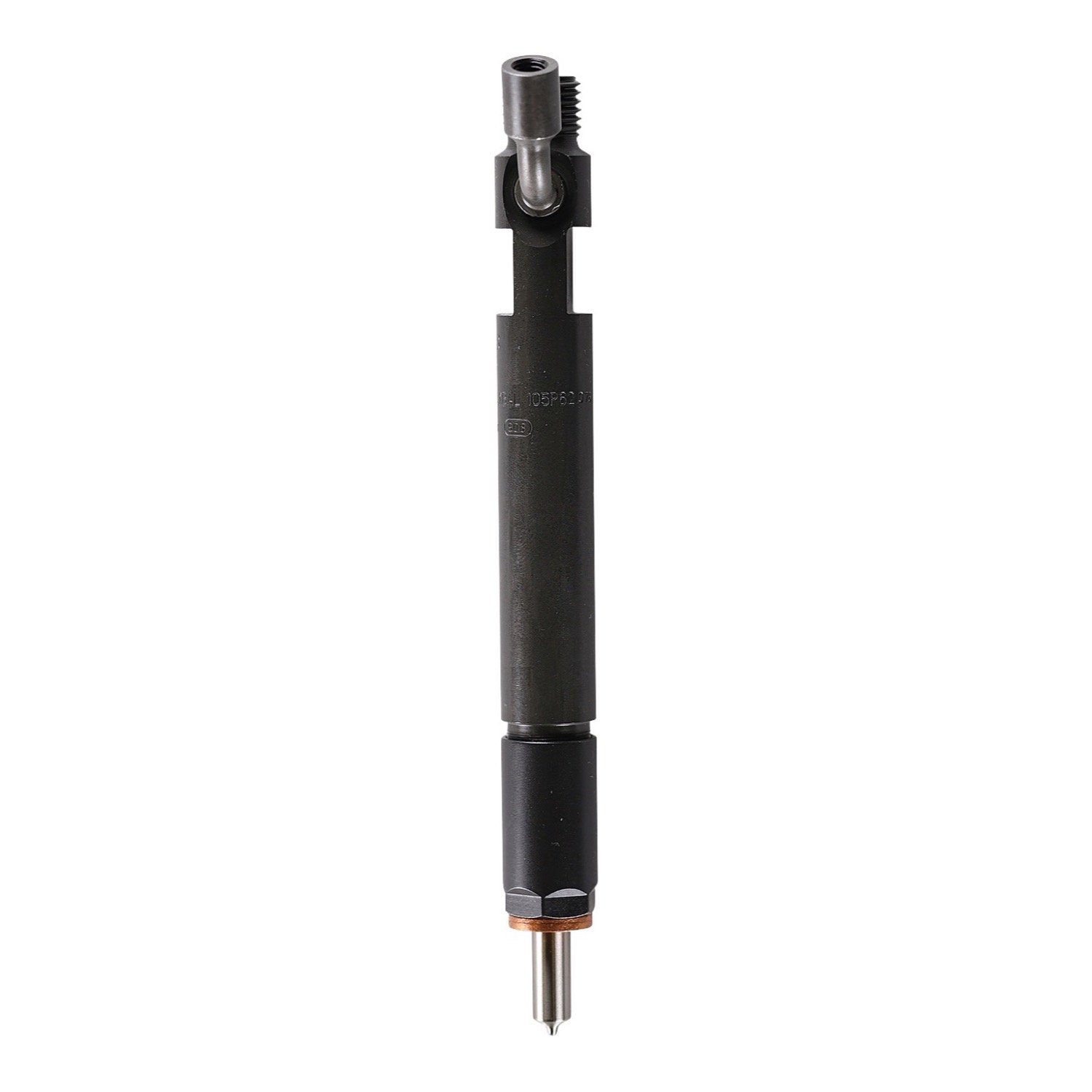

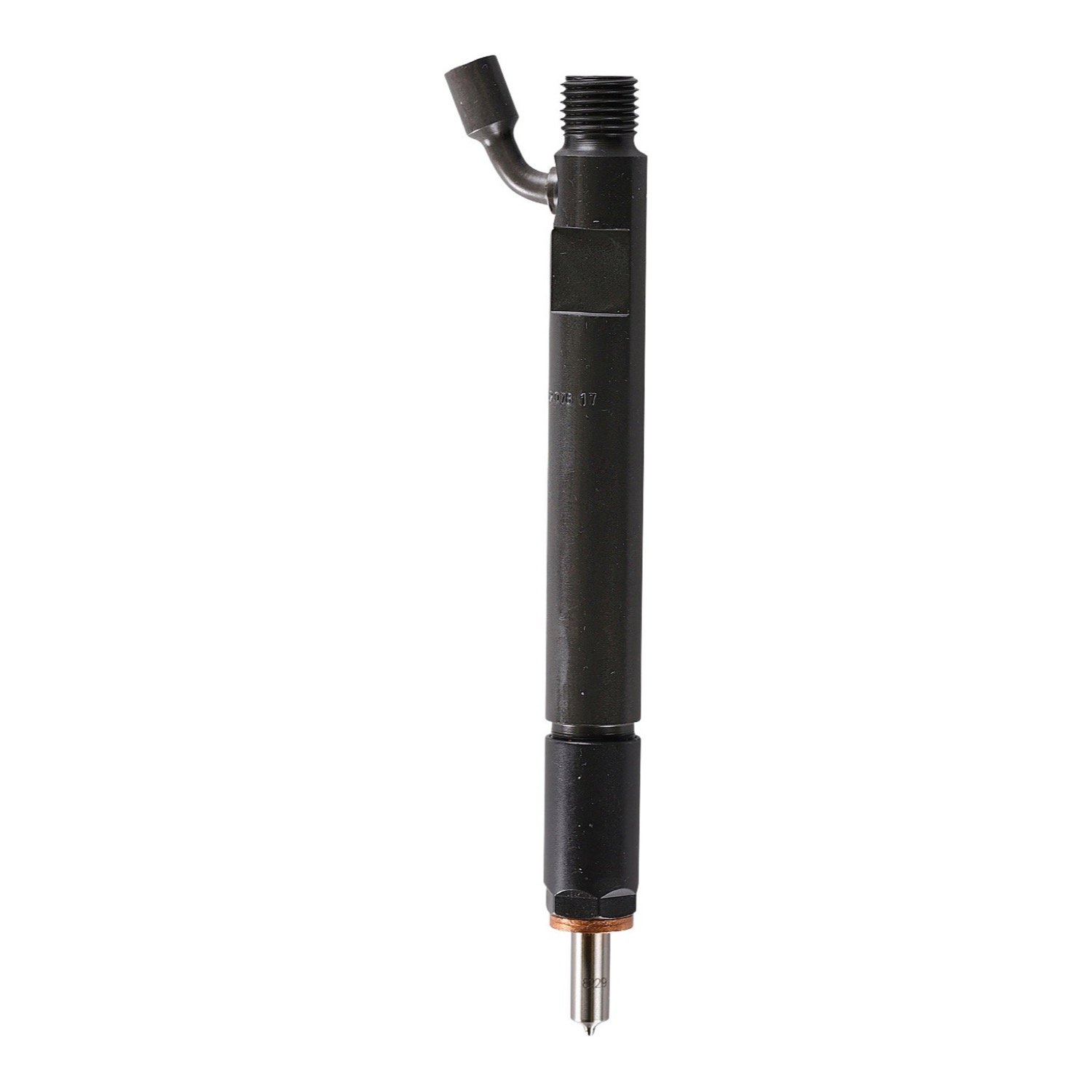

This is the Bosch 0432191601, a new nozzle and holder assembly for the mechanical Cummins 6CTA 8.3L C series. It replaces Cummins 3802753 and 3928228. Case IH listed the same injector as J928228 and has since replaced that number with J930525, which is Bosch 0432191595. Catalogs show this one on the Case IH 2166 combine and the 8910 and 8930 Magnum tractors. It is built on the Bosch KBAL105P62 holder and opens at 260 to 274 bar.

Mechanical injectors wear at the nozzle. A dribbling or stuck nozzle shows up as a miss, black or white smoke, fuel knock, hard starting or fuel in the oil. Pop test the old set before you condemn the pump. Replace them as a full set, one per cylinder, so every cylinder opens at the same pressure. Bosch 0432191391, 0432191628 and 0432191642 are different 8.3L injectors: they open at 300 to 314 bar and carry other Cummins numbers. Do not mix them with this one.

Specifications

Fits / Applications

• Cummins 6CTA 8.3L C series, engines that list injector 3802753 or 3928228
• Case IH 2166 combine, where the parts book lists injector J928228
• Case IH 8910 and 8930 Magnum tractors, where the parts book lists injector J928228
• Other Case IH machines with the Cummins 8.3L that list J928228
• Case IH has replaced J928228 with J930525, which is Bosch 0432191595
• Six per engine

Fit a new sealing washer under each injector and clean the bore first. Tighten the hold-down and the line nuts to the engine maker’s figures, bleed the lines, and check for leaks at the return connections. Change the fuel filters at the same time.

Part Numbers & Cross Reference

Bosch 0432191601  ·  Cummins 3802753  ·  Cummins 3928228  ·  Case IH J928228  ·  Bosch holder KBAL105P62

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

What numbers does the Bosch 0432191601 replace?

Cummins 3802753 and 3928228, and the older Case IH number J928228.

Can I use it in place of Bosch 0432191628 or 0432191642?

No. Those two open at 300 to 314 bar and replace different Cummins numbers. This one opens at 260 to 274 bar. Call 530-668-0818 with your engine serial number and CPL and we will match the right one.

Is the Bosch 0432191601 new or rebuilt, and is there a core?

It is a new Bosch nozzle and holder assembly, not a rebuild. It is sold outright, so there is no core to send back.

Which Case IH machines use it?

Catalogs list it for the 2166 combine and the 8910 and 8930 Magnum tractors with the Cummins 8.3L, under Case IH number J928228. Case IH has since replaced J928228 with J930525, which is Bosch 0432191595, so tell us which number your parts book shows.

Related Parts

• Cummins 6CT 8.3L C Series Mechanical Fuel Injector (3802486, 3928387) | Bosch 0432191628 New
• Cummins 6CT 8.3L & Case / Case IH Mechanical Fuel Injector | Bosch 0432191595 New (Cummins 3930525)
• Cummins 6CT 8.3L C Series Mechanical Fuel Injector (3926120, 3802485) | Bosch 0432191642 New
• Cummins ISC & ISL 8.9L HE300VG Turbo Actuator Kit | Holset 6382091HX Remanufactured
• Mechanical Diesel Injector Testing & Rebuild Service

Why Buy From Valley Fuel Injection

We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. We verify fitment against your engine serial, VIN or build date before anything ships, so the right part arrives the first time.
