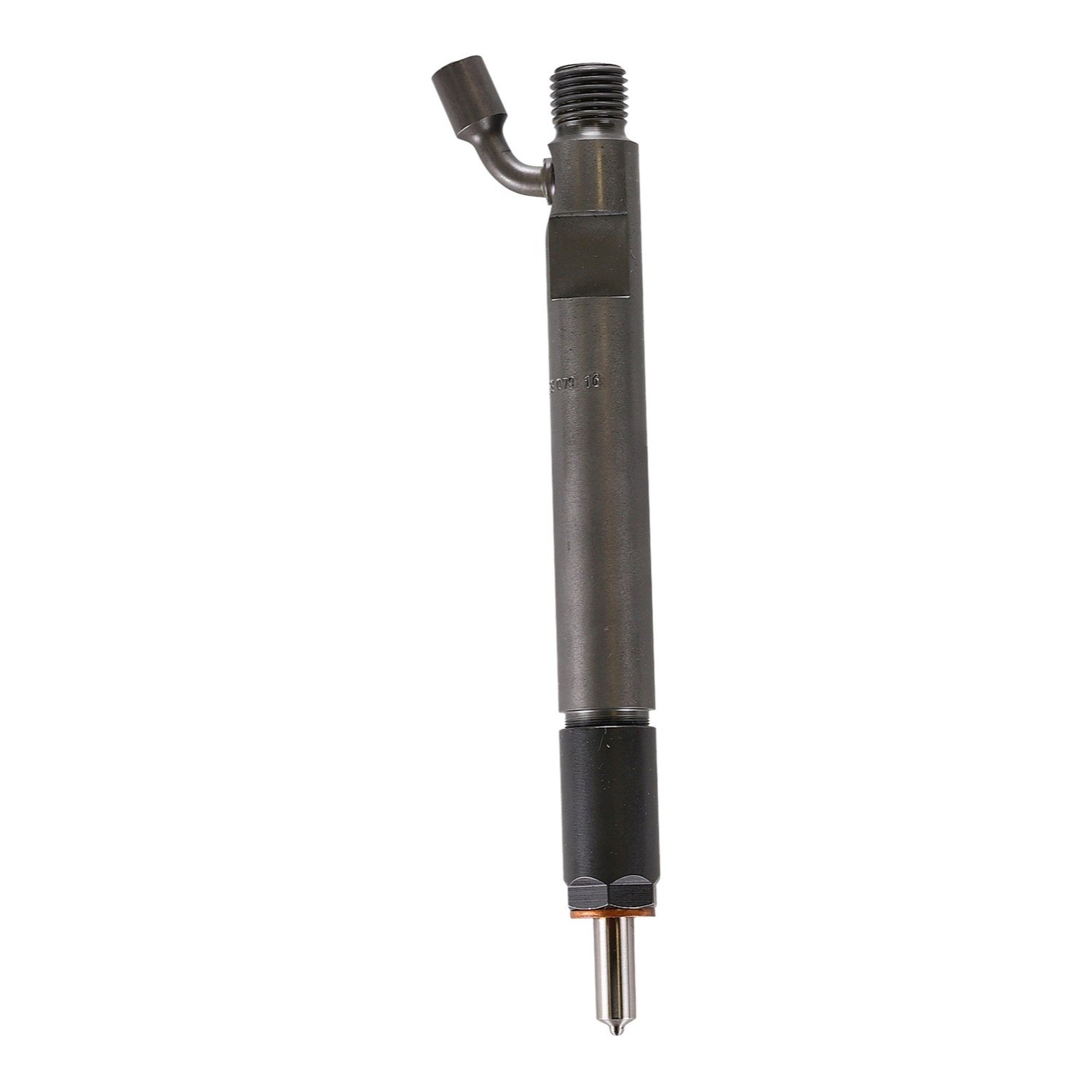

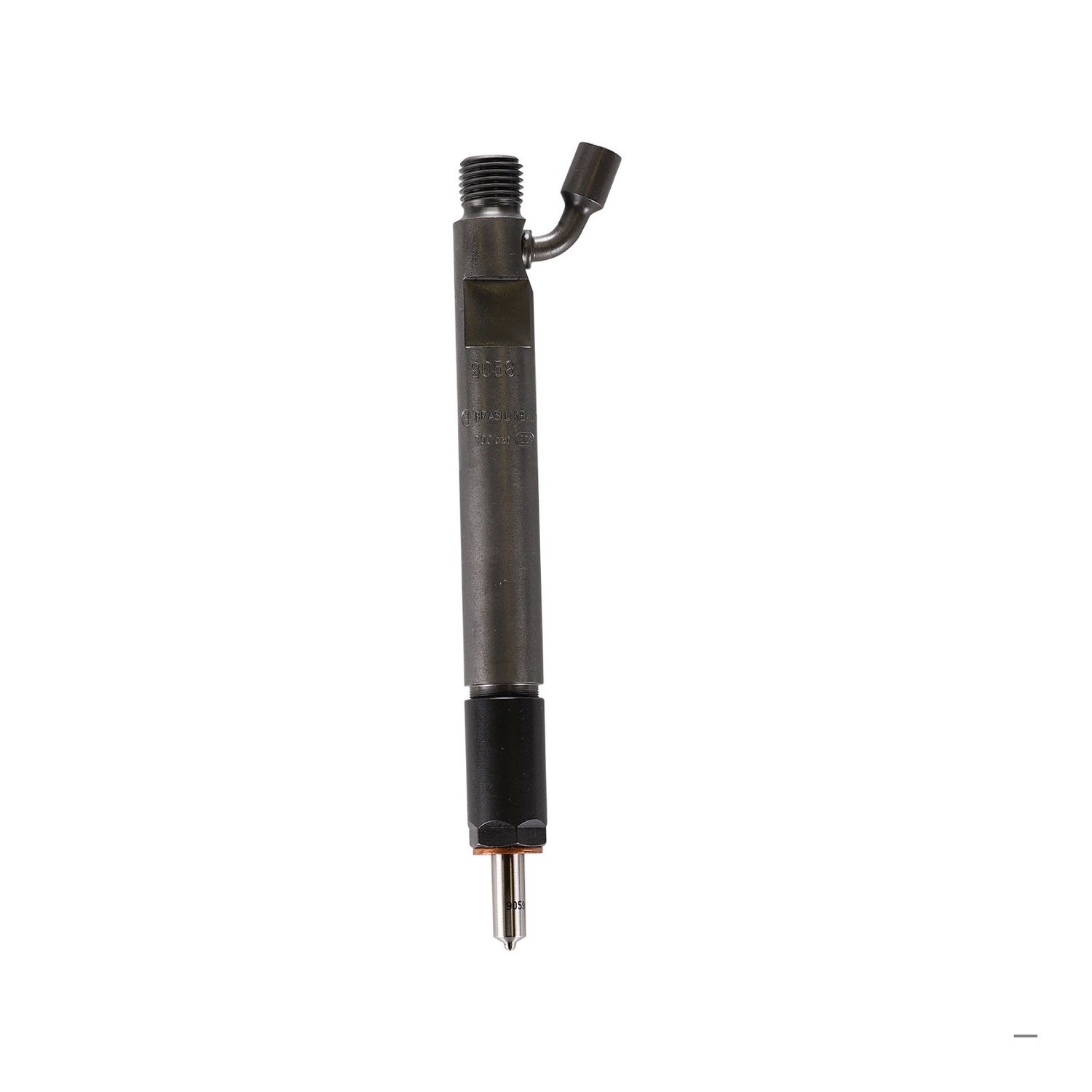

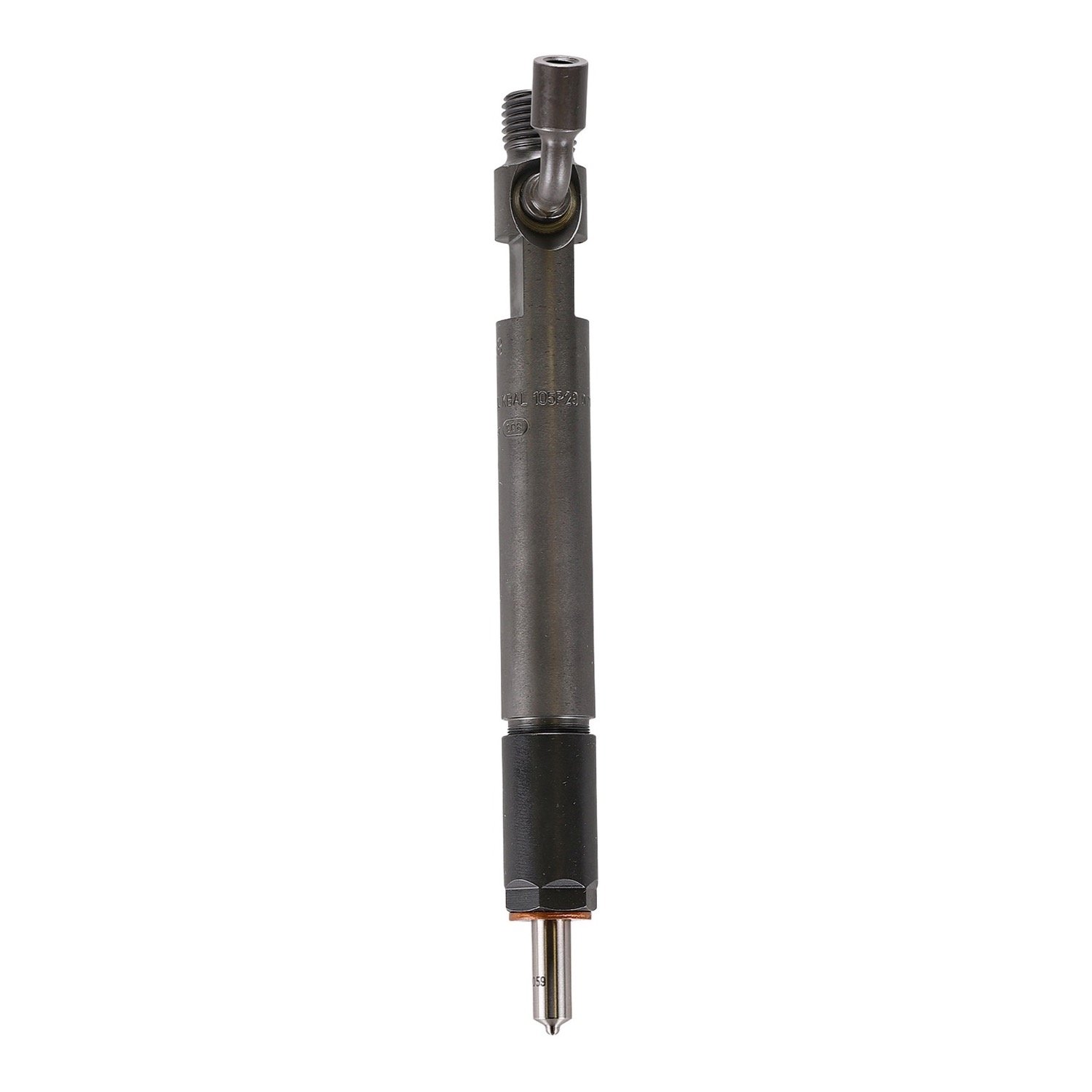

This is the Bosch 0432191740, a new mechanical fuel injector (nozzle and holder assembly) made by Bosch, not a rebuild. It is for the Cummins 6CTA 8.3L, the mechanical C Series six cylinder with the in-line Bosch injection pump. It replaces Cummins 3919058 and 3802288, and Case lists the same injector as J919058.

Some sellers file this number under ISC 8.3L. The catalogs that tie it to an engine build put it on the mechanical 6CTA, so order it by the Cummins number on your old injector, not by engine name alone. Electronic ISC 8.3L engines are listed with other injectors, such as Bosch 0432191426 (Cummins 3948529). A miss, white or gray smoke, a fuel knock or hard starting point at worn nozzles. The engine takes six injectors.

Specifications

Fits / Applications

• Cummins 6CTA 8.3L C Series engines with the in-line Bosch injection pump that use Cummins injector 3919058 or 3802288
• Case and Case IH machines whose parts book lists injector J919058
• Some sellers list it as ISC 8.3L: order by the Cummins number, not by the engine name
• Six injectors per engine

Fit a new sealing washer under each nozzle, keep the bore clean and torque the hold-down to the engine maker’s figure. Change the fuel filter at the same time.

Part Numbers & Cross Reference

Bosch 0432191740  ·  Cummins 3919058  ·  Cummins 3802288  ·  Case J919058  ·  Bosch holder type (shared with other 8.3L injectors) KBAL105P29

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which engine does the Bosch 0432191740 fit?

The Cummins 6CTA 8.3L, the mechanical C Series with the in-line Bosch pump, on builds that use injector 3919058 or 3802288. Some sellers call it an ISC 8.3L injector, so call 530-668-0818 with your engine serial number and CPL before you order.

What numbers does it replace?

Cummins 3919058 and 3802288, and Case J919058. The holder is marked KBAL105P29, but other 8.3L injectors carry that same marking, so go by the Cummins or Bosch number.

Is this the same as the Bosch 0432191426?

No. The 0432191426 crosses to Cummins 3948529 and 3943731 and is listed for electronic ISC 8.3L engines. This one crosses to 3919058 and 3802288.

Is it new, and do I send my old injector back?

It is a new injector made by Bosch. It is sold outright, so there is no core to return.
