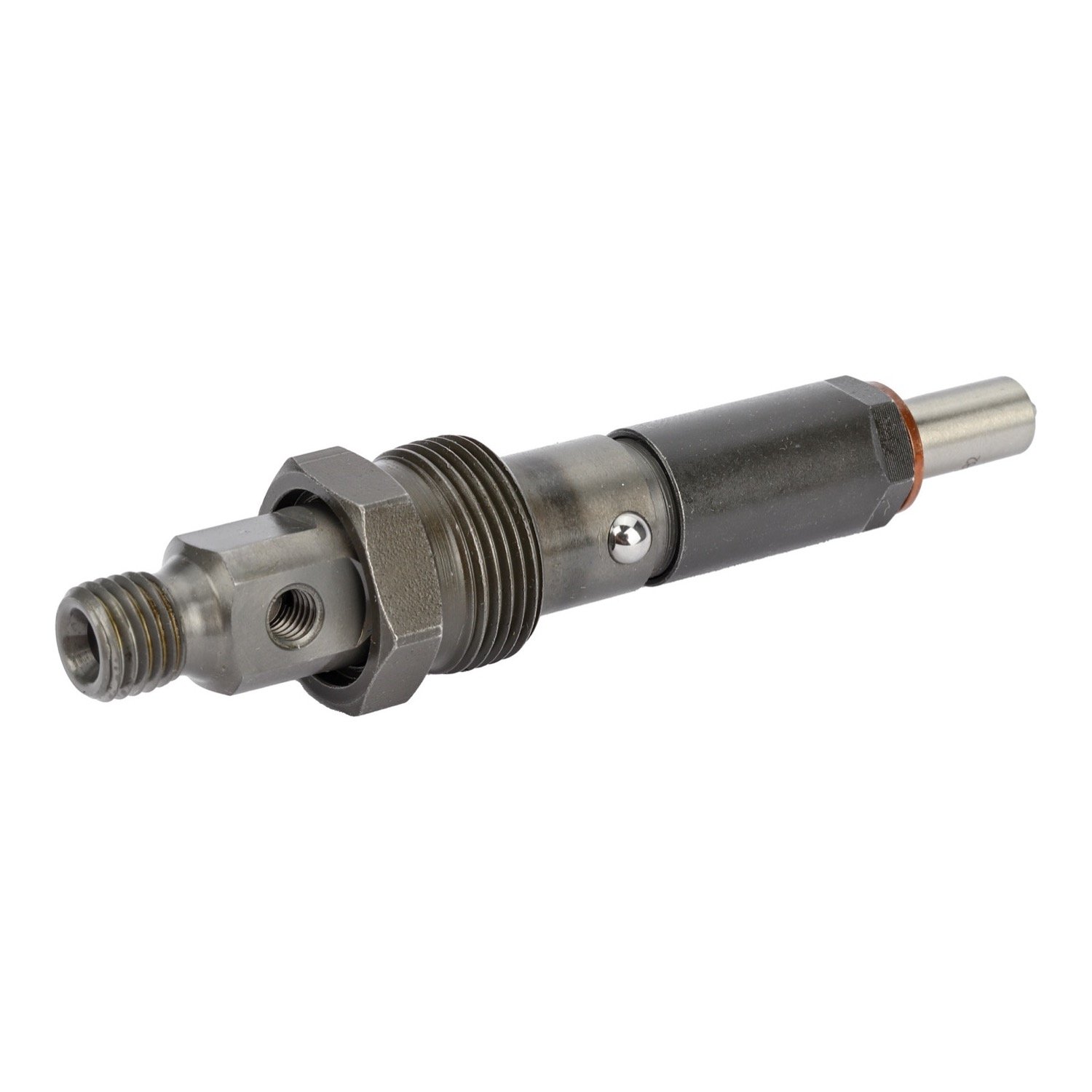

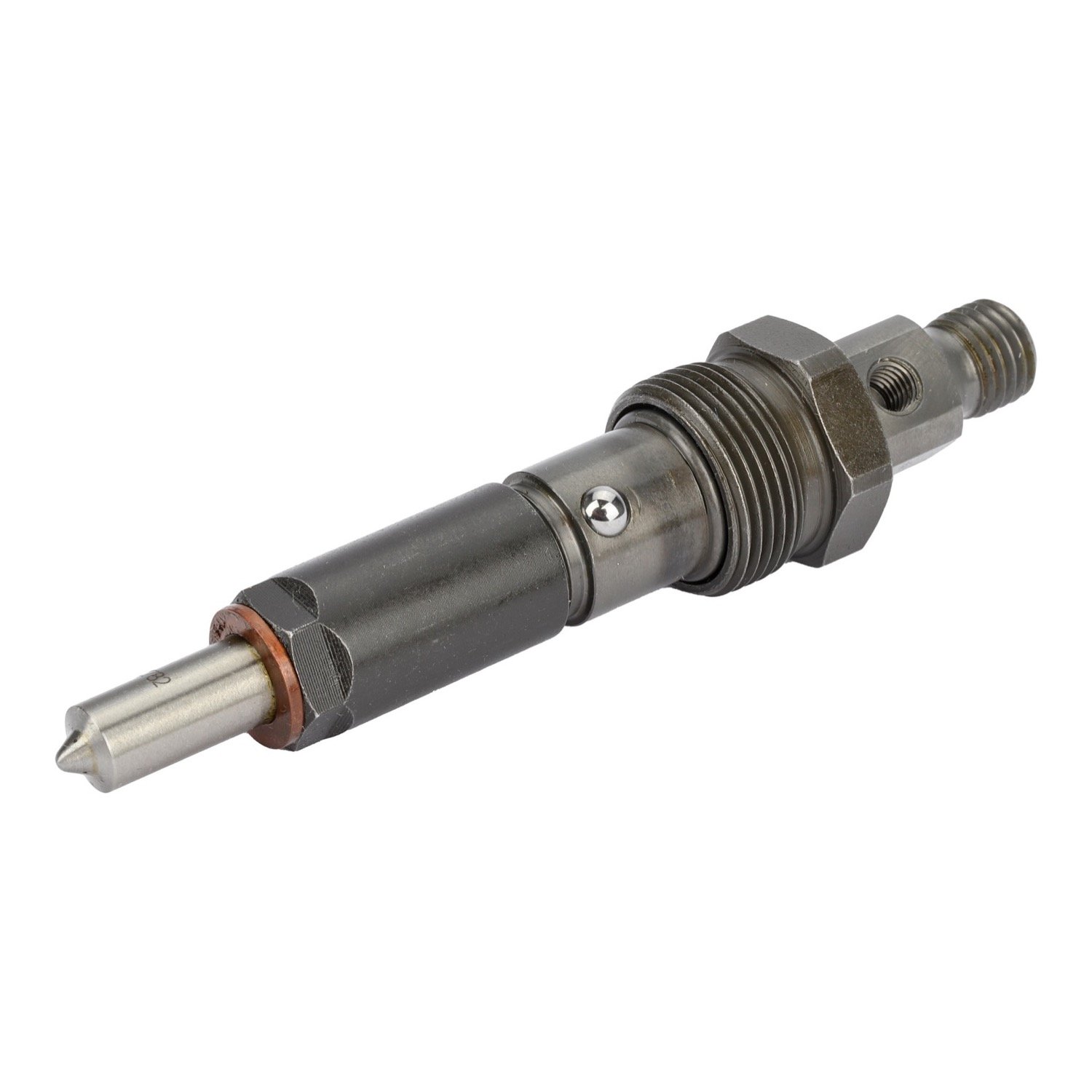

This is the Bosch 0432133888, a new nozzle and holder assembly, not a rebuild, for the first-generation Dodge 5.9L Cummins 12-valve without the factory intercooler. Catalogs list it for 1988 to 1991 trucks. Some print 1988 to 1993, but the intercooled engine took over partway through 1991. It is the 9 mm tip injector with the Bosch KDAL59P2 holder, and it crosses to Cummins 3909522 and 3905454, Cummins exchange number 3802038RX and Mopar R4429238. Opening pressure is 245 to 259 bar. It is sold outright, with no core to return.

Check the tip size before you order. Where the head takes 7 mm injectors, catalogs list Bosch 0432133874 instead, and the intercooled engine is listed with another 7 mm injector, Bosch 0432133877. A 7 mm injector does not seat in a 9 mm head without a chamber adapter, so match what the head takes. The 1994 to 1998 trucks with the inline pump take 0432133859, 0432133860 or 0432133844. Worn nozzles on these engines show up as black smoke, hard starting, a rough idle or fuel knock. Replace all six together.

Specifications

Fits / Applications

• 1988 to 1991 Dodge D250, D350, W250 and W350 with the 5.9L Cummins 12-valve, without the factory intercooler
• For heads that take the 9 mm tip injector. Engines with 7 mm injectors are listed under Bosch 0432133874 or, with the factory intercooler, Bosch 0432133877
• Six injectors per engine

This is the 9 mm tip injector. Make sure the head and sealing washers on your engine match it, clean the bores, use new washers and bleed the lines before start-up.

Part Numbers & Cross Reference

Bosch 0432133888  ·  Cummins 3909522  ·  Cummins 3905454  ·  Cummins exchange 3802038RX  ·  Mopar R4429238

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

How is the 0432133888 different from the 0432133877?

The 0432133888 has the 9 mm tip and is listed for the engine without the factory intercooler. The 0432133877 has a 7 mm tip and is listed for the intercooled engine. Match the tip size and the number on your old injector.

What numbers does the 0432133888 replace?

Cummins 3909522 and 3905454, Cummins exchange number 3802038RX and Mopar R4429238.

My non-intercooled engine has 7 mm injectors. Is this the right one?

This one has the 9 mm tip. Catalogs list the 7 mm injector for non-intercooled trucks under Bosch 0432133874, Cummins 3919347. Call 530-668-0818 with the number on your old injector and we will match it.

Is it new or rebuilt, and is there a core?

It is a new Bosch nozzle and holder assembly. It is sold outright, so there is no core to return.
