VP44 Injection System vs. Common Rail on Cummins: Years, Trucks & Technical Differences
Whether you’re diagnosing a fuel issue, planning an upgrade, or deciding which parts to buy, understanding the differences between the Bosch VP44 and Common Rail systems on Dodge Ram Cummins trucks will save time and money. This guide covers how each system works, the years/vehicles they came on, typical failure modes, and direct links to parts we carry at Valley Fuel Injection.
Bosch VP44 Overview (1998.5–2002 Ram 2500/3500, 5.9L 24-Valve Cummins)
The VP44 is an electronically controlled rotary distributor pump (Bosch PSG5 electronics) that meters and times fuel internally before distributing it sequentially to each injector.
- Applications: 1998.5–2002 Dodge Ram 2500/3500 with 5.9L ISB 24-valve (manual & automatic).
- Typical injection pressure: ~19,000–21,000 psi (stock).
- Strengths: Simple architecture vs. CR, good drivability, serviceable reman support.
- Common issues: Lift pump starvation → VP44 internal damage; PSG electronics failures; heat-related stress.
Quick fix that prevents big bills: Maintain adequate supply pressure/volume from the lift pump (monitor at the VP44 inlet). Starvation is the #1 VP44 killer.
Shop VP44 Pumps & Accessories
Bosch VP44 Reman (Popular) ·
Lift Pumps ·
Fuel Filters
Common Rail Overview (2003+ 5.9L & 6.7L Cummins)
Common Rail separates pressurization from injection: a high-pressure pump (e.g., Bosch CP3 on 2003–2018) feeds a shared rail; injectors fire electronically for precisely timed multiple events (pilot/main/post), improving NVH, emissions, and efficiency.
- Applications: 2003–2007 Ram 2500/3500 (5.9L CR); 2007.5–2018 6.7L CR (with DPF/EGR/SCR updates over time); later models continue with CR revisions.
- Rail pressure (stock): ~23,000–30,000+ psi depending on calibration.
- Strengths: Higher power potential, cleaner emissions, multiple injection events, quieter operation.
- Common issues: Injector return leakage, nozzle wear (fuel quality!), CP3/CP4 wear, contamination risk (keep it clean).
Shop Common Rail Injectors & Pumps
Injectors ·
CP3 Pumps ·
CP3 Conversion Kits (where applicable)

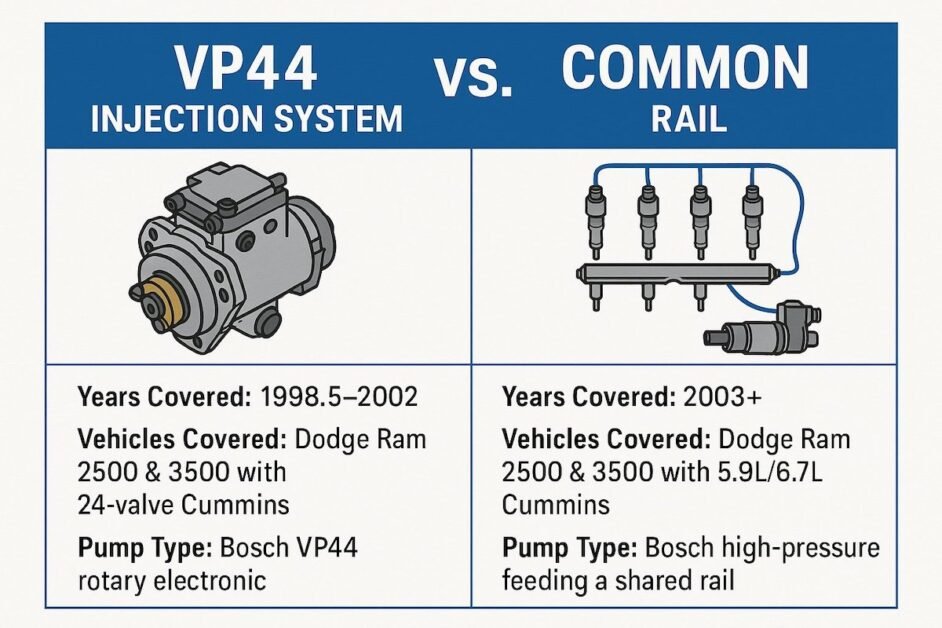

VP44 vs. Common Rail: Side-by-Side
| Feature | VP44 (1998.5–2002) | Common Rail (2003+) |
|---|---|---|
| Pump Type | Bosch VP44 rotary electronic (PSG5) | Bosch CP3/CP4 high-pressure pump feeding a shared rail |
| Pressure (stock) | ~19k–21k psi | ~23k–30k+ psi |
| Injection Strategy | Single main injection, sequential distribution | Multiple events (pilot/main/post) per cycle |
| Noise/Emissions | Louder; older emissions profiles | Quieter; cleaner, meets tighter standards |
| Tuning Headroom | Moderate; limited by VP44 capacity | High; injectors/rail pressure/turbos scale well |
| Common Failure Modes | Lift pump starvation; PSG electronics | Injector leakage/wear; CP3/CP4 wear; contamination |
| Parts to Watch | Lift pump, wiring/grounds, filtration | Filtration/water separation, injector return, high-pressure lines |
Shopping for parts? See our full diesel catalog or jump to VP44 or Common Rail.
Why Cummins Switched to Common Rail
By the early 2000s, OEMs faced tightening U.S. EPA emissions standards, while customers wanted better refinement and power. Common Rail’s ability to run higher pressure and multiple, precisely timed events enabled significant gains in emissions control, NVH (noise/harshness), and power density.
For background on system architecture and control philosophy, see Bosch’s official literature on modern diesel fuel systems: Bosch Diesel Systems. You can also reference Cummins’ platform timelines here: Cummins Diesel Engines.
Maintenance Tips & Popular Upgrades
For VP44 Trucks (1998.5–2002)
- Monitor and maintain lift pump pressure/flow; consider upgraded pumps for reliability.
- Keep filtration fresh; water and debris accelerate wear.
- Optimize grounds/wiring to protect PSG electronics.
Shop Lift Pumps · Fuel Filters · Reman VP44 Pumps
For Common Rail Trucks (2003+)
- Use high-quality fuel filtration & water separation; contamination is costly.
- Watch injector return rates and rail pressure performance; diagnose early.
- Plan supporting mods (air, exhaust, fueling) if tuning for higher output.
Shop Common Rail Injectors · Bosch CP3 Pumps · CP3 Conversion Kits
FAQ: VP44 vs. Common Rail
What years used the Bosch VP44 on Dodge Ram Cummins?
1998.5–2002 Ram 2500/3500 with the 24-valve 5.9L Cummins ISB.
Which years are Common Rail on Cummins Rams?
2003–2007 (5.9L CR), then 2007.5–2018 (6.7L CR with emissions systems), with further CR developments on newer models.
Is Common Rail better than VP44?
For emissions, refinement, and power scalability—yes. VP44 systems are simpler and can be very reliable when the lift pump and filtration are maintained.
Why do VP44 pumps fail?
Low supply pressure/flow from a failing lift pump is the most common root cause; heat and electronics (PSG) failures are also common.
What’s a good “first upgrade” on a VP44 truck?
An upgraded lift pump and fresh filtration to protect the VP44.
What’s the stock rail pressure on Common Rail?
~23,000–30,000+ psi depending on model year and calibration.
Which high-pressure pump do Common Rail trucks use?
Most 2003–2018 Cummins use the Bosch CP3. Some later applications used CP4; many owners opt for CP3 conversions.
Where can I buy VP44 or Common Rail parts?
Right here at VFI: VP44 catalog · Common Rail catalog · Full shop.
