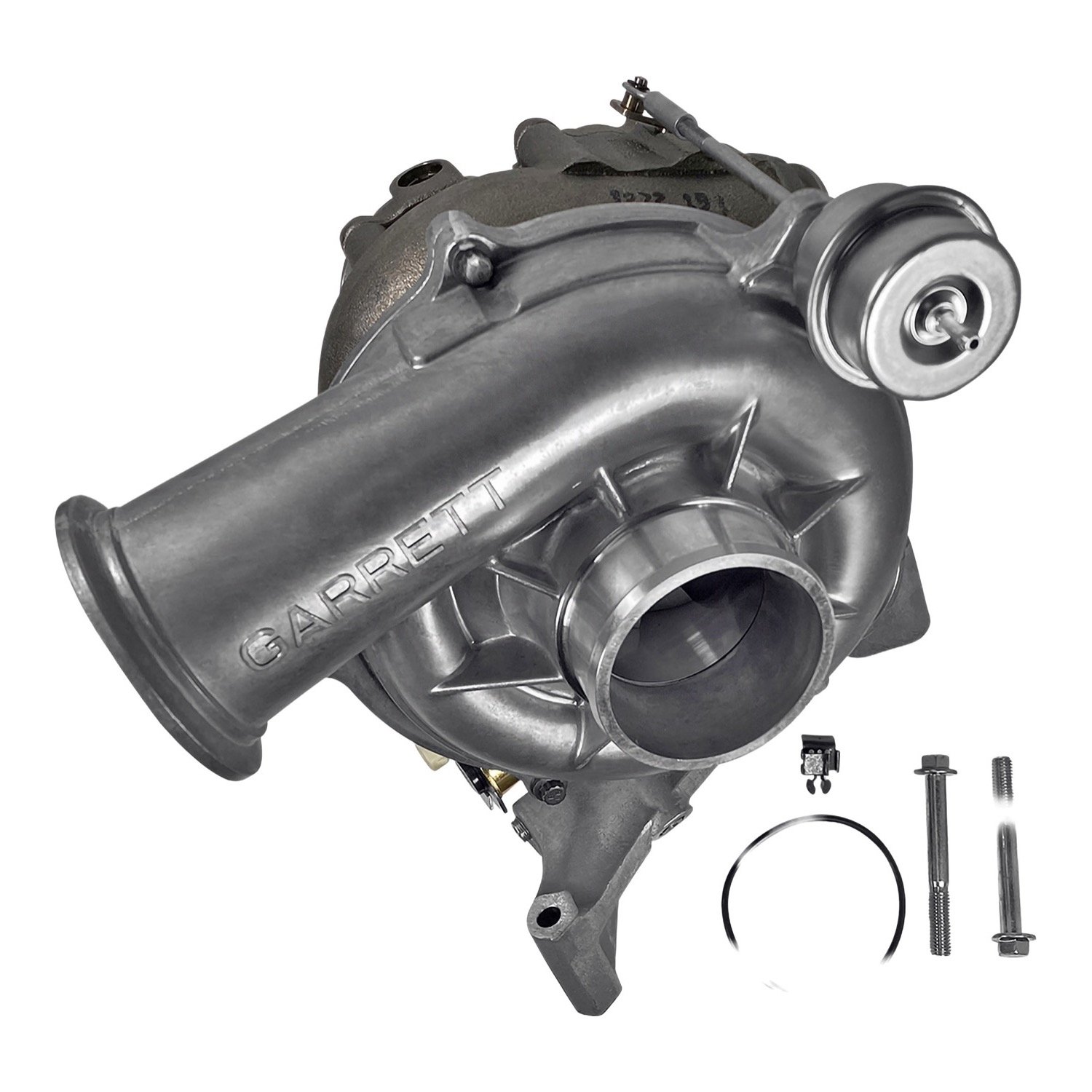

This is the Garrett 702012-5012S, a new GTP38 turbocharger made by Garrett, the original turbo maker for the 7.3L Power Stroke. It fits the 1999.5 to 2003 Ford 7.3L Power Stroke in Super Duty trucks and the Excursion, and comes as an assembly with the turbo pedestal and the exhaust back pressure valve (EBPV). It replaces Navistar 1831383C92, 1831383C93, 1831383C94, 1831450C94 and 1831457C91, Ford F81Z-6K682-BARM, and the older Garrett numbers 702012-0012 and 706447-5003.

Most of these come off for shaft play, oil leaking at the pedestal, low boost, or an EBPV that sticks or leaks oil from the pedestal actuator. Because the pedestal and EBPV come with this assembly, it also takes care of a leaking pedestal in one job.

Specifications

Fits / Applications

• 1999.5 to 2003 Ford Super Duty, 7.3L Power Stroke
• Ford Excursion, 7.3L Power Stroke
• Supplied with the turbo pedestal and exhaust back pressure valve (EBPV)
• Does not fit 1994 to 1997 trucks or early 1999 Super Duty trucks

Fit new O-rings between the pedestal and the block, check the up-pipes and their joints for exhaust leaks, and clean the intercooler and boots of oil before the first start. Change the engine oil and filter.

Part Numbers & Cross Reference

Garrett 702012-5012S  ·  Garrett 702012-5012  ·  Garrett (older number) 706447-5003  ·  Garrett (older number) 706447-0003  ·  Garrett (older number) 702012-0012  ·  Garrett (older number) 702012-0006  ·  Garrett (older number) 702012-5006S  ·  Garrett (older number) 702012-5010S  ·  Navistar 1831383C92  ·  Navistar 1831383C93  ·  Navistar 1831383C94  ·  Navistar 1831450C94  ·  Navistar 1831457C91  ·  Ford F81Z-6K682-BARM  ·  Garrett remanufactured version 702012-9012

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does the 702012-5012S come with the pedestal and the exhaust back pressure valve?

Yes. It is the complete Garrett assembly with the turbo pedestal and the EBPV, for the 1999.5 to 2003 7.3L.

Will it fit my early 1999 7.3L Super Duty?

This turbo is for the 1999.5 to 2003 engine. Early 1999 trucks, built before the December 1998 change, take a different turbo, so call 530-668-0818 with your build date or the number on your old turbo and we will match it.

What numbers does the 702012-5012S replace?

Navistar 1831383C92, 1831383C93, 1831383C94, 1831450C94 and 1831457C91, Ford F81Z-6K682-BARM, and the older Garrett numbers 702012-0012, 702012-0006 and 706447-5003.

Is it new or remanufactured?

It is a new GTP38 turbocharger made by Garrett, not a rebuild.
