2004.5-2010 Chevy/GMC 6.6L Duramax LLY LBZ LMM GT3788VA Turbocharger | Garrett 848212-9001S Remanufactured

$1,140.00

In stock

Usually ships within 24 hours

This will also add the following products to your cart:

  • Core Charge - Garrett 848212-9001S (Refundable) - $300.00

View Core Charge & Return Policy

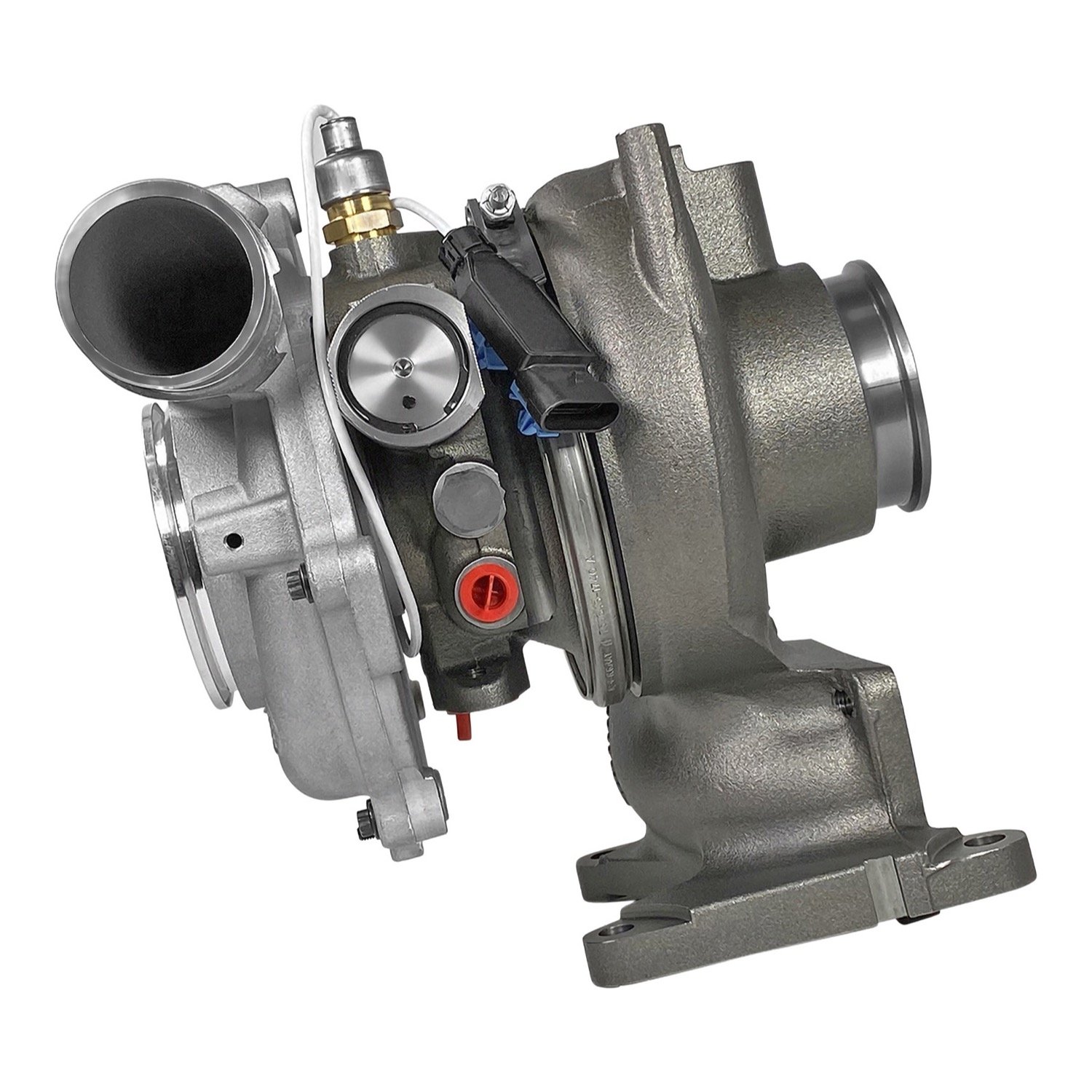

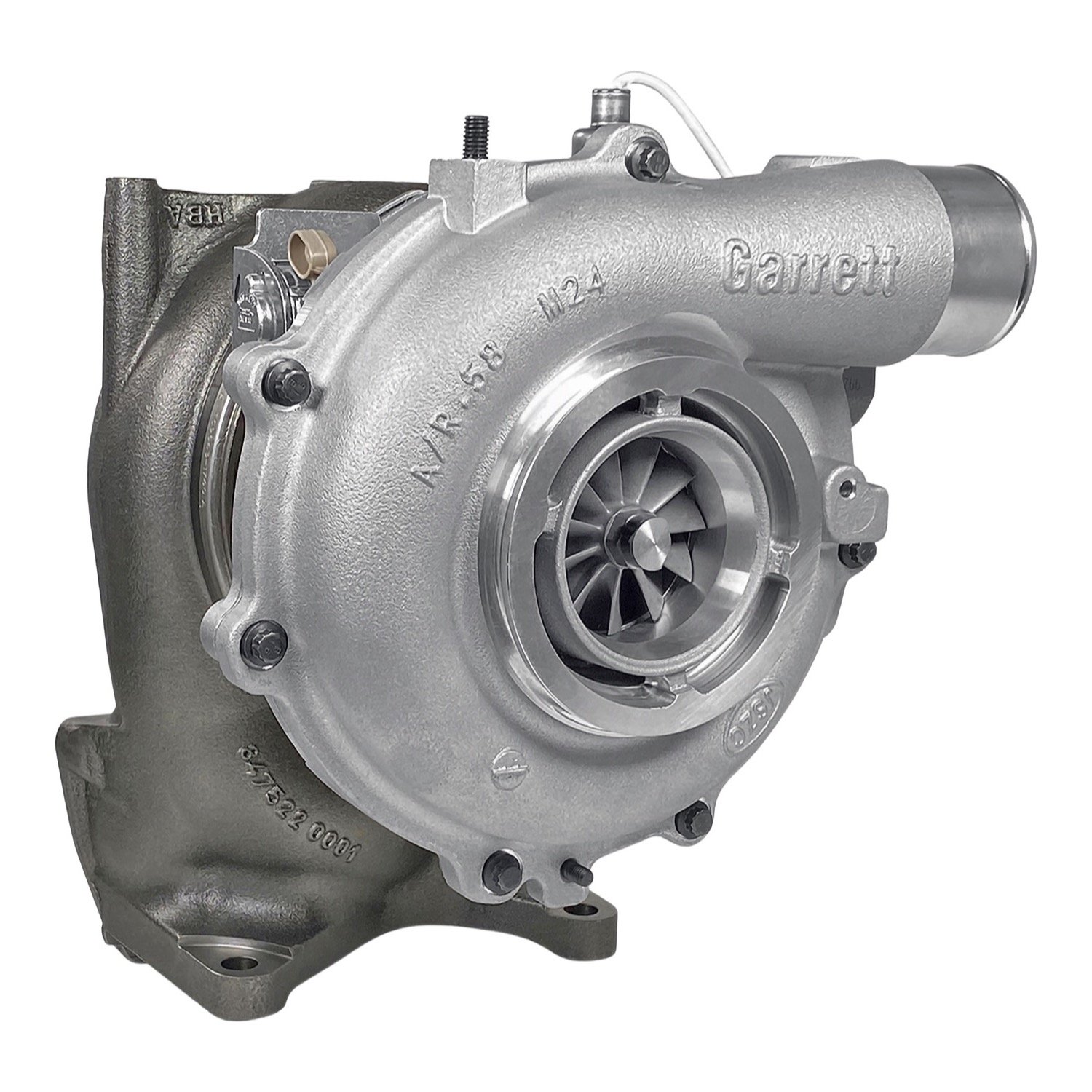

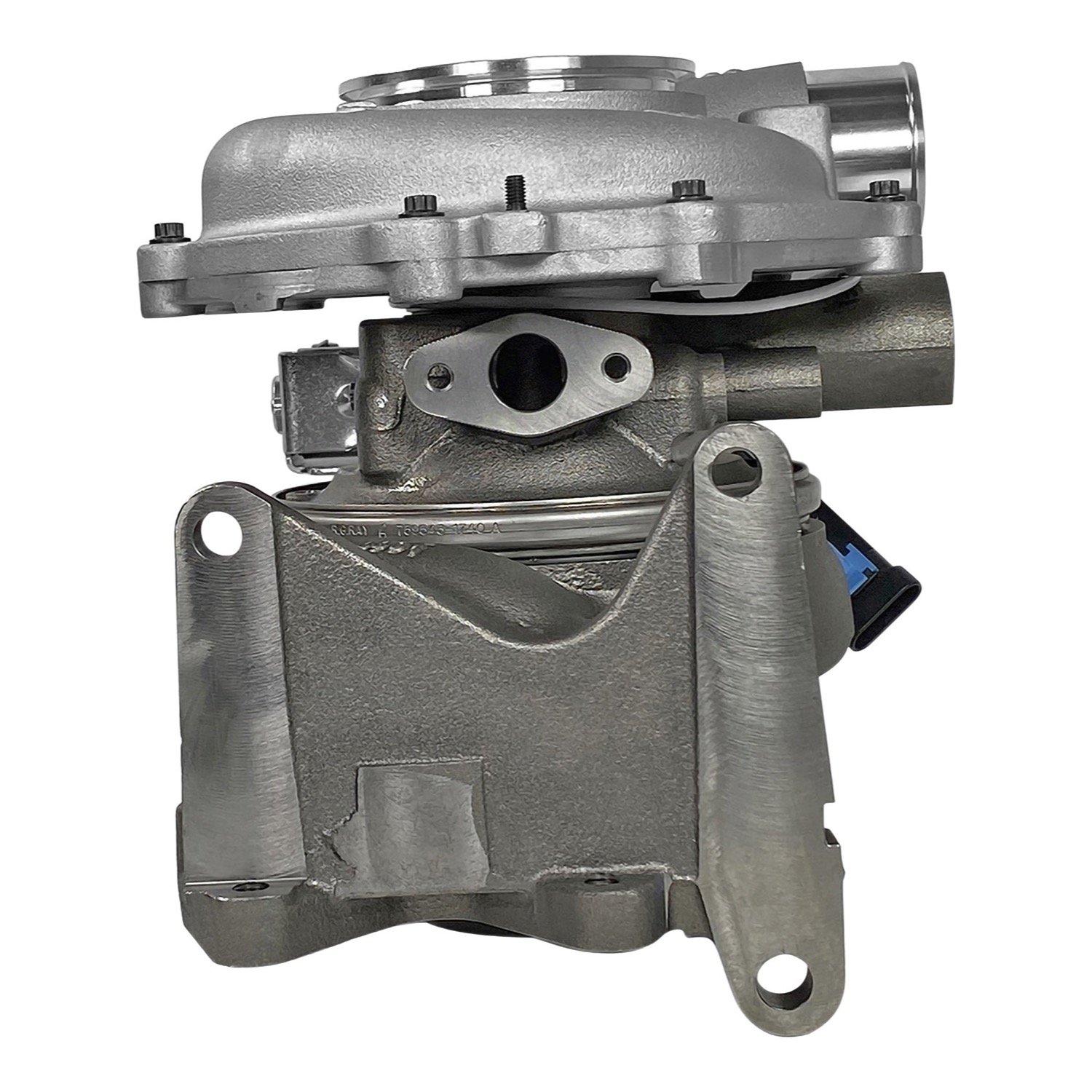

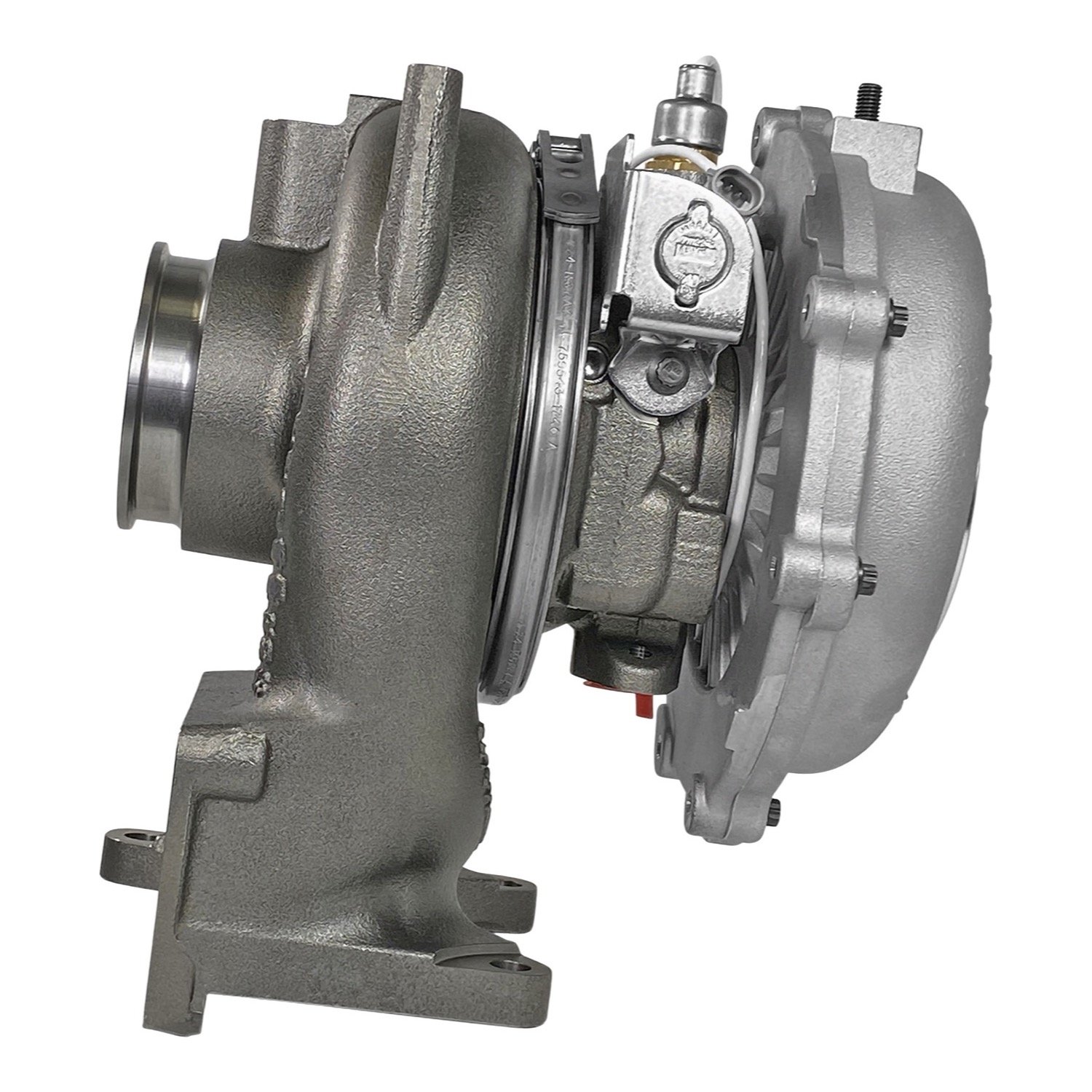

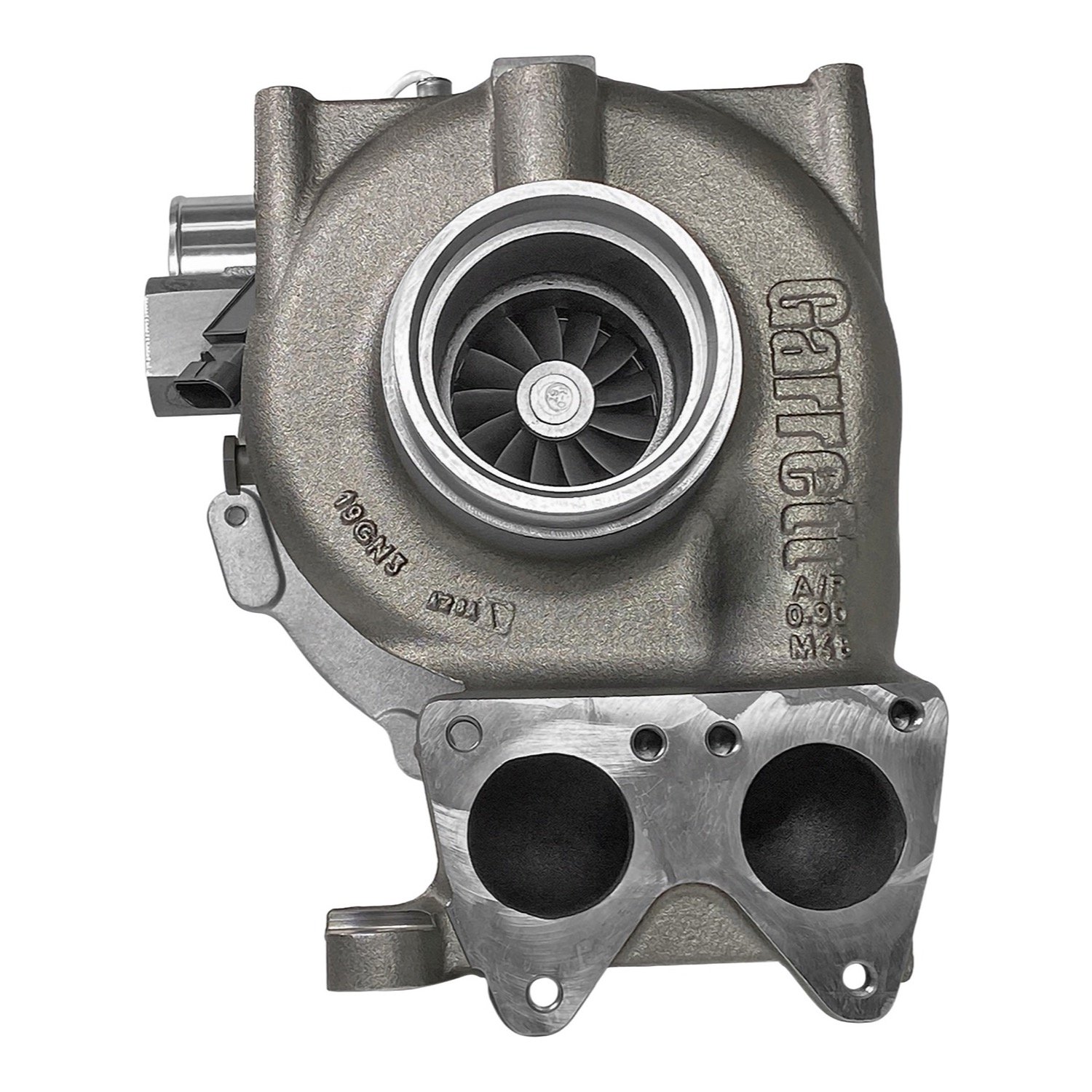

This is the Garrett 848212-9001S, a turbocharger remanufactured by Garrett for the 2004.5 to 2010 Chevrolet and GMC 6.6L Duramax: the LLY, the LBZ and the LMM. It is the stock replacement GT3788VA variable vane turbo and it comes with the VGT actuator (the vane control solenoid) and the vane position sensor fitted. It fits Silverado and Sierra 2500HD and 3500 trucks and 2006 to 2010 Express and Savana vans with the 6.6L Duramax. It replaces GM 12639460, 98011735 and 97387896 and the earlier Garrett 736554, 759622 and 790032 series turbos. A refundable core applies. The new Garrett version of the same turbo is 848212-5001S.

Sticking vanes, a vane position code, low boost, slow spool, oil in the intake or shaft play are the usual reasons these come off. Find out why the old one failed before the new one goes on: check the oil feed and drain, the air filter and the intake tract. The 2004.5 to 2005 LLY also needs the Garrett vane position sensor adapter harness, 771864-0001, which is a separate part. Gaskets are not in the box, so order the install kit with the turbo.

Confirm Fitment Before You Order

One turbo covers the LLY, LBZ and LMM, but the 2004.5 to 2005 LLY needs adapter harness 771864-0001. On a 2006 LLY or a van, send us the VIN so we can check the sensor plug. It does not fit the 2001 to 2004 LB7 or the 2011 to 2016 LML and LGH. Send us your VIN or the eighth VIN digit and the number on the tag of your old turbo. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.

Specifications

Part number848212-9001S
BrandGarrett
ConditionRemanufactured
WarrantyManufacturer’s own warranty applies. Call us and we handle the claim.
TypeVariable vane (VGT) turbocharger, stock replacement, remanufactured by Garrett
Turbo modelGarrett GT3788VA
EngineGM 6.6L Duramax LLY, LBZ and LMM
Model years2004.5 to 2010
VehiclesSilverado and Sierra 2500HD and 3500, Express and Savana vans
IncludedVGT actuator (vane control solenoid) and vane position sensor
Not includedMounting gaskets and seals
LLY adapterGarrett 771864-0001 needed on 2004.5 to 2005 LLY, not included
Core chargeRefundable in full when we receive your rebuildable core
Shipping weight58 lb

Fits / Applications

  • 2004.5 to 2005 Chevrolet Silverado and GMC Sierra 2500HD and 3500, 6.6L Duramax LLY (needs vane position sensor adapter 771864-0001)
  • 2006 to 2007 Chevrolet Silverado and GMC Sierra 2500HD and 3500, 6.6L Duramax LBZ and the 2006 LLY
  • 2007.5 to 2010 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD, 6.6L Duramax LMM
  • 2006 to 2010 Chevrolet Express and GMC Savana 2500 and 3500 vans with the 6.6L Duramax
  • Not for the 2001 to 2004 LB7 and not for the 2011 to 2016 LML or LGH

On a 2004.5 to 2005 LLY, fit the Garrett vane position sensor adapter harness 771864-0001 between the truck harness and the new sensor. Gaskets are not in the box: catalogs list the Alliant Power AP0162 turbo install kit for these trucks, and we can confirm the kit for an LBZ. Use a clean oil feed line and prime the turbo with clean engine oil before the first start.

Part Numbers & Cross Reference

Garrett 848212-9001S  Â·  GM 12639460  Â·  GM 98011735  Â·  GM 97387896  Â·  GM earlier number 98065854  Â·  GM earlier number 98003366  Â·  GM earlier number 97376376  Â·  GM 98021617  Â·  GM 12626103  Â·  GM 12627266  Â·  GM 12632474  Â·  GM 12632475  Â·  GM 12635330  Â·  GM 12635331  Â·  GM remanufactured turbo 19329916  Â·  GM / Isuzu 10 digit number 8973878962  Â·  GM / Isuzu 10 digit number 8973868233  Â·  GM / Isuzu 10 digit number 8973868223  Â·  GM / Isuzu 10 digit number 8973868221  Â·  GM / Isuzu 10 digit number 8973868220  Â·  GM / Isuzu 10 digit number 8973525646  Â·  GM / Isuzu 10 digit number 8973525645  Â·  GM / Isuzu 10 digit number 8973525644  Â·  GM / Isuzu 10 digit number 8973525643  Â·  GM / Isuzu 10 digit number 8973525641  Â·  GM / Isuzu 10 digit number 8973525640  Â·  GM / Isuzu 10 digit number 8980033661  Â·  GM / Isuzu 10 digit number 8980117351  Â·  Garrett earlier number 736554-0015  Â·  Garrett earlier number 759622-0005  Â·  Garrett earlier number 790032-0004  Â·  Garrett new version 848212-5001S

100TBC562S
12636330
1700250350
1700251589
1700702635
19329915
2T105
57739900004
7358PP
848212-0001
8973525642
897352564C
8973527060
8973527061
8973527064
8973527065
8973527066
8973527067
897352706C
8973711050
8973711051
8973711052
8973711053
8973711054
8973711055
8973763760
8973868230
8973868231
8973878960
8973878963
8973878965
8980023890
8980023891
8980023892
8980023893
8980023894
8980023895
8980033660
8980033662
8980033664
8980117350
8980117352
8980117353
8980117354
8980216170
8980216171
8980216172
8980216173
8980216174
8980385680
8980385681
8980385683
8980658540
8980658541
8980658542
8980658543
97352564
97352706
97371105
98002389
98100735
BBBD3004
BBBD3008
BBBD3010
D3004
D3008
D3010
DA2251078
DA2251079
DA2251082
DT660028

Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 848212-9001S fit my LLY, LBZ or LMM Duramax?

Yes. It covers the 2004.5 to 2010 6.6L Duramax LLY, LBZ and LMM in Silverado and Sierra 2500HD and 3500 trucks and in 2006 to 2010 Express and Savana vans. It does not fit the 2001 to 2004 LB7 or the 2011 to 2016 LML and LGH.

What extra parts does it need?

The 2004.5 to 2005 LLY needs the Garrett vane position sensor adapter harness, 771864-0001, which is a separate part. Gaskets are not in the box either, so order the install kit with the turbo.

What numbers does the 848212-9001S replace?

GM 12639460, 98011735 and 97387896, the older GM numbers 98065854, 98003366 and 97376376, and the earlier Garrett turbos 736554-0015, 759622-0005 and 790032-0004.

Is it new or remanufactured, and is there a core?

It is remanufactured by Garrett and comes with the VGT actuator and vane position sensor fitted. A refundable core applies. The new version of the same turbo is 848212-5001S.
