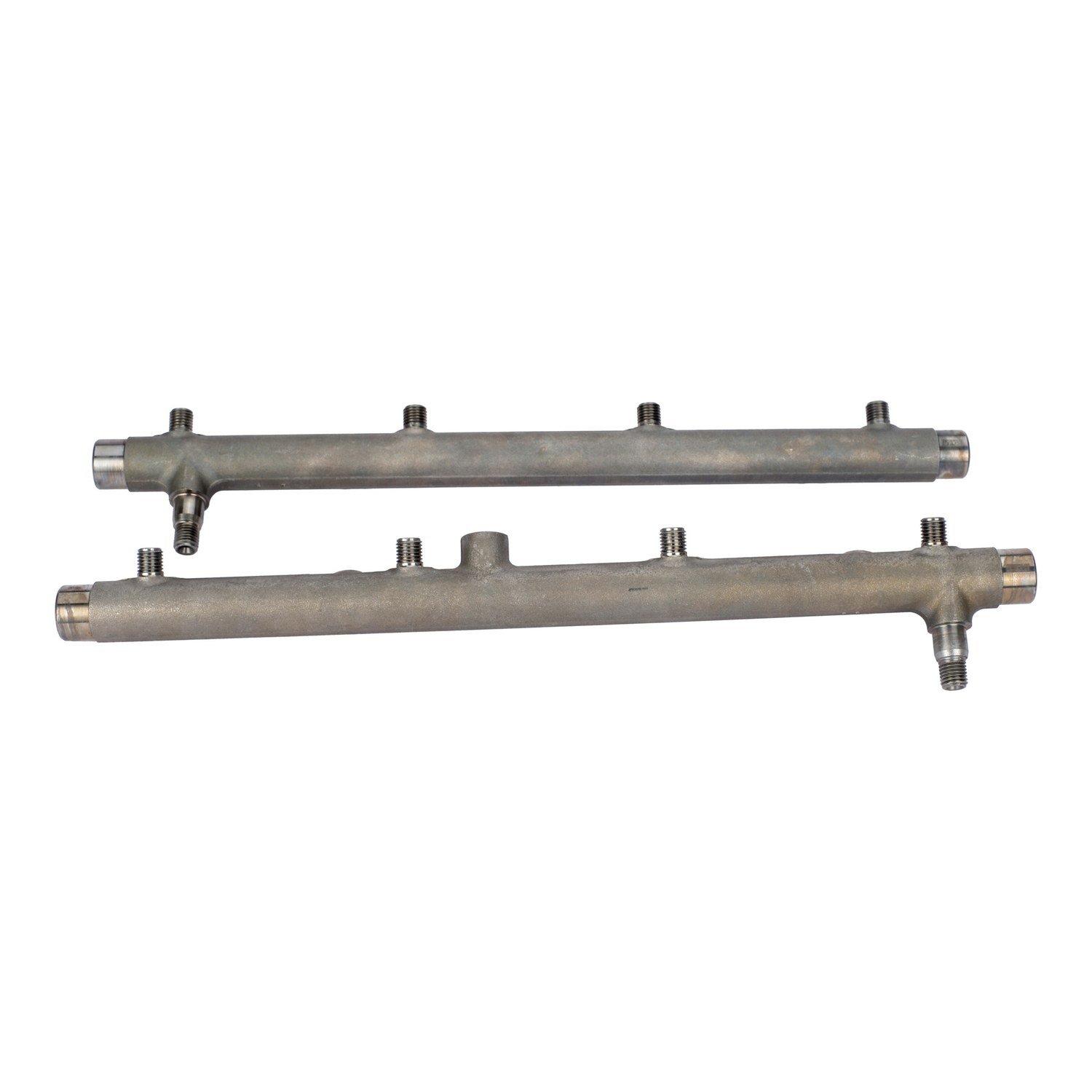

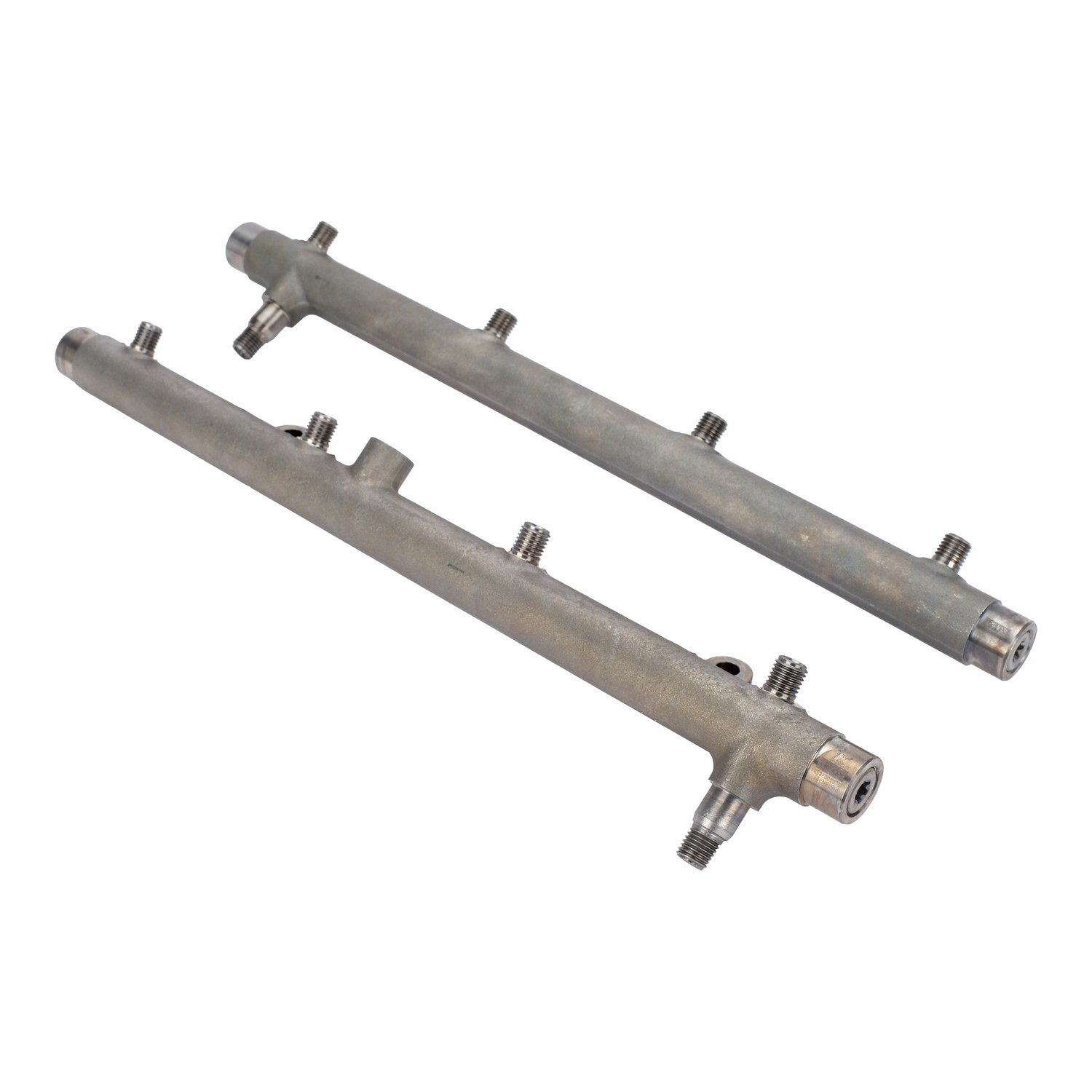

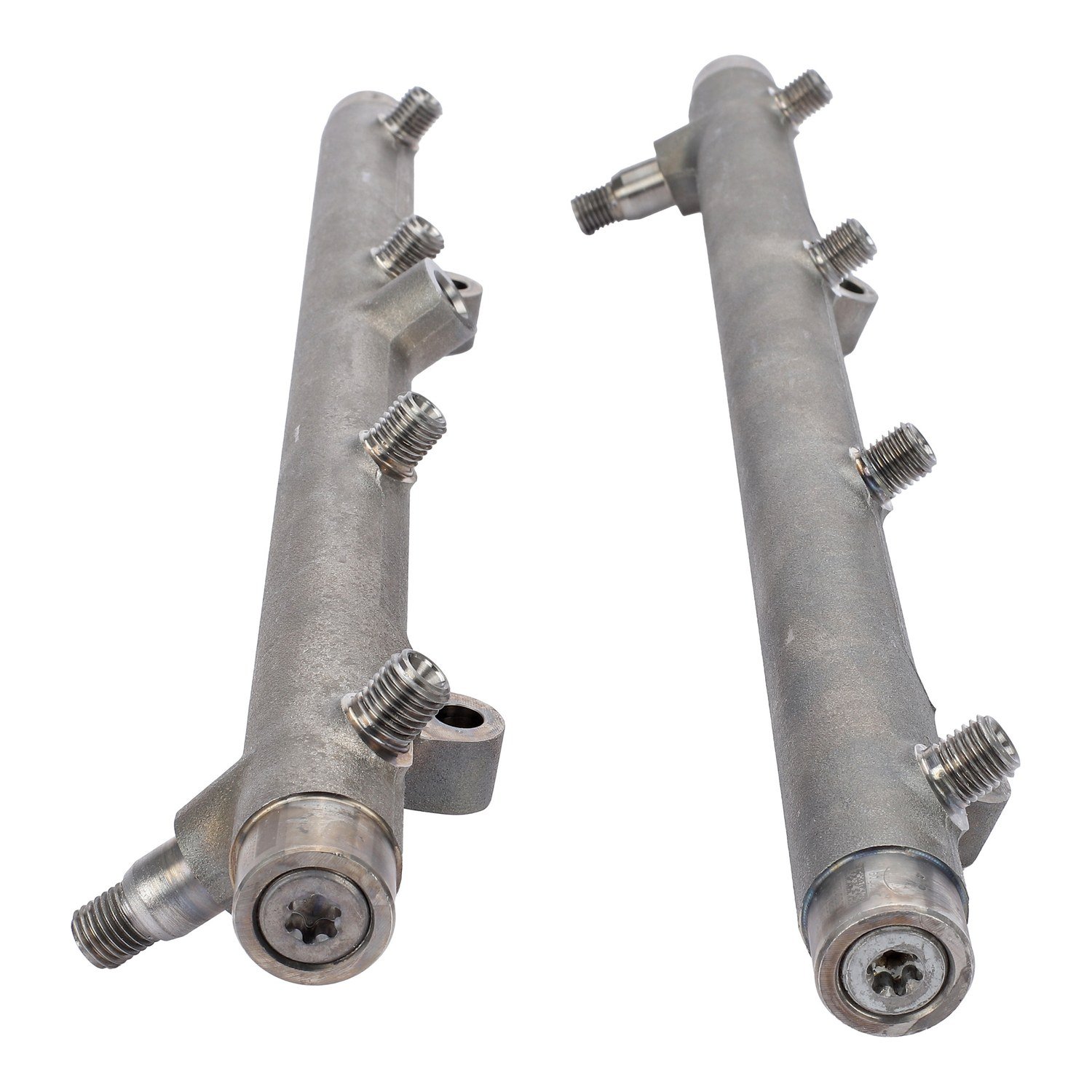

This is the Alliant Power remanufactured fuel rail set for the Ford 6.4L Power Stroke V8. The set is two high-pressure rails, one for the driver side and one for the passenger side. It fits 2008 through 2010 F-250, F-350, F-450 and F-550 Super Duty trucks and replaces the Ford rail kit 8C3Z-9T287-CRM (earlier number 8C3Z-9T287-CA).

Rails are commonly replaced during a fuel system contamination repair after a high-pressure pump failure, or when a rail has a damaged line seat or sensor port. The rails come bare. One rail has the threaded port for the rail pressure sensor, which on the 6.4L sits in the passenger side rail under the valve cover. The sensor itself is not included. Ford’s own service part for these rails is a remanufactured kit as well.

Specifications

Fits / Applications

• 2008-2010 Ford F-250 Super Duty, 6.4L Power Stroke
• 2008-2010 Ford F-350 Super Duty, 6.4L Power Stroke
• 2008-2010 Ford F-450 Super Duty, 6.4L Power Stroke
• 2008-2010 Ford F-550 Super Duty, 6.4L Power Stroke

Both rails mount under the valve covers. Move the rail pressure sensor over from the old passenger side rail or fit a new one, and tighten it to the Ford specification. Keep every port capped until the lines go on. If the rails are being replaced because the high-pressure pump failed, deal with the rest of the high-pressure side at the same time, or leftover debris can damage the new parts.

Part Numbers & Cross Reference

Alliant Power AP63669  ·  Ford (remanufactured rail kit) 8C3Z-9T287-CRM  ·  Ford (earlier number) 8C3Z-9T287-CA

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does the AP63669 set include both fuel rails?

Yes. The set is two remanufactured high-pressure rails, one driver side and one passenger side, for the 2008 to 2010 Ford 6.4L Power Stroke.

Is the rail pressure sensor included?

No. The rails come bare. One rail has the threaded sensor port, and on the 6.4L the sensor sits in the passenger side rail under the valve cover. Reuse your sensor or fit a new one.

What Ford numbers does AP63669 replace?

It replaces Ford 8C3Z-9T287-CRM, the remanufactured fuel rail kit, and the earlier number 8C3Z-9T287-CA. Ford lists that kit for 2008 to 2010 F-250, F-350, F-450 and F-550 Super Duty with the 6.4L.

Is this set new or remanufactured, and is there a core?

It is remanufactured by Alliant Power, and there is a core: your old rail set comes back to us. If you want to check fit first, call 530-668-0818 with your VIN.
