2011-2016 Chevy/GMC 6.6L Duramax LML GT3788VA Turbocharger | Garrett 848212-5002S New

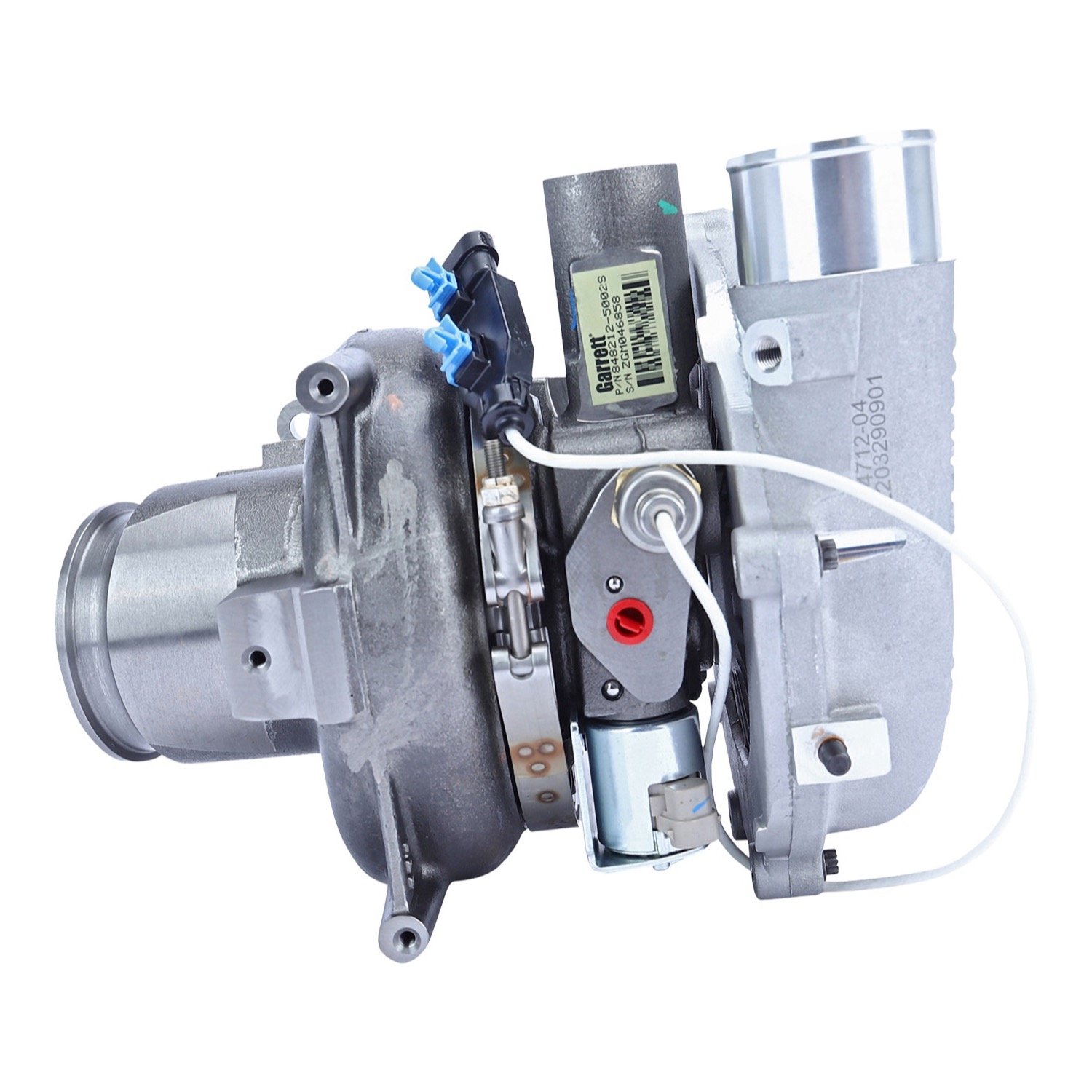

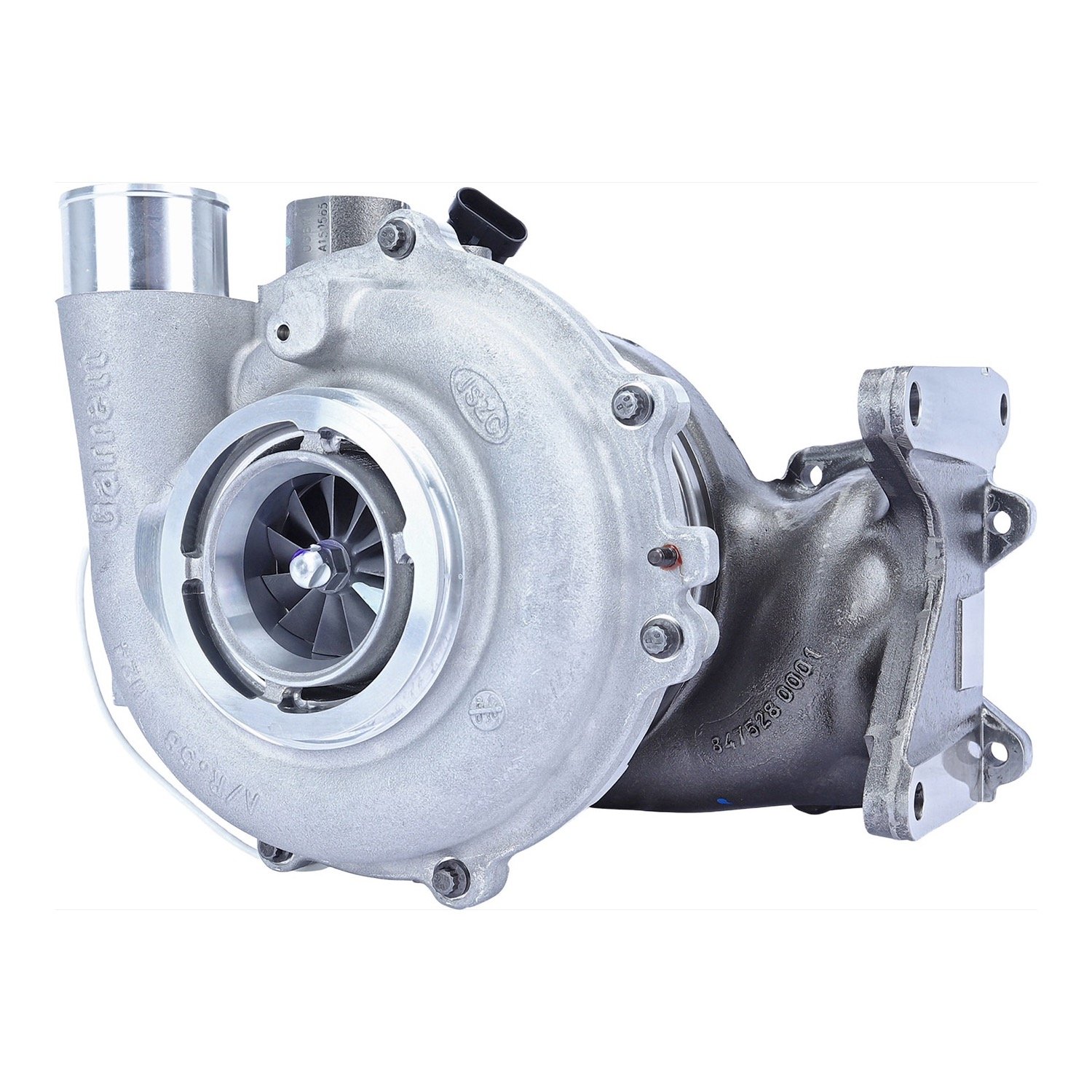

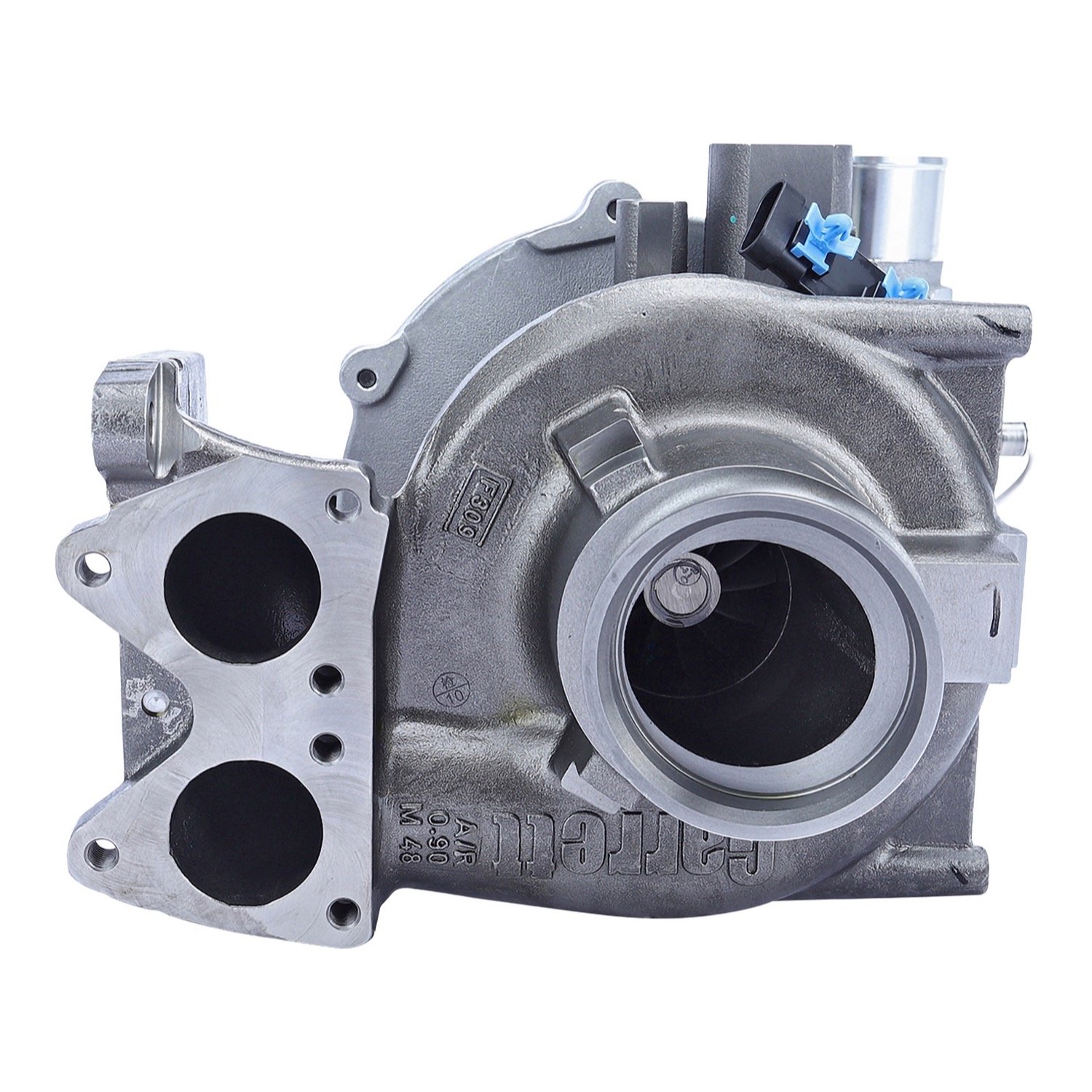

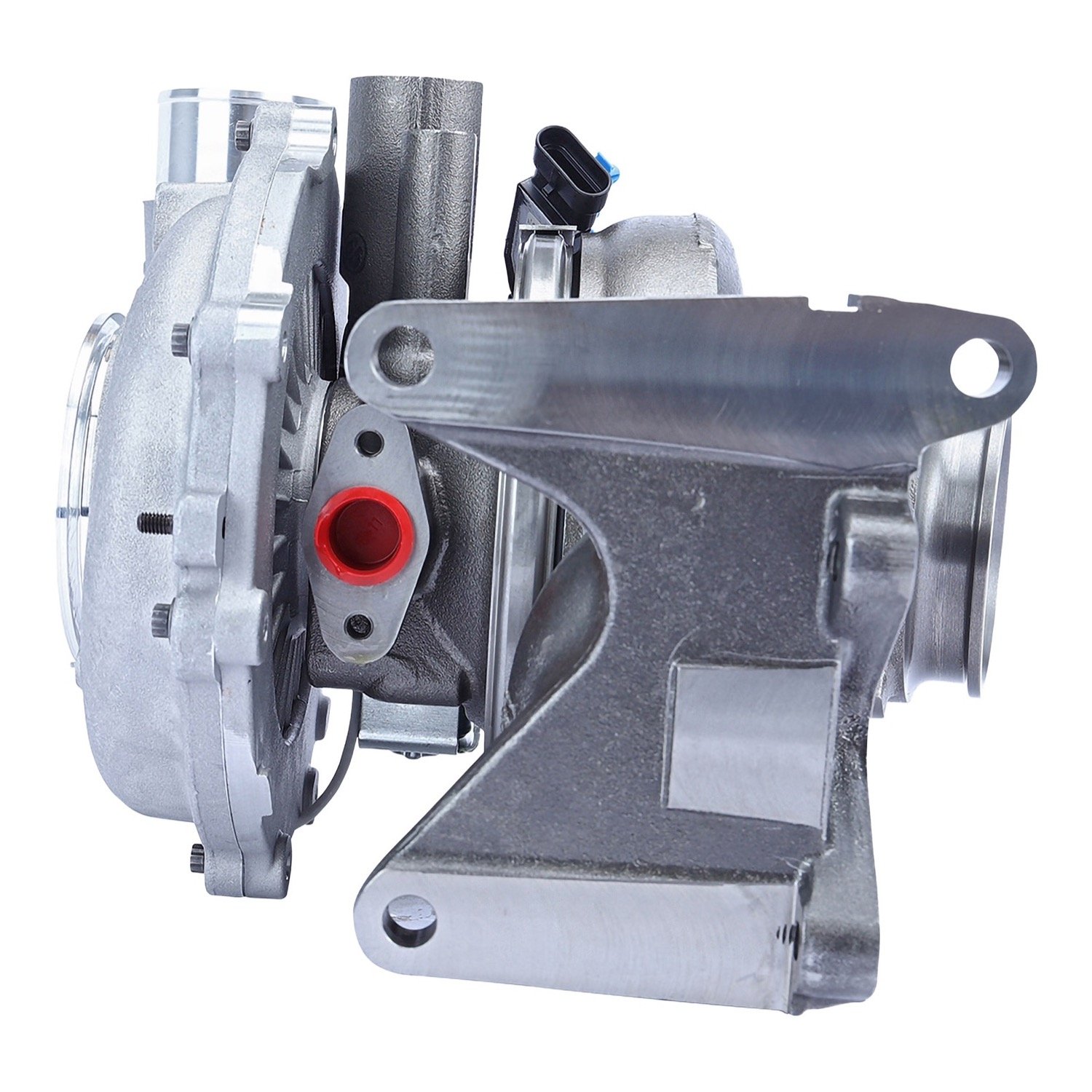

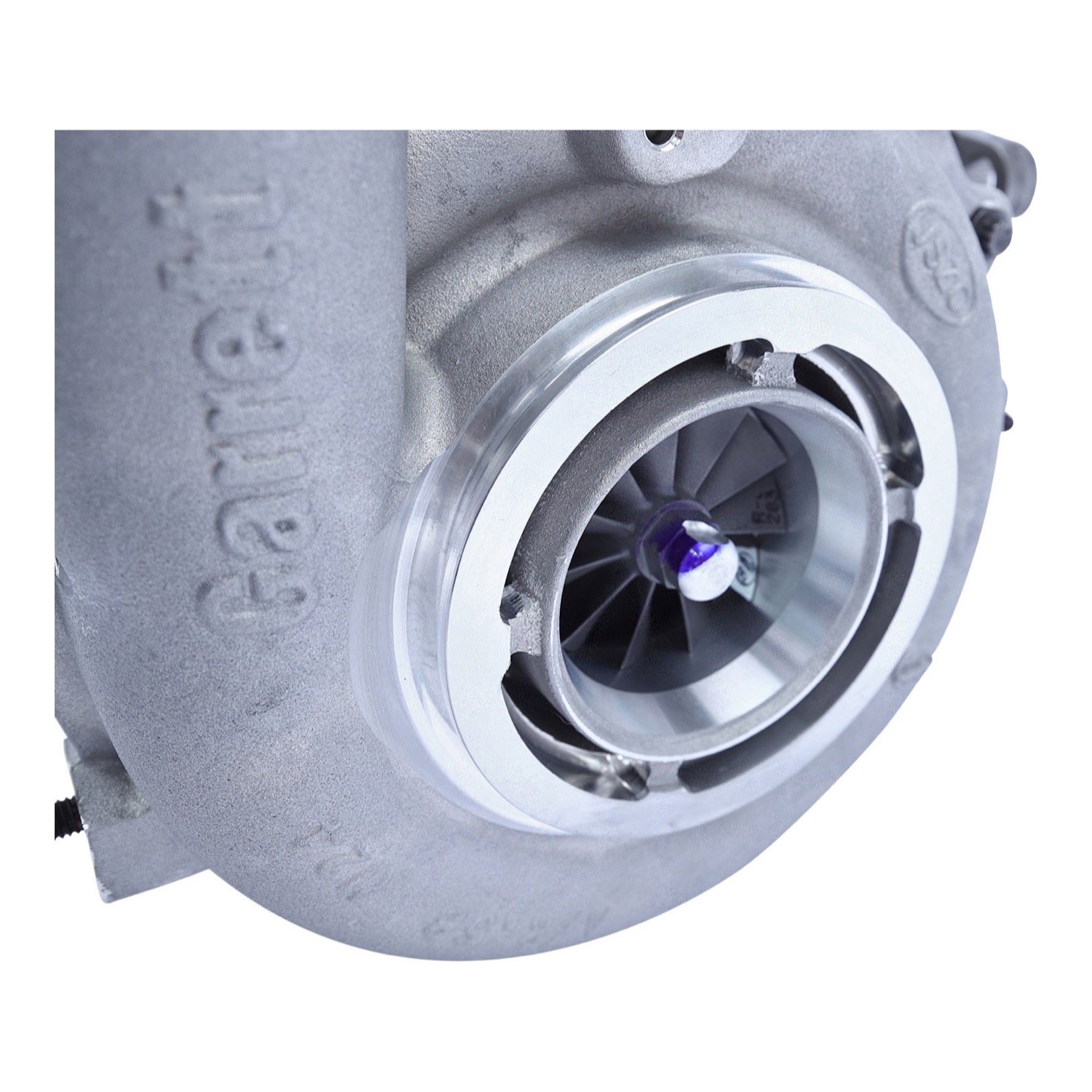

This is the Garrett 848212-5002S, a new GT3788VA variable-geometry turbocharger, not a rebuild. It is the stock replacement for the 2011 to 2016 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD with the 6.6L Duramax LML. It comes with a new VGT control valve and a new vane position sensor. It replaces GM 12642314, 12642129 and 12677684, which GM now lists as 19434580, and Garrett 800799-0002 and 800799-0003.
Low boost, slow spool, a vane position or boost code, oil in the intake tract or shaft play you can feel are the usual reasons an LML turbo comes off. Sticking vanes from soot are common on these trucks, so check the vane control and the exhaust side before you condemn the turbo. Garrett also offers this turbo remanufactured as 848212-9002S, and the two fit the same trucks.
Confirm Fitment Before You Order
The 2011 to 2016 6.6L Duramax came as the LML and the LGH. This turbo is for the LML, which has 8 as the 8th digit of the VIN. The LGH has L there and is found in Express and Savana vans and in cab and chassis trucks. LGH vans take Garrett 848212-9003S instead. On a cab and chassis truck, read the number on the old turbo or send us your VIN and we will confirm the engine. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 848212-5002S |
| Brand | Garrett |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Variable-geometry turbocharger, stock replacement |
| Turbo model | Garrett GT3788VA |
| Engine | GM 6.6L Duramax LML (VIN 8th digit 8) |
| Model years | 2011 to 2016 |
| Trucks | Chevrolet Silverado and GMC Sierra 2500HD and 3500HD |
| Included | New VGT control valve and new vane position sensor |
| Not included | Install gaskets and seals (separate kit, Alliant Power AP0165) |
| Shipping weight | 53 lb |
Fits / Applications
- 2011 to 2016 Chevrolet Silverado 2500HD and 3500HD, 6.6L Duramax LML
- 2011 to 2016 GMC Sierra 2500HD and 3500HD, 6.6L Duramax LML
- LML engines only (VIN 8th digit 8). For an LGH van or cab and chassis truck (VIN 8th digit L), send us the VIN first.
Find out why the old turbo failed before the new one goes on. Fit a new oil feed and check the drain, change the engine oil and filter, clean the intake tract and charge air cooler of oil and debris, and prime the turbo with clean oil before first start. Use a new gasket and seal kit: the install kit for this engine is Alliant Power AP0165, a separate part.
Part Numbers & Cross Reference
Garrett 848212-5002S · GM 12642314 · GM 12642129 · GM 12677684 · GM current number 19434580 · GM 12635167 · GM 12632248 · GM 12634300 · GM 12637721 · GM 12643546 · GM remanufactured turbo 19419248 · Garrett earlier number 800799-0001 · Garrett earlier number 800799-0002 · Garrett earlier number 800799-0003 · Garrett earlier number 792129-0001 · Garrett earlier number 792129-0002 · Garrett earlier number 792129-0003 · Garrett earlier number 792129-0004 · Garrett remanufactured version 848212-9002S
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 848212-5002S fit my 2011 to 2016 Duramax?
It fits the 2011 to 2016 Silverado and Sierra 2500HD and 3500HD with the 6.6L LML, which has 8 as the 8th digit of the VIN. It is not for the LGH engine used in Express and Savana vans. Call 530-668-0818 with your VIN if you are not sure which engine you have.
What numbers does the 848212-5002S replace?
GM 12642314, 12642129, 12677684 and 19434580, and Garrett 800799-0001, 800799-0002 and 800799-0003. The cross reference list on this page has the rest.
Is this turbo new, and what comes with it?
It is a new Garrett turbocharger with a new VGT control valve and a new vane position sensor. Install gaskets and seals are a separate kit. The Garrett remanufactured version of the same turbo is 848212-9002S.
Will it fit a 2004.5 to 2010 Duramax LLY, LBZ or LMM?
No. Those engines take Garrett 848212-5001S new or 848212-9001S remanufactured. This number is for the 2011 to 2016 LML only.
