2004-2010 Ford 6.0L Power Stroke & VT365 Injection Control Pressure (ICP) Sensor | Alliant Power AP63460 New

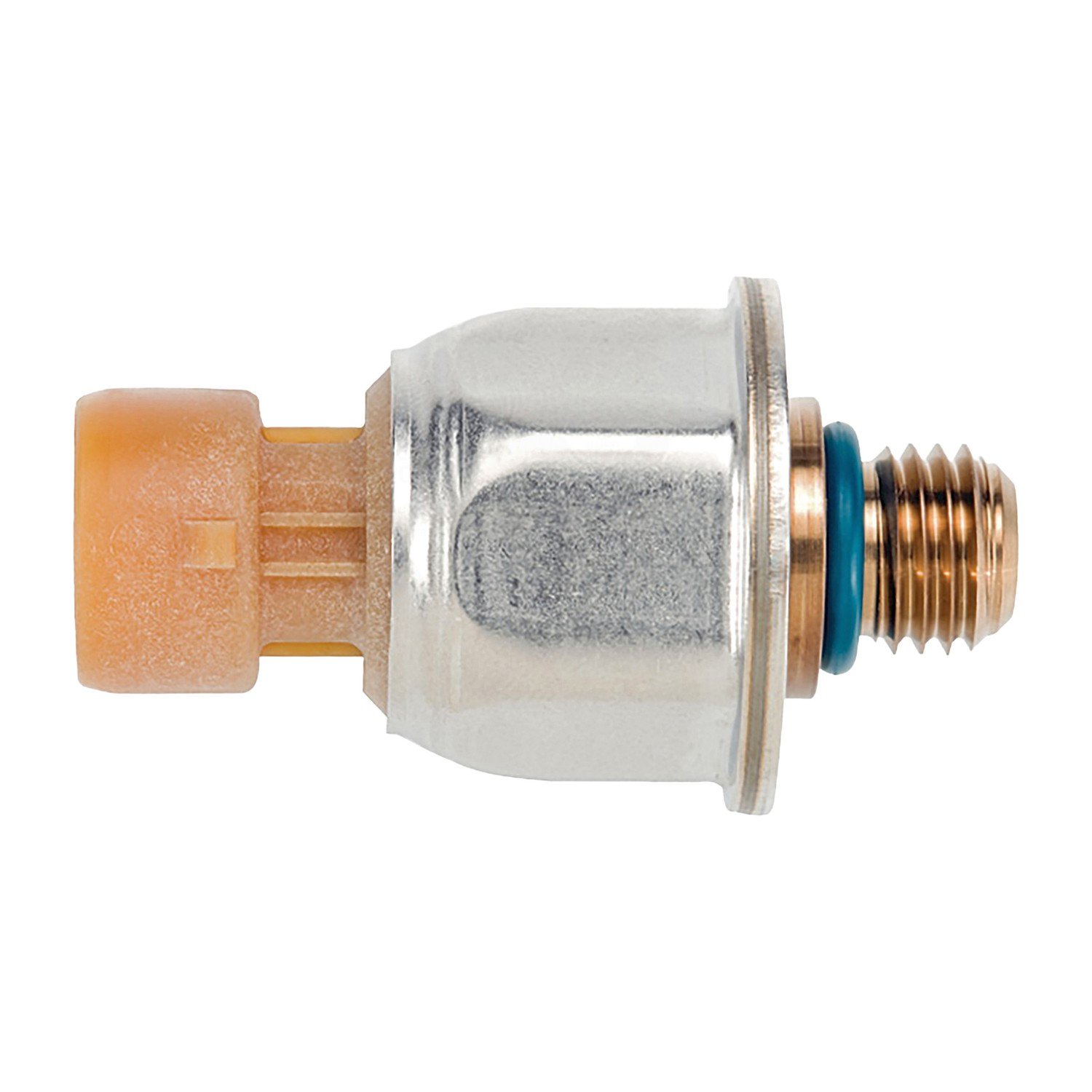

This is the Alliant Power AP63460, a new injection control pressure (ICP) sensor. It replaces Ford 4C3Z9F838A and 4C3Z9F838AB and International 1845428C92 and 1845427C2.
Alliant lists it for the 2004 to 2007 Ford 6.0L Power Stroke in the F-Series and Excursion, the 2004 to 2010 E-Series, the 2006 to 2010 4.5L LCF, the 2004 to 2007 International VT365, the 2006 VT275 and the 2007 to 2010 MaxxForce 5.
Alliant notes that it mounts on the passenger side valve cover. Alliant lists its AP0021 three wire pigtail for this sensor’s connector.
Confirm Fitment Before You Order
Alliant lists this sensor for the engines on this page. Send us your VIN or engine serial number before you order. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | AP63460 |
| Brand | Alliant Power |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Injection control pressure (ICP) sensor |
| Engines | Ford 6.0L and 4.5L Power Stroke, International VT365, VT275, MaxxForce 5 |
| Model years | 2004 to 2010 |
| Replaces Ford | 4C3Z9F838A, 4C3Z9F838AB |
| Replaces International | 1845428C92, 1845427C2 |
| Location | Passenger side valve cover, as Alliant notes |
| Connector pigtail | Alliant Power AP0021, a separate part number |
| Alliant technical bulletin | APTB 09/11R1 |
| Shipping weight | 0.2 lb |
Fits / Applications
- Ford F-Series and Excursion 6.0L Power Stroke, 2004 to 2007
- Ford E-Series 6.0L Power Stroke, 2004 to 2010
- Ford 4.5L LCF Power Stroke, 2006 to 2010
- International VT365, 2004 to 2007
- International VT275, 2006
- International MaxxForce 5, 2007 to 2010
Follow the workshop manual for your engine when you fit this part.
Part Numbers & Cross Reference
Alliant Power AP63460 · Ford 4C3Z9F838A · Ford 4C3Z9F838AB · International 1845428C92 · International 1845427C2
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Where does it mount?
Alliant notes that it mounts on the passenger side valve cover.
Will the AP63460 fit my engine?
Alliant lists it for the 2004 to 2007 F-Series and Excursion, the 2004 to 2010 E-Series, the 4.5L LCF and the VT365, VT275 and MaxxForce 5 in the years on this page. Call 530-668-0818 with your VIN and we will confirm it.

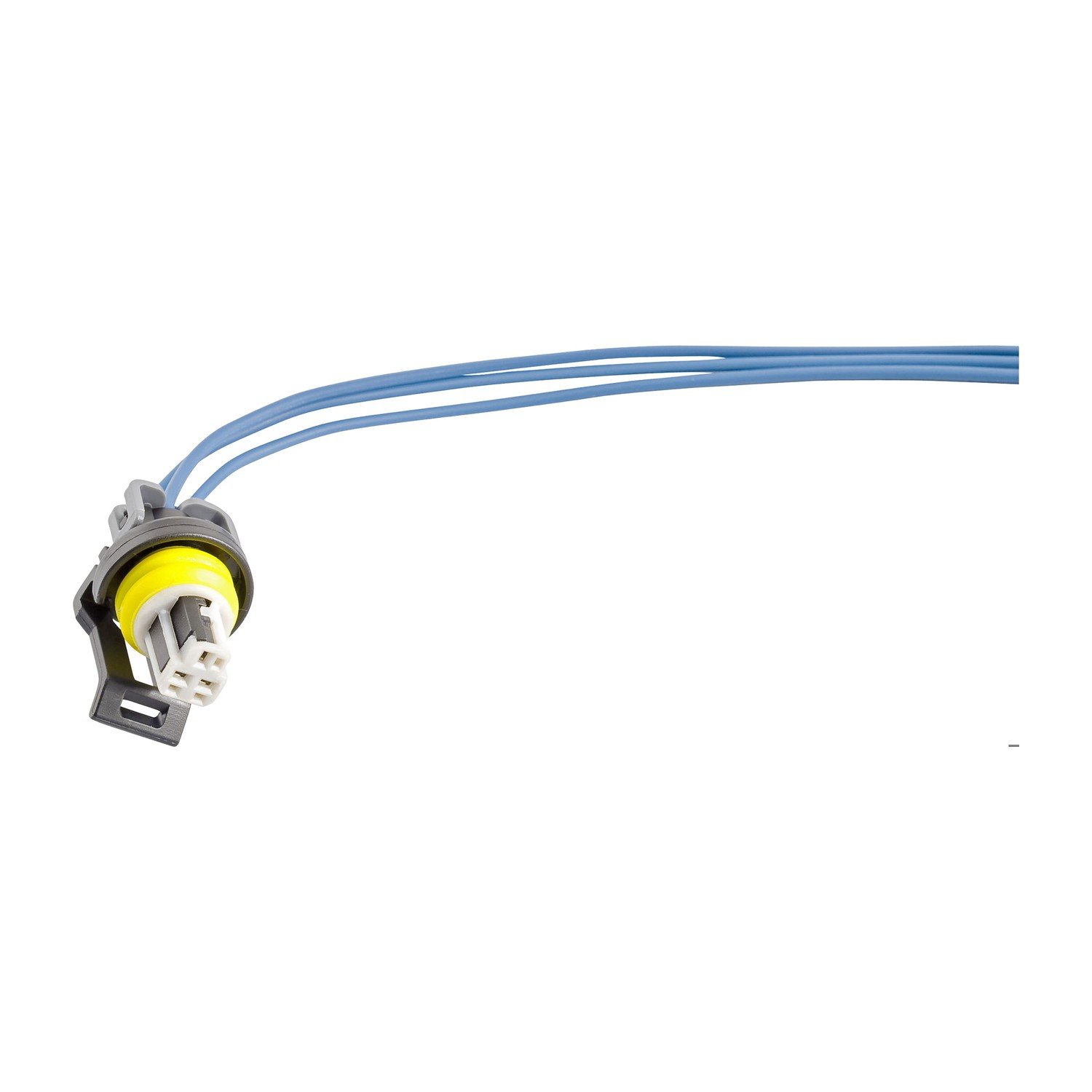

Is there a pigtail for the connector?
Yes. Alliant lists its AP0021 three wire pigtail for this sensor. It is a separate part number.
Related Parts
- 6.0L Powerstroke HPOP High-Pressure Oil Pump | Alliant Power AP63661 Reman, 2004.5-2010
- Ford Power Stroke & International 3-Wire ICP / EBP Sensor Connector Pigtail | Alliant Power AP0021 New
Why Buy From Valley Fuel Injection
We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. Call us with your engine serial, VIN or build date before you order and we will help you confirm fitment, so the right part arrives the first time.
UPS to all 50 states, including Alaska and Hawaii. Your rate shows at checkout. Questions on fitment? Call 530-668-0818.
Pricing covers the unit itself. Any applicable sales tax is additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
