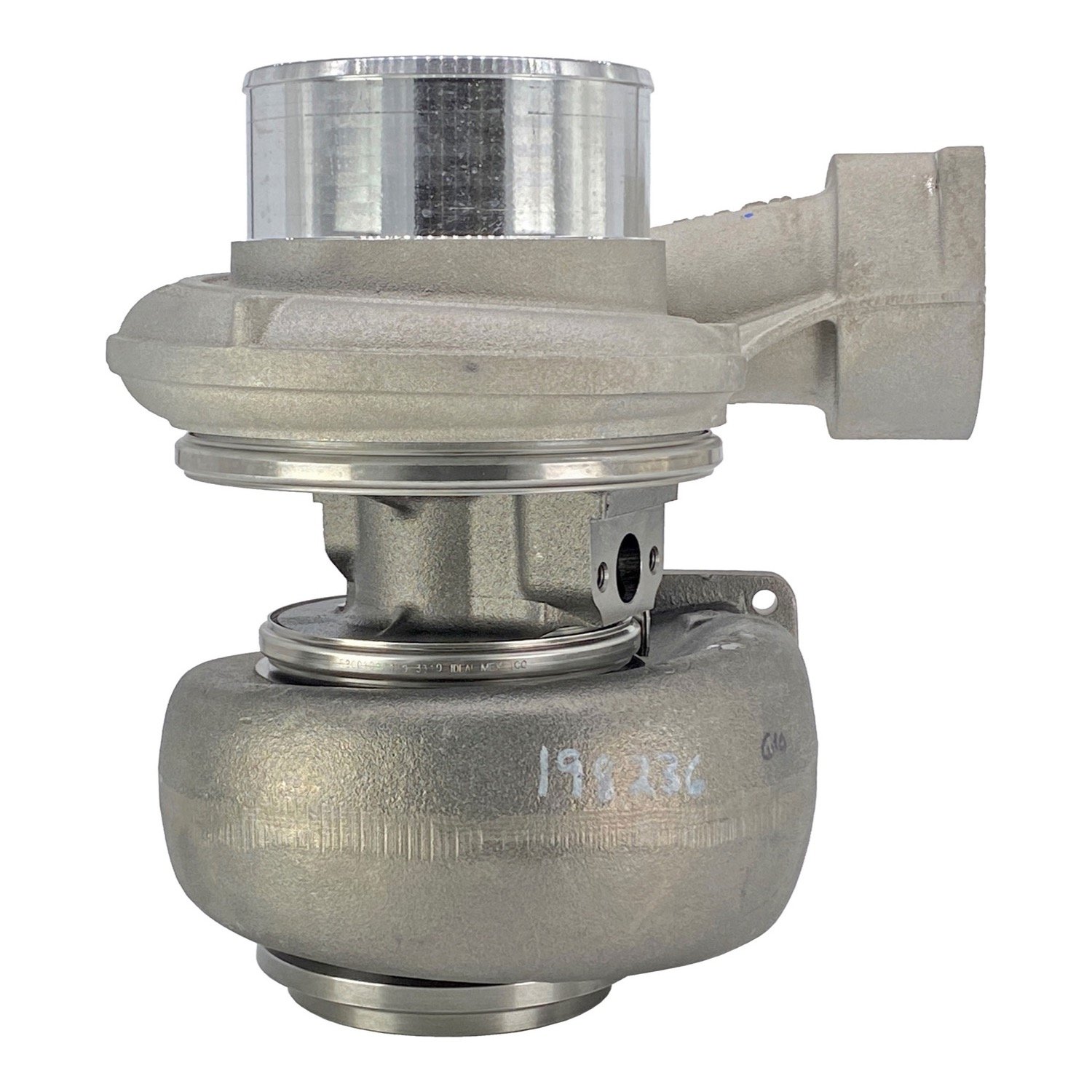

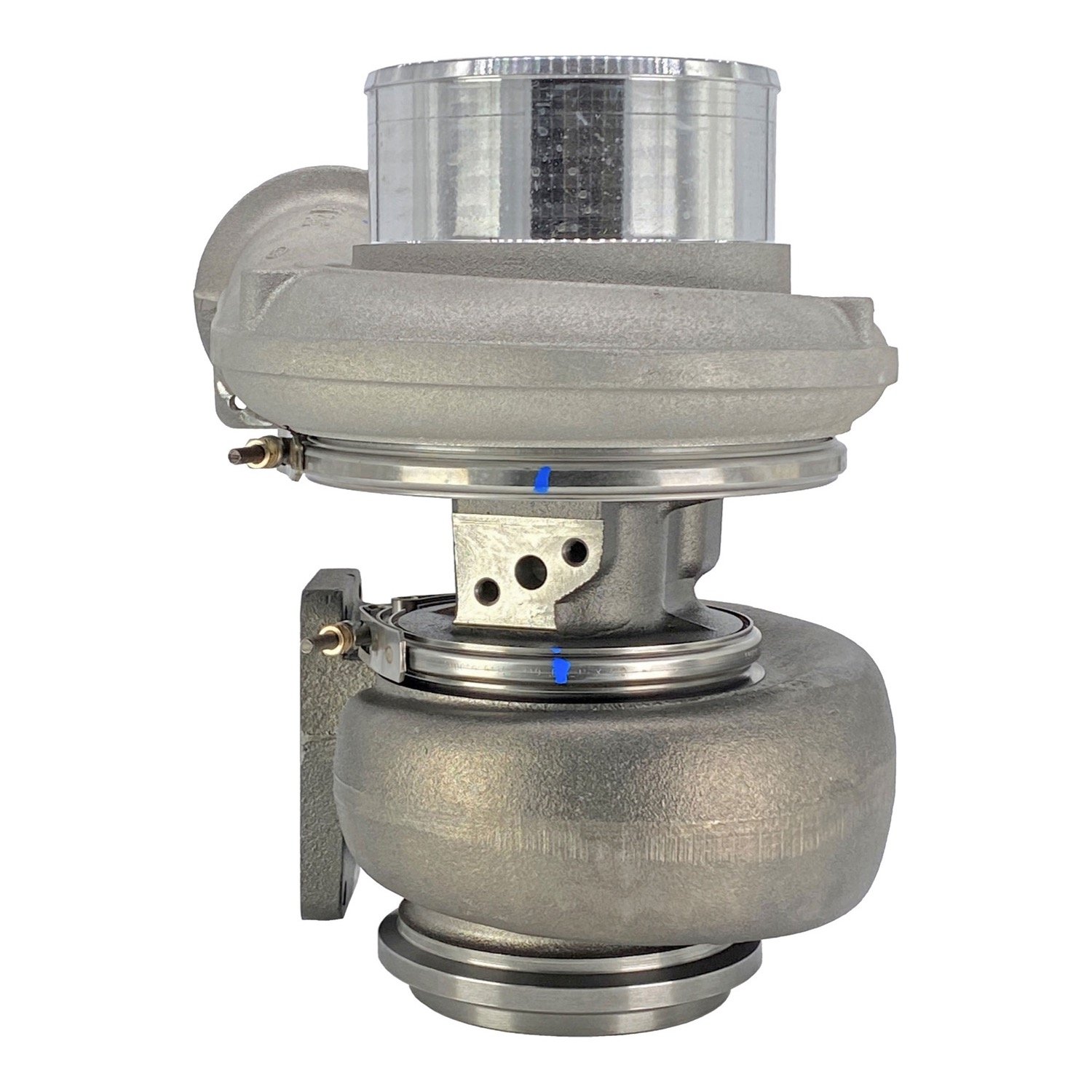

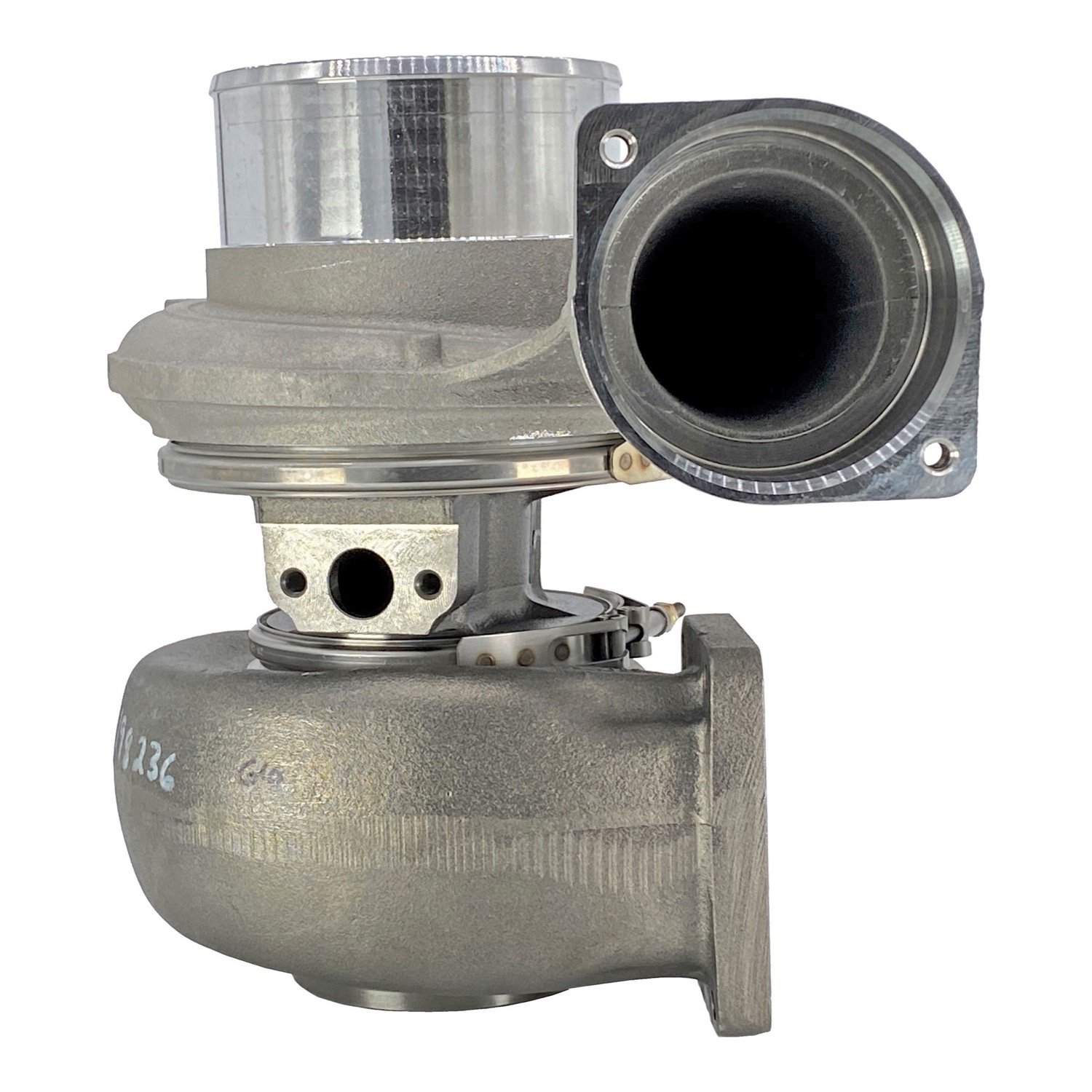

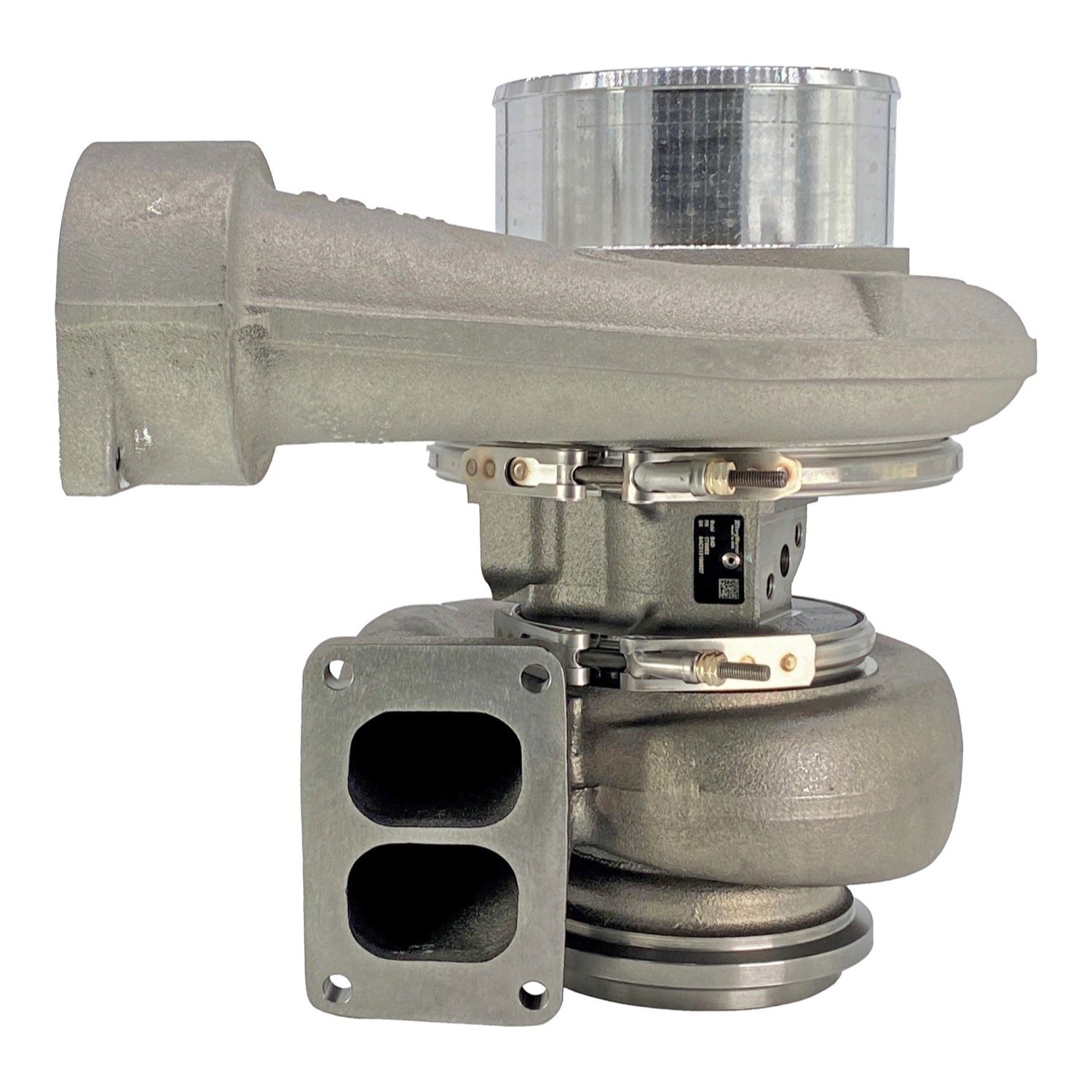

This is the BorgWarner 178063, a new S4DS turbocharger (S4D family, build S4DS025) for the Caterpillar 3406B 14.6L truck engine. Catalogs list it for the 425 to 460 hp ratings. It is a complete new turbo, not a rebuild. It replaces Cat 0R5733, 0R6053, 0R6169, 0R6170, 0R6557, 0R6558, 0R6689, 0R6783, 0R6784, 0R6957, 0R6960, 102-9429, 108-5450, 108-5451, 4P2064, 4P2458, 4P2858, 6I3029, 6I3174, 7C0093, 7C6710, 7E3835 and 7W9568. It also crosses to Garrett 466903-0001, 466191-0001, 466527-0001, 466372-0002, 466041-0001, 466909-0001, 466161-0002, 466161-0003 and 466161-0005, and to BorgWarner 199119. BorgWarner’s remanufactured version of the same turbo is 478063.

Many of these Cat numbers were first built as Garrett turbos, so the turbo you are taking off may carry a Garrett tag: two catalogs show Cat 0R6957 as a Garrett UTV7802. The 3406 family used many different turbos, and they change from one rating to the next. BorgWarner also lists an S4T turbo, 178120, for the 3406B, so the engine model alone does not settle it. For the 3406E we list the BorgWarner S410G 177148 and the Garrett 704604-5011S, which replace a different set of Cat numbers. Heavy truck turbos are matched by the number on the turbo tag, not by engine model alone. Oil in the charge pipes, shaft play you can feel, a wheel that has touched the housing, low boost and black smoke under load are the usual reasons these get replaced.

Specifications

Fits / Applications

• Caterpillar 3406B 14.6L truck engine, listed for 425 to 460 hp
• Replaces Cat 0R6957, 0R5733, 0R6053, 0R6169, 0R6170, 0R6557, 0R6558, 0R6689, 0R6783, 0R6784 and 0R6960
• Replaces Cat 7W9568, 4P2858, 4P2458, 4P2064, 7C0093, 7C6710, 7E3835, 6I3029, 6I3174, 102-9429, 108-5450 and 108-5451
• Crosses to Garrett 466903-0001, 466191-0001, 466527-0001, 466372-0002, 466041-0001 and 466909-0001, and to BorgWarner 199119
• Match by the number on your turbo tag. These Cat numbers are different from the 3406E numbers on our 177148 and 704604-5011S pages.

Find out why the old turbo failed before you fit this one. Check the oil feed and drain lines for coking or kinks, change the engine oil and filter, clean the intake and charge pipes of oil and debris, and pre-oil the turbo through the feed port before the first start.

Part Numbers & Cross Reference

Caterpillar 0R5733  ·  Caterpillar 0R6053  ·  Caterpillar 0R6169  ·  Caterpillar 0R6170  ·  Caterpillar 0R6557  ·  Caterpillar 0R6558  ·  Caterpillar 0R6689  ·  Caterpillar 0R6783  ·  Caterpillar 0R6784  ·  Caterpillar 0R6957  ·  Caterpillar 0R6960  ·  Caterpillar 102-9429  ·  Caterpillar 108-5450  ·  Caterpillar 108-5451  ·  Caterpillar 4P2064  ·  Caterpillar 4P2458  ·  Caterpillar 4P2858  ·  Caterpillar 6I3029  ·  Caterpillar 6I3174  ·  Caterpillar 7C0093  ·  Caterpillar 7C6710  ·  Caterpillar 7E3835  ·  Caterpillar 7W9568  ·  BorgWarner 199119  ·  BorgWarner remanufactured version 478063  ·  Garrett 466903-0001  ·  Garrett 466191-0001  ·  Garrett 466527-0001  ·  Garrett 466372-0002  ·  Garrett 466041-0001  ·  Garrett 466909-0001  ·  Garrett 466161-0002  ·  Garrett 466161-0003  ·  Garrett 466161-0005

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 178063 fit my Caterpillar 3406E?

Catalogs list the 178063 for the 3406B, and the Cat numbers it replaces are different from the 3406E numbers on our BorgWarner 177148 and Garrett 704604-5011S pages. Match the Cat number on your turbo tag before you order.

What numbers does the 178063 replace?

Cat 0R6957, 0R5733, 0R6053, 0R6169, 0R6170, 0R6689, 0R6960, 7W9568, 4P2858, 4P2458, 4P2064, 7C0093, 7C6710, 7E3835 and 102-9429, plus the others in the list on this page. It also crosses to Garrett 466903-0001 and BorgWarner 199119.

Is this a new turbo or a rebuilt one?

It is a new BorgWarner turbocharger, a complete assembly. BorgWarner’s remanufactured version of the same turbo carries the number 478063.

How do I confirm it is the right turbo for my 3406B?

Read the number off the tag on your old turbo and compare it to the Cat, Garrett and BorgWarner numbers on this page. The 3406B also used an S4T turbo, BorgWarner 178120, so if the tag is gone call 530-668-0818 with the engine serial number and horsepower rating.
