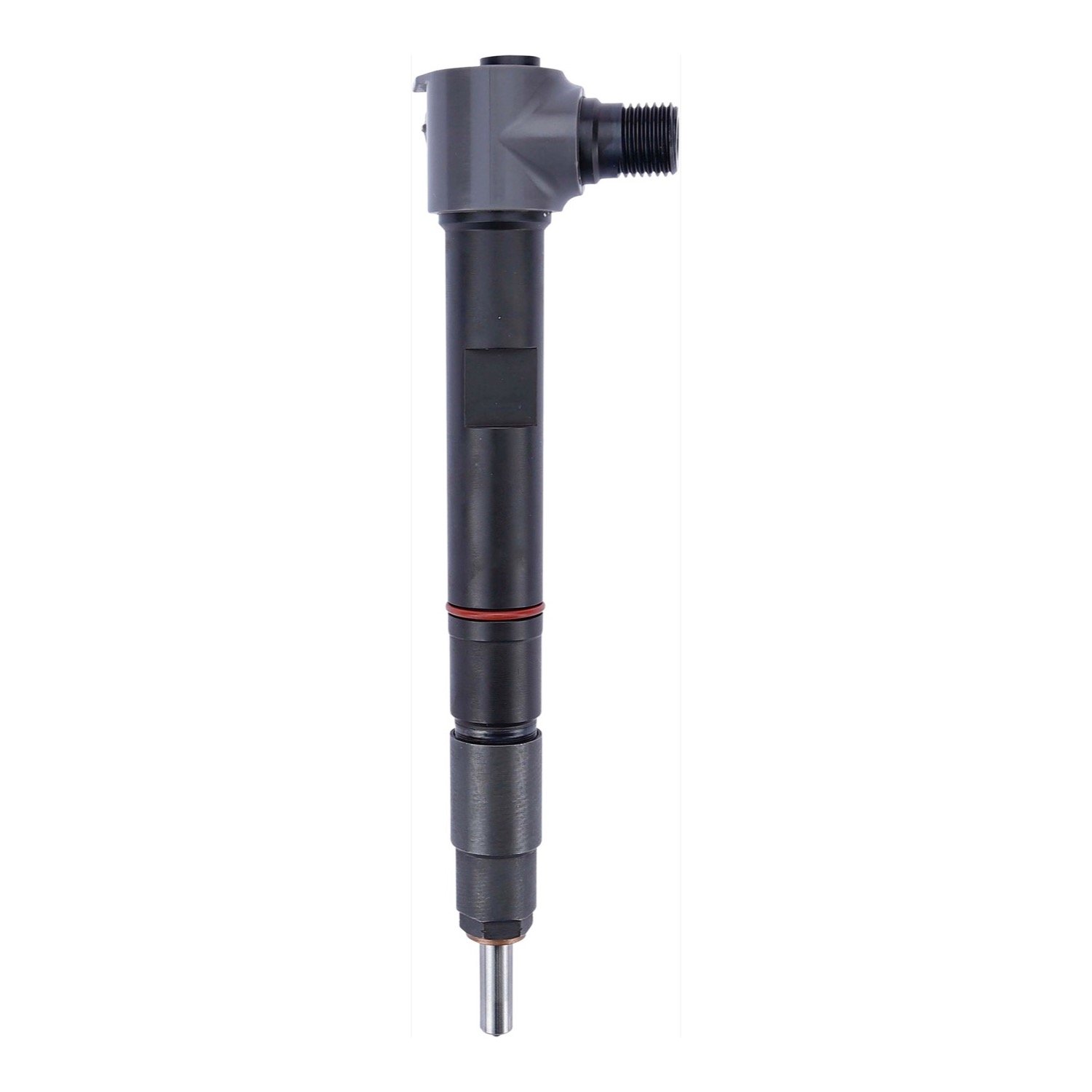

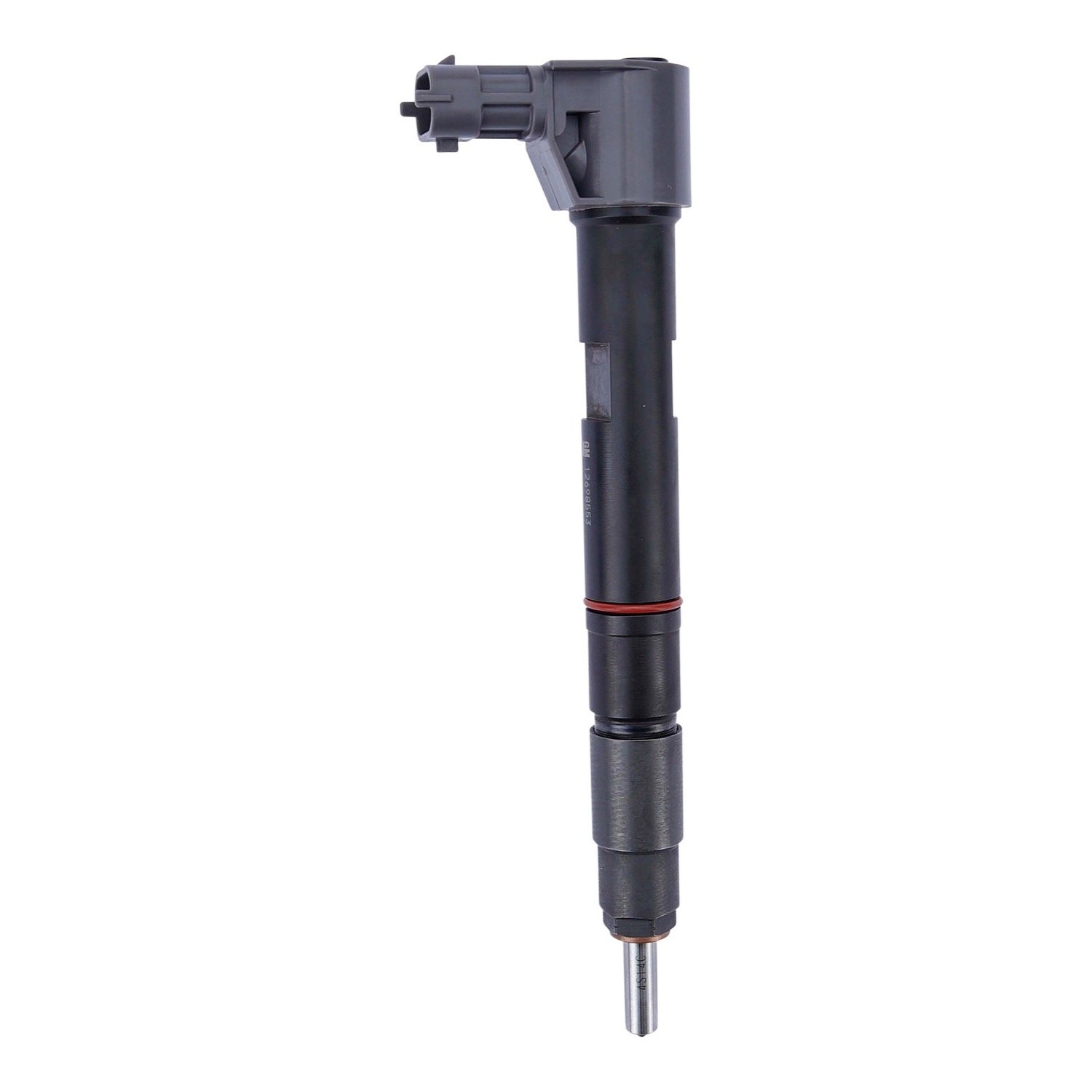

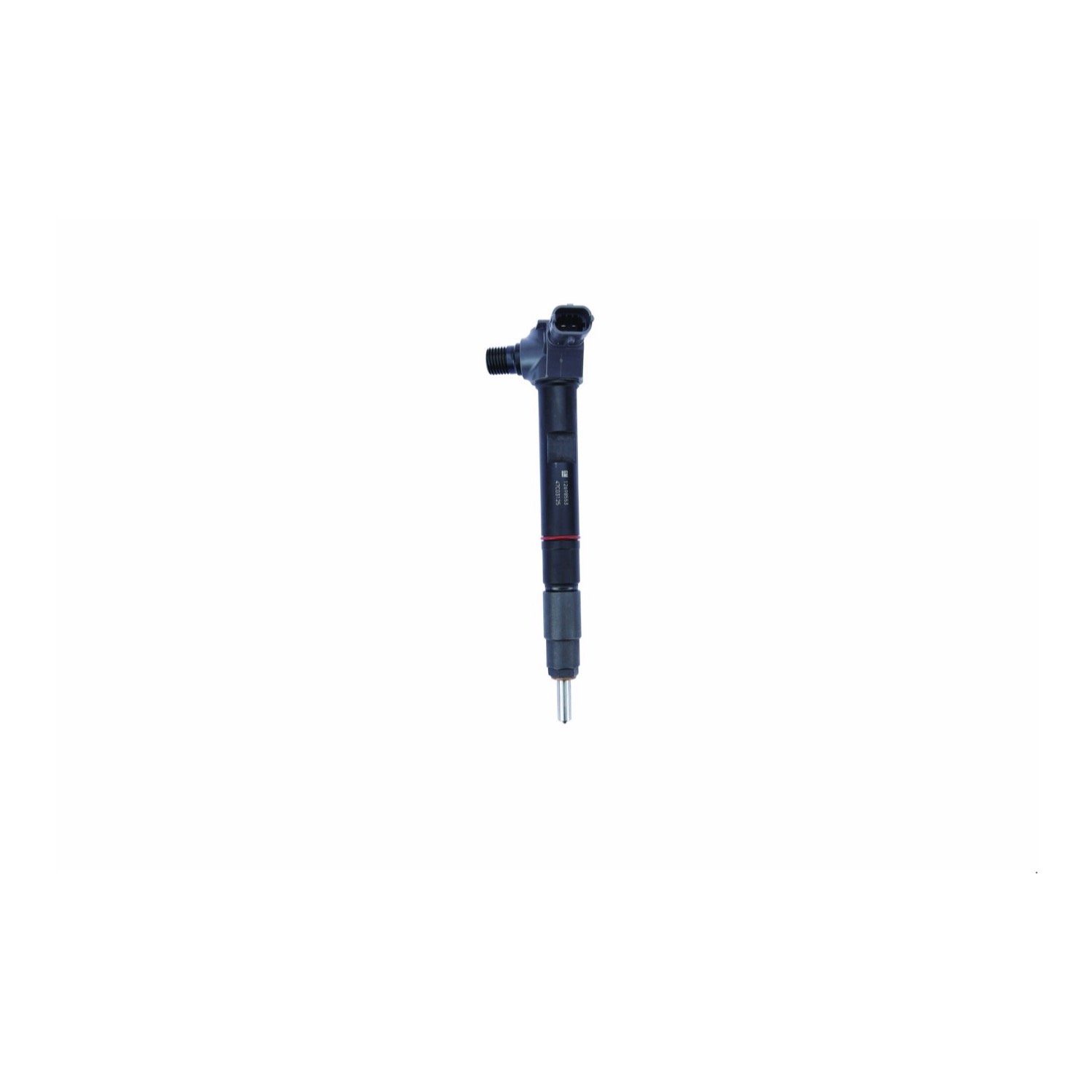

This is the Alliant Power AP54801, a common-rail fuel injector remanufactured by Alliant Power for the 6.6L Duramax L5D. The L5D is the medium-duty version of the Duramax, used in 2019 to 2023 Chevrolet Silverado 4500HD, 5500HD and 6500HD chassis cab trucks and in International CV Series trucks. It replaces GM 12696967 and 12698553, which GM now lists under 12718814, and International 6040630C92. The engine takes eight, and a refundable core applies.

This is not the injector for the L5P in Silverado and Sierra 2500HD and 3500HD pickups. The L5P injector carries different GM numbers and is a separate part. Rough running, a miss, smoke, hard starting or injector balance faults are the usual reasons to replace one. Each injector also needs an installation kit, AP0131 or AP0132 depending on the cylinder. The kit holds a new high-pressure line, a chamber gasket and a body O-ring. The job also takes return line seal kit AP0133, and EGR gasket kit AP0136 when the number 3 injector comes out.

Specifications

Fits / Applications

• GM 6.6L Duramax L5D, 2019 to 2023 Chevrolet Silverado 4500HD, 5500HD and 6500HD
• International CV Series trucks with the 6.6L (International number 6040630C92)
• Not for the L5P in Silverado and Sierra 2500HD and 3500HD pickups
• Eight injectors per engine

Installation parts are separate. Each injector takes an installation kit with a new high-pressure line, a chamber gasket and a body O-ring: AP0131 or AP0132, depending on the cylinder. Tell us which cylinders you are doing and we will match the kit. The job also takes return line seal kit AP0133, and EGR gasket kit AP0136 when the number 3 injector comes out. Alliant Power also packs four of these injectors with the lines and seals for one side of the engine as bank kit AP54803.

Part Numbers & Cross Reference

Alliant Power AP54801  ·  GM 12696967  ·  GM 12698553  ·  GM current number 12718814  ·  International 6040630C92

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the AP54801 fit my Silverado 2500HD or 3500HD with the L5P?

No. This injector is for the L5D in Silverado 4500HD, 5500HD and 6500HD trucks and International CV Series trucks, and the L5P in the pickups takes a different injector. Call 530-668-0818 with your VIN and we will match it.

What numbers does the AP54801 replace?

GM 12696967 and 12698553, which GM now lists under 12718814, and International 6040630C92.

Is it new or remanufactured, and is there a core?

It is remanufactured by Alliant Power. A refundable core charge applies, and it comes back when we receive your old injector.

What else do I need to install it?

An installation kit for each injector, AP0131 or AP0132 depending on the cylinder, with a new high-pressure line, a chamber gasket and a body O-ring. Add return line seal kit AP0133, and EGR gasket kit AP0136 if the number 3 injector is coming out. Call 530-668-0818 with the cylinder numbers and we will match the kits.
