Delphi DP200 & Lucas CAV DPA Injection Pump 12V Stop Solenoid | Delphi 7185-900W New

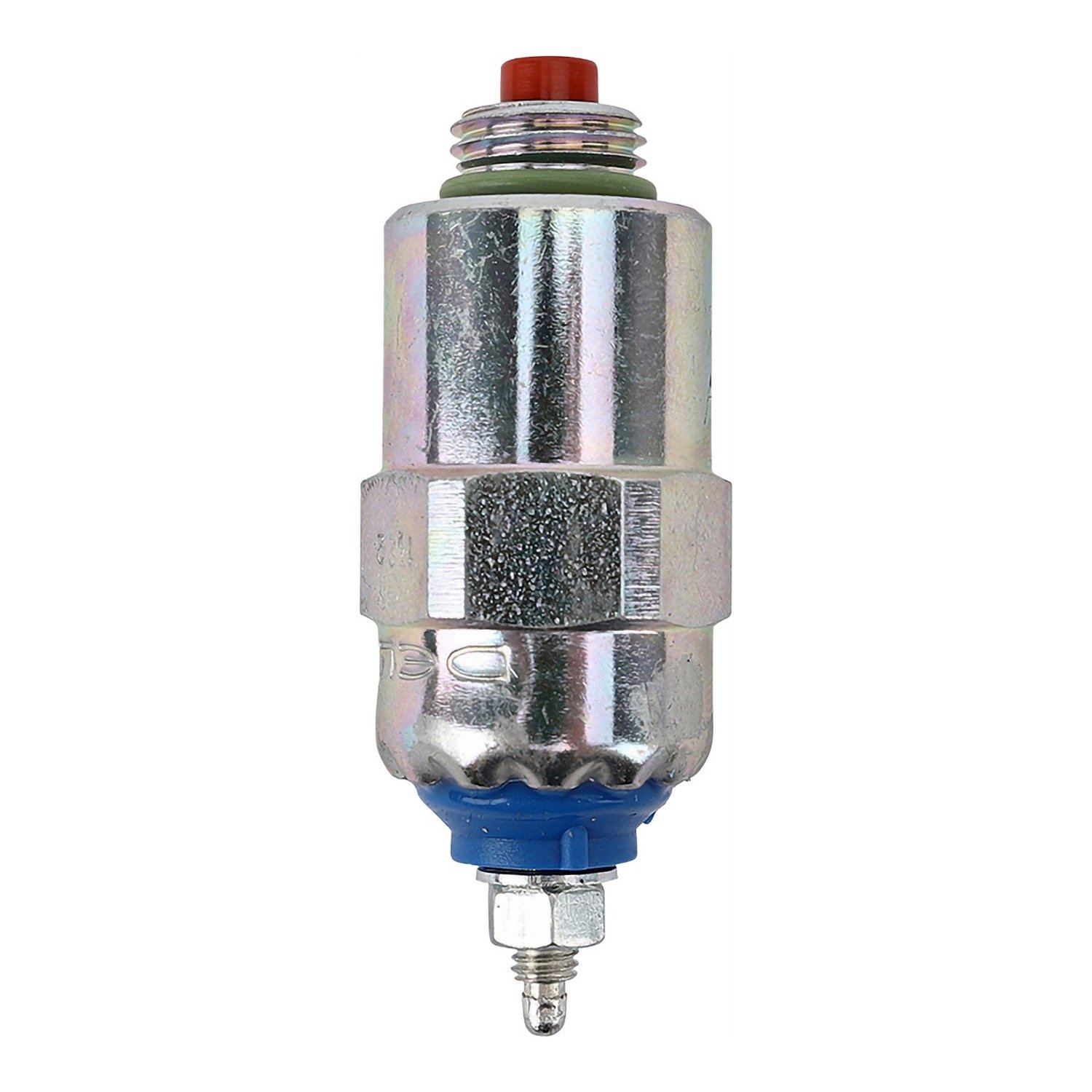

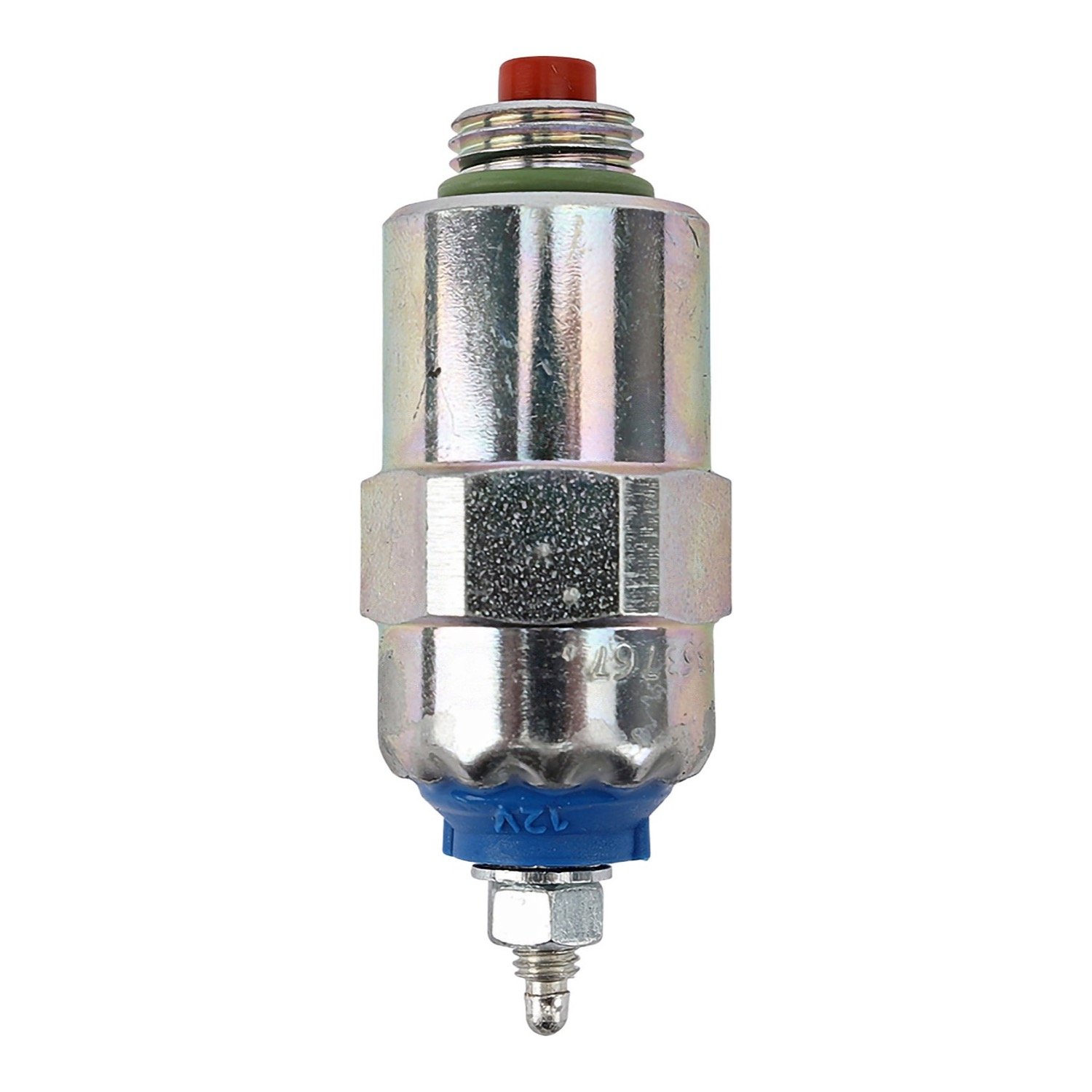

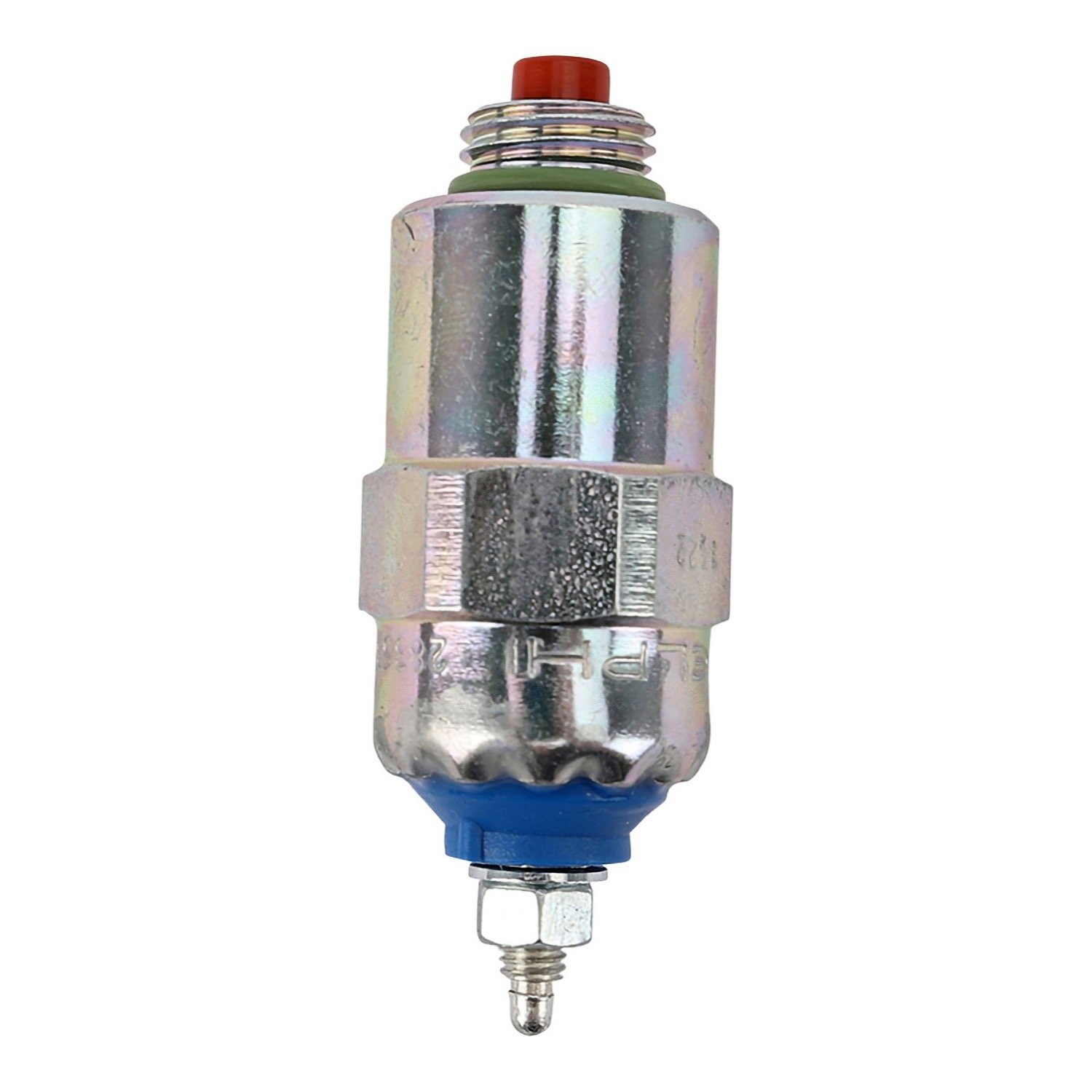

Delphi 7185-900W is a new 12 V fuel shut-off solenoid, also called a stop solenoid, with a single central stud terminal. It fits Delphi DP200 series and Lucas CAV DPA rotary injection pumps. It is energize-to-run: with the key on it holds the fuel open, and when the power drops the engine shuts down. It crosses to Perkins 28480007, John Deere RE54064 and RE22744, Cummins 3904630, Case IH J904630 and Ford E8NN9D278AA, and replaces the older Delphi number 7167-620A.
A bad stop solenoid usually means an engine that cranks but will not start, or one that will not shut off with the key. Check for 12 V at the stud with the key on before you replace it. Delphi makes look-alike solenoids in the same body: 7185-900T is 12 V with twin spade (Lucar) terminals, and 7185-900K (stud) and 7185-900P (twin terminals) are 24 V. Match the voltage and terminal style of your old solenoid. Aftermarket copies are sold under this same number; this listing is the Delphi part.
Confirm Fitment Before You Order
Delphi makes this solenoid body in 12 V and 24 V versions with a stud or twin spade terminals (7185-900W, 7185-900T, 7185-900K, 7185-900P). Check the voltage and the terminal on your old solenoid, or send us the injection pump plate number or the OE part number. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 7185-900W |
| Brand | Delphi |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Fuel shut-off (stop) solenoid, energize to run |
| Voltage | 12 V |
| Terminal | Single central stud |
| Fits pumps | Delphi DP200 series, Lucas CAV DPA |
| Earlier Delphi number | 7167-620A |
| Other Delphi numbers | 28254093, 28363767 |
| 12 V twin-terminal look-alike (not this part) | 7185-900T |
| 24 V look-alikes (not this part) | 7185-900K (stud), 7185-900P (twin terminals) |
| Shipping weight | 2 lb |
Fits / Applications
- Delphi DP200 series rotary injection pumps that use a 12 V stud-terminal stop solenoid
- Lucas CAV DPA rotary injection pumps that use a 12 V stud-terminal stop solenoid
- Delphi (Lucas CAV) pumps on Cummins, Case and Case IH, Perkins and John Deere engines, under the OE numbers listed below
- Ford and New Holland tractors with Lucas CAV or Delphi pumps (Ford E8NN9D278AA, Case IH / New Holland 83981012)
Check that the solenoid plunger moves freely, and fit a new O-ring or sealing washer where the pump uses one. Torque the solenoid into the pump body to the engine or pump maker’s figure, then connect the switched 12 V feed to the stud and tighten the nut.
Part Numbers & Cross Reference
Perkins 28480007 · John Deere RE54064 · John Deere RE22744 · Cummins 3904630 · Case / Case IH J904630 · IH / J.I. Case K957417 · Case IH / New Holland 83981012 · Ford E8NN9D278AA · Fiat / Iveco 9986316 · Iveco 42558878 · Delphi (earlier number) 7167-620A · Delphi (other numbers) 28254093, 28363767
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Which injection pumps take the Delphi 7185-900W stop solenoid?
Delphi DP200 series and Lucas CAV DPA rotary injection pumps that use a 12 V stop solenoid with a single central stud terminal. They are found on Cummins, Case and Case IH, Perkins and John Deere engines and on Ford and New Holland tractors.
What OE numbers does 7185-900W cross to?
Perkins 28480007, John Deere RE54064 and RE22744, Cummins 3904630, Case IH J904630 and Ford E8NN9D278AA. It also replaces the older Delphi number 7167-620A.
How is 7185-900W different from 7185-900T, 7185-900K and 7185-900P?
All four share the same body. 7185-900W is 12 V with a single stud terminal, 7185-900T is 12 V with twin spade terminals, and 7185-900K (stud) and 7185-900P (twin terminals) are 24 V. Match the voltage and terminal style of your old solenoid.
Is 7185-900W new, and is there a core charge?
It is a new Delphi solenoid in original packaging, sold outright with no core charge and nothing to send back. If you are not sure it matches, call 530-668-0818 with the injection pump plate number or the OE part number and we confirm it at no charge before anything ships.
Related Parts
- Delphi DP200 & DP210 Injection Pump Rebuild Service
- Delphi / Lucas CAV DPA Rotary Injection Pump Rebuild Service
- John Deere 6068D DP200 Fuel Injection Pump | Delphi 8924A470W New (RE509503)
- John Deere 4045T DP200 Fuel Injection Pump | Delphi 8923A560W New (RE505927)
- Ford / New Holland 7740 & TS110 DP200 Fuel Injection Pump | Delphi 8925A380W New (NH 87801042)
- Massey Ferguson 243 & Case IH C50 Perkins 903.27 DP200 Fuel Injection Pump | Delphi 8922A230G New
Why Buy From Valley Fuel Injection
We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. Confirm fitment against your engine serial, VIN or build date before you order. Call us and we will help you match the right part.
UPS Ground anywhere in the lower 48. Questions on fitment? Call 530-668-0818.
Pricing covers the unit itself. Any applicable sales tax is additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
