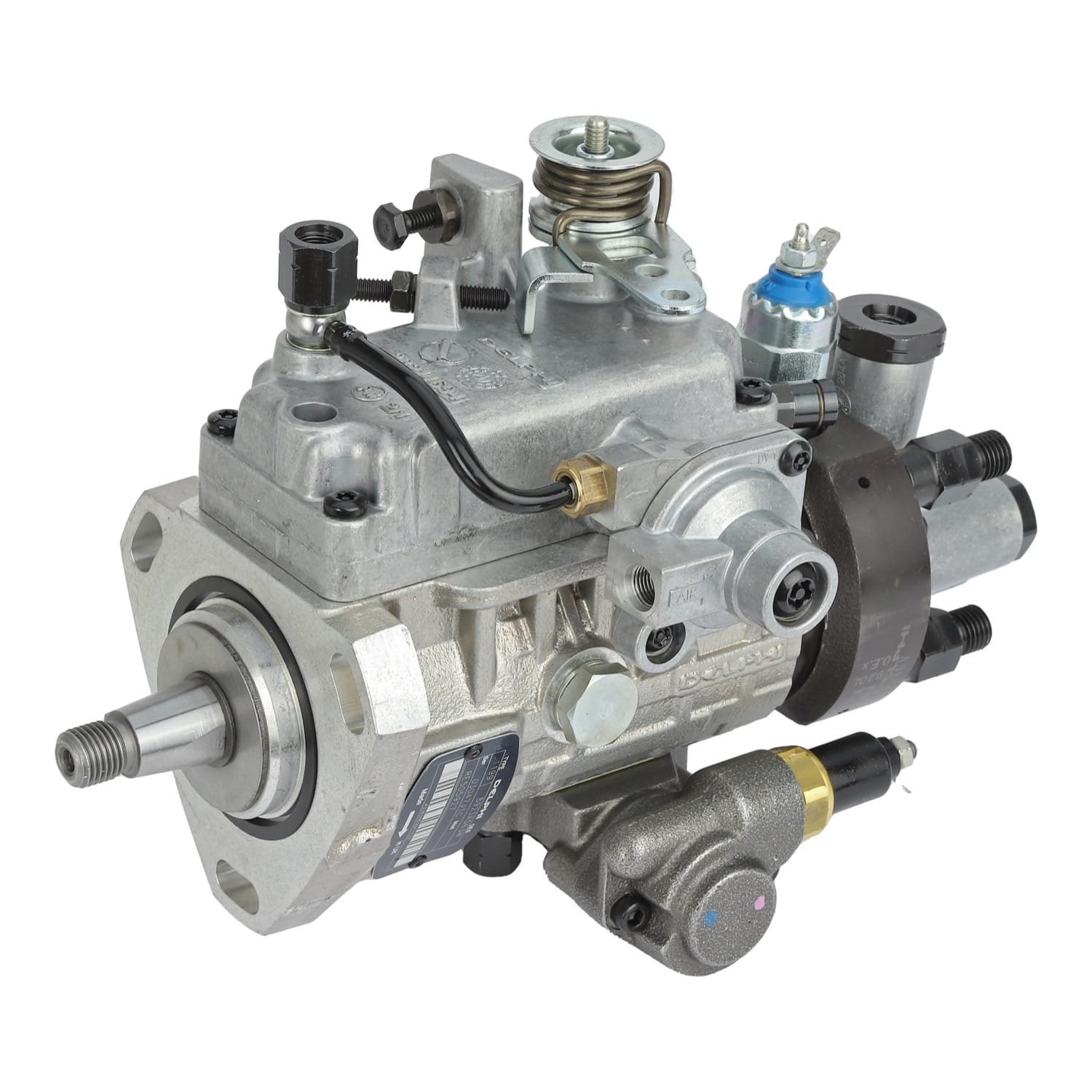

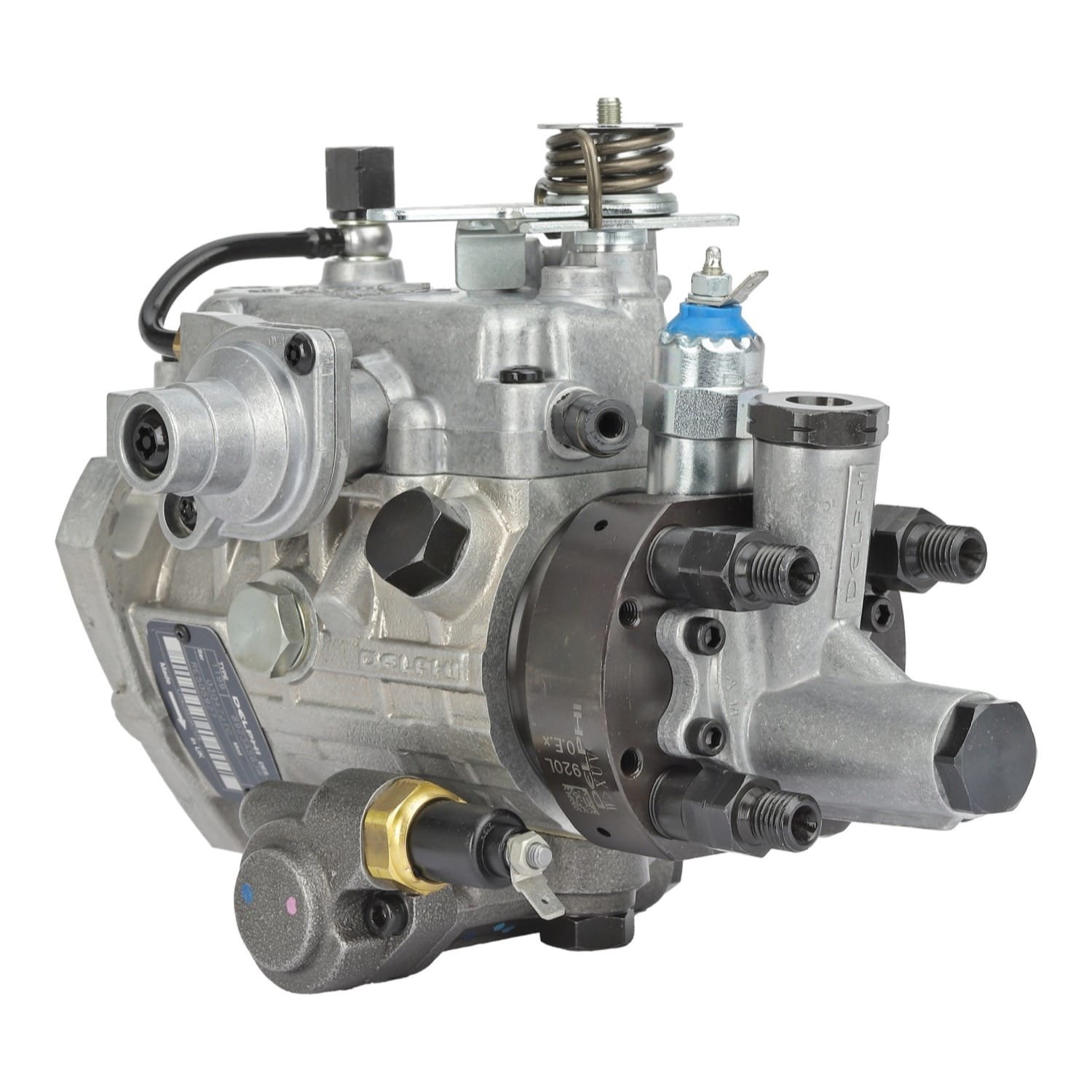

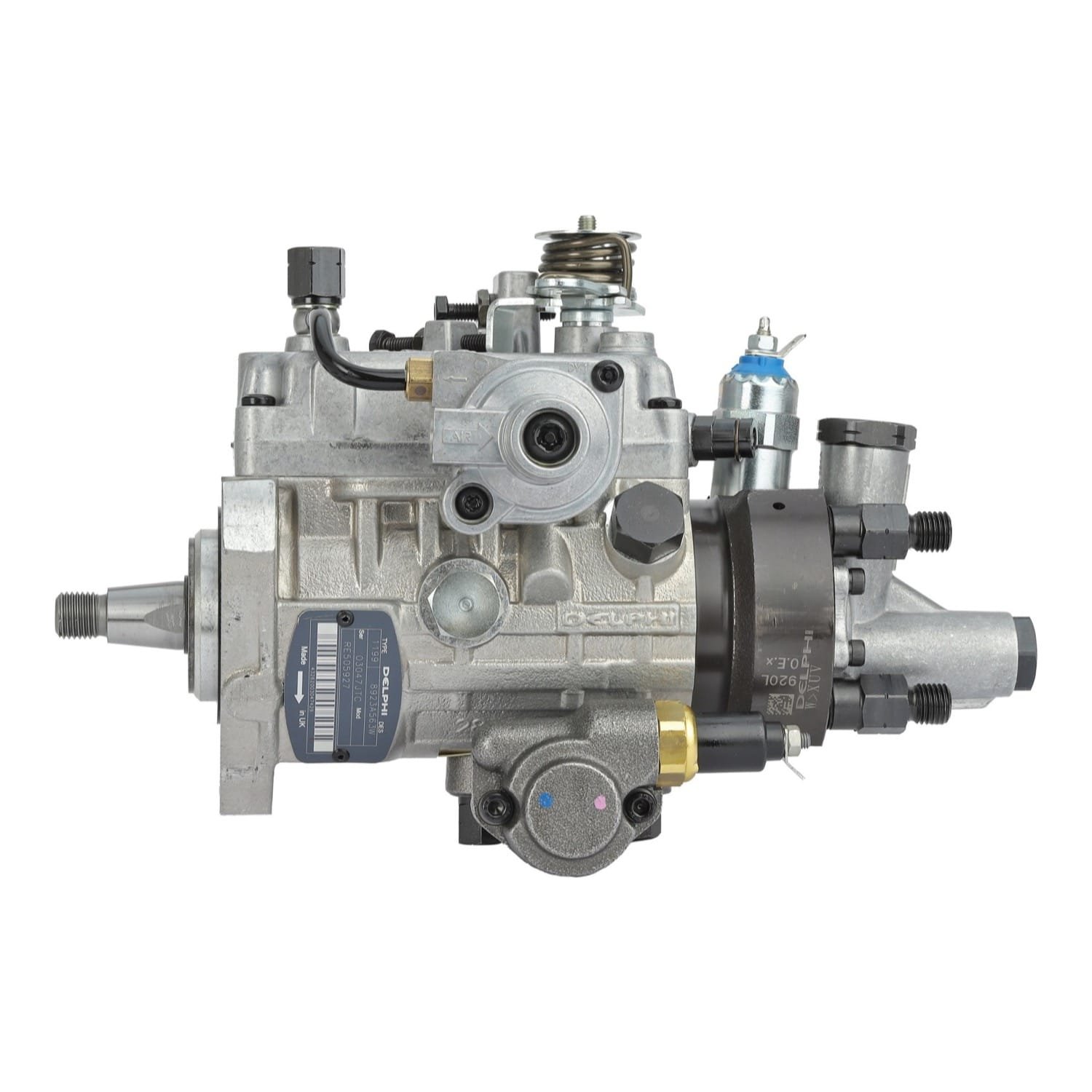

A new Delphi DP200 rotary injection pump, Delphi part number 8923A560W. John Deere lists it as RE505927. It fits the John Deere 4045T, the 4.5 liter four-cylinder turbo diesel, in the build Delphi calls John Deere Dubuque 4045T2. It replaces the earlier John Deere RE64133 pump (Delphi 8920A200W series).

Common reasons to replace a DP200: hard starting, low power or smoke from worn internals, leaks at the seals, or damage from water or dirt in the fuel. This is a new pump, not a rebuild. If you would rather keep your original pump, we rebuild DP200 and DP210 pumps on our own bench. Match the numbers on your pump plate before you order, because other 4045T DP200 pumps carry different part numbers and settings.

Specifications

Fits / Applications

• John Deere 4045T 4.5L four-cylinder turbo diesel (Delphi application: John Deere Dubuque 4045T2)

John Deere DP200 pumps are housing timed (a mark on the pump flange lines up with a mark on the engine front plate), not lock timed like Perkins DP200 pumps. Follow the John Deere manual for your engine. Fit a new O-ring on the pump flange, then prime the fuel system and bleed air at the injector lines before start-up. Fit new fuel filters, and clean the tank if the old pump failed from water or dirt.

Part Numbers & Cross Reference

John Deere RE505927  ·  John Deere (earlier number) RE64133  ·  John Deere reman exchange SE501316  ·  Delphi (earlier pump) 8920A200W to 8920A205W  ·  Delphi (issue variants) 8923A561W, 8923A562W, 8923A563W

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which engine does Delphi 8923A560W fit?

The John Deere 4045T, the 4.5 liter four-cylinder turbo diesel, in the build Delphi calls John Deere Dubuque 4045T2. John Deere lists the pump as RE505927.

Can I swap 8923A560W for 8923A560K?

Not without checking. 8923A560K is John Deere RE505926, and other 4045T DP200 pumps carry different part numbers and settings. Send us the Delphi and John Deere numbers from your pump plate and the engine serial number, or call 530-668-0818, and we will confirm the match at no charge before anything ships.

Does RE505927 replace the older RE64133 pump?

Yes. It replaces the earlier John Deere RE64133 pump, the Delphi 8920A200W series (8920A200W to 8920A205W). This one is a new pump, sold outright: no core charge and nothing to send back.

Is Delphi 8923A560W lock timed like the Perkins DP200 pumps?

No. John Deere DP200 pumps are housing timed: a mark on the pump flange lines up with a mark on the engine front plate. Fit a new O-ring on the pump flange, then prime the fuel system and bleed air at the injector lines before start-up.
