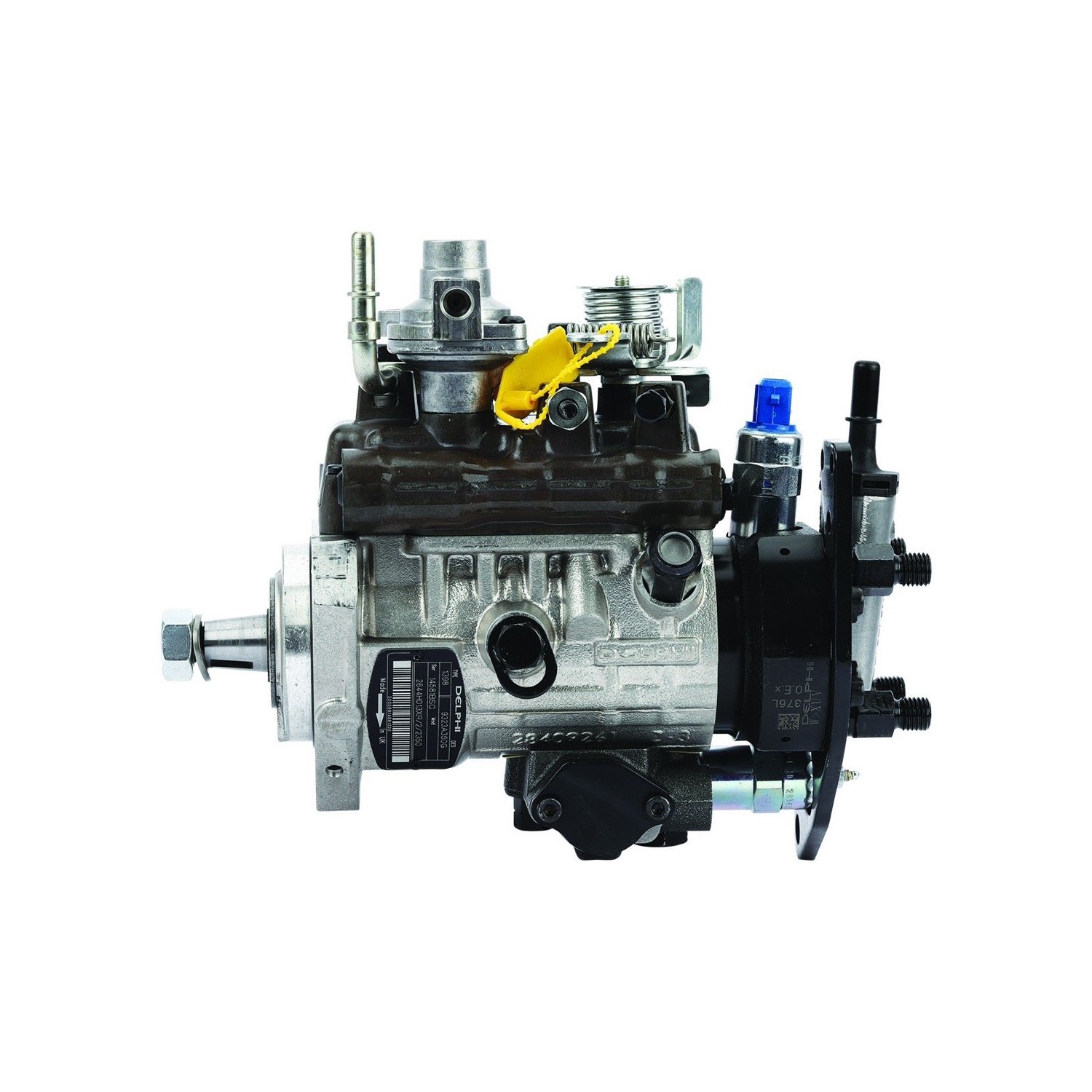

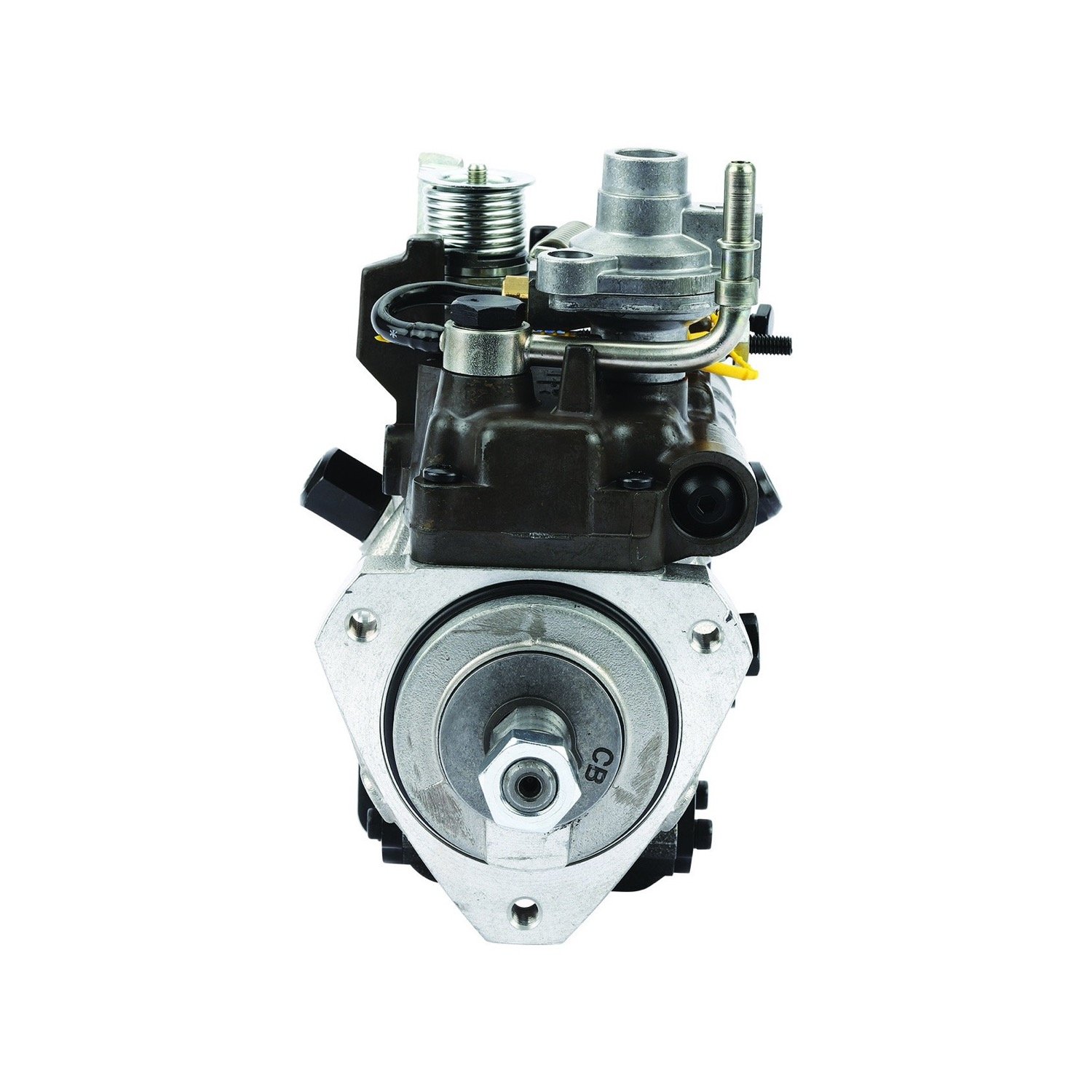

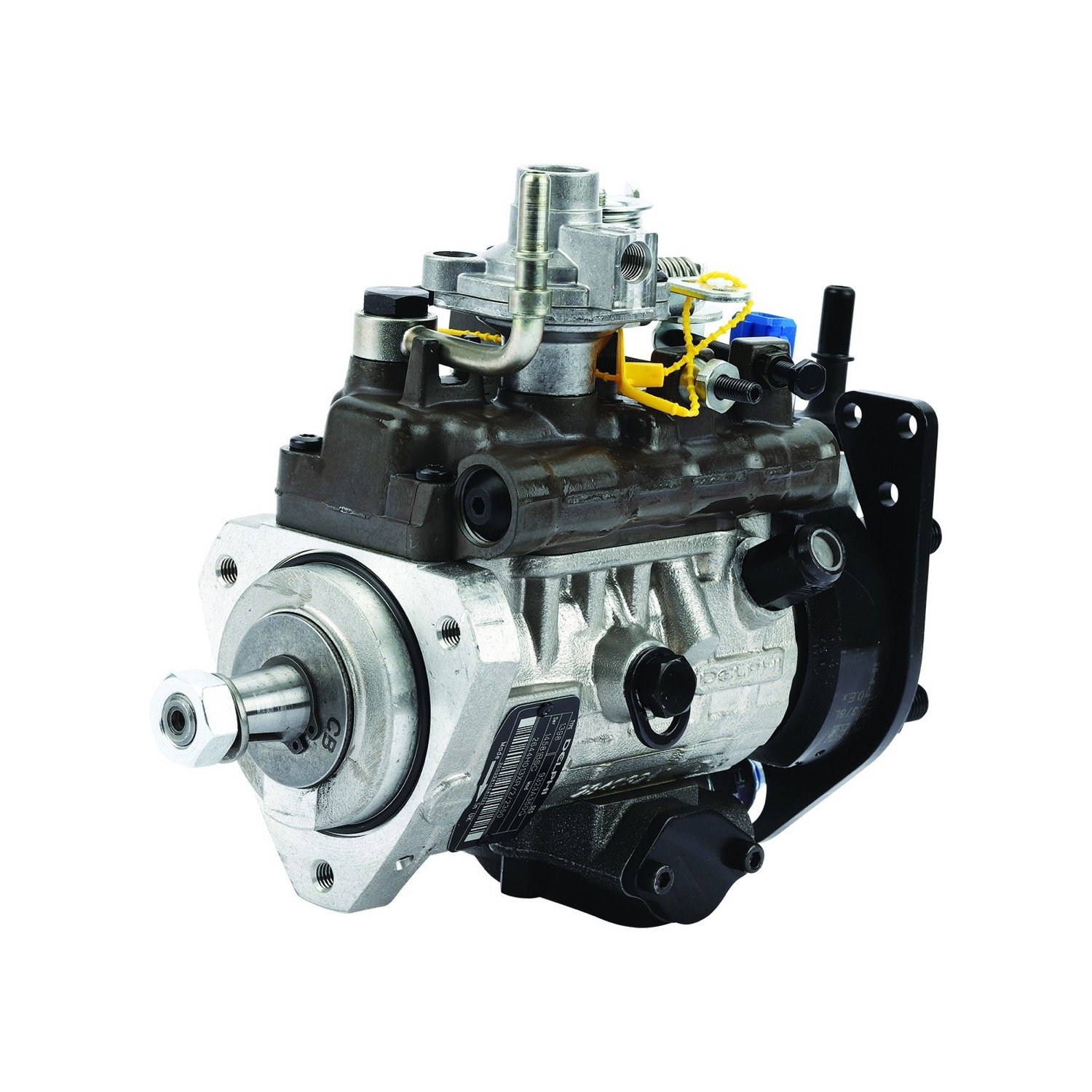

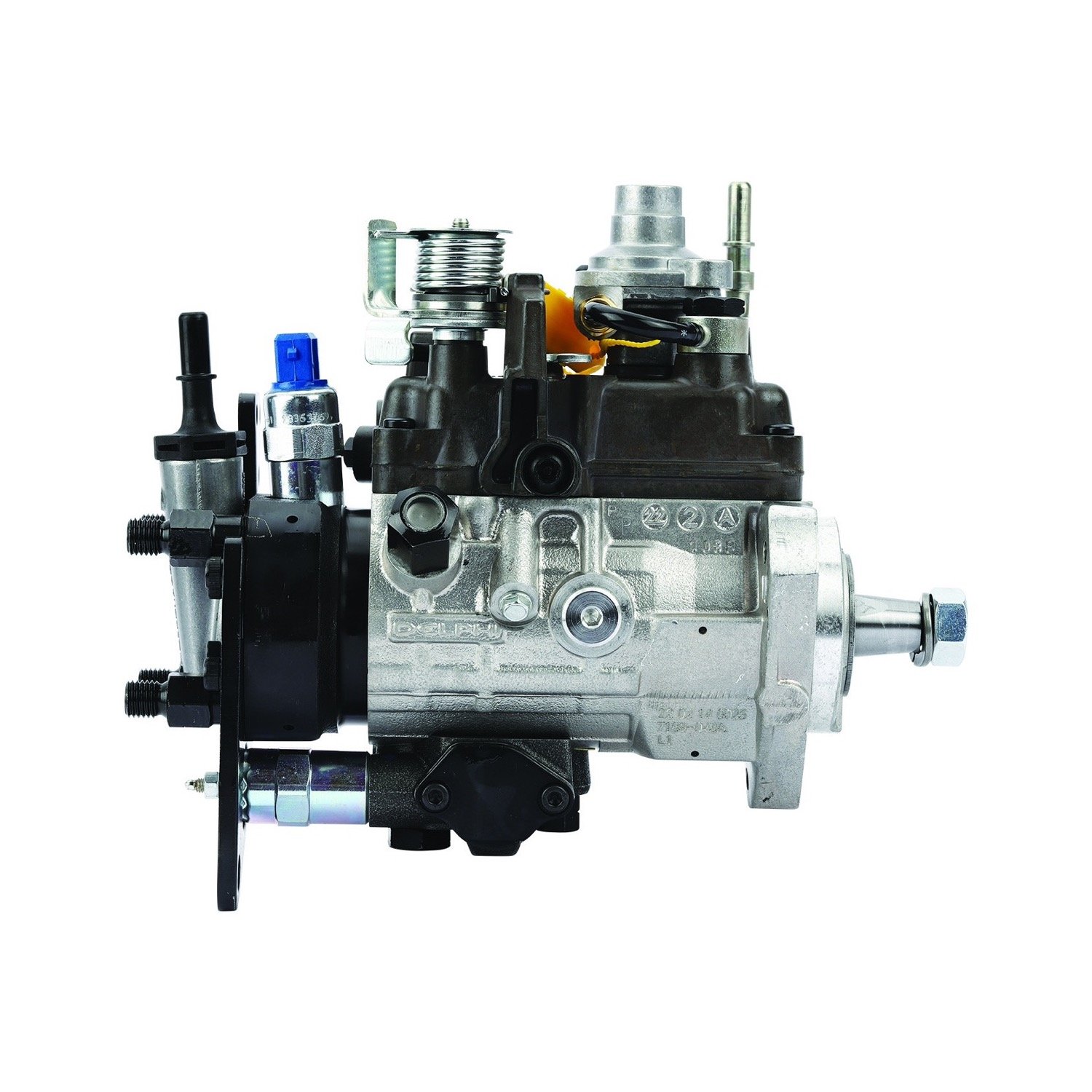

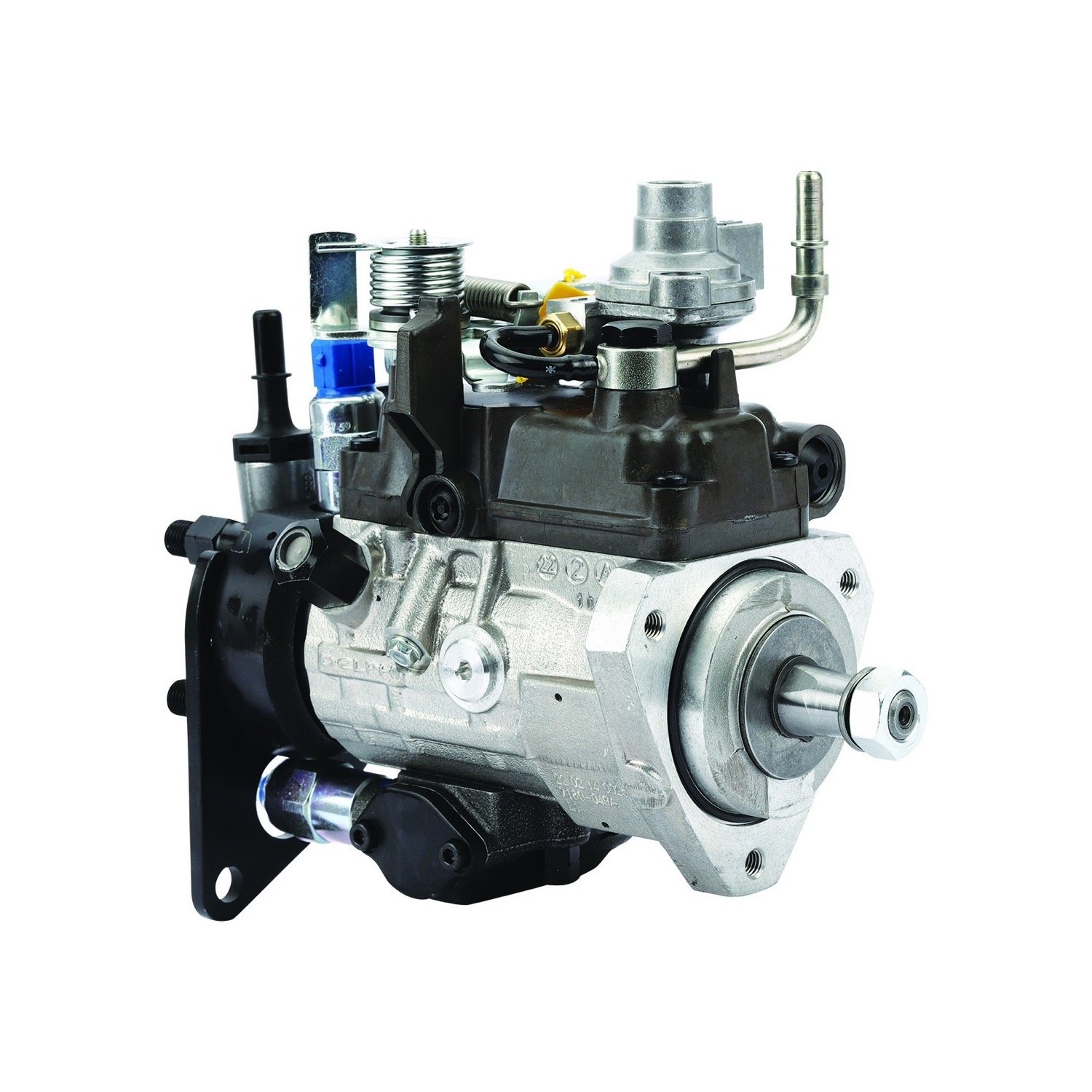

The Delphi 9323A350G is a new DP210 rotary injection pump (some catalogs group it with the DP200) for the Perkins 1104C-44T and the Caterpillar 3054C 4-cylinder turbo diesel at the 74.5 kW (about 100 hp) rating. It is the current Delphi number for Perkins 2644H013 and Caterpillar 236-8228 and 248-2356, and it replaces Delphi 9320A210G, 9320A211G and 9320A212G. JCB lists the same pump as 17/922300.

Catalogs list this pump for Perkins 1104C-44T powered equipment from JCB, Bobcat and AGCO / Massey Ferguson, and for Caterpillar 3054C engines. Shops replace it for hard starting, low power, smoke, fuel leaks or internal wear from water and dirt in the fuel. Several 1104C DP210 pumps look identical but are set for other ratings, so match the Perkins or Cat number on your pump plate.

Specifications

Fits / Applications

• Perkins 1104C-44T 4-cylinder turbo diesel, 74.5 kW (about 100 hp) rating (Perkins 2644H013)
• Caterpillar 3054C engine (Cat 236-8228 / 248-2356)
• JCB equipment with the Perkins 1104C-44T (JCB 17/922300)
• Bobcat V518 VersaHandler, builds fitted with Perkins pump 2644H013

Lock-timed pump. The Caterpillar 3054C procedure for the Delphi DP210: pin the engine at top center on No. 1 cylinder, compression stroke (timing pins through the camshaft gear and the crankshaft), fit the pump on a new O-ring, fit the gear and take up the backlash, then loosen the pump’s locking bolt, move the spacer under it so the bolt clears the shaft, and retighten it before the final gear nut torque. Never turn the engine with the pump shaft locked. Reconnect the timing advance solenoid and the other pump wiring, use clean fuel and new filters, and bleed the system before starting. Follow the service manual for torque values.

Part Numbers & Cross Reference

Perkins 2644H013  ·  Perkins exchange unit 2644H013XR  ·  Caterpillar 236-8228  ·  Caterpillar 248-2356  ·  JCB 17/922300  ·  Delphi (replaced) 9320A210G, 9320A211G, 9320A212G

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Why Buy From Valley Fuel Injection

We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. We verify fitment against your engine serial, VIN or build date before anything ships, so the right part arrives the first time.

Not sure the pump is the problem? We test and diagnose in-house before you buy. See our DP200 injection pump rebuild service.
