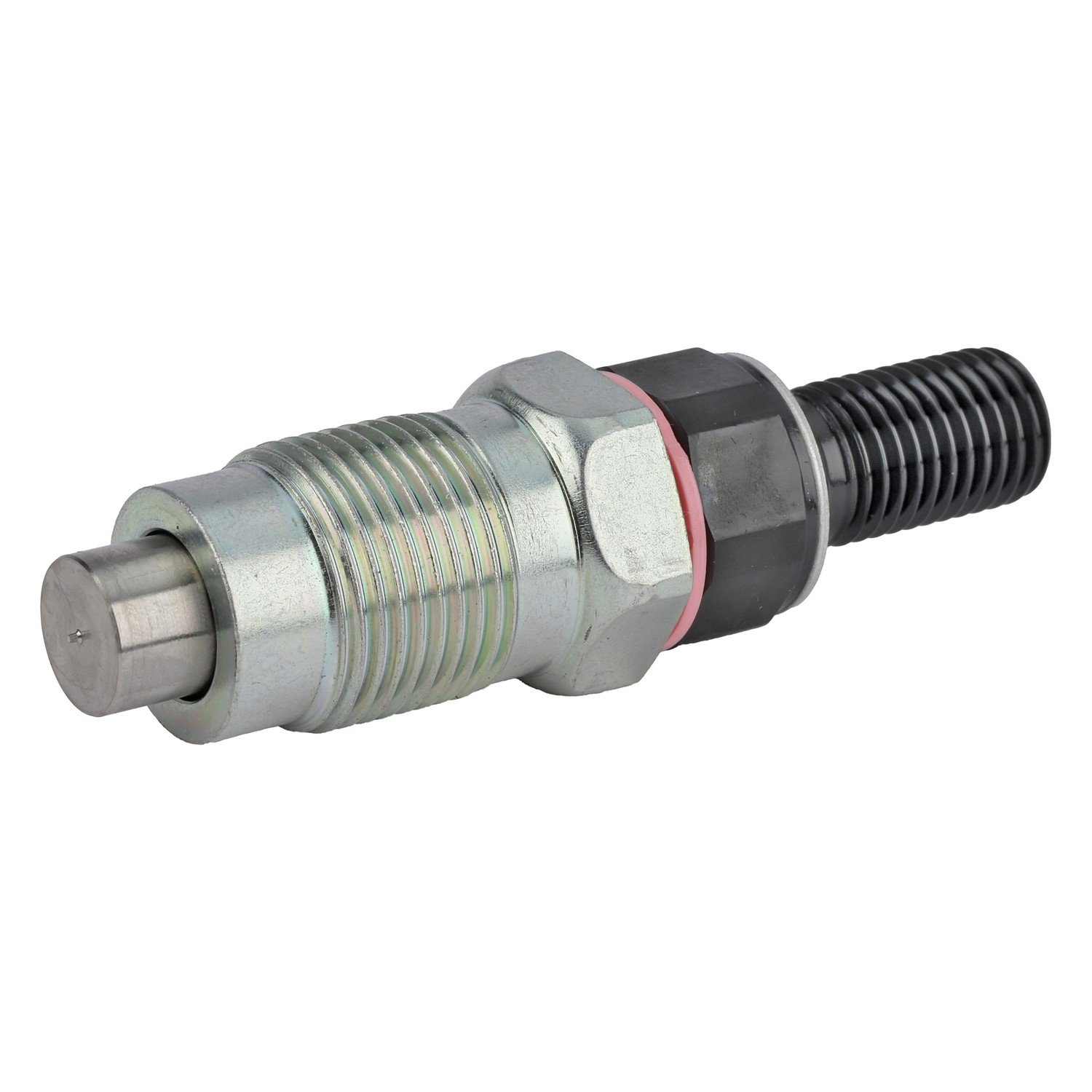

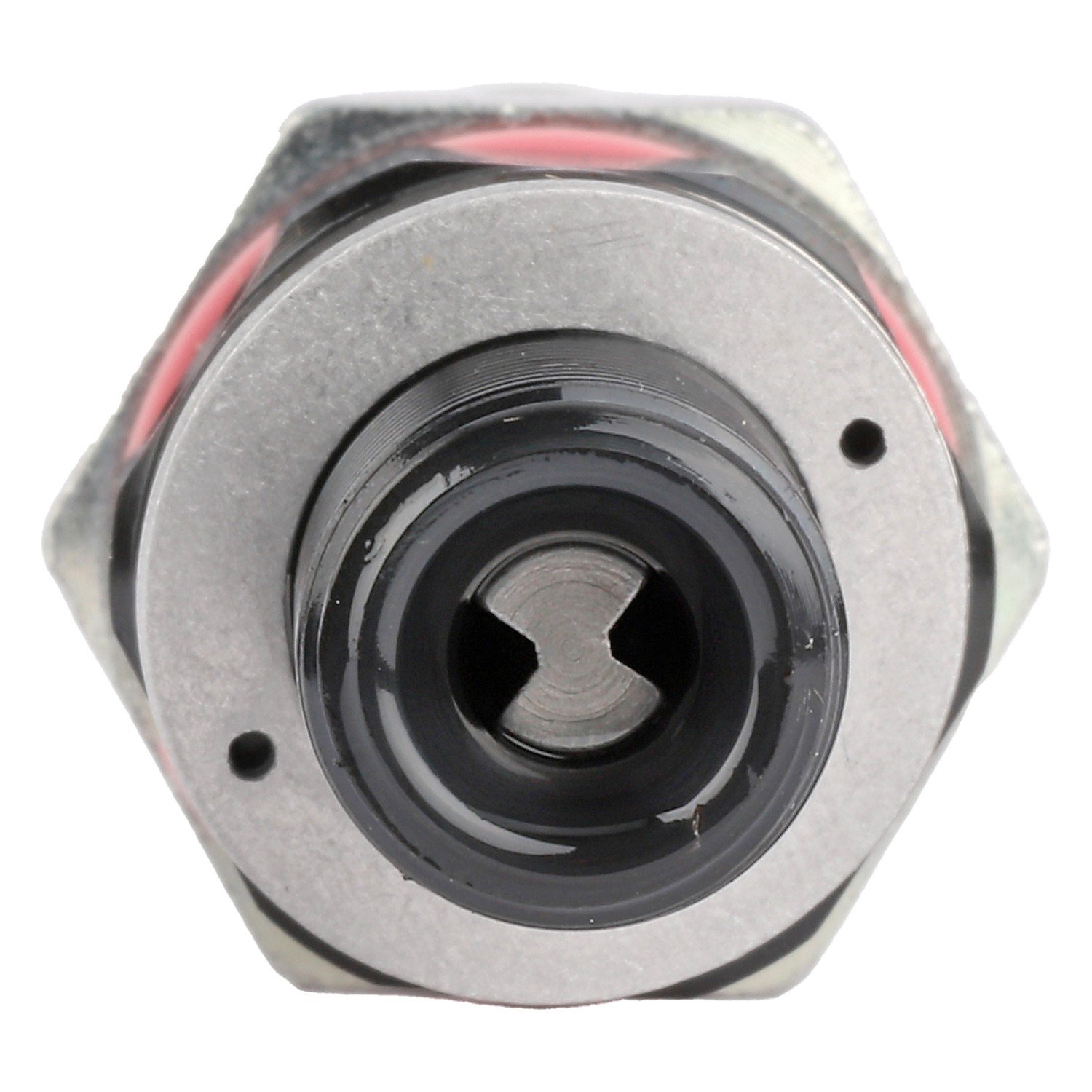

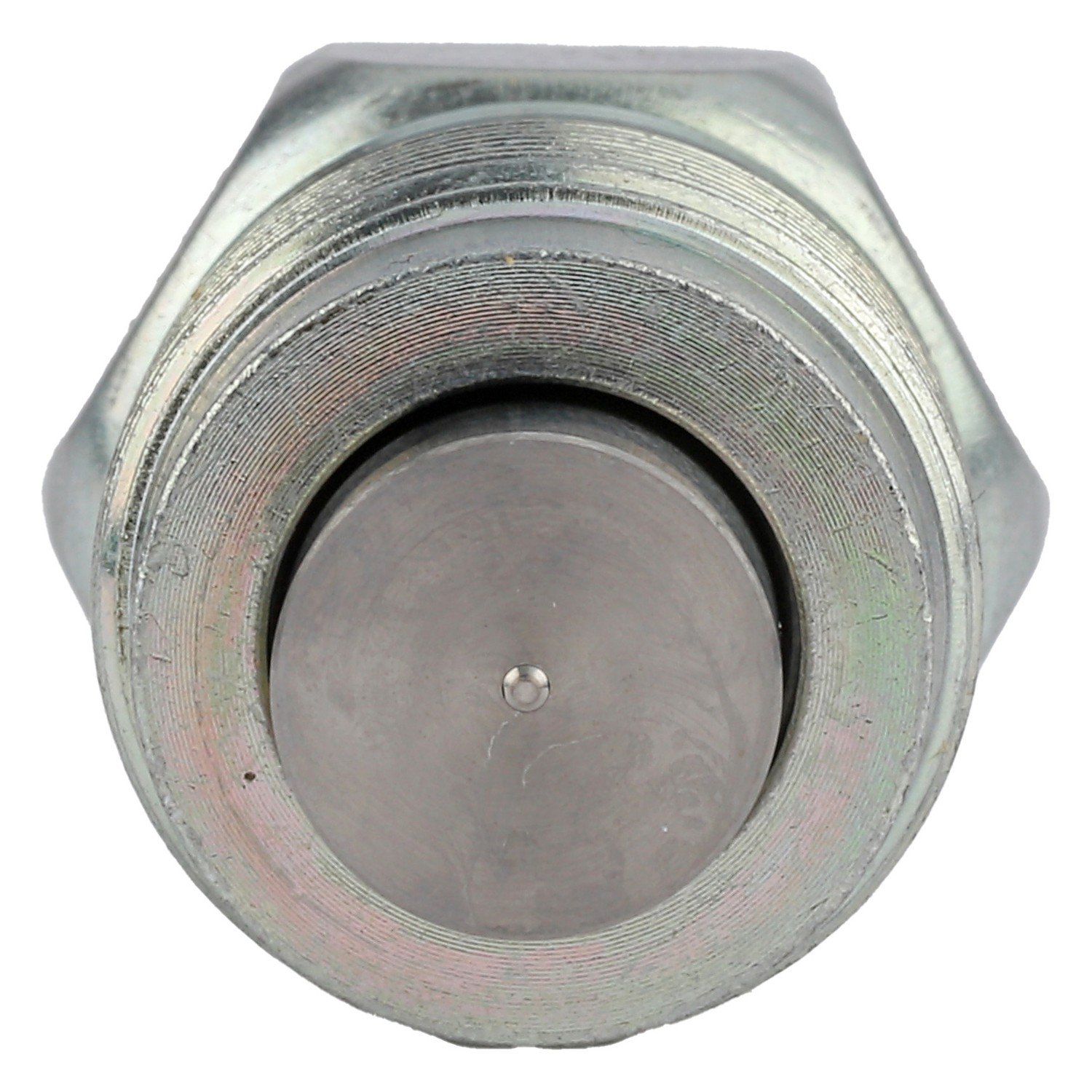

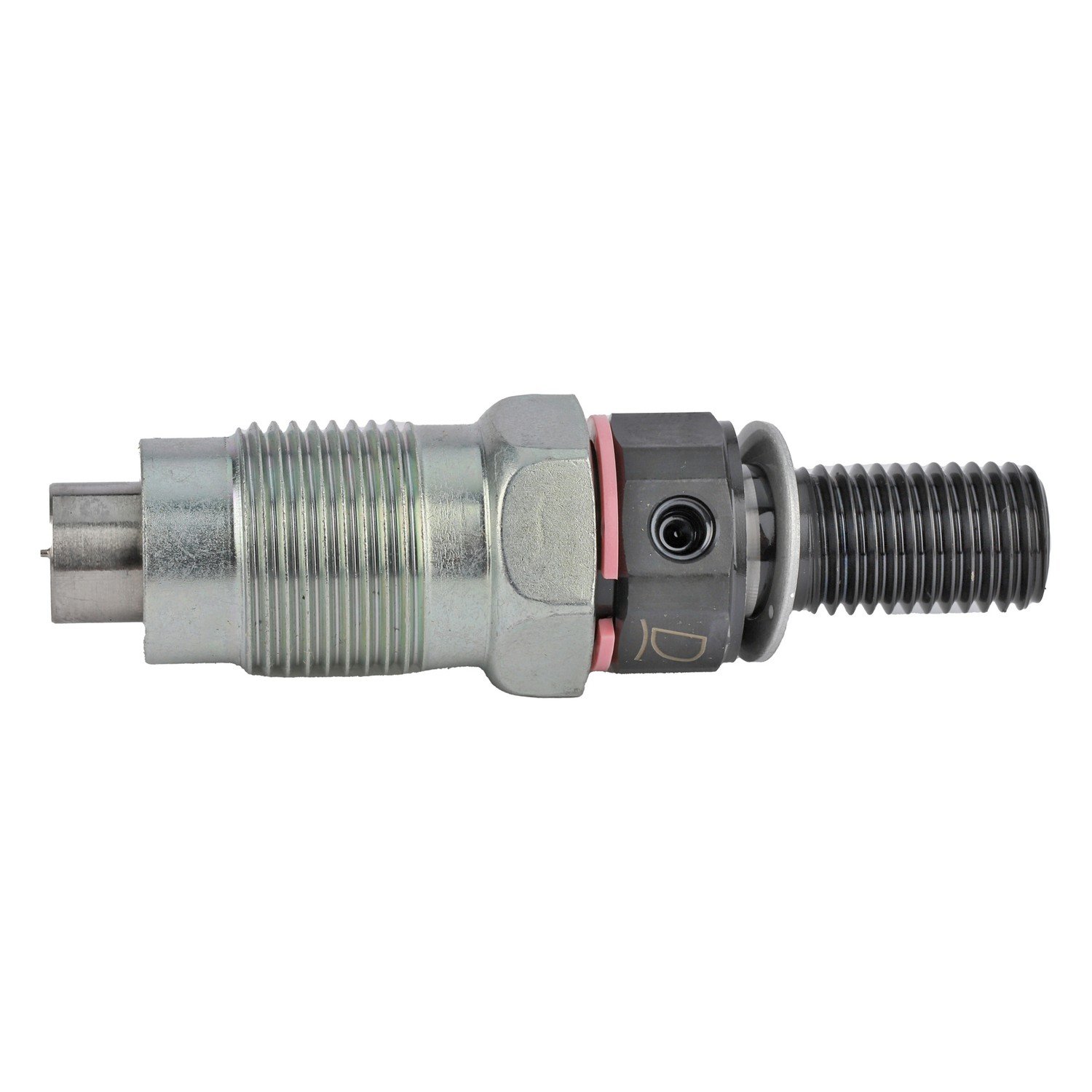

Denso 093500-4540 is a new Denso nozzle holder assembly, the complete injector, sold by Kubota as 16082-53903 (earlier 16082-53900, 16082-53000, 19077-53000 and 19077-53900). It fits the Kubota D1403, D1503 and D1703 3-cylinder engines (3 per engine) and the V2203 4-cylinder (4 per engine), all indirect injection. It is listed for the Kubota KX91-3 and U35 excavators, the L2600, L2900, L3010 and L3200 tractors, and the Bobcat 7753 skid steer.

These get replaced for hard starting, smoke, knock, rough idle or a failed pop test. On V2203 engines, check the number first. Kubota also used the 16454-series injector (Denso 093500-5060) on V2203 builds, and both are listed on some of the same generator and loader models.

Specifications

Fits / Applications

• Kubota D1403, D1503 and D1703 3-cylinder indirect-injection engines
• Kubota V2203 4-cylinder indirect-injection engine (some builds)
• Kubota KX91-3 and U35 excavators
• Kubota L2600, L2900, L3010 and L3200 tractors
• Bobcat 7753 skid-steer loader

Kubota’s 03-M workshop manual lists 13.73 to 14.70 MPa (1992 to 2133 psi) opening pressure for its IDI D1503-M, D1703-M and V2203-M engines, set with a washer inside the holder. Check the manual for your exact engine. Replace the heat seal and gasket under the injector and bleed the fuel system after installation.

Part Numbers & Cross Reference

Kubota (current) 16082-53903  ·  Kubota (earlier) 16082-53900, 16082-53000, 19077-53000, 19077-53900  ·  Kubota (also listed) 16082-53001

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Is Denso 093500-4540 the same injector as Kubota 16082-53903?

Yes. Denso 093500-4540 is the complete injector Kubota sells as 16082-53903. Earlier Kubota numbers for it are 16082-53900, 16082-53000, 19077-53000 and 19077-53900.

Will 093500-4540 fit every Kubota V2203?

No. Some V2203 engines take the 16454-series injector (Denso 093500-5060) instead, and the M-DI and CR versions use different injectors again. Send us the engine model and serial number, or the number on your old injector, and we will confirm the match at no charge before anything ships.

Which machines is Denso 093500-4540 listed for?

It is listed for the Kubota KX91-3 and U35 excavators, the L2600, L2900, L3010 and L3200 tractors, and the Bobcat 7753 skid steer. The D1403, D1503 and D1703 take 3 per engine and the V2203 takes 4.

Is the 093500-4540 new, and is there a core charge?

It is a new Denso nozzle holder assembly, the complete injector, in original packaging. There is no core charge, and you keep your old injectors.
