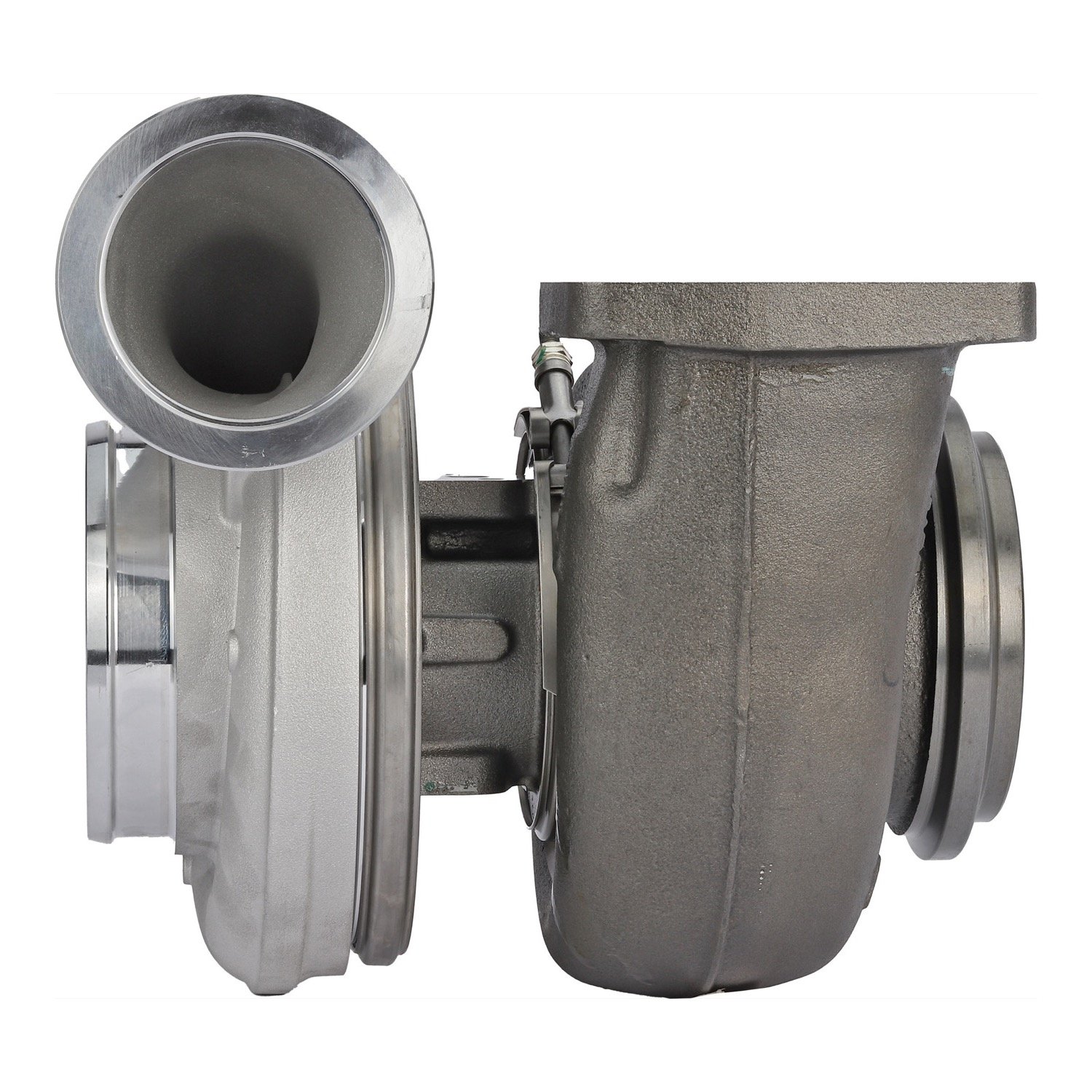

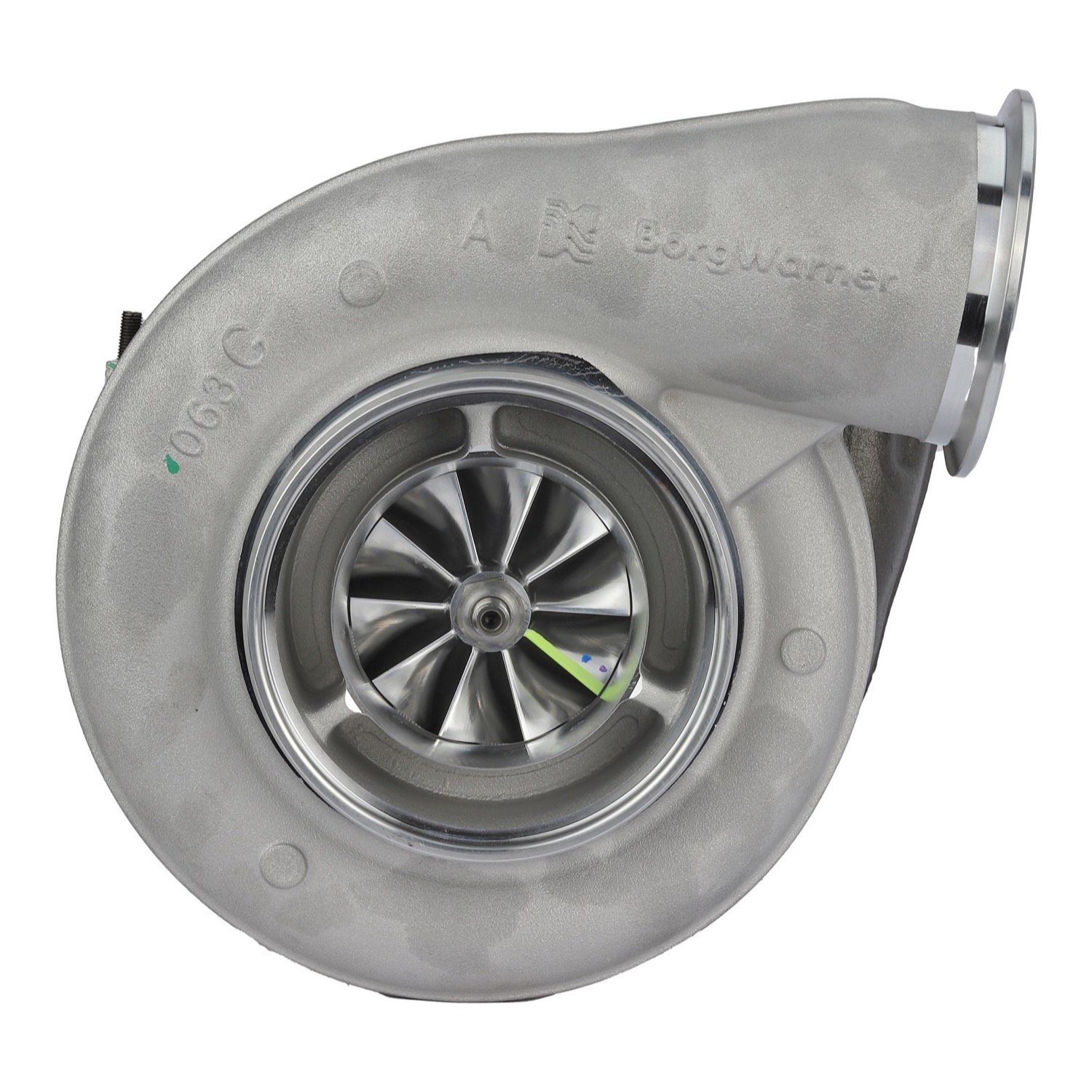

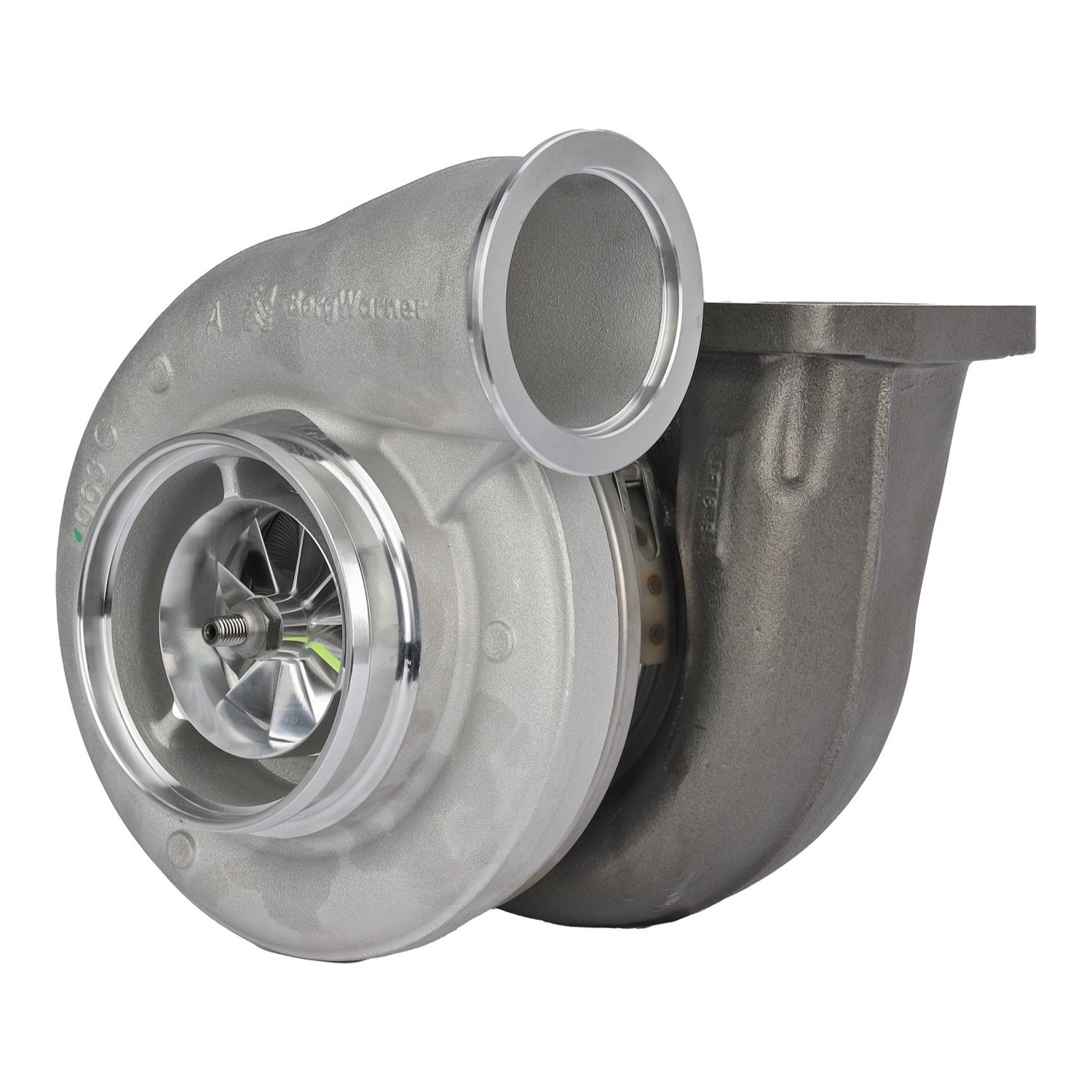

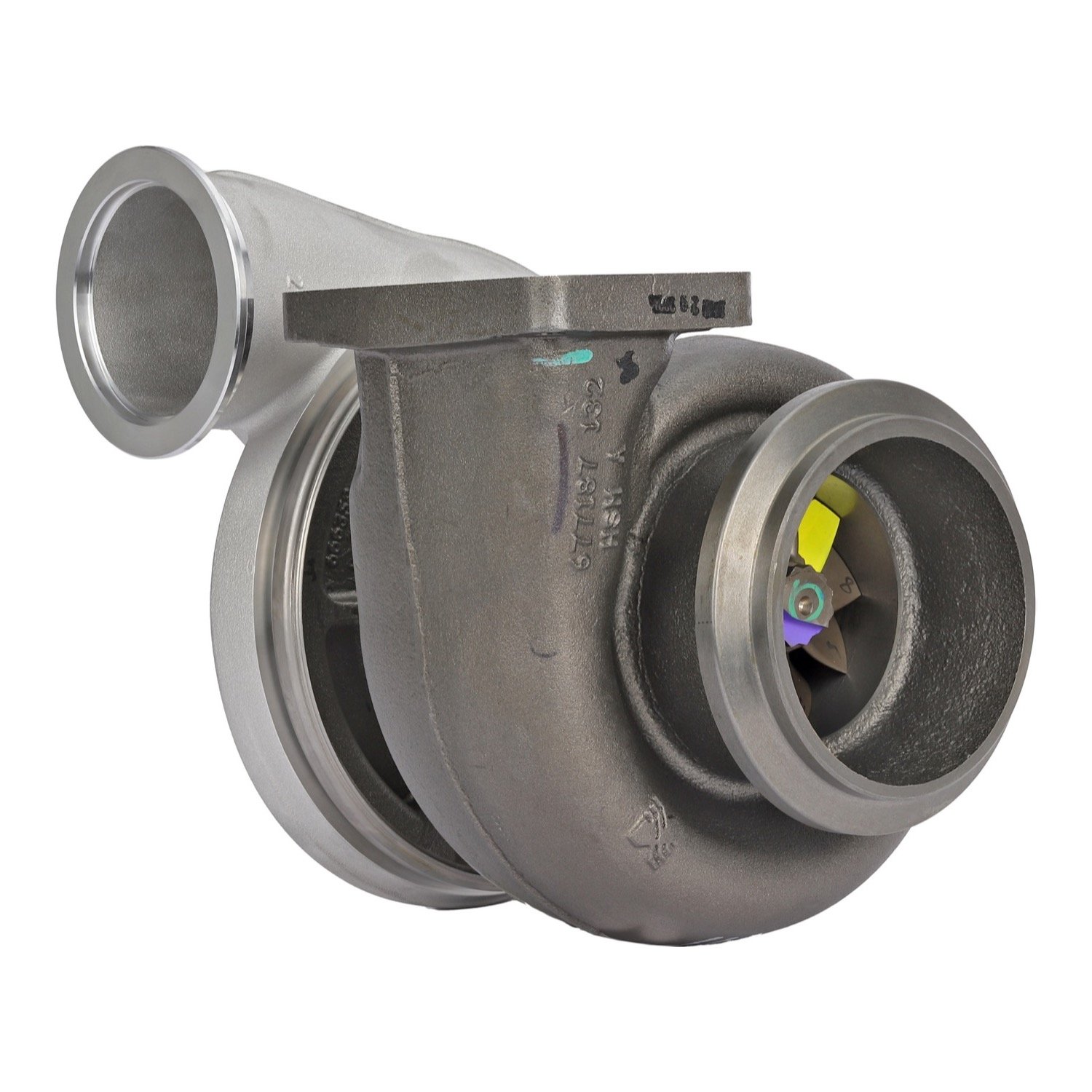

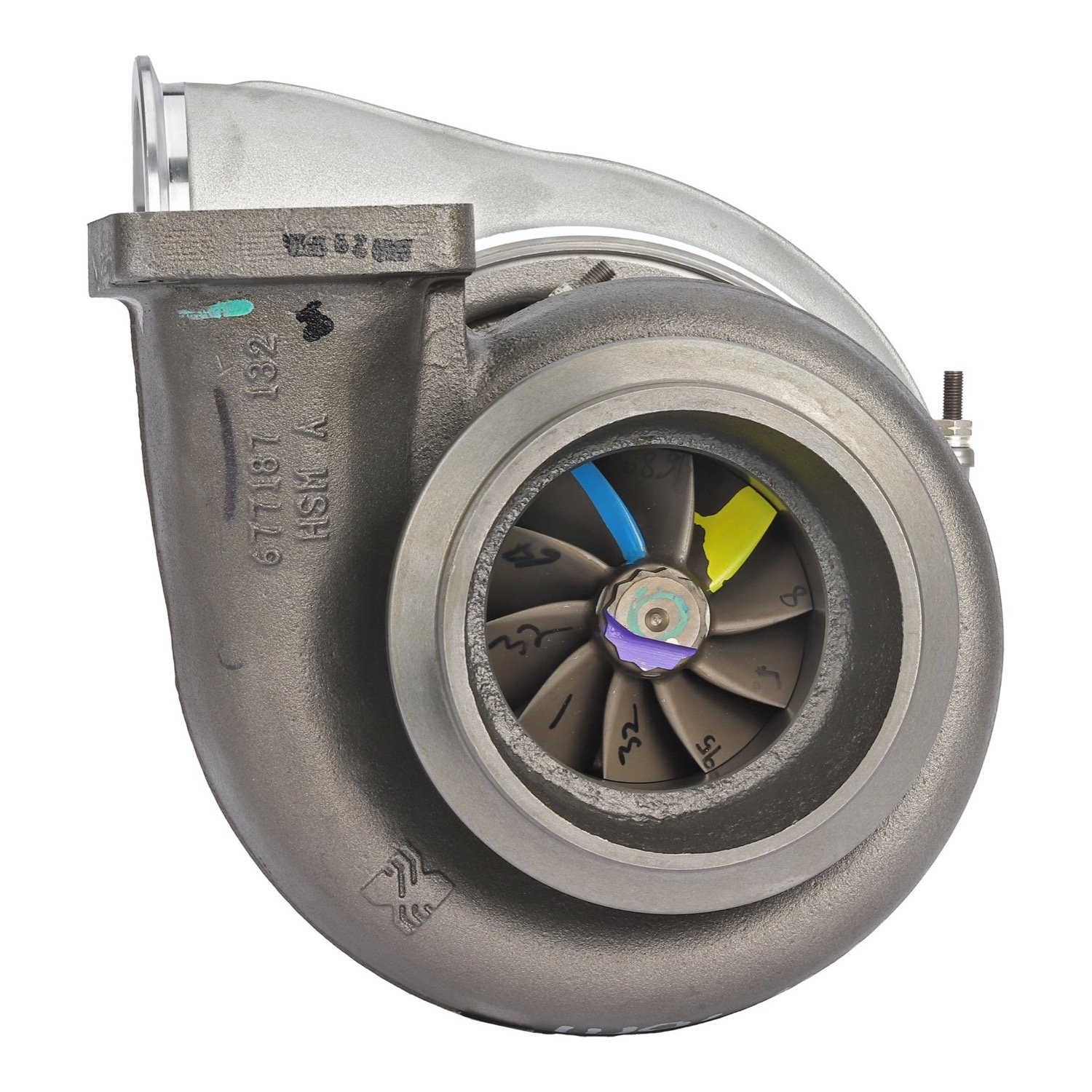

This is the BorgWarner 14969880029, a new S400SX-E turbocharger. It is the S400SX-E upgrade for the S400 turbo 171702, which catalogs list for the 2000 to 2008 Detroit Diesel Series 60 12.7L and cross to Detroit 23518588, 23518597 and 23523197. It has a forged milled 10 blade compressor wheel with a 76 mm inducer, a 96 mm turbine wheel, a 1.32 A/R T6 divided turbine housing with a 5.75 inch Marmon outlet, and a 360 degree thrust bearing. It is a complete new turbo, not a rebuild.

Series 60 turbos are replaced for shaft play, oil in the charge pipes, low boost, slow spool and a wheel that has touched the housing. The Series 60 12.7L was built with several different turbos by rating and by year, so match this one by the number on your old turbo and not by the engine alone. This is an upgrade turbo and not the original 171702. If you want the standard part, ask us for 171702.

Specifications

Fits / Applications

• Detroit Diesel Series 60 12.7L engines whose turbo is BorgWarner 171702
• Catalogs list it for 2000 to 2008 engines
• Old turbo crosses to Detroit 23518588, 23518597 or 23523197, International 2585838C91, or Garrett 466713-5005S or 466713-5006S
• Not for Series 60 engines with a variable geometry turbo
• Check the number on the old turbo tag before you order

Fit new gaskets, prime the turbo with clean engine oil before the first start, and check the oil feed line and drain for restriction. Check the charge air cooler and pipes for oil and debris from the old turbo before you run the engine.

Part Numbers & Cross Reference

BorgWarner 14969880029  ·  BorgWarner, also listed as 14969700029  ·  BorgWarner, standard S400 171702

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does the 14969880029 replace BorgWarner 171702?

It is the S400SX-E upgrade for 171702. Catalogs list it for the Detroit Series 60 12.7L and cross it to 171702 and Detroit 23518588. It is an upgrade and not the original part, so compare the connections with your old turbo, or ask us for the standard 171702.

Will it fit my Series 60 14.0L or an EGR engine with a VGT turbo?

We list it for the 12.7L that carries turbo 171702. It does not replace a variable geometry turbo. Call 530-668-0818 with your engine serial number and old turbo number.

Which years is it listed for?

Catalogs list it for 2000 to 2008 Series 60 12.7L engines. The year alone is not enough, because the 12.7L used more than one turbo in those years. Go by the number on the old turbo.

What are the wheel and housing sizes?

It has a 76 mm compressor wheel inducer, a 96 mm turbine wheel and a 1.32 A/R T6 divided turbine housing with a 5.75 inch Marmon outlet.
