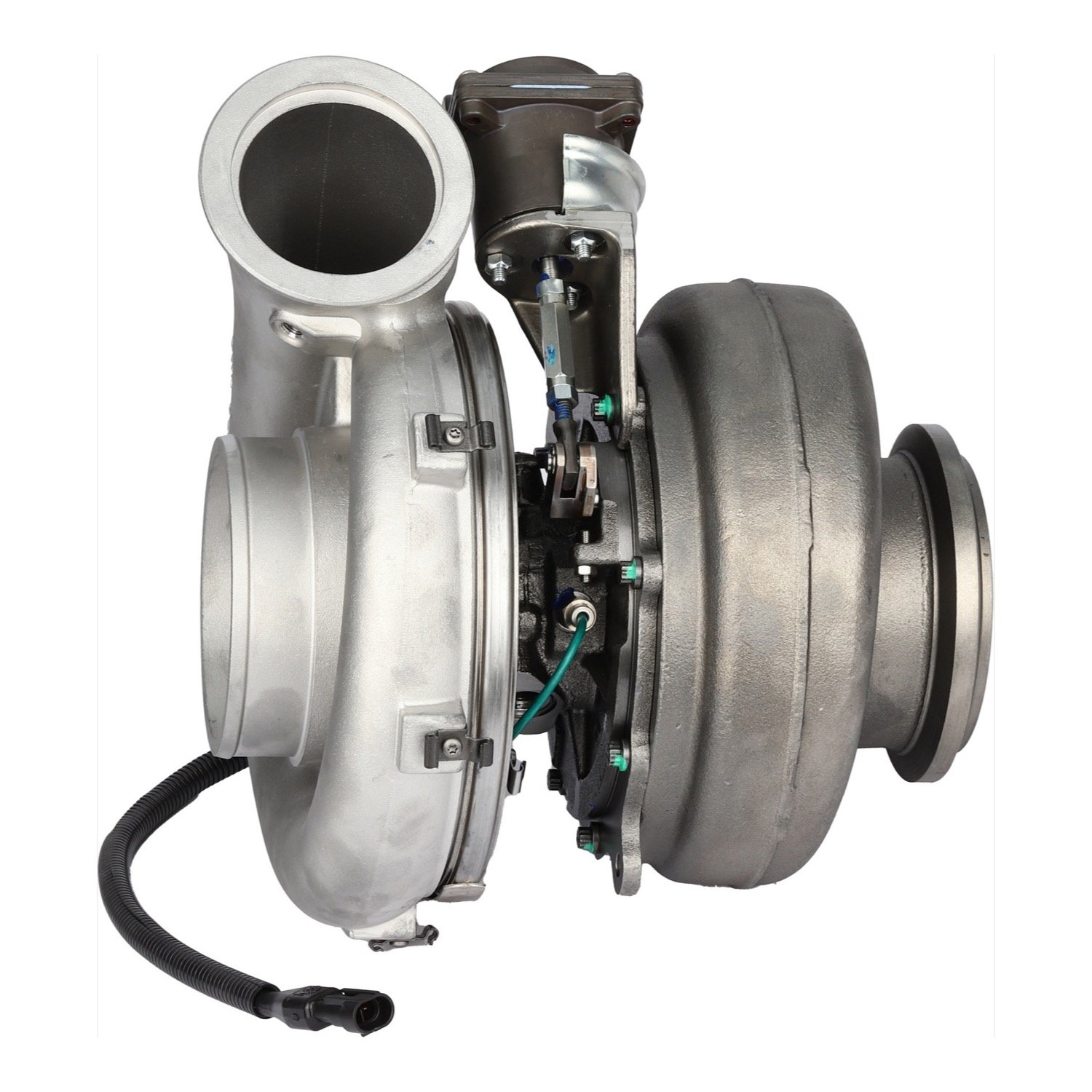

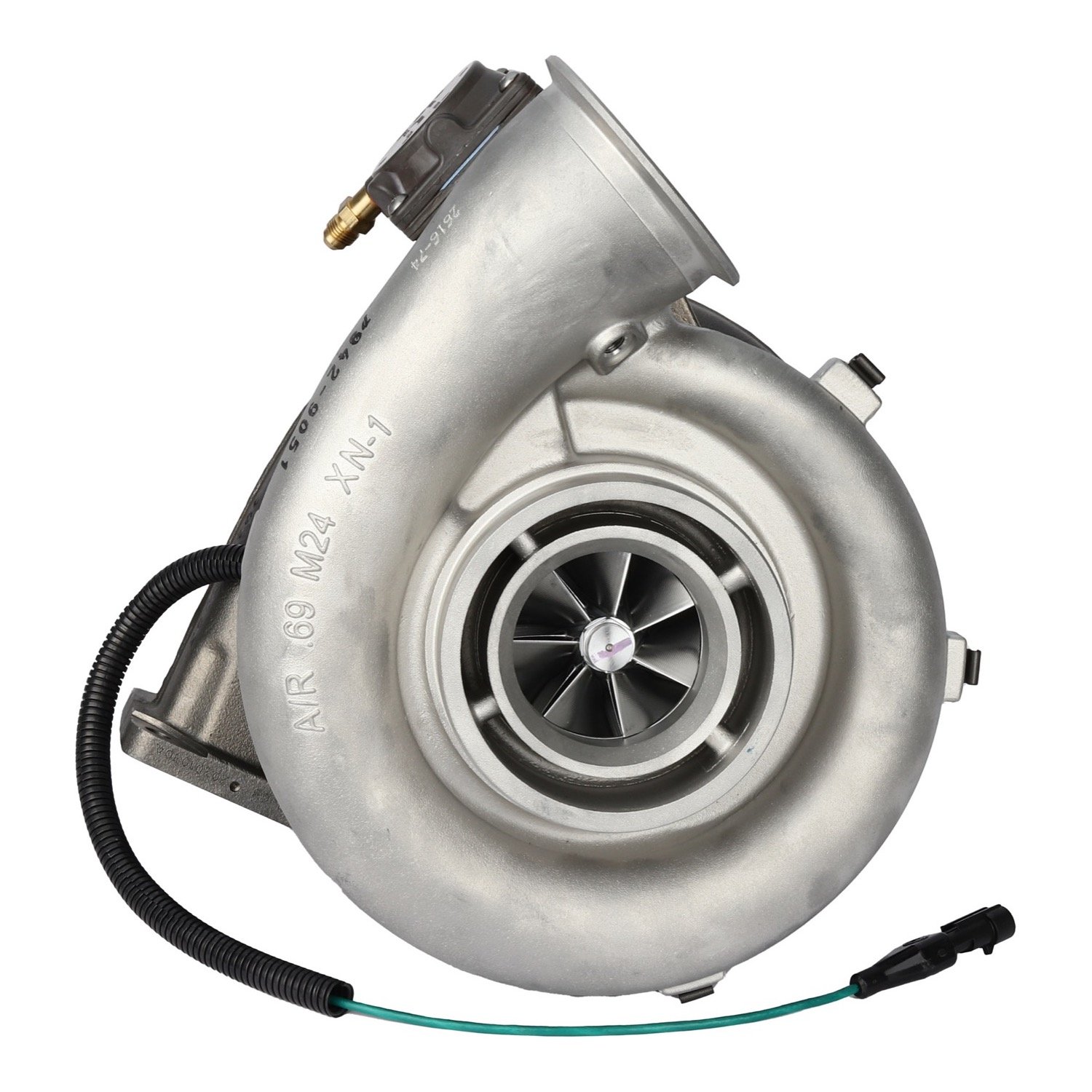

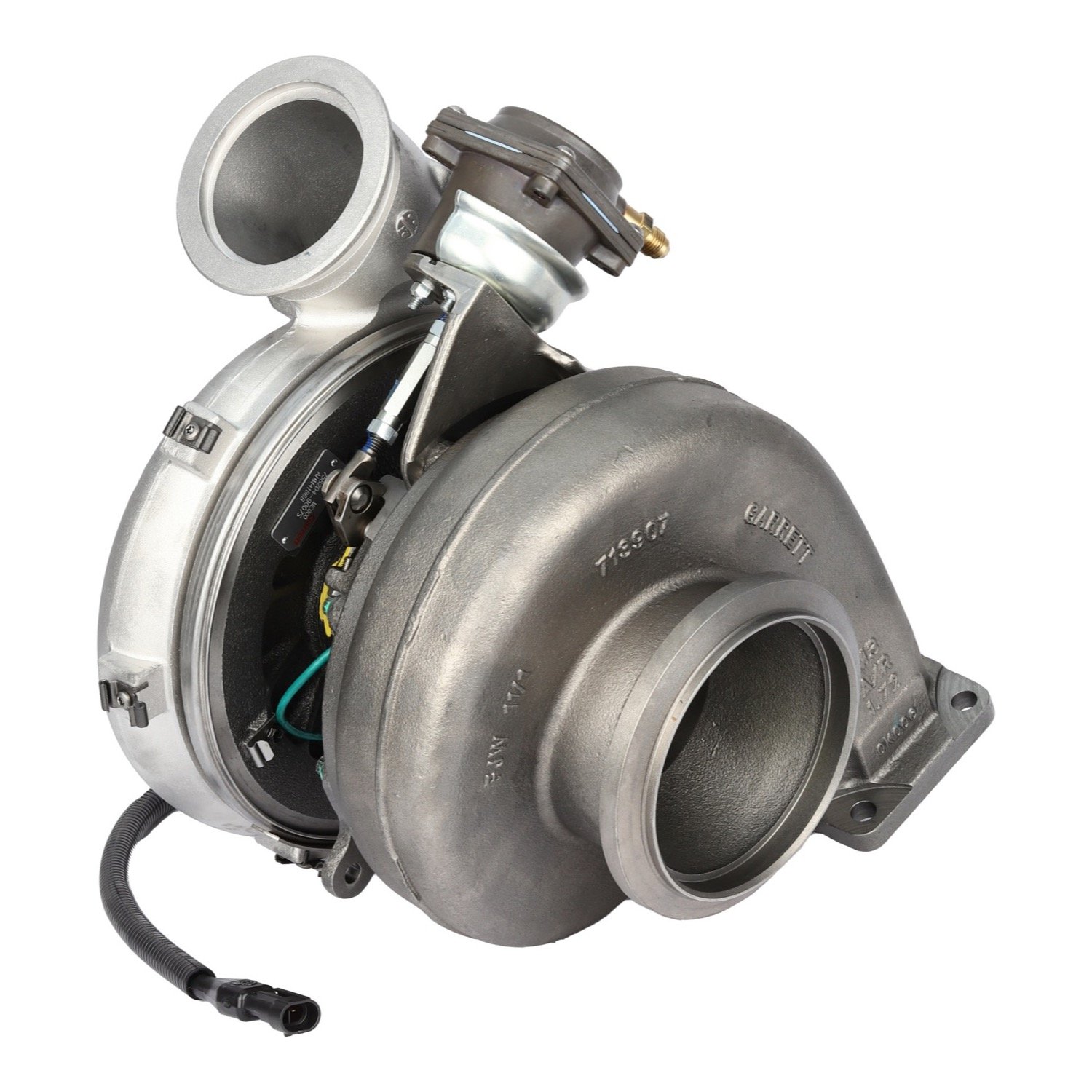

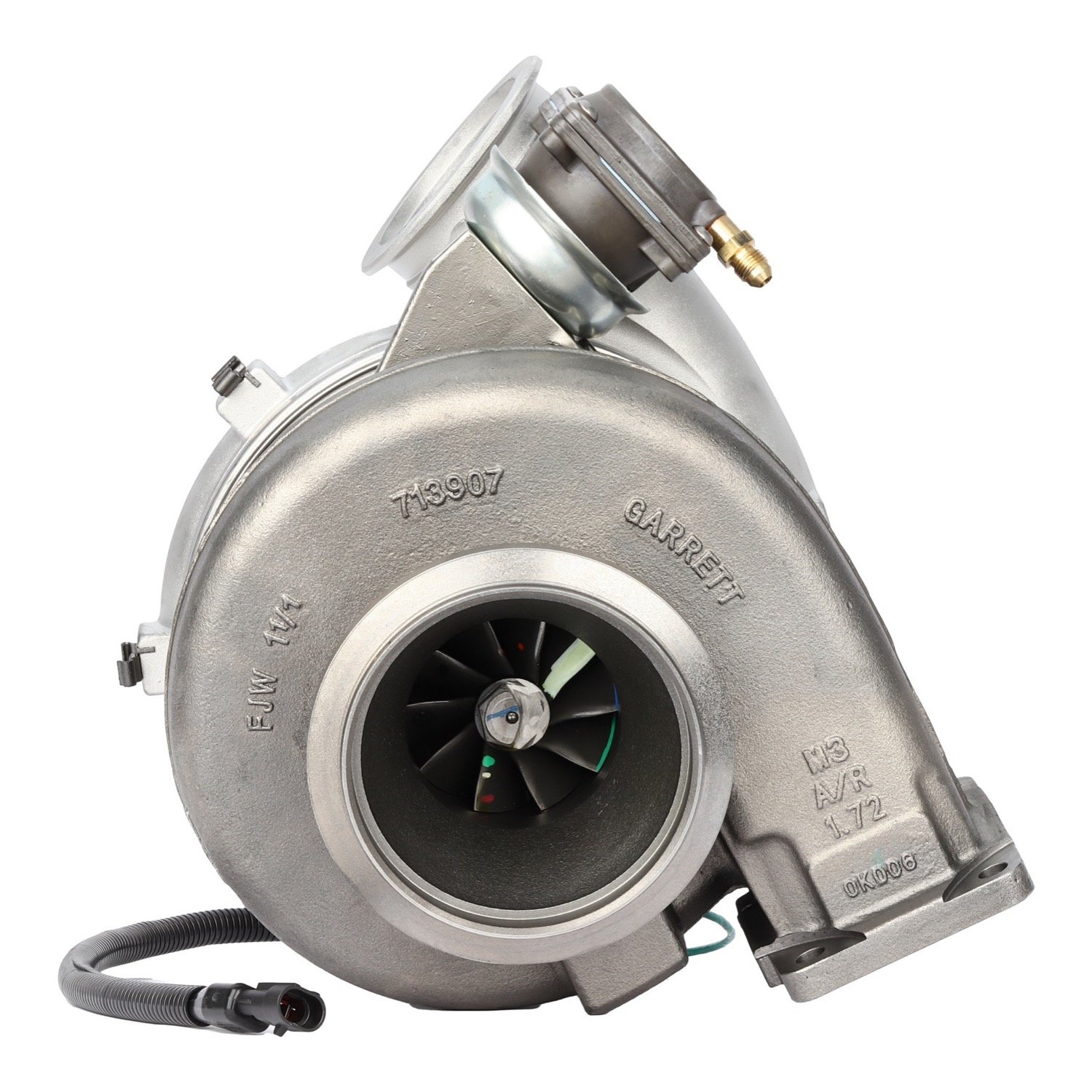

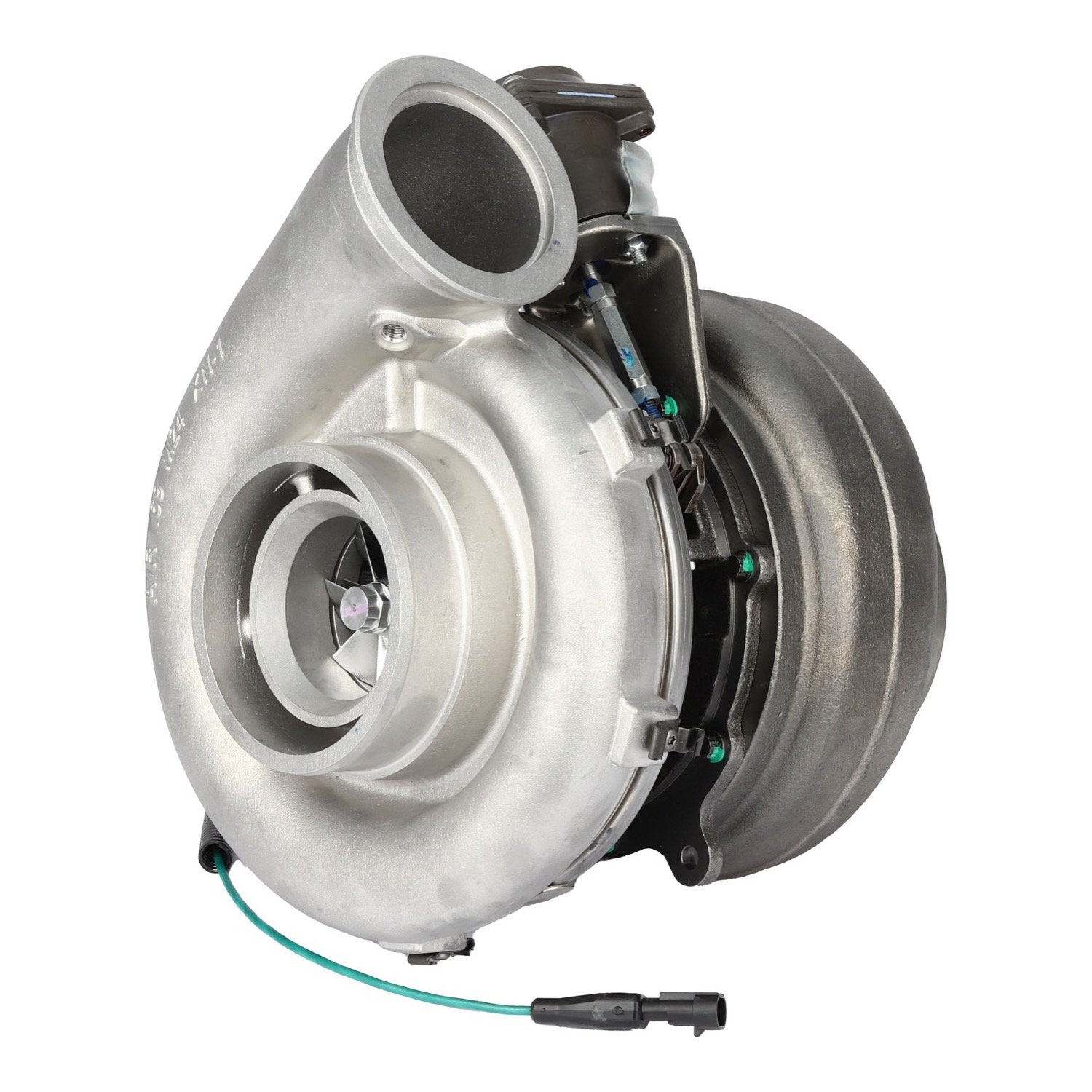

This is the Garrett 758204-9007S, a GTA4502V variable geometry turbocharger remanufactured by Garrett for the Detroit Diesel Series 60 14.0L. It replaces Detroit 23534361, 23533361 and 23534356 and the earlier Garrett 752389 series, and it crosses to BorgWarner 57849882005. Sellers list it for 2002 to 2006 engines at the 515 hp rating, complete with its actuator, in Freightliner, Kenworth, Peterbilt and International trucks and MCI coaches. The new Garrett version of the same turbo is 758204-5007S. A refundable core applies.

Garrett built several GTA4502V turbos for the Series 60, each under its own Detroit number, so the engine size alone does not pick the part. Detroit 23534360, for example, is listed by most catalogs under Garrett 758204-5006S. The 12.7L turbos in the Garrett 714788 and 714792 series and the BorgWarner 172743BW and 171702 are different turbos with different Detroit numbers. Heavy truck turbos are matched by the number on the turbo tag.

Specifications

Fits / Applications

• Detroit Diesel Series 60 14.0L, listed by sellers for 2002 to 2006 at the 515 hp rating
• Engines built with Detroit turbo 23534361, 23533361 or 23534356
• Freightliner, Kenworth, Peterbilt and International trucks and MCI coaches with the Series 60 14.0L, per catalogs
• Match by the number on the turbo tag

Find out why the old turbo failed before you fit this one. Check the oil feed and drain lines for coke and restrictions, change the engine oil and filter, and clean the charge air cooler and piping of oil and debris. On a variable geometry turbo, also check the actuator air supply and the EGR cooler for leaks, since coolant or soot loading will stick the vanes again. Prime the turbo with clean oil before first start.

Part Numbers & Cross Reference

Garrett 758204-9007S  ·  Garrett new twin 758204-5007S  ·  Garrett 758204-0007  ·  Detroit Diesel 23534361  ·  Detroit Diesel 23533361  ·  Detroit Diesel 23534356  ·  Detroit Diesel remanufactured R23534361  ·  Detroit Diesel remanufactured R23533361  ·  Detroit Diesel remanufactured R23534356  ·  Garrett earlier number 752389-0002  ·  Garrett earlier number 752389-0007  ·  Garrett earlier number 752389-0012  ·  Garrett earlier service number 752389-5002  ·  Garrett earlier service number 752389-5007  ·  Garrett earlier service number 752389-5012  ·  BorgWarner 57849882005  ·  Alliant Power AP80054

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which engine does the Garrett 758204-9007S fit?

The Detroit Diesel Series 60 14.0L built with the variable geometry GTA4502V turbo, on engines whose turbo is tagged Detroit 23534361, 23533361 or 23534356. Sellers list it for 2002 to 2006 engines at the 515 hp rating.

Is it new or remanufactured, and is there a core?

It is remanufactured by Garrett, and a refundable core applies. The new Garrett twin is 758204-5007S.

Does it come with the actuator?

Catalogs list the Garrett unit complete with its actuator fitted. Call 530-668-0818 if you need to know exactly what is on the unit before you order.

What numbers does it replace?

Detroit 23534361, 23533361 and 23534356 and the Garrett 752389 series (752389-0002, 752389-0007, 752389-0012), and it crosses to BorgWarner 57849882005. Most catalogs list Detroit 23534360 under a different Garrett number, 758204-5006S, and two list it under this one, so send us your tag number first.
