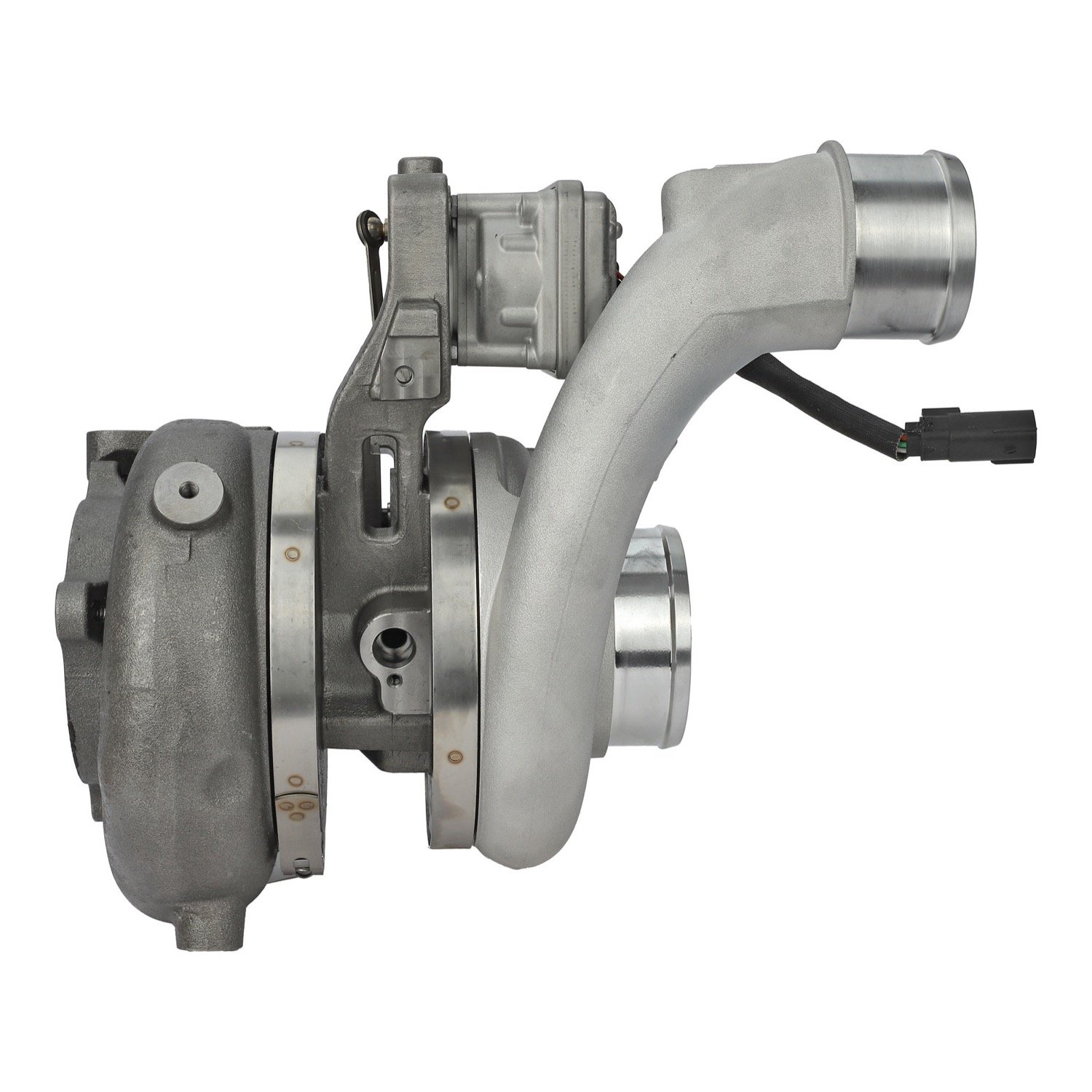

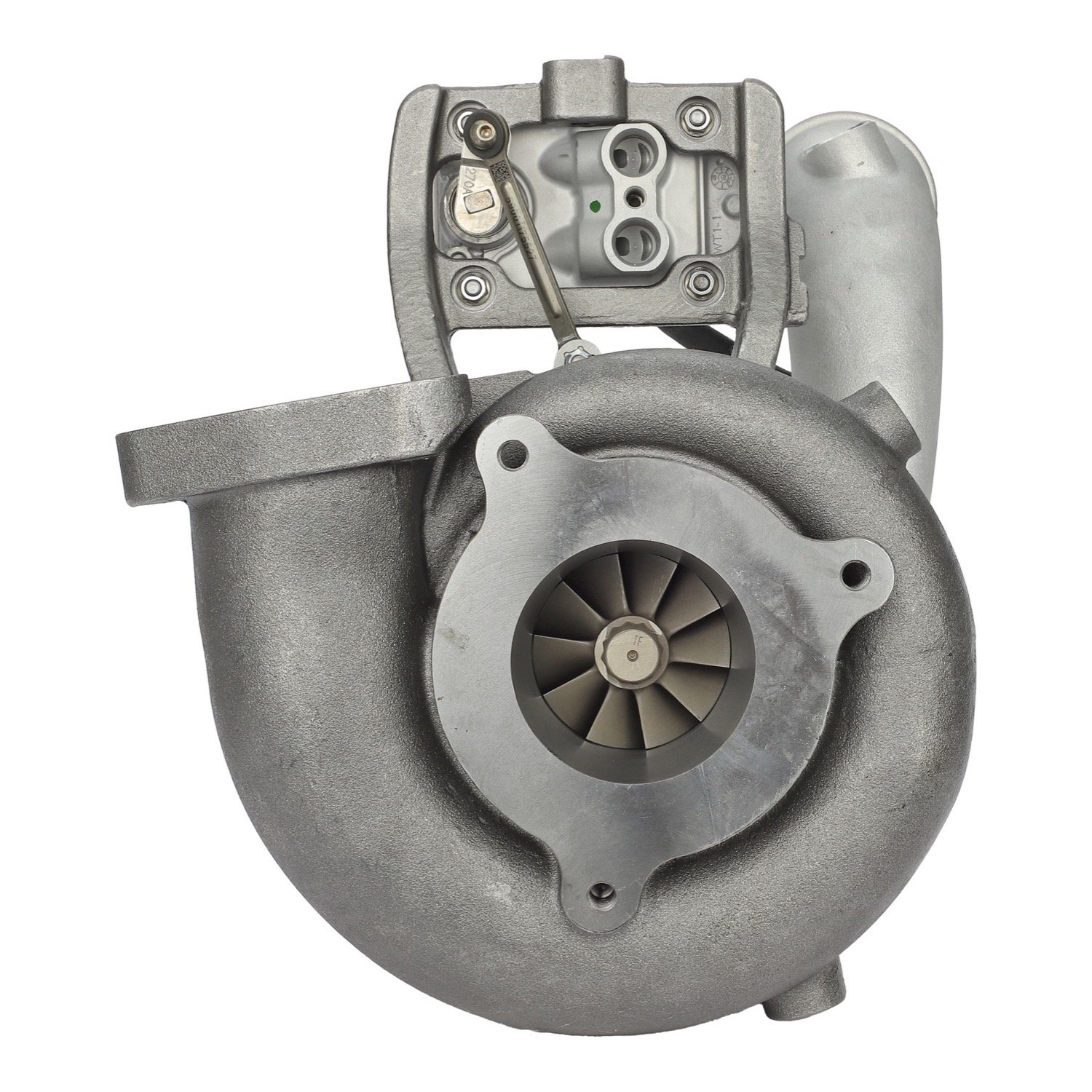

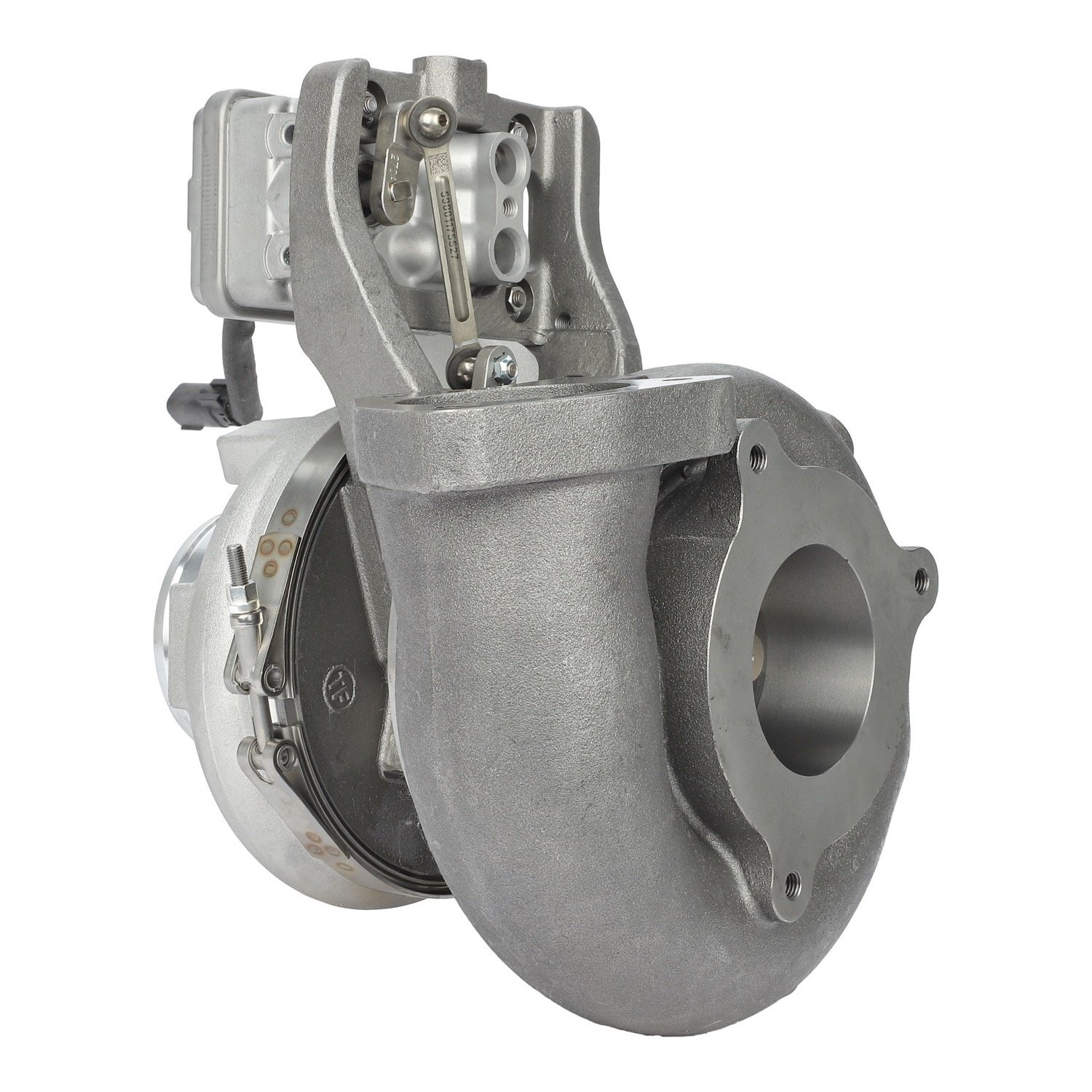

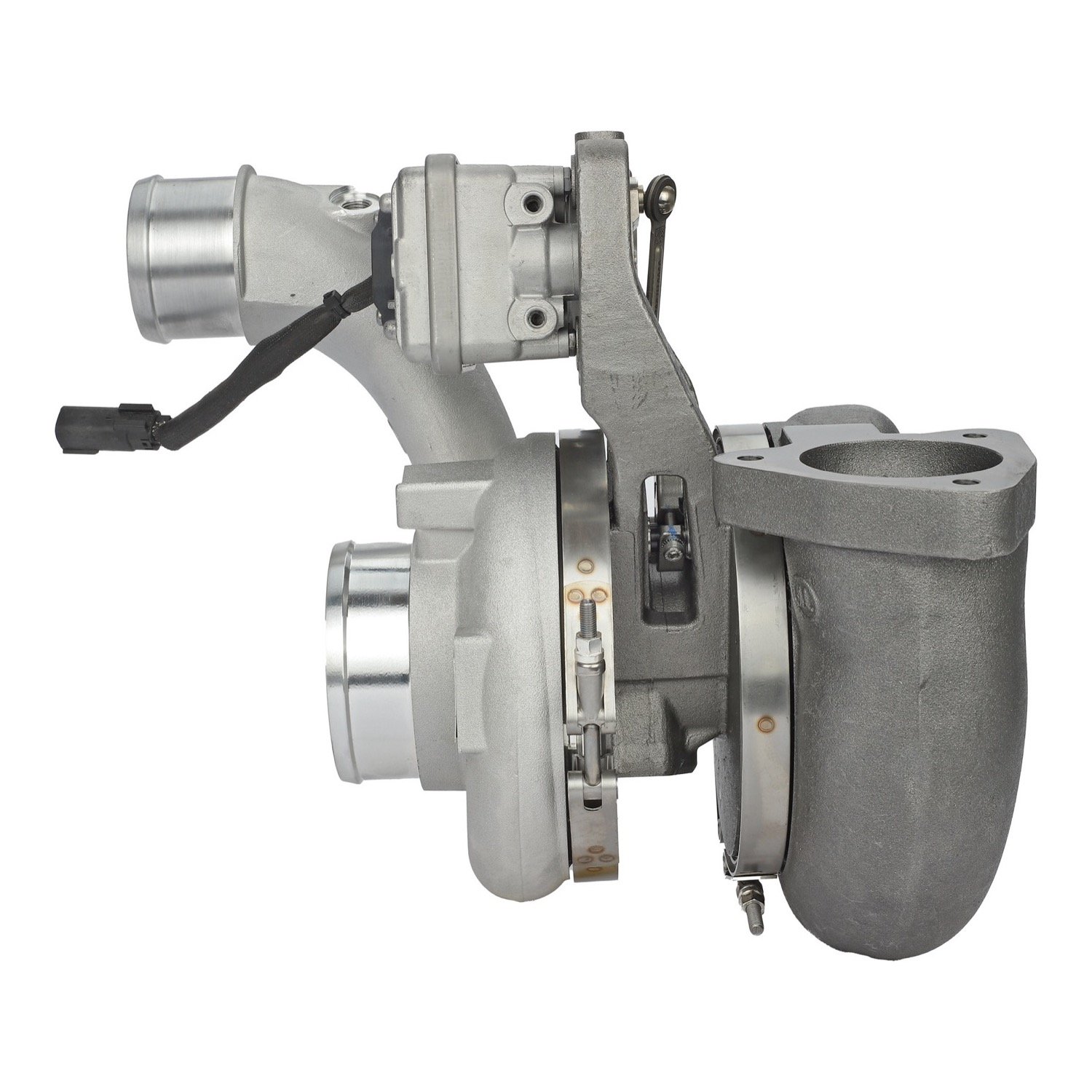

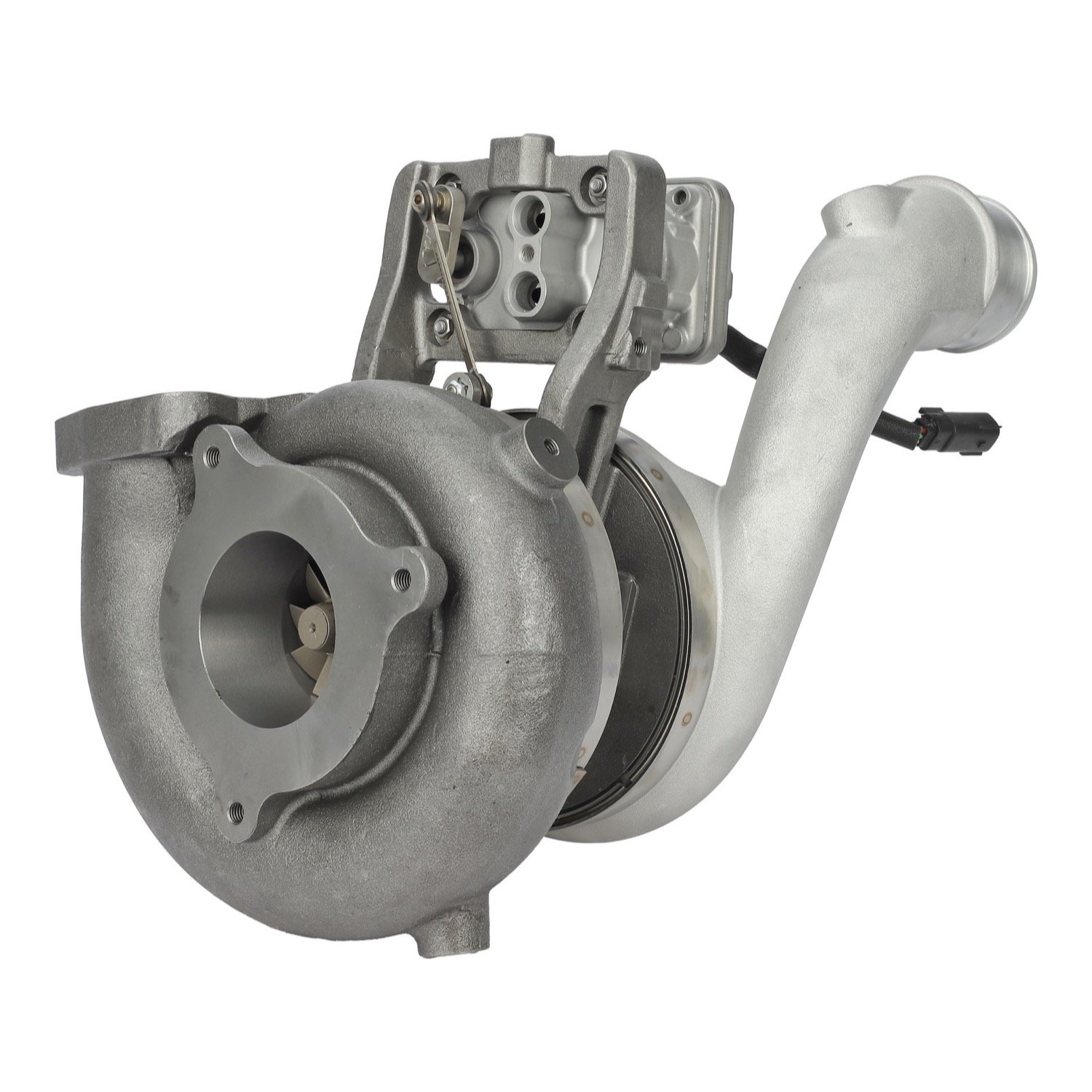

This is the Alliant Power AP90942, a BorgWarner B2UV variable geometry turbocharger for the International A26 engine, remanufactured by Alliant Power. It is a complete turbo with the electronic actuator already fitted. It replaces Navistar 2517623C91 through 2517623C96, 5012032R91, 5012032R92 and 7099274C91 through 7099274C94, and BorgWarner 12769700027 and 12769880027.

Low boost, a boost or actuator fault code, oil in the charge pipes, shaft play or a turbo that whistles or howls under load are the usual reasons this unit comes off. On a variable geometry turbo, soot in the vanes and a failed actuator give the same low power complaint, so check for exhaust leaks, a split charge air cooler and a blocked aftertreatment system before you condemn the turbo. A refundable core applies to this remanufactured unit.

Specifications

Fits / Applications

• International A26 engine, BorgWarner B2UV variable geometry turbo
• Complete turbocharger with the electronic actuator
• Match the BorgWarner and Navistar numbers on your turbo tag before ordering

Find out why the old turbo failed before you fit this one. Change the engine oil and filter, check the oil feed and drain lines for restriction, prime the turbo with clean oil, and clean or replace the charge air cooler if the old turbo passed oil or broke up. Follow the truck maker’s procedure for the actuator after fitting.

Part Numbers & Cross Reference

Alliant Power AP90942  ·  Navistar 5012032R92  ·  Navistar 5012032R91  ·  Navistar 2517623C91  ·  Navistar 2517623C92  ·  Navistar 2517623C93  ·  Navistar 2517623C94  ·  Navistar 2517623C95  ·  Navistar 2517623C96  ·  Navistar 7099274C91  ·  Navistar 7099274C92  ·  Navistar 7099274C93  ·  Navistar 7099274C94  ·  BorgWarner 12769880027  ·  BorgWarner 12769700027

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does the AP90942 come with the actuator?

Yes. It is a complete BorgWarner B2UV turbocharger with the electronic actuator already fitted.

What numbers does the AP90942 replace?

Navistar 5012032R91, 5012032R92, 2517623C91 through 2517623C96 and 7099274C91 through 7099274C94, and BorgWarner 12769700027 and 12769880027.

Is the AP90942 new or remanufactured?

It is remanufactured by Alliant Power from an original BorgWarner B2UV turbo. A refundable core applies, so your old turbo comes back to us.

How do I know this is the right turbo for my A26?

Read the BorgWarner and Navistar numbers off the tag on your old turbo and compare them with the list on this page. If the tag is gone or shows a different number, call 530-668-0818 with the engine serial number and VIN.
