International MaxxForce DT / DT466 B2UV Turbocharger with Actuator | BorgWarner 12639880001 New (1881102C91)

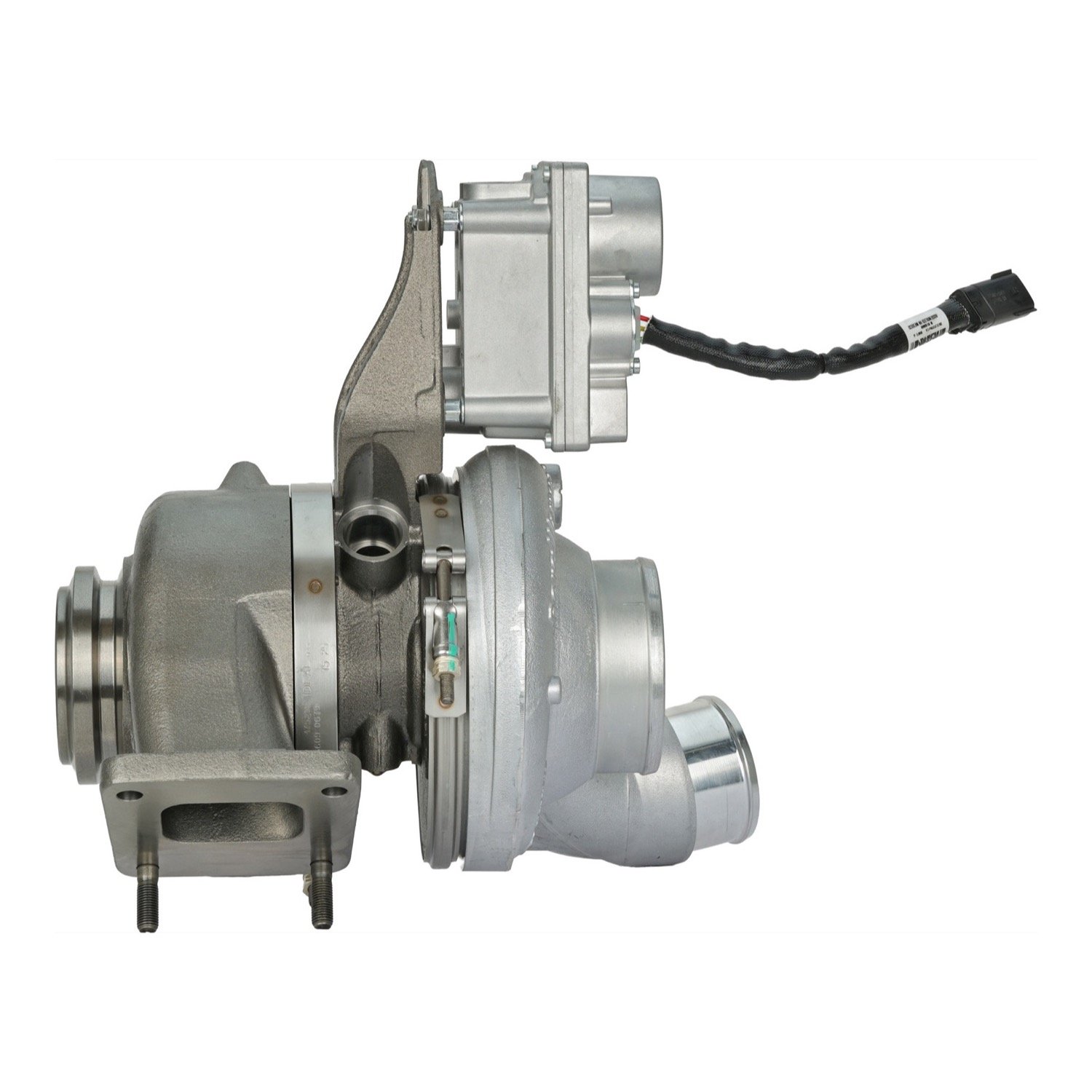

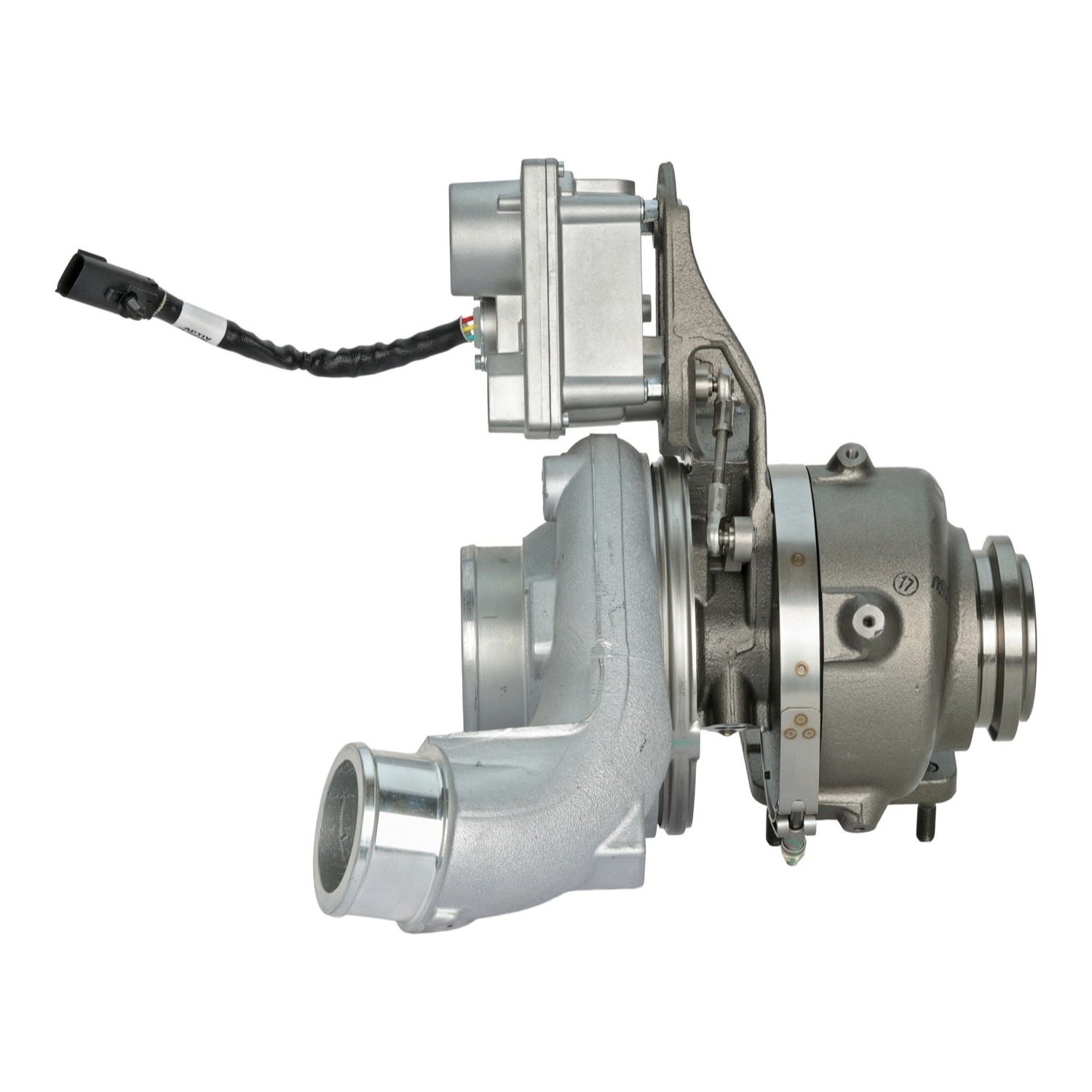

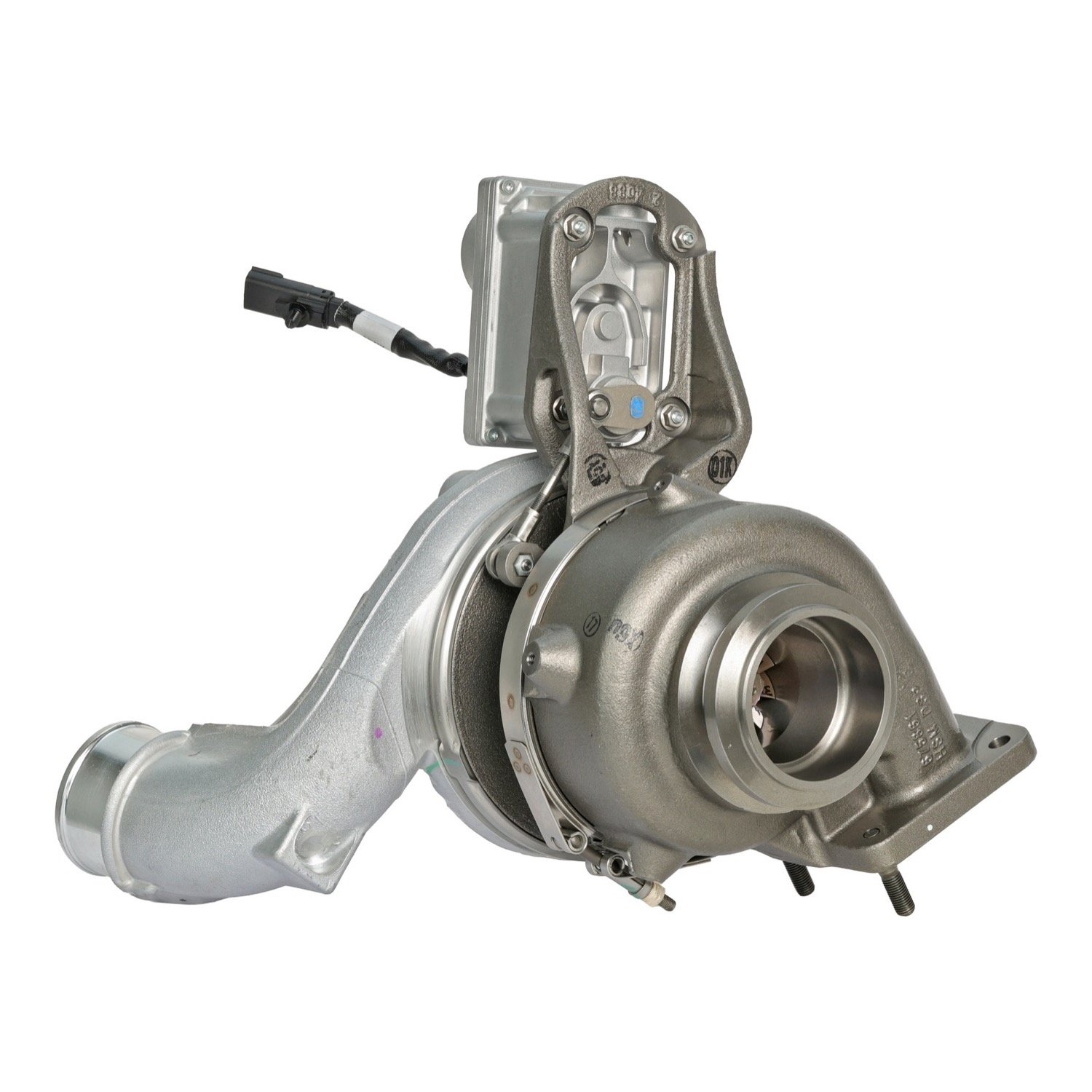

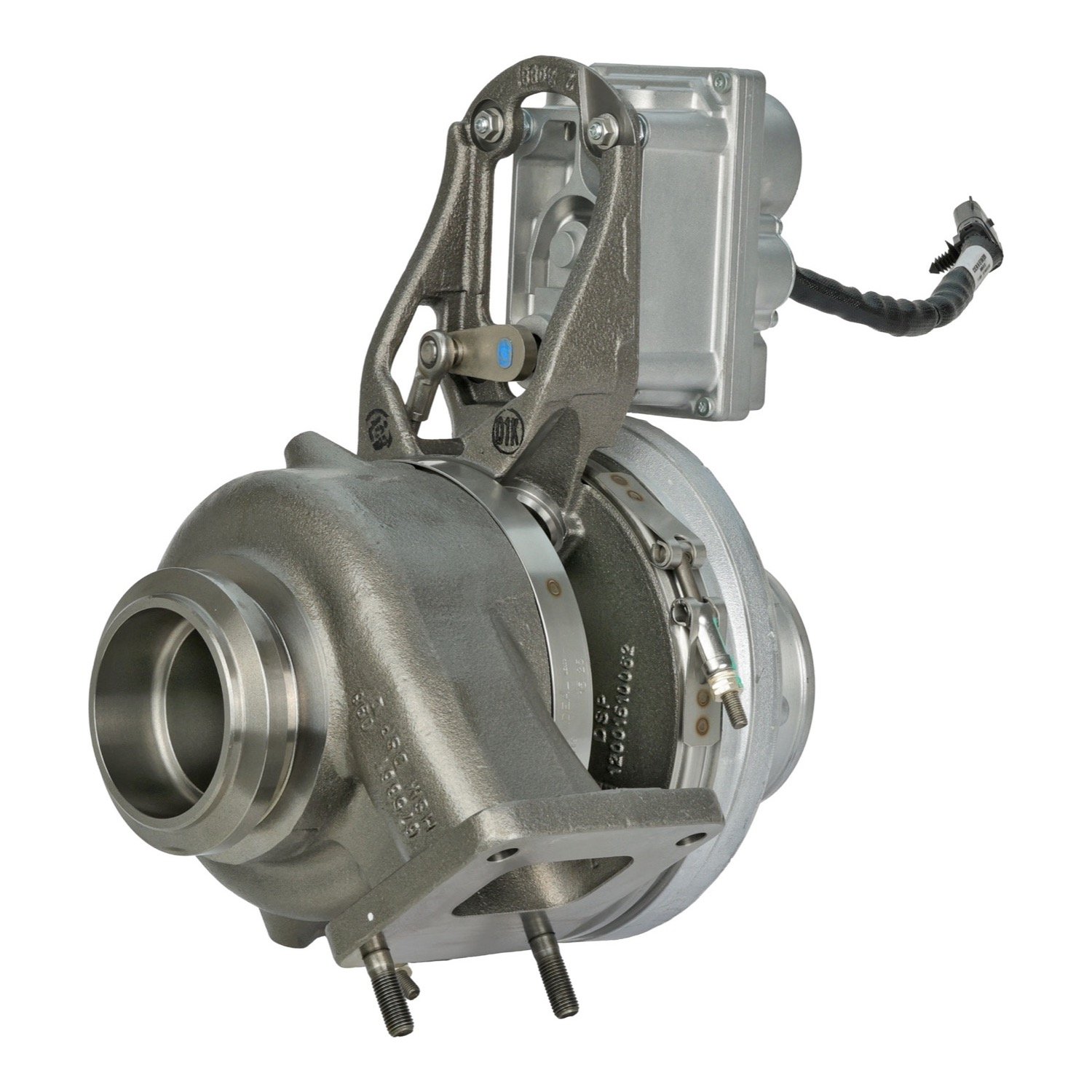

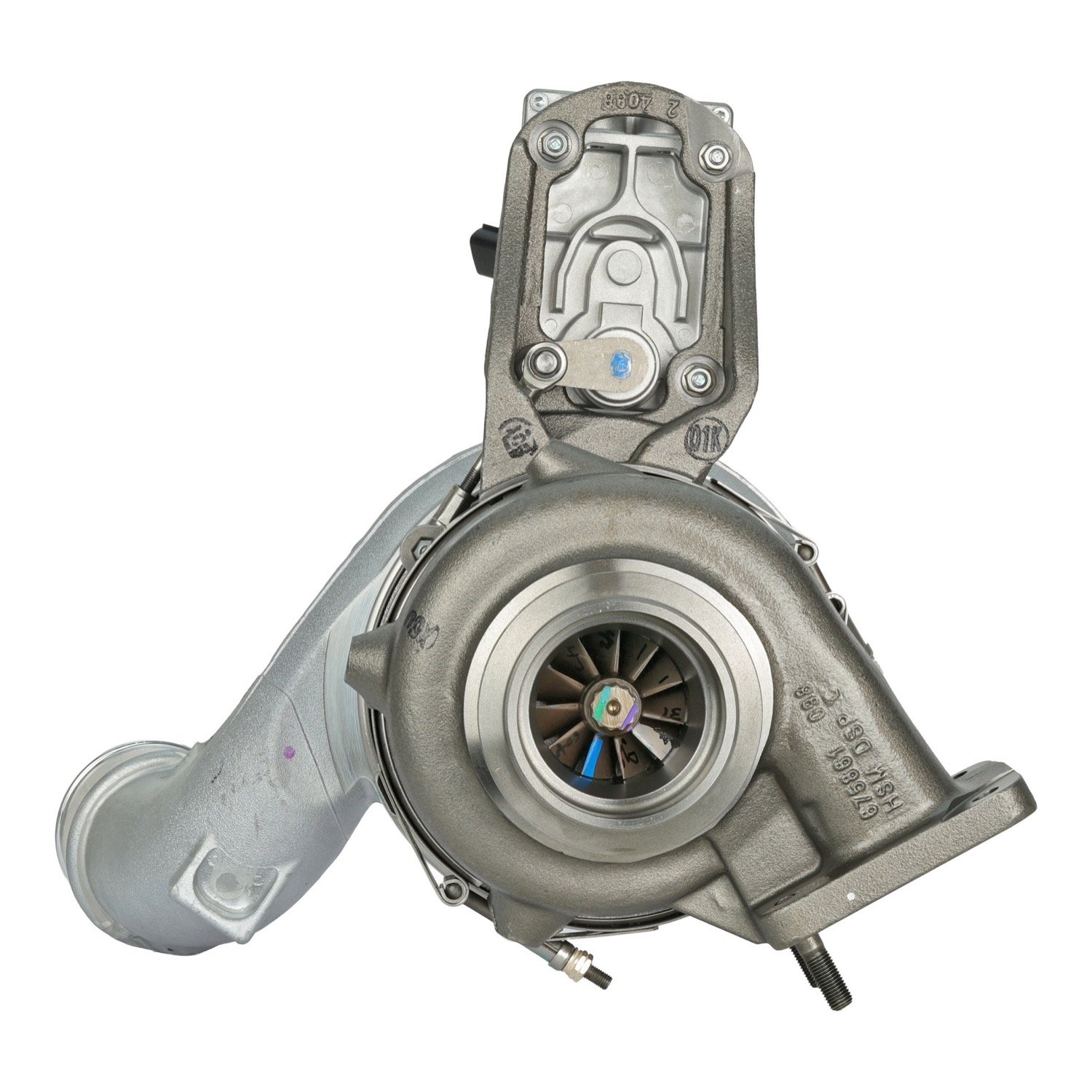

This is the BorgWarner 12639880001, a new B2UV variable geometry turbocharger. Catalogs also call it the BV63. It is the mid mount turbo for the International MaxxForce DT and DT466 7.6L inline six, the version with the 70 mm aluminum compressor wheel, listed at about 245 hp (180 kW), and it comes as a complete unit with the electronic actuator fitted. It is a new turbo, not a rebuild. BorgWarner’s remanufactured version of the same turbo is 12639900001. Three catalogs list it for 2005 to 2010 model years. It replaces Navistar 1832666C91, 1850493C91, 1876116C91 to C96, 1881102C91 to C93, 1881104C91 to C93 and 5010720R91 to R93.
Two other mid mount B2UV turbos carry close numbers and look alike. BorgWarner 12639880002 (Navistar 1876118, 1881105 and 1881106) is the same engine’s turbo with a 76 mm titanium compressor wheel, and 12639880003 (Navistar 1877634 and 1881107) is the one catalogs list for the MaxxForce 9 and DT570 9.3L. Each has its own Navistar numbers, so match the number on your turbo tag before you order: this one is the 12639880001 family.
Confirm Fitment Before You Order
Lookalike mid mount B2UV turbos carry close numbers: BorgWarner 12639880002, the 76 mm titanium wheel version for the same engine, and 12639880003, which catalogs list for the MaxxForce 9 / DT570 9.3L. This listing is 12639880001 only. Send us the BorgWarner or Navistar number from your turbo tag and the engine serial number. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 12639880001 |
| Brand | BorgWarner |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | New variable geometry turbocharger with actuator |
| Turbo model | BorgWarner B2UV (also catalogued as BV63) |
| Mounting | Mid mount |
| Compressor wheel | 70 mm, aluminum |
| Engine | International MaxxForce DT / DT466 7.6L inline six |
| Rating | About 245 hp (180 kW) |
| Model years | 2005 to 2010 in three catalogs. Others list shorter spans |
| Actuator | Electronic actuator included, fitted to the turbo |
| Remanufactured twin | BorgWarner 12639900001 |
| Matched by | Number on the turbo tag |
| Shipping weight | 52 lb |
Fits / Applications
- International / Navistar MaxxForce DT and DT466 7.6L with the mid mount B2UV turbo, BorgWarner 12639880001 family
- Listed for the 245 hp rating, 2005 to 2010. Catalogs differ on the last year, so go by the turbo tag
- Turbos tagged Navistar 1832666C91, 1850493C91, 1876116C91 to C96, 1881102C91 to C93, 1881104C91 to C93 or 5010720R91 to R93
- Turbos tagged BorgWarner 12639880001, 12639900001, 12639700001, 175844, 175845, 177322, 177323, 177533 or 177534
- Complete turbocharger with the electronic actuator
- Not listed for turbos tagged 12639880002 or 12639880003, which have their own Navistar numbers
Find out why the old turbo failed before this one goes on. Check the oil feed and drain lines for coking or restriction, change the engine oil and filter, check the air filter and intake piping for dirt tracks, and pre-oil the turbo before the first start. Clear and recheck any boost or actuator fault codes after the install. Catalogs list the Alliant Power AP0170 turbo installation kit for this turbo, sold separately.
Part Numbers & Cross Reference
BorgWarner new 12639880001 · BorgWarner remanufactured twin 12639900001 · BorgWarner 12639700001 · BorgWarner 175844 · BorgWarner 175845 · BorgWarner 177322 · BorgWarner 177323 · BorgWarner 177533 · BorgWarner 177534 · BorgWarner 475844 · BorgWarner 475845 · BorgWarner 477322 · BorgWarner 477323 · BorgWarner 477533 · BorgWarner 477534 · Navistar 1832666C91 · Navistar 1850493C91 · Navistar 1876116C91 · Navistar 1876116C92 · Navistar 1876116C93 · Navistar 1876116C94 · Navistar 1876116C95 · Navistar 1876116C96 · Navistar 1881102C91 · Navistar 1881102C92 · Navistar 1881102C93 · Navistar 1881104C91 · Navistar 1881104C92 · Navistar 1881104C93 · Navistar 5010720R91 · Navistar 5010720R92 · Navistar 5010720R93
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Is 12639880001 new or remanufactured?
It is a new BorgWarner turbo. The remanufactured version of the same turbo is BorgWarner 12639900001.
Does 12639880001 come with the actuator?
Yes. Catalogs list it as a complete B2UV turbocharger with the electronic actuator fitted.
Will it replace a turbo tagged 12639880002 or 12639880003?
It is not listed as a replacement for either. 12639880002 is the 76 mm titanium wheel version with its own Navistar numbers, and catalogs put 12639880003 on the MaxxForce 9 and DT570 9.3L. Order by the number on your turbo tag.
Which Navistar numbers does 12639880001 replace, and how do I confirm the fit?
1832666C91, 1850493C91, 1876116C91 to C96, 1881102C91 to C93, 1881104C91 to C93 and 5010720R91 to R93. Send the number from your turbo tag and the engine serial number, or call 530-668-0818.
Related Parts
- Looking to save? The remanufactured version: International MaxxForce DT / DT466 B2UV Turbocharger with Actuator | BorgWarner 12639900001 Remanufactured
Why Buy From Valley Fuel Injection
We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. We verify fitment against your engine serial, VIN or build date before anything ships, so the right part arrives the first time.
UPS to all 50 states, including Alaska and Hawaii. Your rate shows at checkout. Questions on fitment? Call 530-668-0818.
Pricing covers the unit itself. Any applicable sales tax is additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
