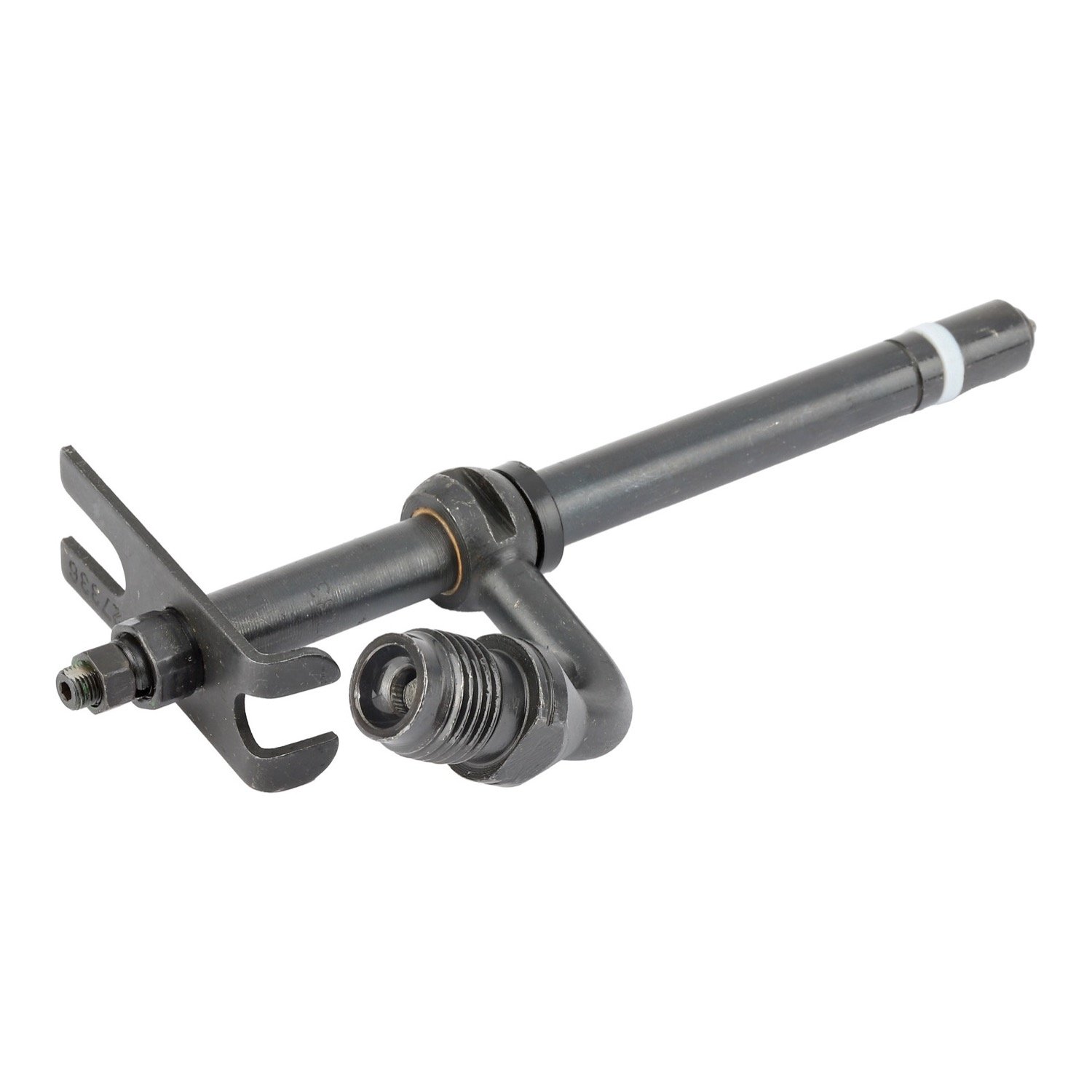

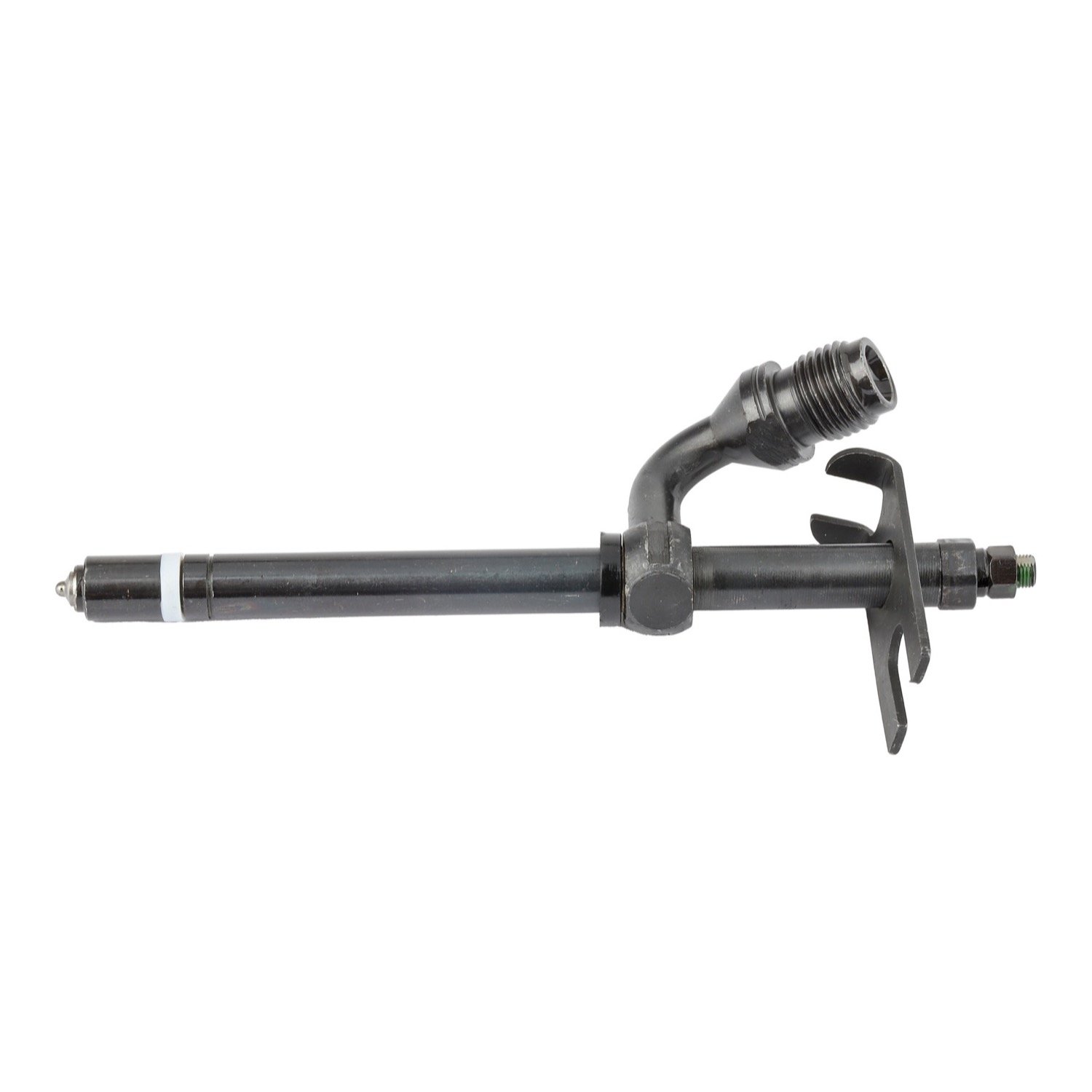

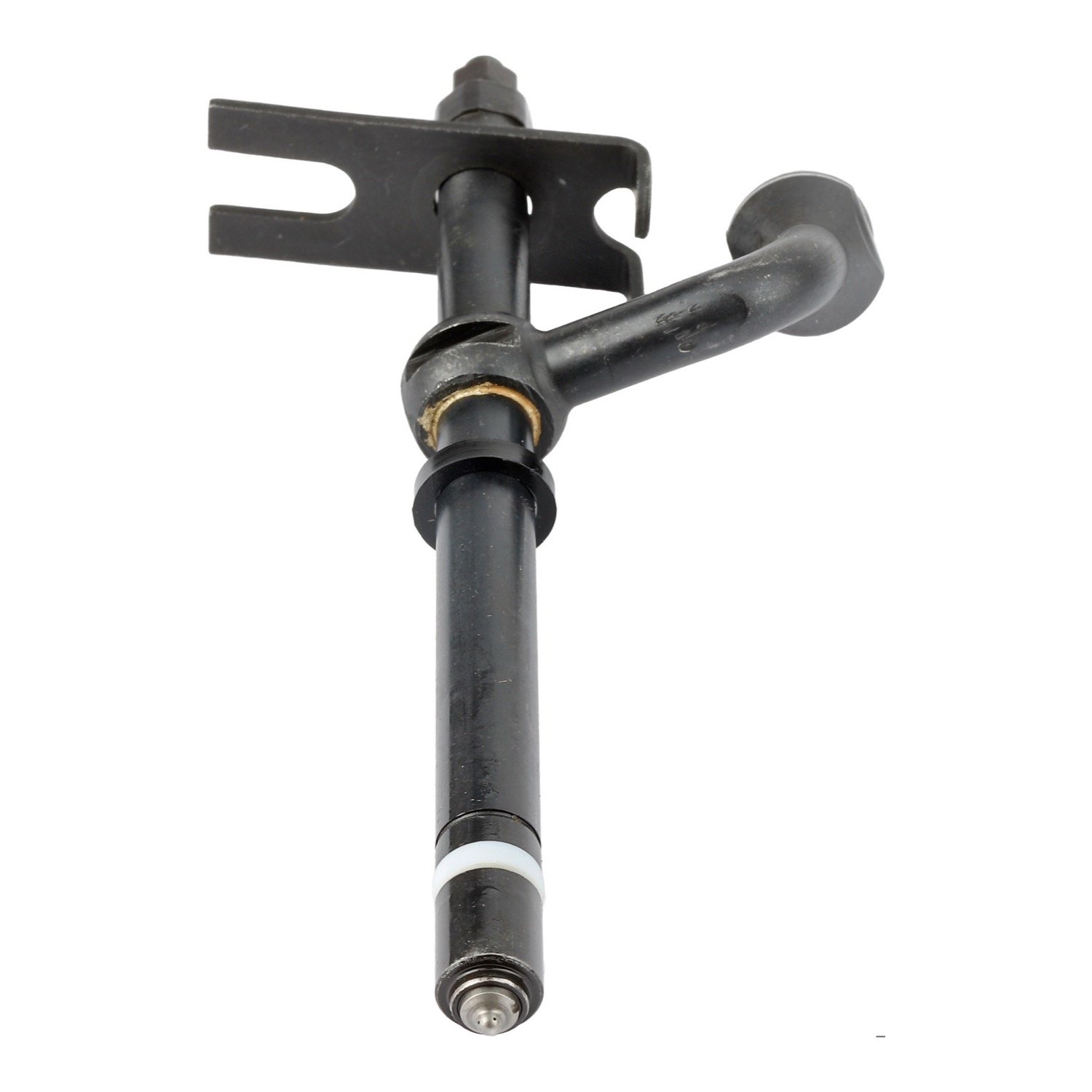

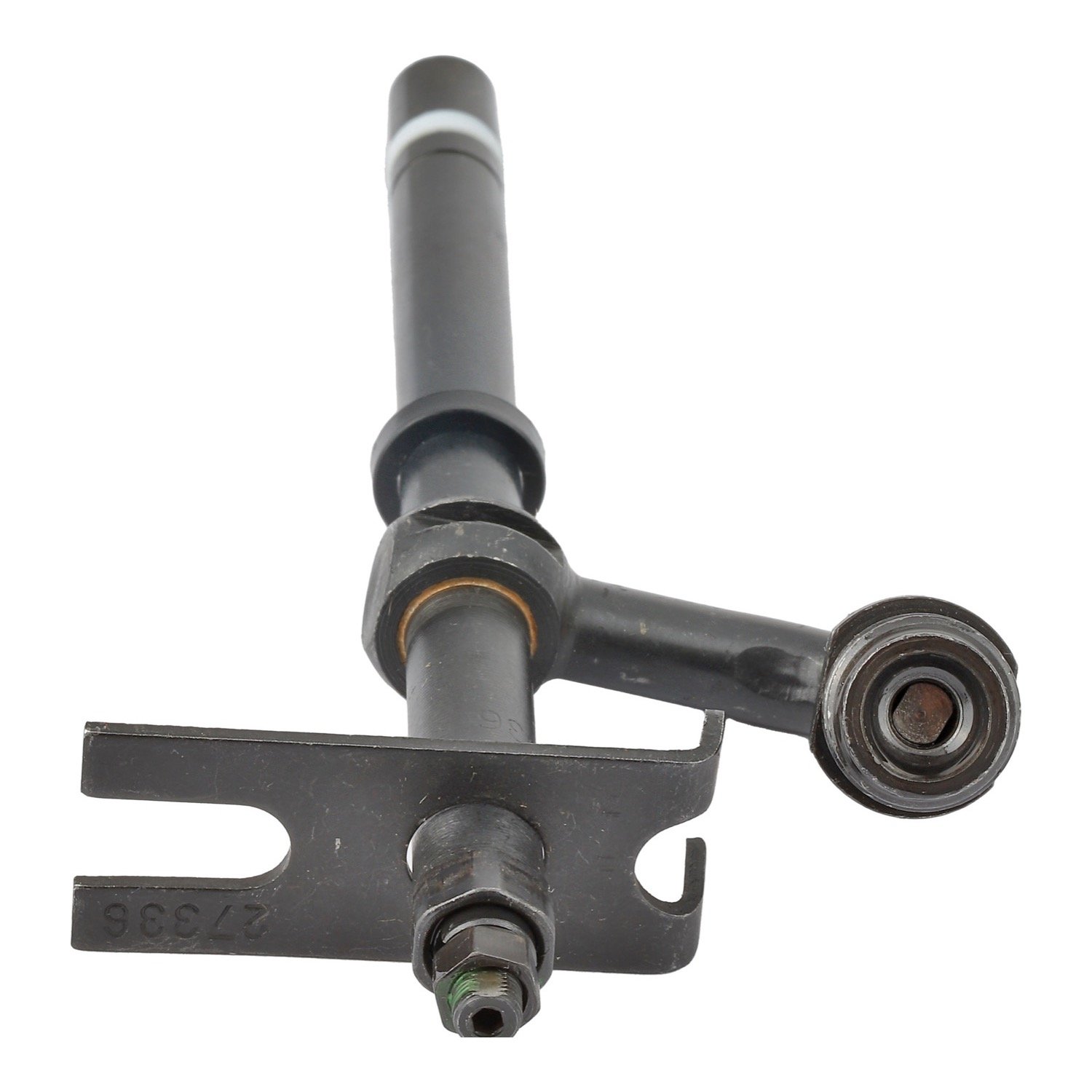

This is the Alliant Power D27336, a new pencil fuel injector, not a rebuild. It is Alliant Power’s own version of the Stanadyne 27336 and replaces John Deere RE37503. It is the injector for turbocharged John Deere 300 Series engines such as the 3179T and 6359T, for the 4276D, and for the 6414D and 6414T. Tractors that use it include the 2140, 2640, 2750, 2755, 2850, 3255 and 4050.

A pencil injector that is worn or stuck shows up as a miss, white or black smoke, a fuel knock, hard starting or fuel wash on one cylinder. Pencil injectors for these engines look almost the same from one number to the next, but the nozzle and the opening pressure differ, so match the number stamped on the body of your old injector before you order. One injector per cylinder.

Specifications

Fits / Applications

• John Deere 300 Series engines, turbocharged: 3179T and 6359T
• John Deere 4276D engine
• John Deere 6414D and 6414T engines
• John Deere tractors 2140, 2640, 2750, 2755, 2850, 3255 and 4050
• Engines that use Stanadyne 27336 or John Deere RE37503. Match the number on your old injector.
• One injector per cylinder

Pencil injectors seal on the tip and at the carbon stop seal, so clean the bore, fit new seals and tighten the clamp evenly to the John Deere figure. Do not bend the body or clamp it in a vise. Fit new leak-off boots or grommets if the old ones are hard.

Part Numbers & Cross Reference

Stanadyne (genuine version) 27336  ·  John Deere RE37503

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Is the D27336 a Stanadyne injector?

No. It is Alliant Power’s own new pencil injector, built as the Alliant Power version of Stanadyne 27336. It replaces John Deere RE37503.

How is the D27336 different from the D27333?

The D27336 is the turbocharged 300 Series injector, the 27336 type. The D27333 is the 27333 type for naturally aspirated 300 Series engines. They do not interchange.

Which John Deere engines take the D27336?

The 3179T, 4276D, 6359T, 6414D and 6414T, which use John Deere RE37503. Many machines were built with more than one engine, so check the number on your old injector or call 530-668-0818.

Is it new, and do I send a core back?

It is a new injector, not a rebuild, so there is no core to return.
