Kubota 1J801-52030 is the new, genuine mechanical fuel feed pump (lift pump) for Kubota’s 03-CR series common-rail engines: the D1803-CR and V2403-CR in their E4, TE4 and TIE4 versions. It is a flange-mounted, tappet-driven pump with a hand primer built in, and it moves fuel from the tank to the high-pressure pump. Kubota lists it for the KX040-4 and U48-5 compact excavators.

A weak feed pump shows up as hard starting, loss of power under load or rail pressure faults, and on a common-rail engine it can look like a rail or injector problem. Before replacing it, check the tank pickup, the filters and the low-pressure lines for restrictions and air leaks.

Specifications

Fits / Applications

• Kubota D1803-CR-E4, D1803-CR-TE4 and D1803-CR-TIE4 engines (some builds)
• Kubota V2403-CR-E4, V2403-CR-TE4 and V2403-CR-TIE4 engines (some builds)
• Kubota KX040-4 compact excavator
• Kubota U48-5 compact excavator

Clean the mounting face and fit a new mounting seal. After installation, use the hand primer to fill and bleed the low-pressure side before cranking, then check every fitting for leaks. On a common-rail engine, change the fuel filters at the same time and cap every open line so no dirt gets in.

Part Numbers & Cross Reference

Kubota 1J801-52030

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will 1J801-52030 fit a D1803 or V2403 that is not common-rail?

No. Kubota uses different lift pumps, including electric ones, on D1803 and V2403 engines that are not common-rail. Check that your engine model contains CR, for example V2403-CR-TE4.

Which machines and engines does 1J801-52030 fit?

Kubota lists it for the KX040-4 and U48-5 compact excavators. It fits some builds of the D1803-CR and V2403-CR engines in E4, TE4 and TIE4 versions. Call 530-668-0818 with the engine or machine serial number and we will confirm at no charge.

Does the 1J801-52030 feed pump have a hand primer?

Yes, a hand primer is built in. After installation, use it to fill and bleed the low-pressure side before cranking, then check every fitting for leaks.

What else should I replace with the feed pump on a D1803-CR or V2403-CR?

Fit a new mounting seal. On a common-rail engine, change the fuel filters at the same time and cap every open line so no dirt gets in.

Related Parts

• Kubota V2403-CR D1803-CR Injection Pump 1J801-50500 (Genuine)
• Kubota D1803-CR & V2403-CR Common-Rail Fuel Injector | Bosch 0445110777 New (Kubota 1J801-53052)
• Kubota D1803-CR-TIE4 & V2403-CR-TIE4 Common-Rail Fuel Injector | Bosch 0445110775 New

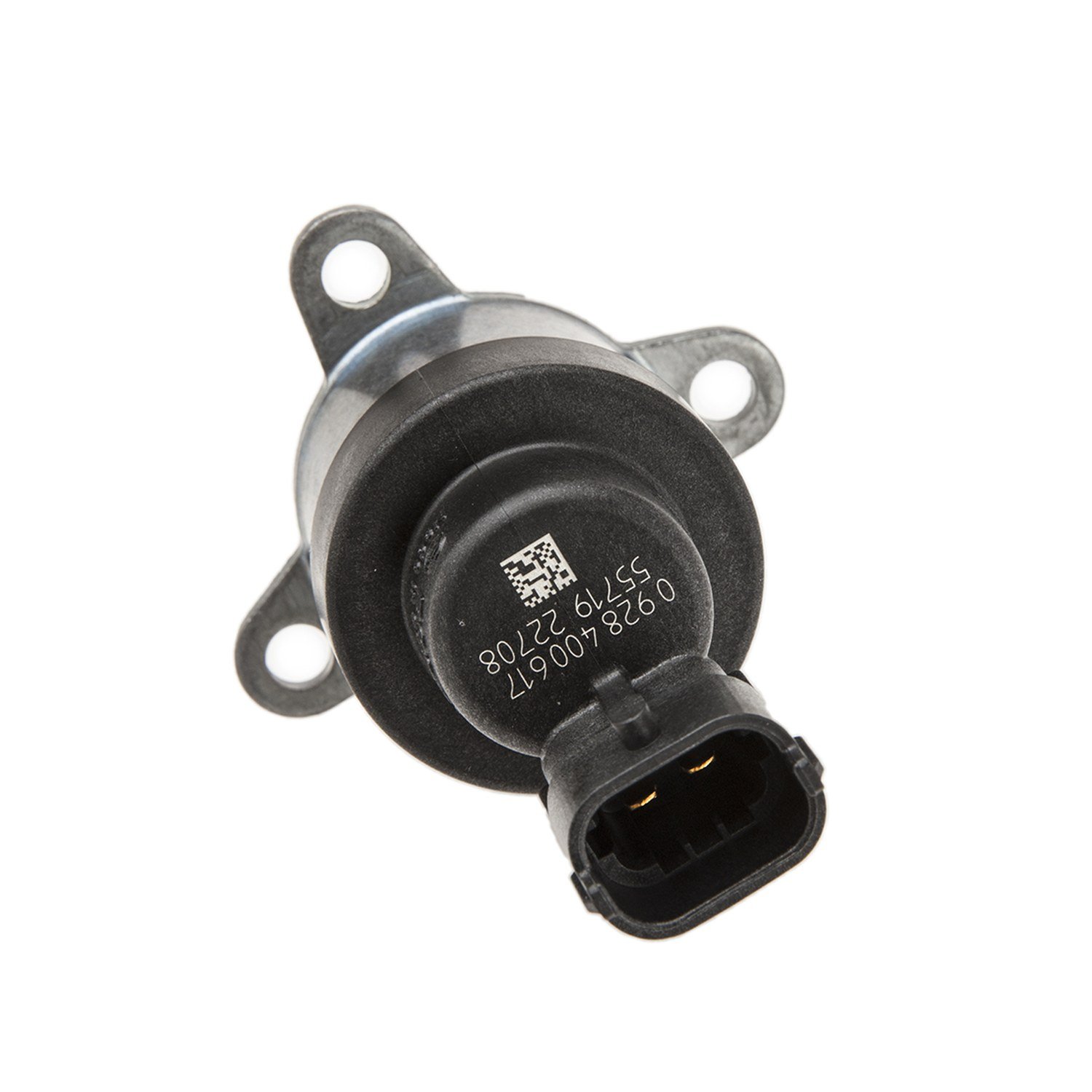

• Kubota V2403 D1803 SCV Suction Control Valve 1J801-50540 (Genuine)
