This is a new, genuine Kubota radiator assembly, part number 16626-72060. Kubota engine dealers list it for two 05 Series diesels: the three-cylinder 1.1 liter D1105 and the four-cylinder 1.5 liter V1505. It is a different part from 1E103-72060, 1G951-72060 and 1G952-72060, which are listed for the smaller Super Mini engines, and from 12691-72060, which is for the WG750 and WG752 gas engines.

Radiators are replaced for leaking tubes or seams, blocked fins, cracked tanks and broken mounts. Kubota sells several different radiators for the D1105 and V1505, and public catalogs do not show how they differ, so the engine model alone will not tell you which one you have. The number on the old radiator or in the machine’s parts book decides it.

Specifications

Fits / Applications

• Kubota D1105 three-cylinder diesel engine
• Kubota V1505 four-cylinder diesel engine
• Direct replacement for a radiator numbered 16626-72060. Other radiator numbers on these engines are different parts.

Before you drain the system, set the new radiator next to the old one and compare the hose necks, mounts, filler neck and shroud mounting points. Flush the system and refill with the coolant type and mix Kubota specifies for the engine. Replace soft or cracked hoses and weak clamps, and bleed trapped air before putting the machine back to work.

Part Numbers & Cross Reference

Kubota 16626-72060

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 16626-72060 fit my Kubota D1105 or V1505?

Kubota engine dealers list it for both the D1105 and the V1505. Both engines were also built with other radiators, so it is the right part only if your old radiator or parts book shows 16626-72060.

Is 16626-72060 the same as 1G996-72060 or 1G994-72060?

No. All three are genuine Kubota radiator assemblies listed for the D1105, but they are separate part numbers and no catalog shows one replacing another. Order the number on your old radiator.

Is it new or remanufactured?

New, genuine Kubota.

What should I send you to confirm a 16626-72060?

The engine model, the engine serial number and the number on your old radiator or in your parts book. Call 530-668-0818 and we will check it before you order.

Related Parts

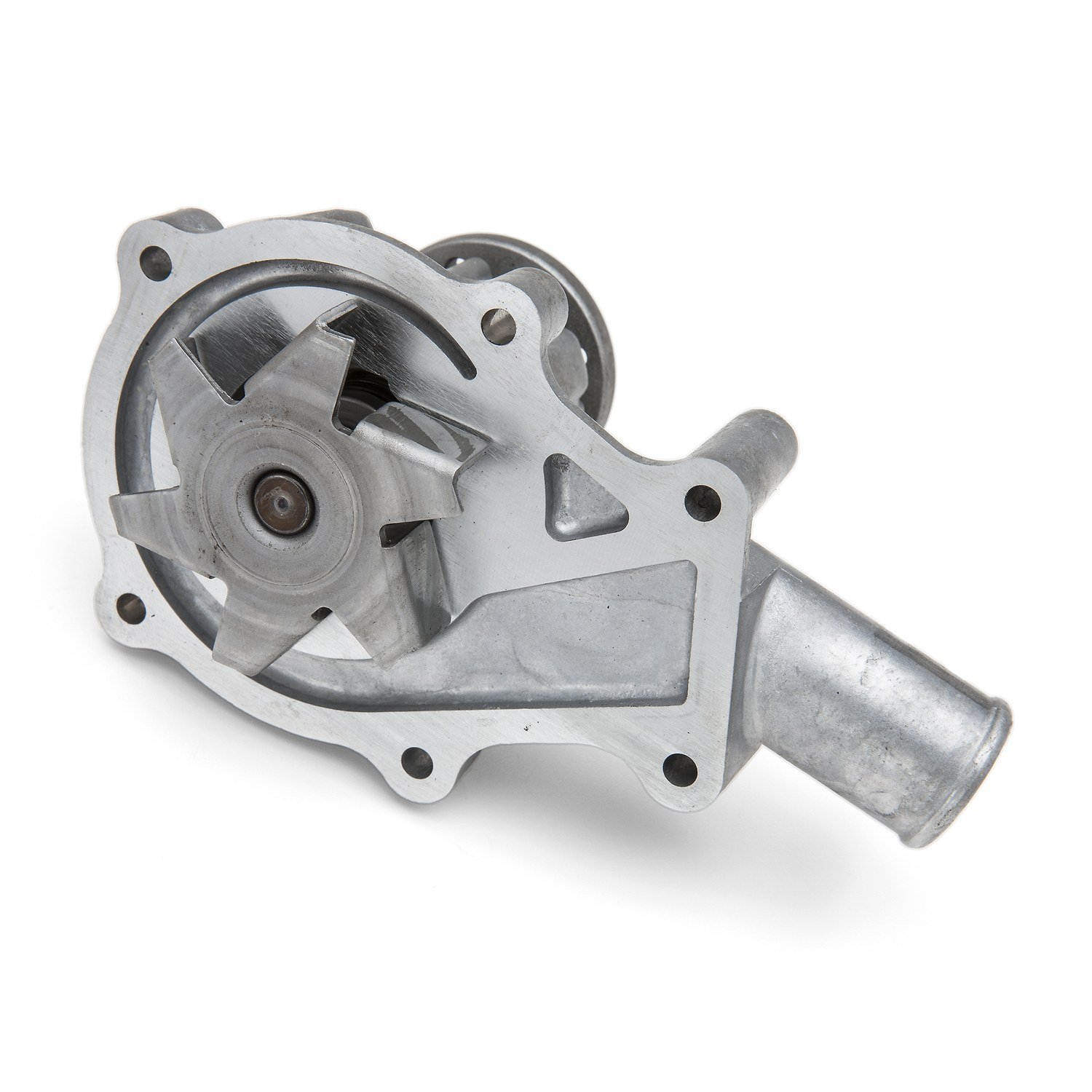

• Kubota D905, D1005, D1105 & V1505 Engine Water Pump | Genuine Kubota 16251-73037
