Kubota D1803-CR, V2403-CR, V2403-M-T & V2403-M-DI-T Low Mount Water Pump Assembly | Genuine Kubota 1G489-73035

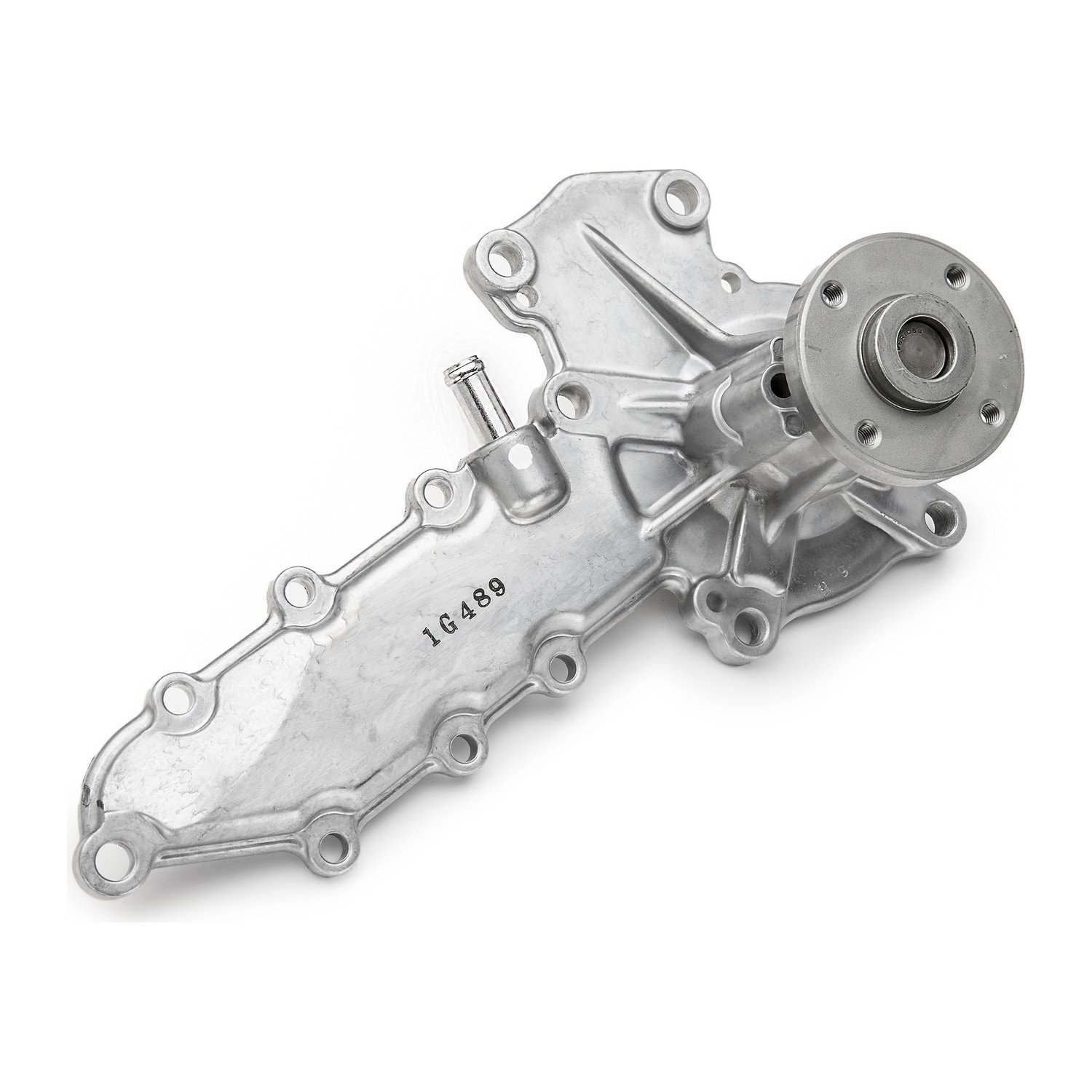

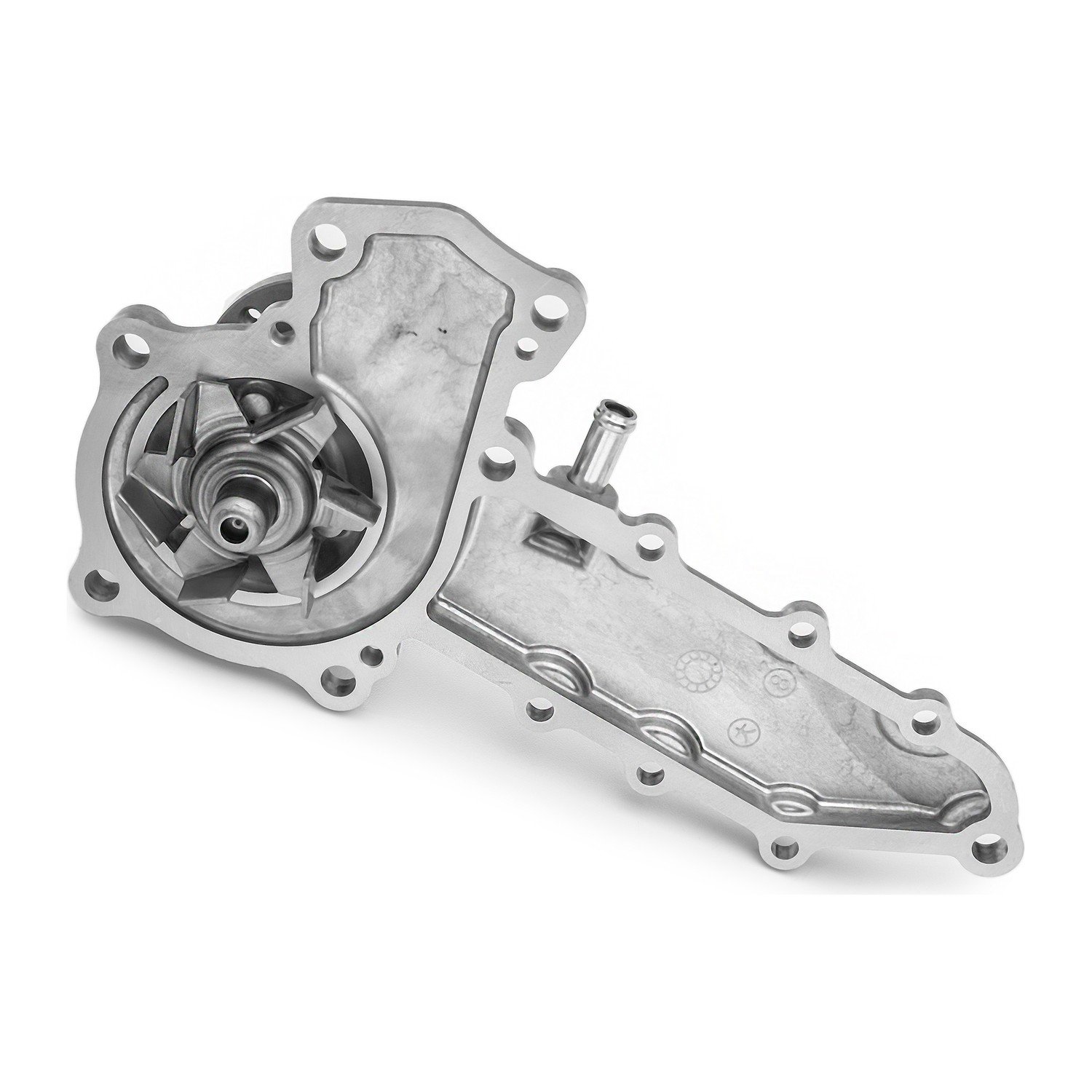

This is a new, genuine Kubota water pump assembly, part number 1G489-73035. Kubota engine dealers list it for the D1803-CR and V2403-CR common rail diesels and for the V2403-M-T and V2403-M-DI-T turbo diesels. Kubota’s parts description reads low mount, 2.62 inch impeller, turbo. It replaces 1G489-73033, 1G489-73030 and 1G922-73030.
Dealer catalogs list this pump by engine, not by machine, and the same engine model can carry a different pump in a different machine. Kubota’s own tractors are the clearest case: the MX5100 has a V2403-M-T and takes the high mount pump 1A021-73036, and the MX5400 has a common rail V2403 turbo and takes the high mount pump 1G928-73035. Kubota also sells 1G730-73036 under the same description as this pump, so order by the number on your old pump. Replace the pump when coolant weeps from the drain hole, the shaft bearing is rough or loose, or the engine runs hot with a good thermostat, radiator and fan belt.
Confirm Fitment Before You Order
Kubota sells two low mount turbo pumps with the same description, this one and 1G730-73036, as well as the low mount 1A051-73036 and the high mount 1A021-73036 and 1G928-73035. They are separate part numbers, and Kubota’s own tractors with these engines take the high mount pumps, so the engine model alone does not tell you which one you have. Send us the engine model, the engine serial number and the number on your old pump. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 1G489-73035 |
| Brand | Kubota |
| Condition | New, genuine, in original packaging |
| Warranty | Kubota genuine parts warranty: 1 year against defects in materials or workmanship. |
| Type | Engine water pump assembly |
| Engines | Kubota D1803-CR, V2403-CR, V2403-M-T, V2403-M-DI-T |
| Mount (Kubota description) | Low mount, turbo |
| Impeller (Kubota description) | 2.62 in |
| Replaces | 1G489-73033, 1G489-73030, 1G922-73030 |
| Shipping weight | 2 lb |
Fits / Applications
- Kubota D1803-CR common rail diesel engine
- Kubota V2403-CR common rail diesel engine
- Kubota V2403-M-T and V2403-M-DI-T turbo diesel engines
- Direct replacement for a pump numbered 1G489-73033, 1G489-73030 or 1G922-73030
Before you drain the system, set the new pump next to the old one and compare the bolt pattern, the hose connections and the height of the pulley flange. Fit a new gasket on a clean mounting face. Refill with the coolant Kubota specifies for the engine, bleed the air out, then check fan belt condition and tension.
Part Numbers & Cross Reference
Kubota 1G489-73035 · Kubota (superseded) 1G489-73033 · Kubota (superseded) 1G489-73030 · Kubota (superseded) 1G922-73030
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 1G489-73035 fit my Kubota V2403 turbo?
Kubota engine dealers list it for the V2403-M-T, V2403-M-DI-T and V2403-CR, but these engines were built with more than one water pump. Match the number on your old pump, or call 530-668-0818 with the engine model and serial number.
Is 1G489-73035 the same pump as 1G730-73036?
No. They are separate Kubota part numbers with the same description: low mount, 2.62 inch impeller, turbo. Kubota does not publish the difference, so order the number that is on your old pump.
What numbers does 1G489-73035 replace?
It replaces 1G489-73033, 1G489-73030 and 1G922-73030. If your old pump carries one of those numbers, this is the current part.
Is it new or remanufactured?
New, genuine Kubota.
Related Parts
- Kubota D1803-CR & V2403-CR Common-Rail Fuel Injector | Bosch 0445110777 New (Kubota 1J801-53052)
- Kubota V2403-CR D1803-CR Injection Pump 1J801-50500 (Genuine)
- Kubota D1803 V2403 EGR Valve Assembly 1J808-62703 (Genuine)
- Kubota D1803-CR-TIE4 & V2403-CR-TIE4 Common-Rail Fuel Injector | Bosch 0445110775 New
Why Buy From Valley Fuel Injection
We are an authorized Kubota dealer and a diesel fuel-injection shop in Woodland, CA, working on diesel engines since 1993. When you call, you talk to people who know Kubota engines, and we check the part number against your engine serial or machine model before anything ships, so the right part arrives the first time. See our Kubota engine sales, parts and service.
UPS Ground anywhere in the lower 48. Questions on fitment? Call 530-668-0818.
Pricing covers the unit itself. Any applicable sales tax is additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
