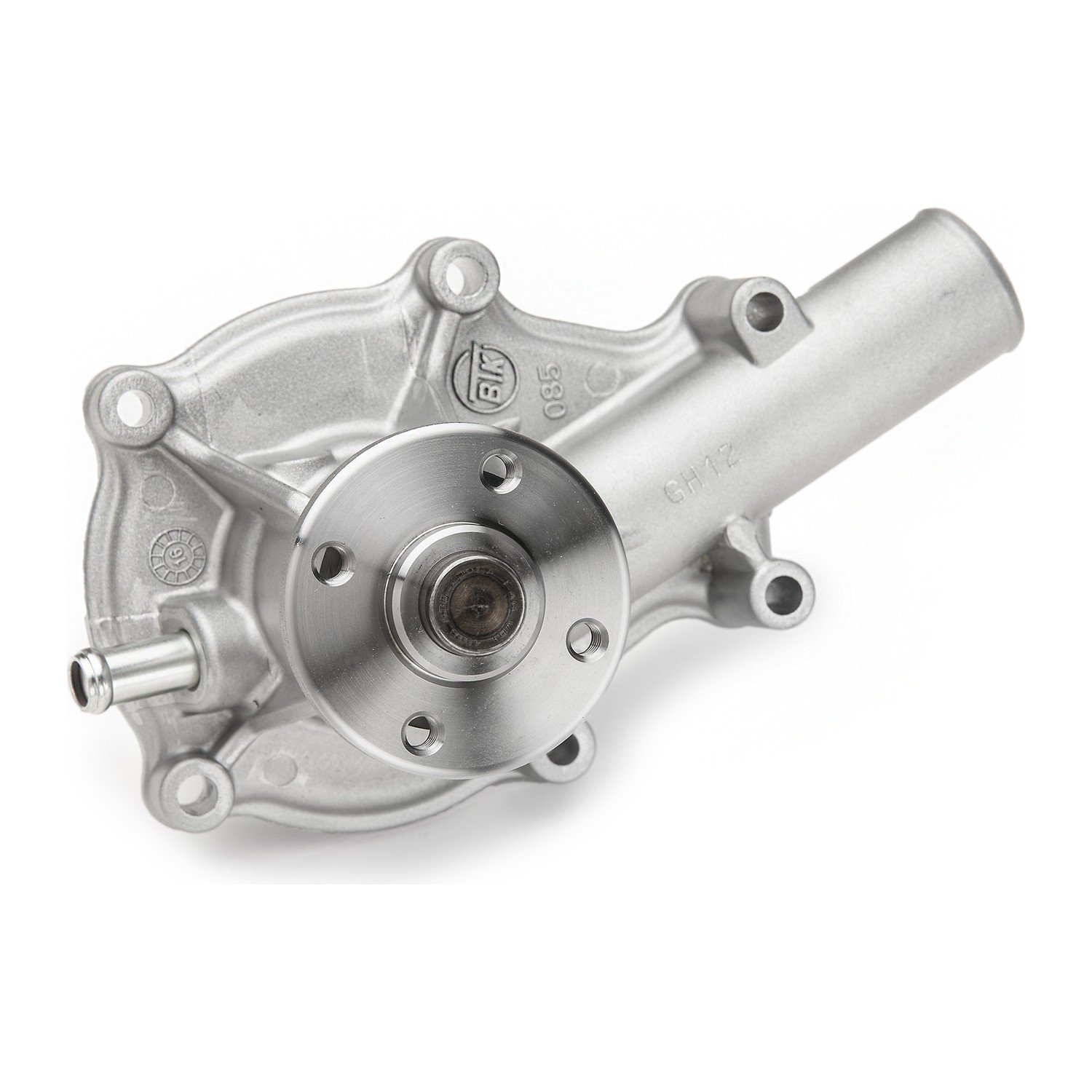

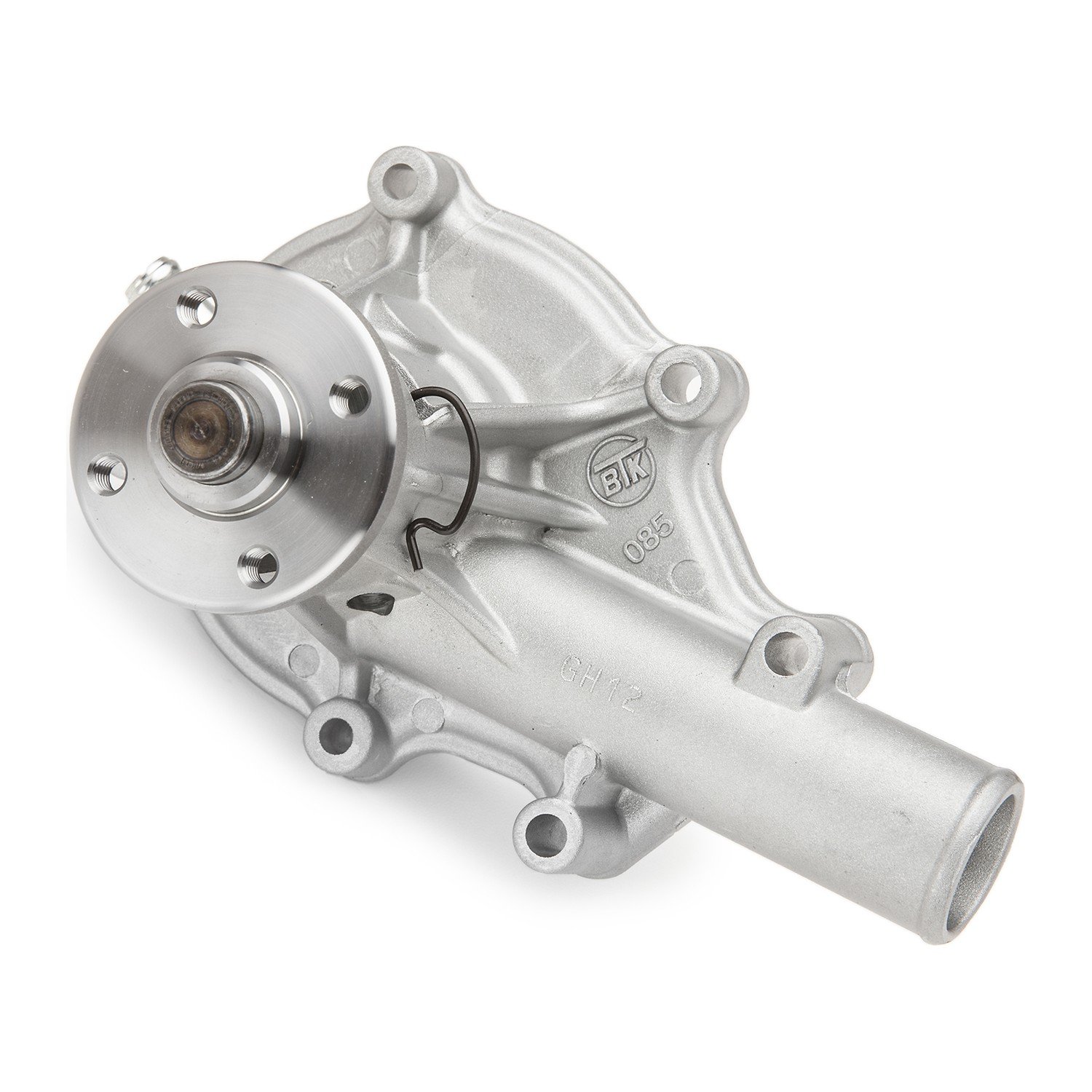

Kubota D905, D1005, D1105 & V1505 (05 Series) Water Pump, 2.75 in Impeller | Genuine Kubota 16259-73036
This is a new, genuine Kubota water pump assembly, part number 16259-73036. Kubota’s parts description calls it the 05 Series water pump with a 2.75 inch impeller, and Kubota engine dealers list it for the D905, D1005, D1105 and V1505 diesels. It replaces 16259-73032, 16259-73030 and 1G642-73030.
Dealer catalogs list this pump by engine, not by machine, so order it by engine model, engine serial number and the number on the old pump. It is a different part number from 16251-73037, which Kubota also describes as an 05 Series pump with a 2.75 inch impeller, and from 16241-73037, which has a 2 1/4 inch impeller. Replace the pump when coolant weeps from the drain hole, the shaft bearing is rough or loose, or the engine runs hot with a good thermostat, radiator and fan belt. The pump gasket, Kubota 16239-73430, is a separate part number.
Confirm Fitment Before You Order
Kubota lists at least three water pumps for the D905, D1005, D1105 and V1505: this one, 16251-73037 and 16241-73037. Kubota does not publish how this pump differs from 16251-73037, so do not swap them on the description alone. Send us the engine model, the engine serial number and the number on your old pump. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 16259-73036 |
| Brand | Kubota |
| Condition | New, genuine, in original packaging |
| Warranty | Kubota genuine parts warranty: 1 year against defects in materials or workmanship. |
| Type | Engine water pump assembly |
| Engine family | Kubota 05 Series |
| Engines | Kubota D905, D1005, D1105, V1505 |
| Impeller | 2.75 in |
| Replaces | 16259-73032, 16259-73030, 1G642-73030 |
| Gasket | Kubota 16239-73430, a separate part number |
| Shipping weight | 2 lb |
Fits / Applications
- Kubota D1105 and V1505 diesel engines
- Kubota D905 and D1005 diesel engines
- Direct replacement for a pump numbered 16259-73032, 16259-73030 or 1G642-73030
Before you drain the system, set the new pump next to the old one and compare the bolt pattern, the hose connections and the height of the pulley flange. Fit a new gasket, Kubota 16239-73430 (a separate part number), on a clean mounting face. Refill with the coolant Kubota specifies for the engine, bleed the air out, then check fan belt condition and tension.
Part Numbers & Cross Reference
Kubota 16259-73036 · Kubota (superseded) 16259-73032 · Kubota (superseded) 16259-73030 · Kubota (superseded) 1G642-73030
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 16259-73036 fit my Kubota D1105 or V1505?
Kubota engine dealers list it for the D905, D1005, D1105 and V1505, but those engines were built with more than one water pump. Match the number on your old pump, or call 530-668-0818 with the engine model and serial number.
Is 16259-73036 the same pump as 16251-73037?
They are separate Kubota part numbers. Kubota describes both as 05 Series pumps with a 2.75 inch impeller and does not publish the difference, so order the number that is on your old pump.
What numbers does 16259-73036 replace?
It replaces 16259-73032, 16259-73030 and 1G642-73030.
Which gasket goes with it?
Kubota 16239-73430. It is a separate part number, so order it with the pump.
