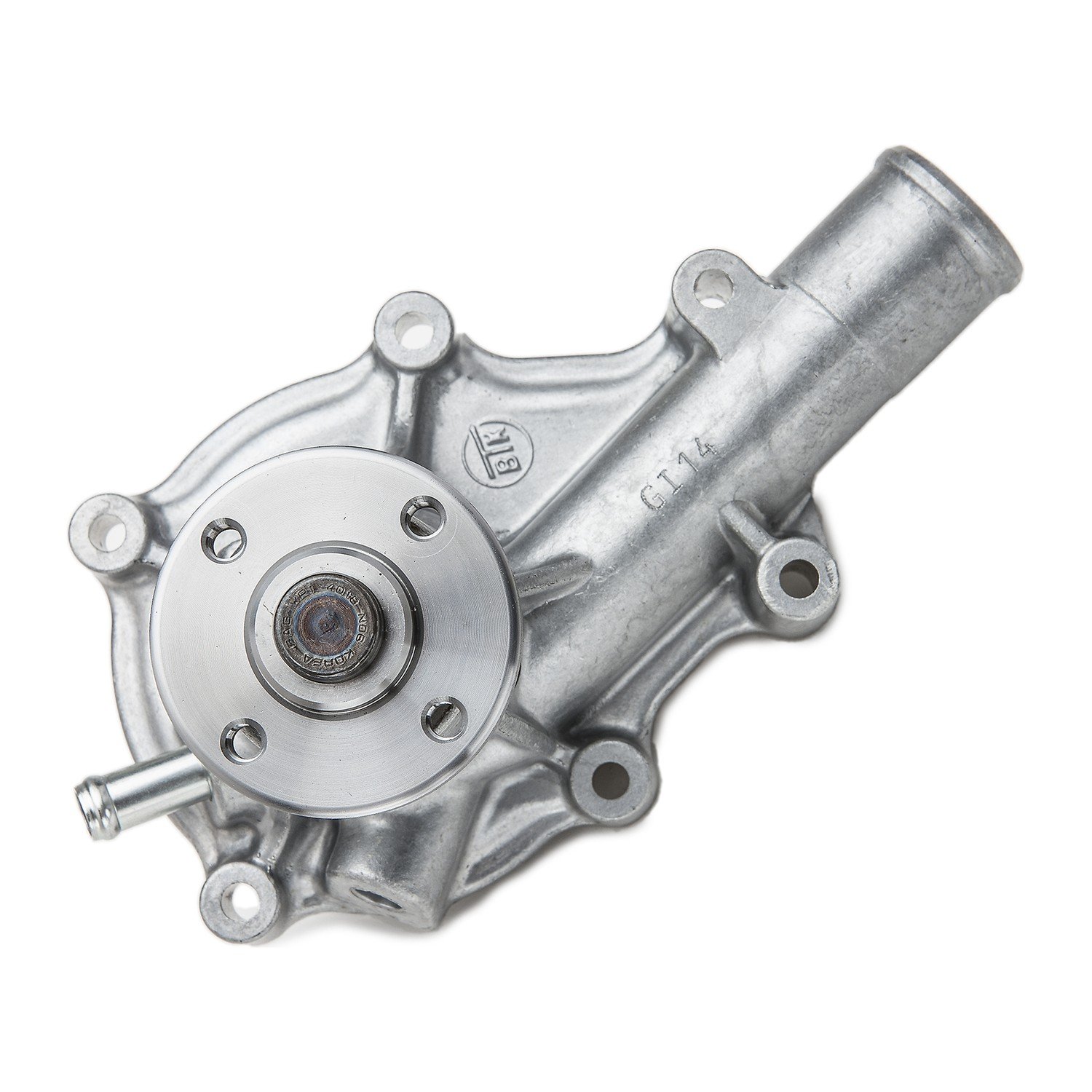

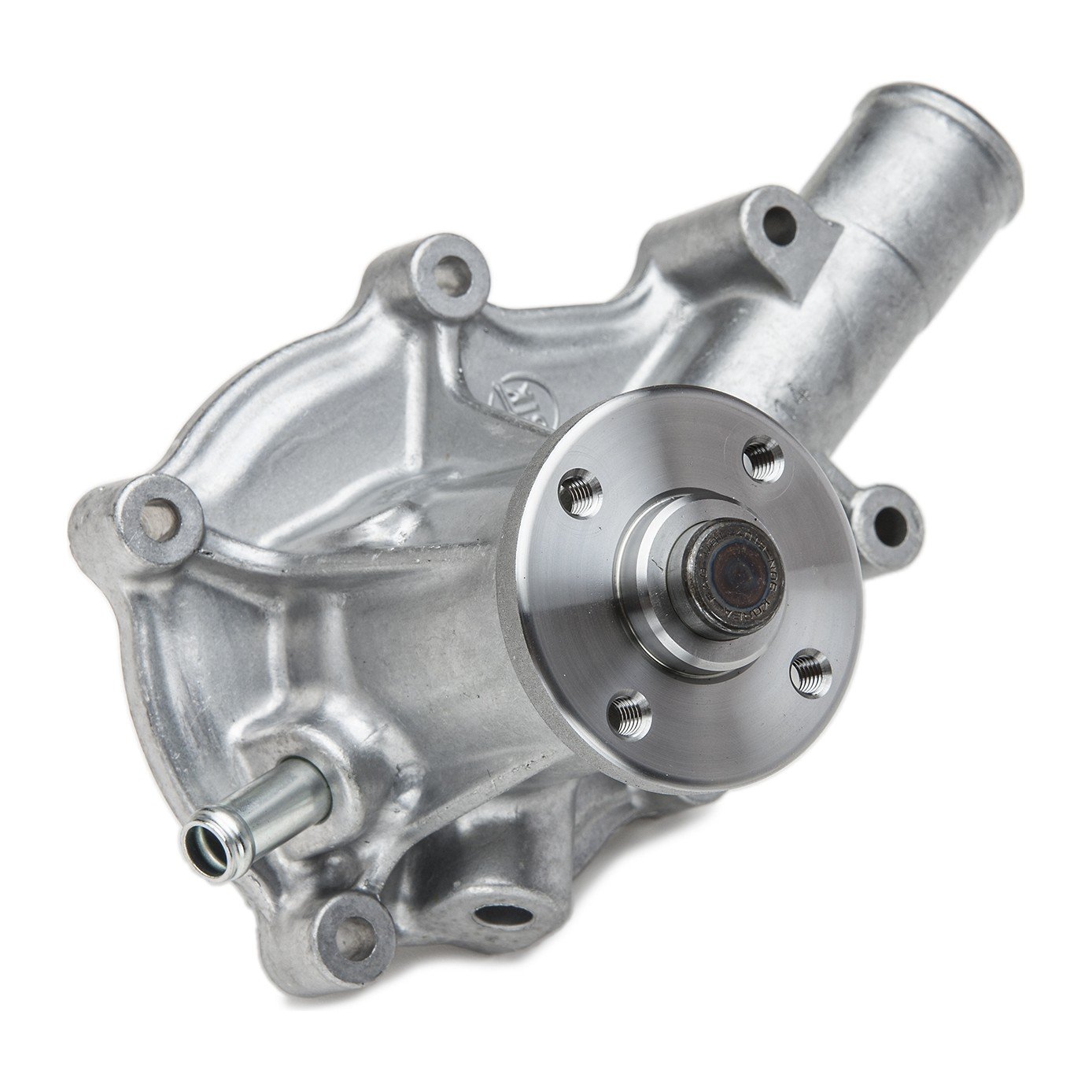

This is a new, genuine Kubota water pump assembly, part number 16241-73037. Kubota engine dealers list it for the D905 and D1105 three-cylinder diesels and the V1505 four-cylinder diesel. Kubota dealer parts catalogs show it on the F2400 front mower, the KX71 excavator and the old type R310 wheel loader. It replaces 16241-73034 and 16241-73030.

Kubota sells two other water pumps for these engines, 16251-73037 and 16259-73036, and this is not the same part. Kubota’s parts description gives this pump a 2 1/4 inch impeller and the other two a 2.75 inch impeller. This pump takes gasket 16261-73430, a separate part number, and the other two take 16239-73430. Replace the pump when coolant weeps from the drain hole, the shaft bearing is rough or loose, or the engine runs hot with a good thermostat, radiator and fan belt.

Specifications

Fits / Applications

• Kubota D905 and D1105 three-cylinder diesel engines
• Kubota V1505 four-cylinder diesel engine
• Kubota F2400 front mower
• Kubota KX71 excavator
• Kubota R310 wheel loader, old type (check the serial number)
• Direct replacement for a pump numbered 16241-73034 or 16241-73030

Before you drain the system, set the new pump next to the old one and compare the bolt pattern, the hose connections and the height of the pulley flange. Fit a new gasket, Kubota 16261-73430 (a separate part number), on a clean mounting face. Refill with the coolant Kubota specifies for the engine, bleed the air out, then check fan belt condition and tension.

Part Numbers & Cross Reference

Kubota 16241-73037  ·  Kubota (superseded) 16241-73034  ·  Kubota (superseded) 16241-73030

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Is 16241-73037 the same pump as 16251-73037?

No. They are separate Kubota part numbers that are both listed for the D905, D1105 and V1505. Kubota describes this pump with a 2 1/4 inch impeller and 16251-73037 with a 2.75 inch impeller, and the two take different gaskets.

Will the 16241-73037 fit my Kubota F2400?

Yes. Kubota dealer parts catalogs show 16241-73037 as the water pump on the F2400 front mower, with gasket 16261-73430.

What numbers does 16241-73037 replace?

It replaces 16241-73034 and 16241-73030. If your old pump carries one of those numbers, this is the current part.

Is it new or remanufactured?

New, genuine Kubota.
