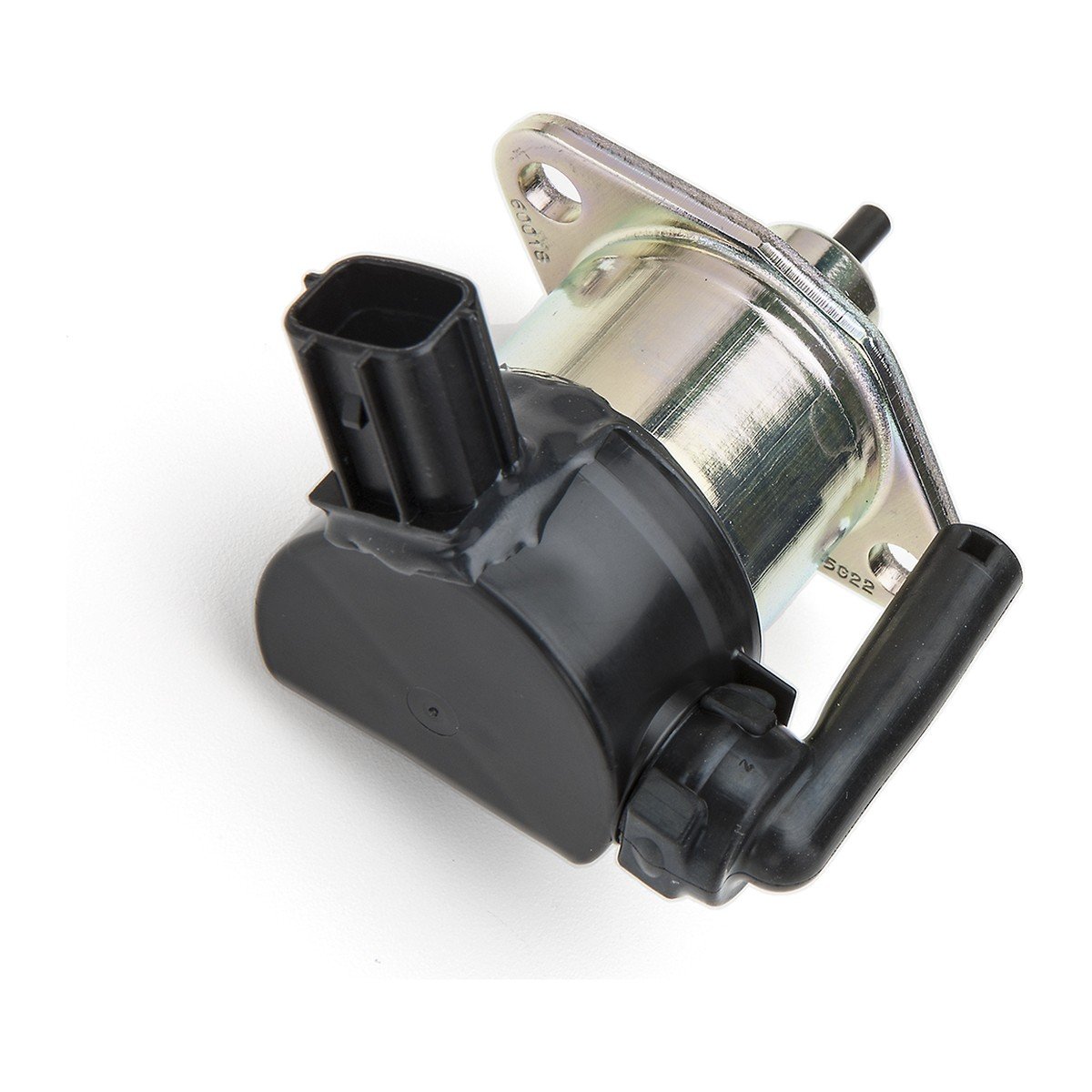

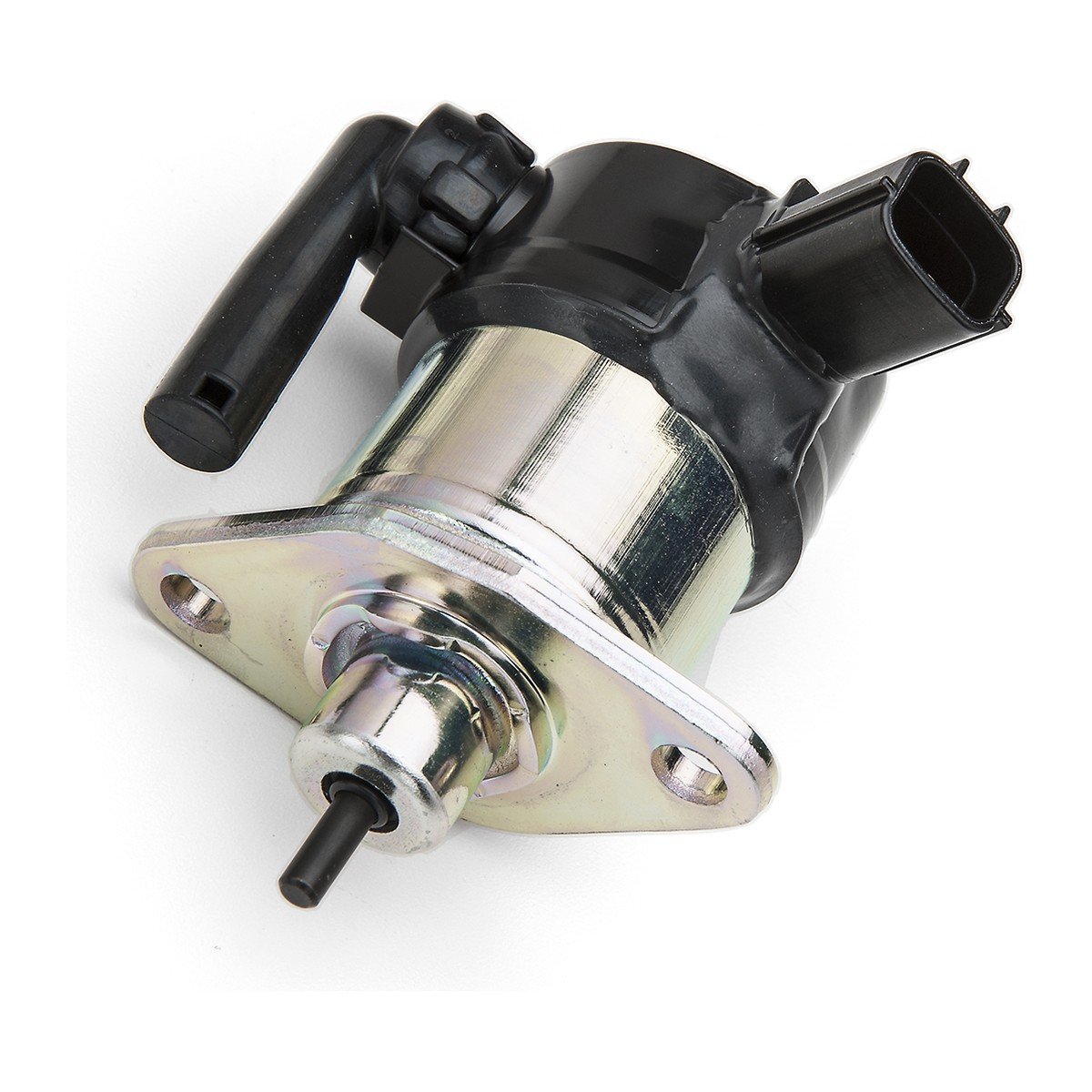

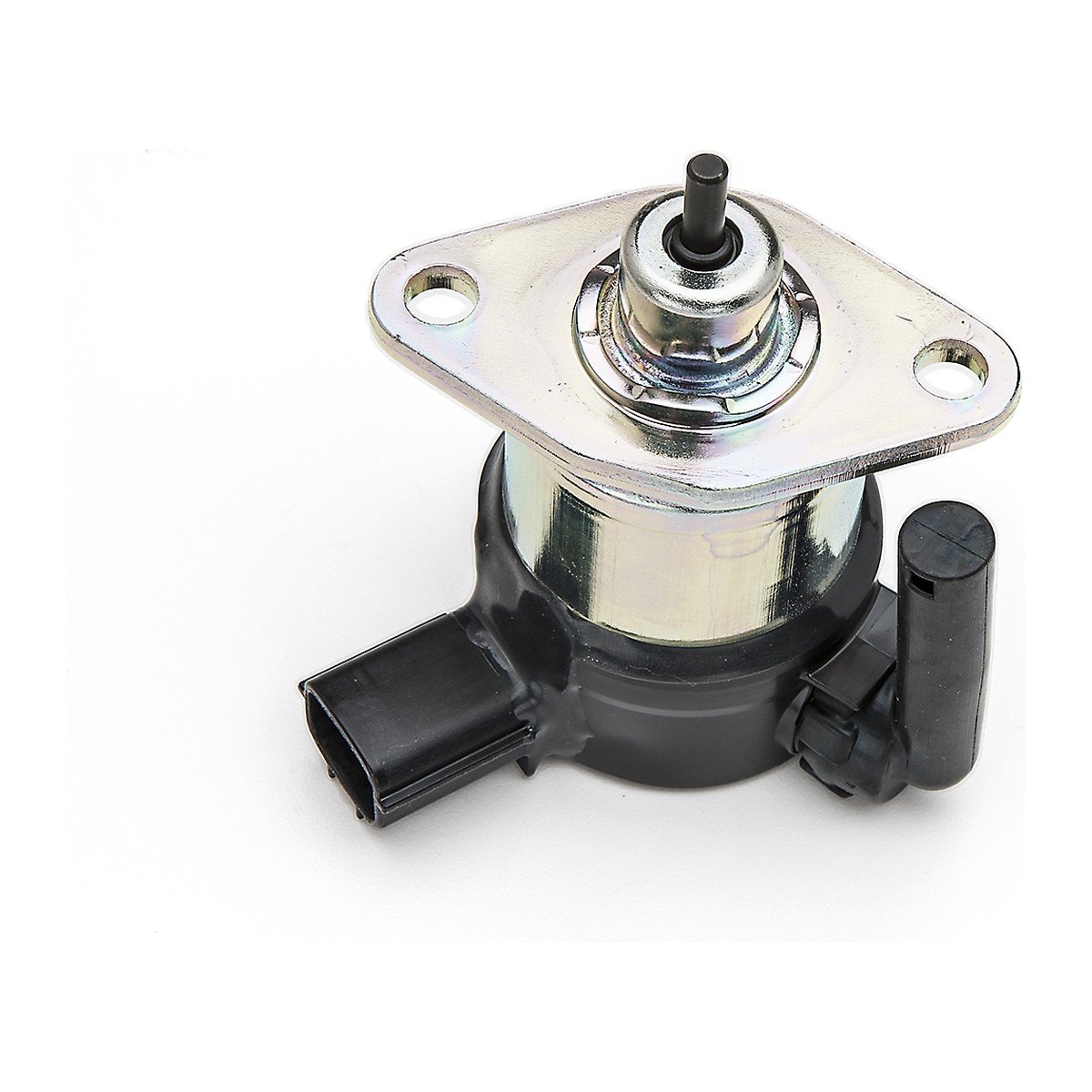

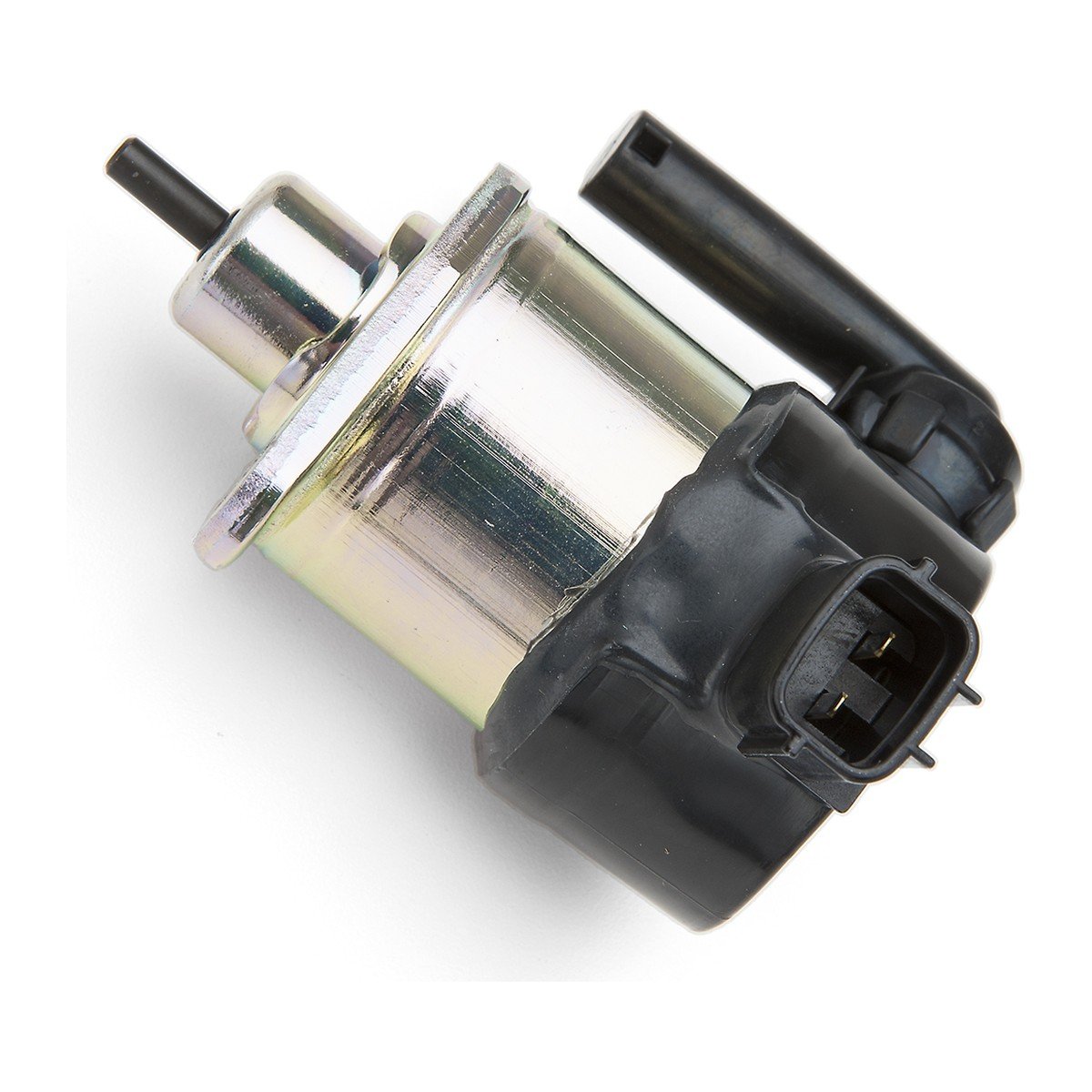

This is the genuine Kubota stop solenoid for the V3 Series diesels with mechanical injection: the V3300, V3600 and V3800DI-T, turbo builds included. It is the electric solenoid that shuts off fuel when you turn the key off. Kubota tractors that use it include the M6800, M8200, M9000, M8540, M9540, M95S, M96S and M105S, and two Kubota dealer catalogs also list it for the SVL90 track loader and the SQ-3350 generator. It replaces the older numbers 1C010-60010, 1C010-60013, 1C010-60014, 1C010-60015 and 1C010-60016.

A failed stop solenoid can leave an engine that cranks but will not fire, or one that will not shut off with the key. Check the fuse, the wiring and the plug before you condemn the solenoid. Other Kubota engine families use different stop solenoids that look close, so match the number on your old part.

Specifications

Fits / Applications

• Kubota V3300 and V3300-T diesel engines, including the V3300-E4BG
• Kubota V3600 and V3600-T diesel engines (V3600-E3B from engine serial CC0001; earlier engines used the older numbers this one replaces)
• Kubota V3800DI-T diesel engines (Kubota’s parts lists print 1C010-60015, which this number replaces)
• Kubota M6800, M8200 and M9000 tractors
• Kubota M8540 and M9540 tractors
• Kubota M95S, M96S, M105S, M95X and M105X tractors
• Kubota SVL90 track loader and KX080-3 excavator. The KX080-3T takes 1G772-60014 instead.
• Kubota SQ-3350 diesel generator (SQ-3350-USA-SW)

Kubota’s V3600 parts list marks this number as a new-for-old replacement and draws the earlier solenoid (to engine serial CBZ999) with a slightly different shape, so the new part may not look identical to the one you take off.

Part Numbers & Cross Reference

Kubota (older number) 1C010-60010  ·  Kubota (older number) 1C010-60013  ·  Kubota (older number) 1C010-60014  ·  Kubota (older number) 1C010-60015  ·  Kubota (older number) 1C010-60016

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 1C010-60017 replace my old 1C010-60015 or 1C010-60016 solenoid?

Yes. 1C010-60017 is the current Kubota number and it replaces 1C010-60010, 1C010-60013, 1C010-60014, 1C010-60015 and 1C010-60016. Kubota’s parts list marks it as a new-for-old replacement.

Which Kubota engines use this stop solenoid?

The V3 Series diesels with mechanical injection: V3300, V3600 and V3800DI-T, turbo builds included. Kubota’s parts lists show it on the V3300-E4BG and on the V3600-E3B from engine serial CC0001.

Does it fit a V2203 or a V3307?

No. The 03-M Series engines such as the V2203-M take 1A021-60017, and the V2607 and V3307 direct injection engines take 1G772-60014.

How do I make sure it is the right one for my tractor?

Match the number stamped on your old solenoid, or call 530-668-0818 with your engine model and serial number and we will check it against the Kubota parts list.
