This is a new, genuine Kubota radiator assembly, part number 1G951-72060. Kubota engine dealers list it for two Super Mini diesels: the two-cylinder 0.48 liter Z482 and the three-cylinder 0.72 liter D722. It is a separate Kubota part number from 1G952-72060, which is listed for the same two engines plus the D902, WG972 and DF972, and from 1E103-72060, which is listed for the D722, D902 and WG972. It is also separate from 1G957-72060, another Z482 radiator.

Radiators are replaced for leaking tubes or seams, blocked fins, cracked tanks and broken mounts. Kubota lists more than one radiator for each of these engines and public catalogs do not show how they differ, so the part number on your old radiator is what decides it. Kubota’s own GL7000 and GL11000 generators, which run the Z482 and D722, use other radiators: 1G291-72060 and 1G292-72060.

Specifications

Fits / Applications

• Kubota Z482 two-cylinder diesel engine
• Kubota D722 three-cylinder diesel engine
• Direct replacement for a radiator numbered 1G951-72060. Other radiator numbers on these engines are different parts.

Before you drain the system, set the new radiator next to the old one and compare the hose necks, mounts, filler neck and shroud mounting points. Flush the system and refill with the coolant type and mix Kubota specifies for the engine. Replace soft or cracked hoses and weak clamps, and bleed trapped air before putting the machine back to work.

Part Numbers & Cross Reference

Kubota 1G951-72060

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 1G951-72060 fit my Kubota Z482 or D722?

Kubota engine dealers list it for both the Z482 and the D722. Both engines were also built with other radiators, so it is the right part only if your old radiator or parts book shows 1G951-72060.

Is 1G951-72060 the same as 1G952-72060 or 1G957-72060?

No. All three are genuine Kubota radiator assemblies listed for the Z482, but they are separate part numbers and no catalog shows one replacing another. Order the number on your old radiator.

Is this the radiator for a Kubota GL7000 or GL11000 generator?

No. Kubota’s parts lists for those generators show 1G291-72060 on the GL7000 and 1G292-72060 on the GL11000, and both are separate part numbers from 1G951-72060.

What should I send you to confirm a 1G951-72060?

The engine model, the engine serial number and the number on your old radiator. If the engine is in a machine, add the machine make, model and serial number. Call 530-668-0818 and we will check it before you order.

Related Parts

• Kubota Z482 2-Cylinder Diesel Engine Radiator | Genuine Kubota 1G957-72060

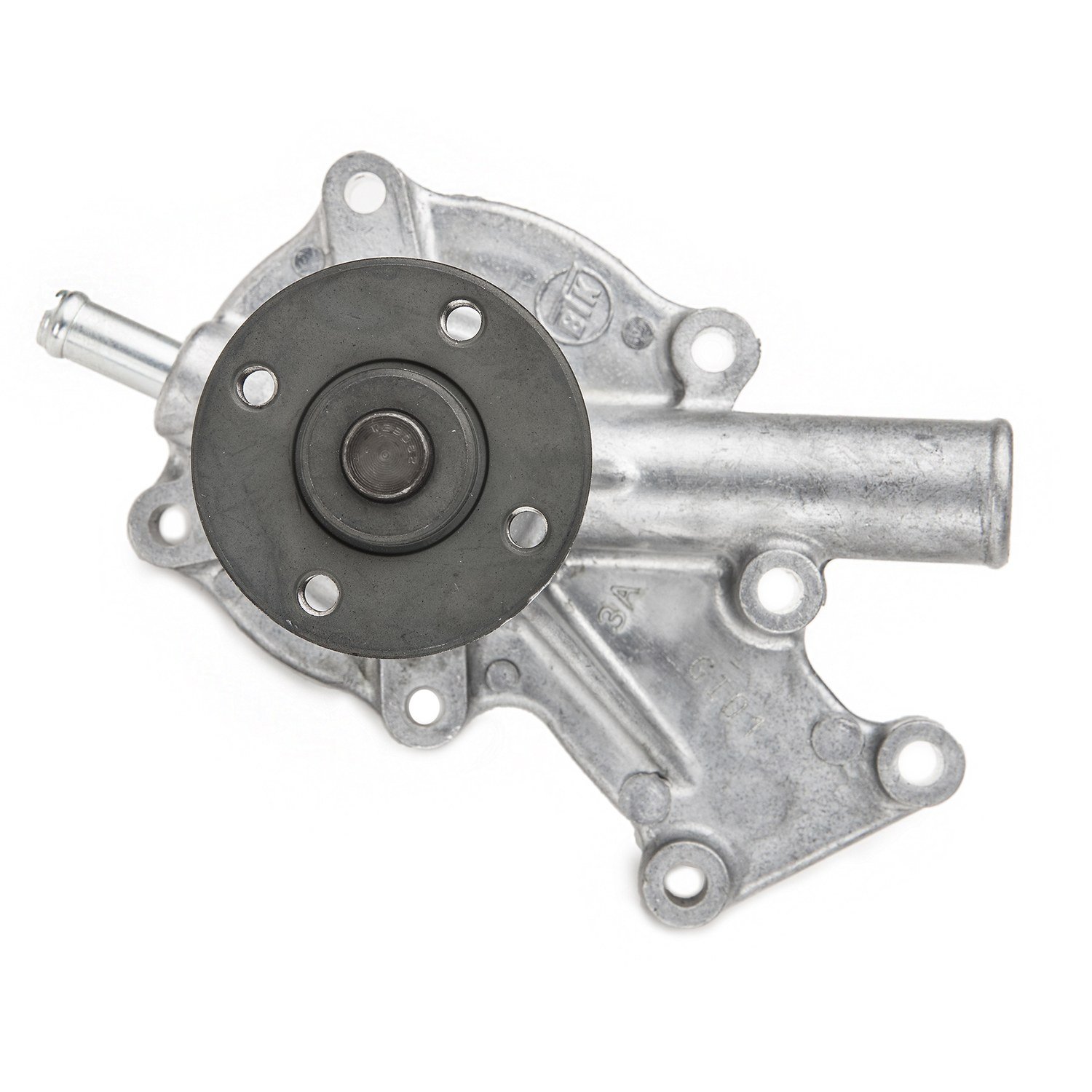

• Kubota D722 & D902 Water Pump for BX, RTV900 & ZD Mowers | Genuine Kubota 1E051-73036
• Kubota Super Mini Z482, Z602, D722 & D902 Engine Stop Solenoid 12 V | Genuine Kubota 16851-60015

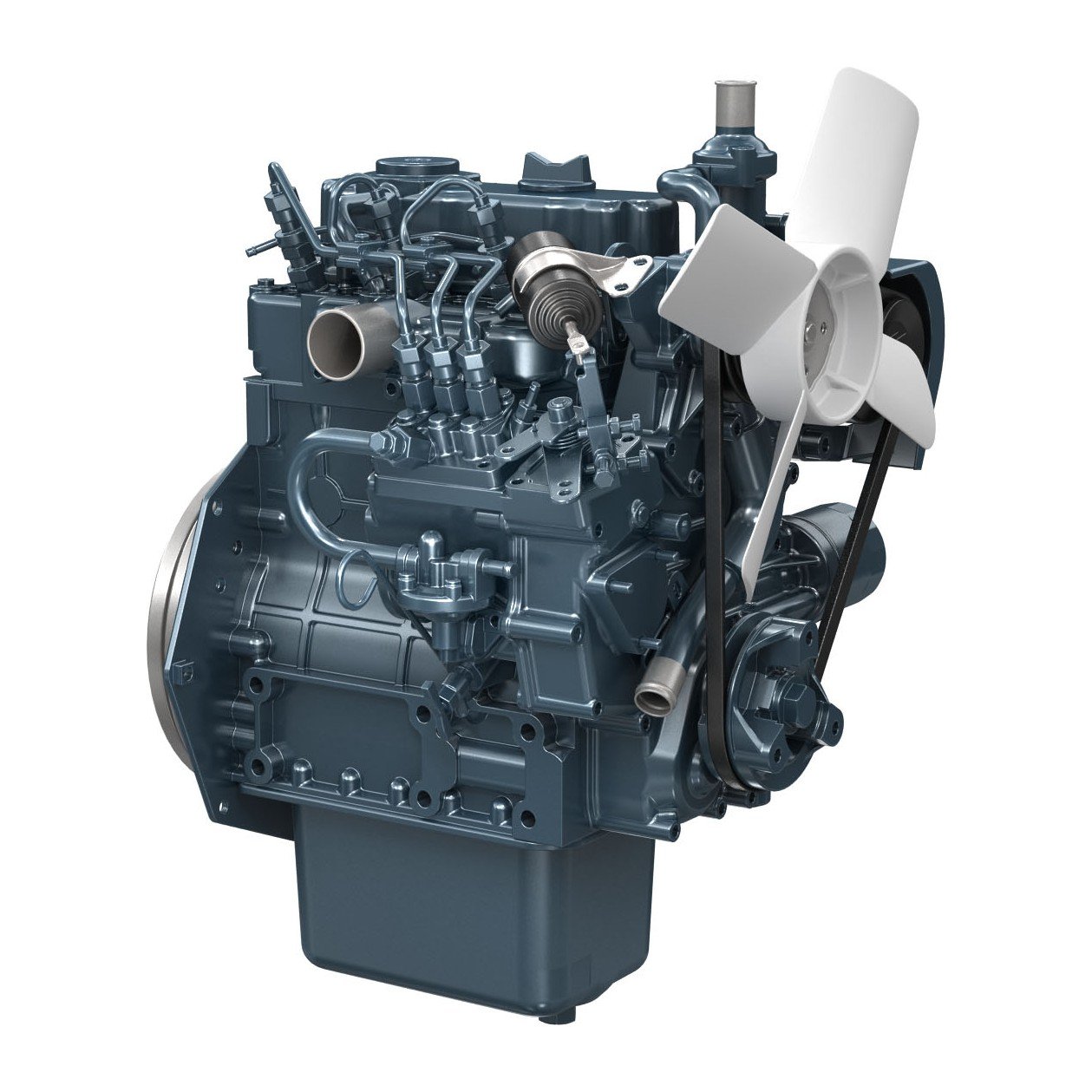

• Kubota D722 Diesel Engine | New Super Mini Tier 4 Final | Fits Bobcat MT52, E10, E16
