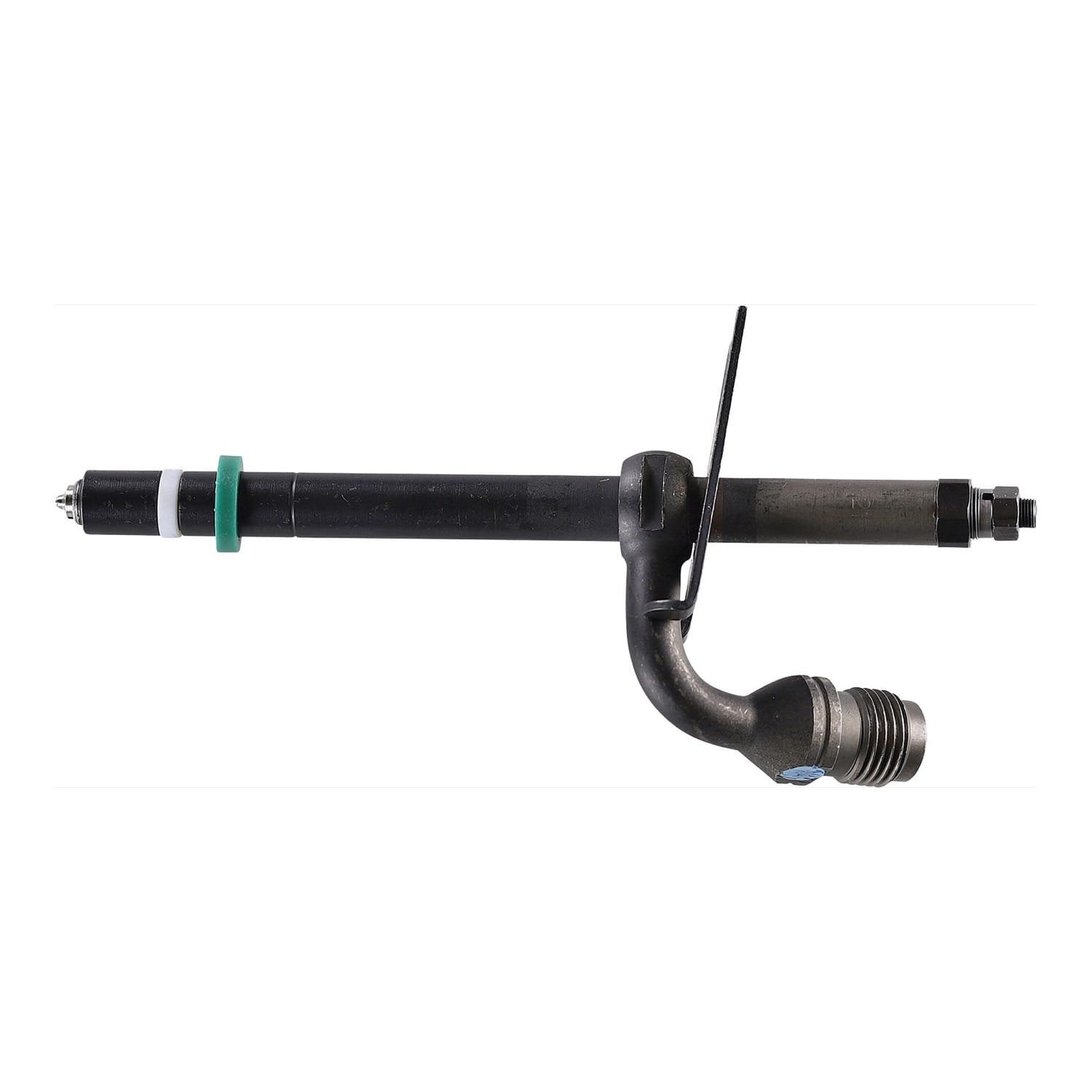

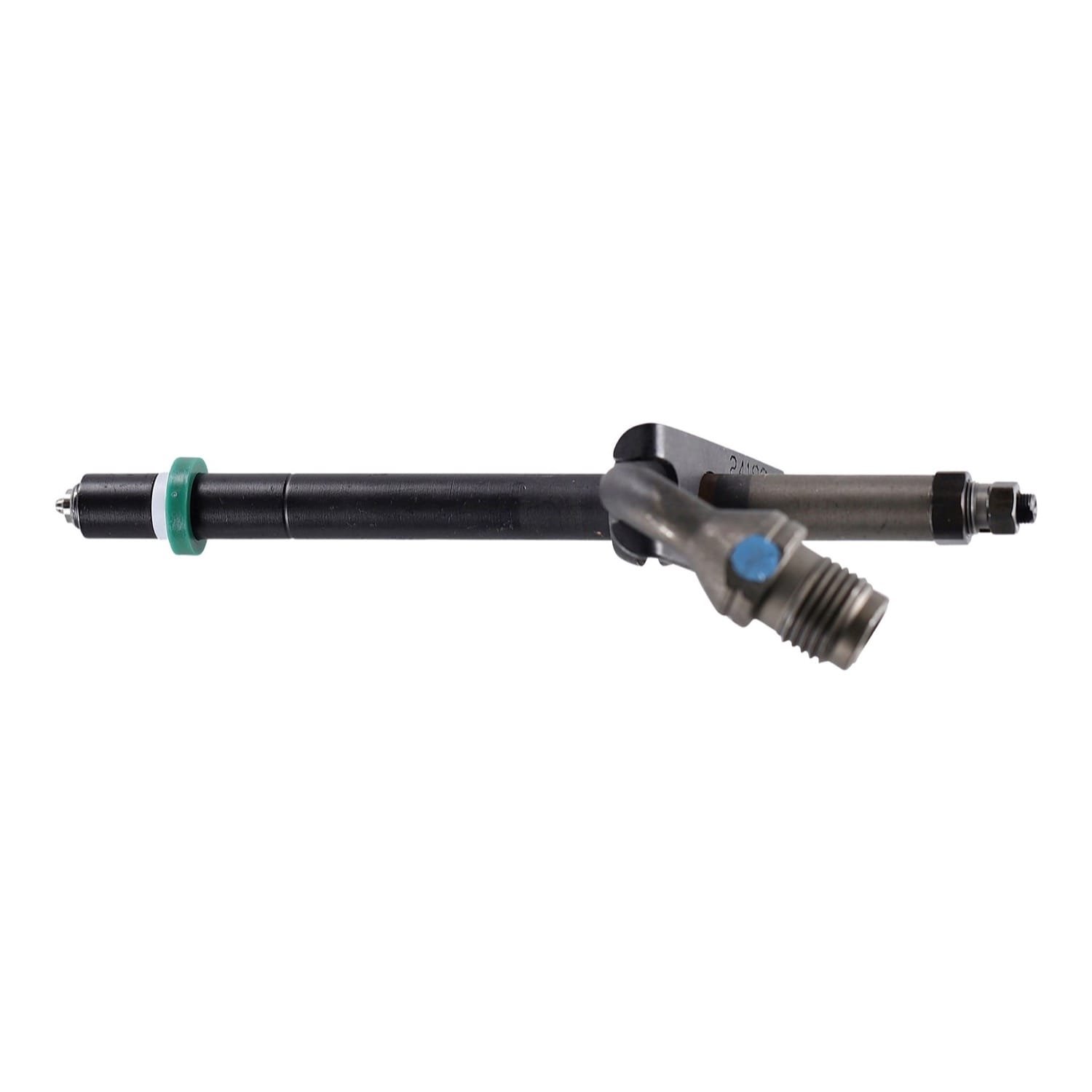

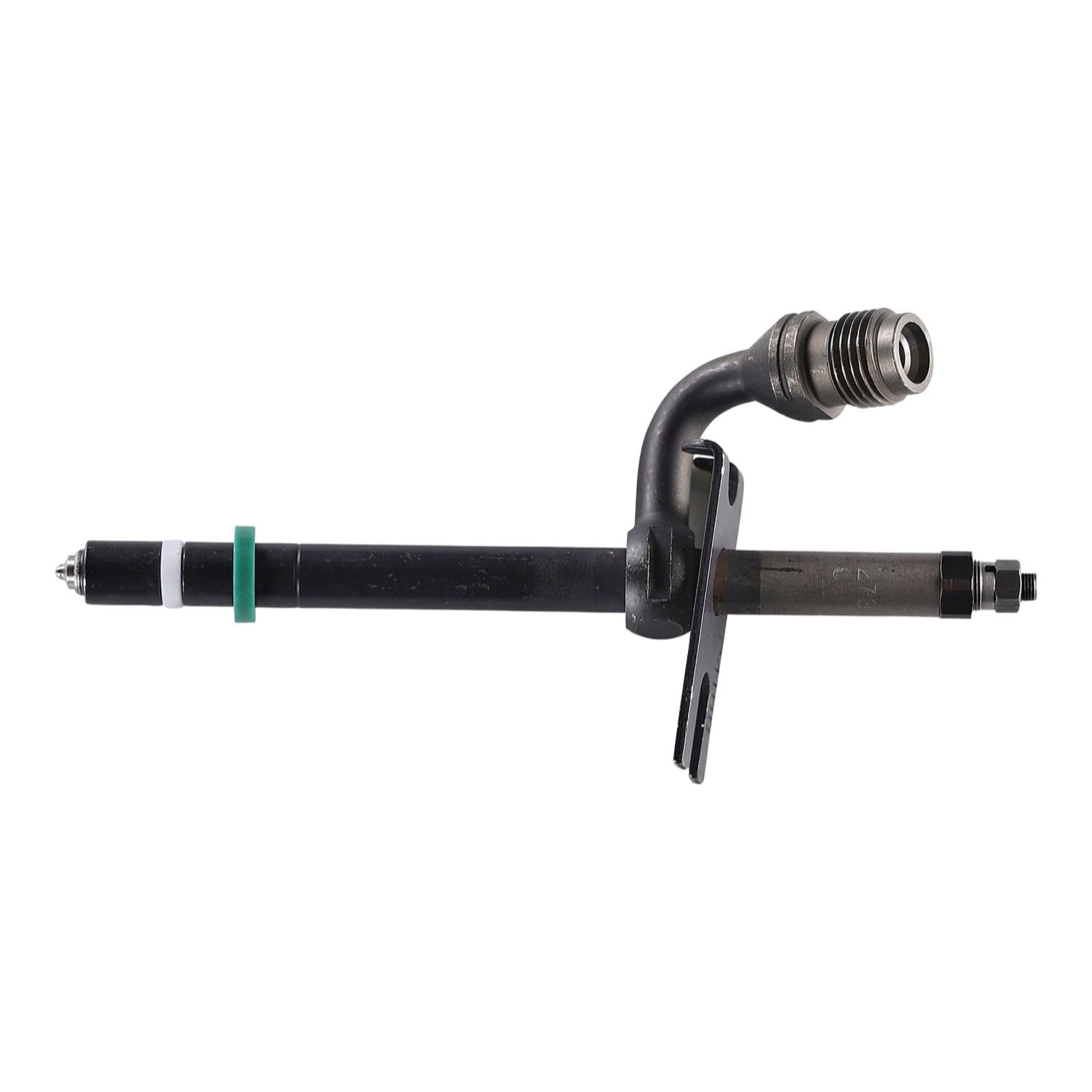

The Stanadyne 27333 is a new, genuine Stanadyne pencil injector (pencil nozzle) for older John Deere 300 Series diesel engines. It fits the 3.152, 3.164 and 4.219, and also the 3.179, 4.239, 6.329 and 6.359 where the engine was built with this nozzle. John Deere sells it as AR89564, which replaced AR89563 and AR88239. It carries a blue color code. You need one per cylinder: 3, 4 or 6.

Pencil injectors are replaced for hard starting, smoke, knocking, rough running, low power or leaks. Replace them as a set so opening pressures match across cylinders. John Deere lists more than one nozzle for some 300 Series engine models and tractors, so match the number and color code on your old injector. Old injectors stamped 27334 take this 27333.

Confirm Fitment Before You Order

Stanadyne cross-reference tables list other nozzles for turbocharged 300 Series engines, such as 27336 (AR90024, green) and 26993 (RE37503, white), and John Deere lists those on some of the same 3.179, 4.239 and 6.359 engine models. Send us the number stamped on your old injector, or the engine model and serial number from the engine tag. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.

Specifications

Part number27333
BrandStanadyne
ConditionNew, genuine, in original packaging
WarrantyManufacturer’s own warranty applies. Call us and we handle the claim.
TypeStanadyne pencil nozzle (pencil injector)
EnginesJohn Deere 300 Series 3.152, 3.164, 3.179, 4.219, 4.239, 6.329, 6.359 (build dependent)
Color codeBlue
Injectors per engine3 (3-cylinder), 4 (4-cylinder) or 6 (6-cylinder)
John Deere numberAR89564 (replaced AR89563 and AR88239)
Earlier Stanadyne number27334
Shipping weight2 lb

Fits / Applications

  • John Deere 3.152 and 3.164 3-cylinder diesel engines
  • John Deere 4.219 4-cylinder diesel engines
  • John Deere 3.179 3-cylinder diesel engines built with this nozzle (some builds use a different nozzle)
  • John Deere 4.239 4-cylinder diesel engines built with this nozzle (some builds use a different nozzle)
  • John Deere 6.329 and 6.359 6-cylinder diesel engines built with this nozzle (some 6.359 builds use a different nozzle)
  • John Deere 3140 tractor
  • John Deere tractors John Deere lists for AR89564: 940, 1040, 1140, 1350, 1550, 1640, 1750, 1840, 1850, 2040, 2150, 2255, 2350, 2550, 2950, 2955, 3040, 3050, 3150, 3155 and 3350

Fit new nozzle seals every time a pencil injector comes out, and clean the bore and seat before it goes back in. Use new leak-off grommets and do not overtighten the leak-off fittings. Pop test the set and keep opening pressures matched across cylinders. Torque the hold-down hardware to the John Deere spec for your engine.

Part Numbers & Cross Reference

John Deere AR89564  Â·  John Deere (earlier) AR89563  Â·  John Deere (earlier) AR88239  Â·  John Deere (earlier) AR88236  Â·  John Deere (earlier) AR73673  Â·  John Deere (earlier) AR49877  Â·  John Deere (SE number) SE501099  Â·  Stanadyne (earlier) 27334

0631
16422
16930
17574
17579
18025
18457
18458
18717
18742
19762
19763
20300
2042
20459
20460
20491
20492
20500
20501
20506
20631
20632
2202
22042
22043
22202
22203
22640
23088
23698
23699
7333
A-AR89564
AR49876
AR56289
AR56290
AR67765
AR73672
AR89817
AT18064T
AT21760T
AT25502
AT27612
AT30296
AT30299
B0631
B2042
B2202
B7333
SE500822
SE500823
STA16422
STA16930
STA17574
STA17579
STA18025
STA18457
STA18458
STA18717
STA18742
STA19762
STA19763
STA20300
STA20459
STA20460
STA20491
STA20492
STA20500
STA20501
STA20506
STA20631
STA20632
STA22042
STA22202
STA23698
STA27333
STAB0631
STAB2042
STAB2202
STAB7333

Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which John Deere engines use the Stanadyne 27333 pencil injector?

Older John Deere 300 Series engines: the 3.152, 3.164 and 4.219, and also the 3.179, 4.239, 6.329 and 6.359 where the engine was built with this nozzle. Some builds of those engines use a different nozzle, so match the number and color code on your old injector.

What John Deere number does Stanadyne 27333 replace?

John Deere sells it as AR89564, which replaced AR89563 and AR88239. Old injectors stamped 27334 take this 27333.

How do I tell 27333 from the other 300 Series pencil nozzles?

27333 carries a blue color code. Stanadyne lists 27336 (AR90024, green) and 26993 (RE37503, white) for turbocharged 300 Series engines. Call 530-668-0818 with the number stamped on your old injector, or the engine model and serial number, and we confirm the match at no charge.

How many 27333 injectors does an engine need, and is there a core charge?

One per cylinder: 3, 4 or 6. Replace them as a set so opening pressures match across cylinders. Each is a new Stanadyne injector sold outright, with no core charge.
