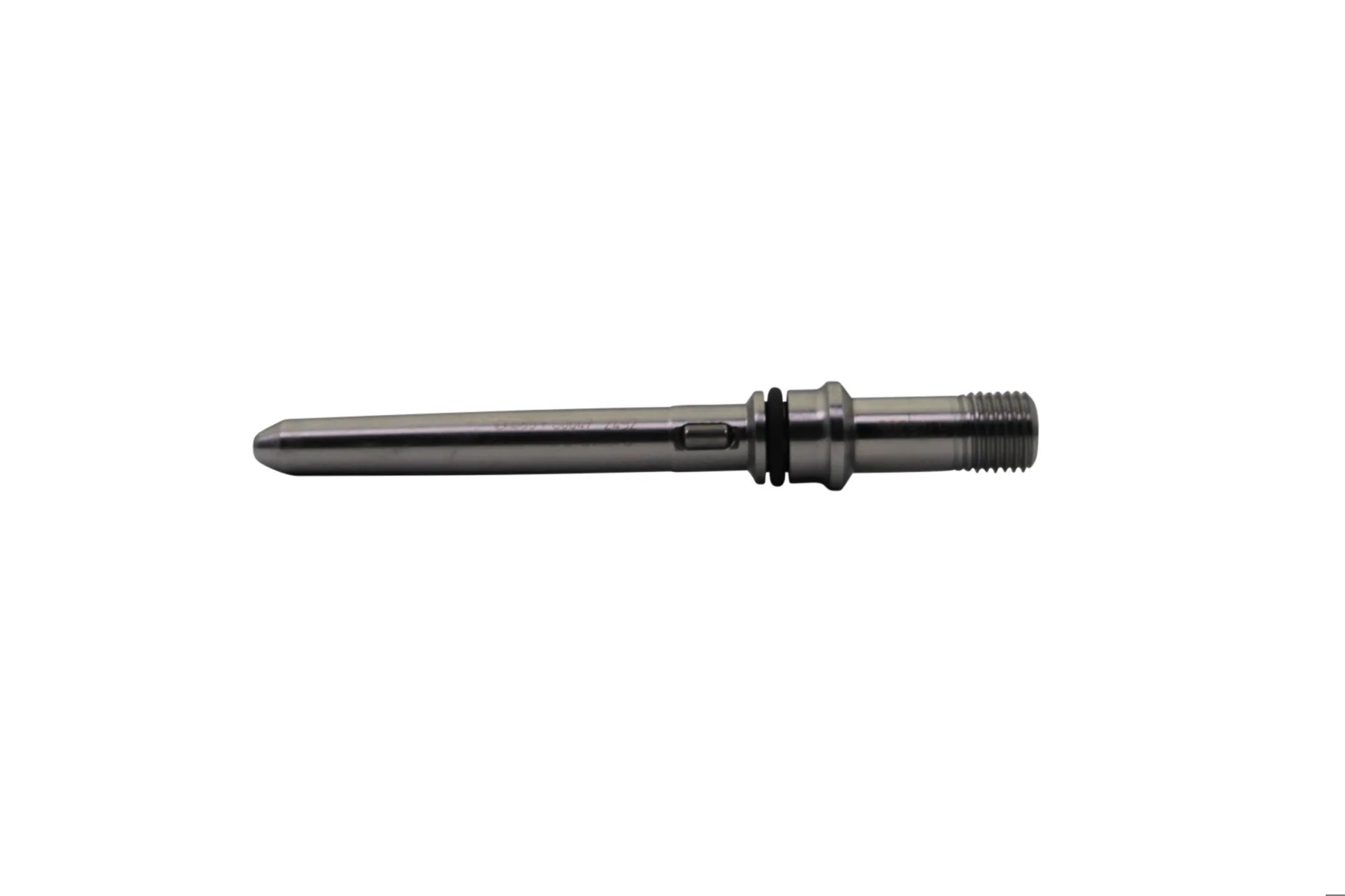

2007.5-2018 Ram 6.7L Cummins Injector Connector Tube | Genuine Bosch F00RC00647

Genuine Bosch high-pressure connector tube for the 6.7L Cummins. This is the steel tube that carries fuel from the rail, through the cylinder head, into the injector, sealing metal-to-metal at both ends. Six are required per engine, one per cylinder.

Fitment

Bosch lists this one connector across the entire 6.7L Ram range, pickup and cab & chassis:

• Ram 2500 & 3500 pickup, 2007.5–2018 (injectors 0986435518 and 0986435621)
• Ram cab & chassis 3500/4500/5500, 2007–2018 (injectors 0986435519, 0986435574, 0986435573)

Cab & chassis does not take a different tube from the pickup. This is a common misconception.

This tube does not fit the 5.9L. For 2003–2007 5.9L Cummins you need Bosch F00RJ01572.

Replaces these part numbers

Cummins 4929864 · Cummins 4929865 · Cummins 2872286 · Cummins 2872288 · Cummins 2872395 · Cummins 3947539 · Cummins 3976656 · Cummins 4088576 · Mopar 5175565AA · Mopar 5175565AB · Mopar 5175565AC · Mopar 68005335AA · Mopar 68441874AA · Mopar 68444832AA · Mopar 68460261AA · Bosch F00RJ01831

Match the number on your old tube, or call 530-668-0818 with the year and engine and we will confirm it before you order.

Why a new tube goes in with a new injector

The connector tube sits in the cylinder head and seats in the injector’s inlet port. Install instructions for the 5.9L and 6.7L Cummins say that when a new injector goes in, a new connector tube must be used with it.

A tube can look perfect and still be finished. What is worn out is a shape you cannot see.

Symptoms of a failed connector tube

• Hard starting, particularly when hot
• A miss on one cylinder that follows the tube rather than the injector
• Raw diesel smell after a hard pull with no visible external leak

Warranty and shipping

Valley Fuel Injection is a Bosch Authorized service center and has been in business since 1993. We ship nationwide from Woodland, California. See our warranty terms and shipping policy.

Not sure which tube your engine takes? Call (530) 668-0818 with the year and application and we will confirm it.
