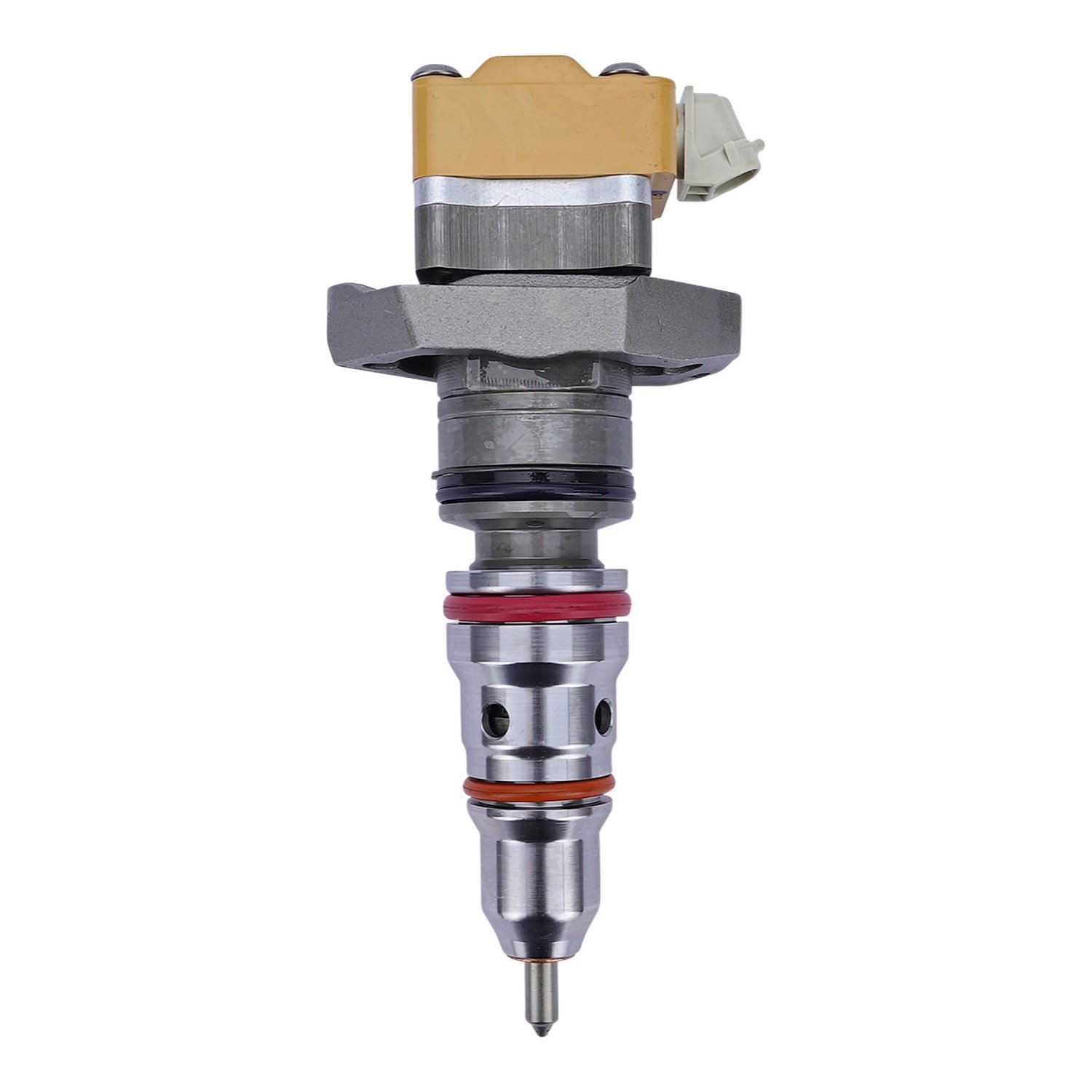

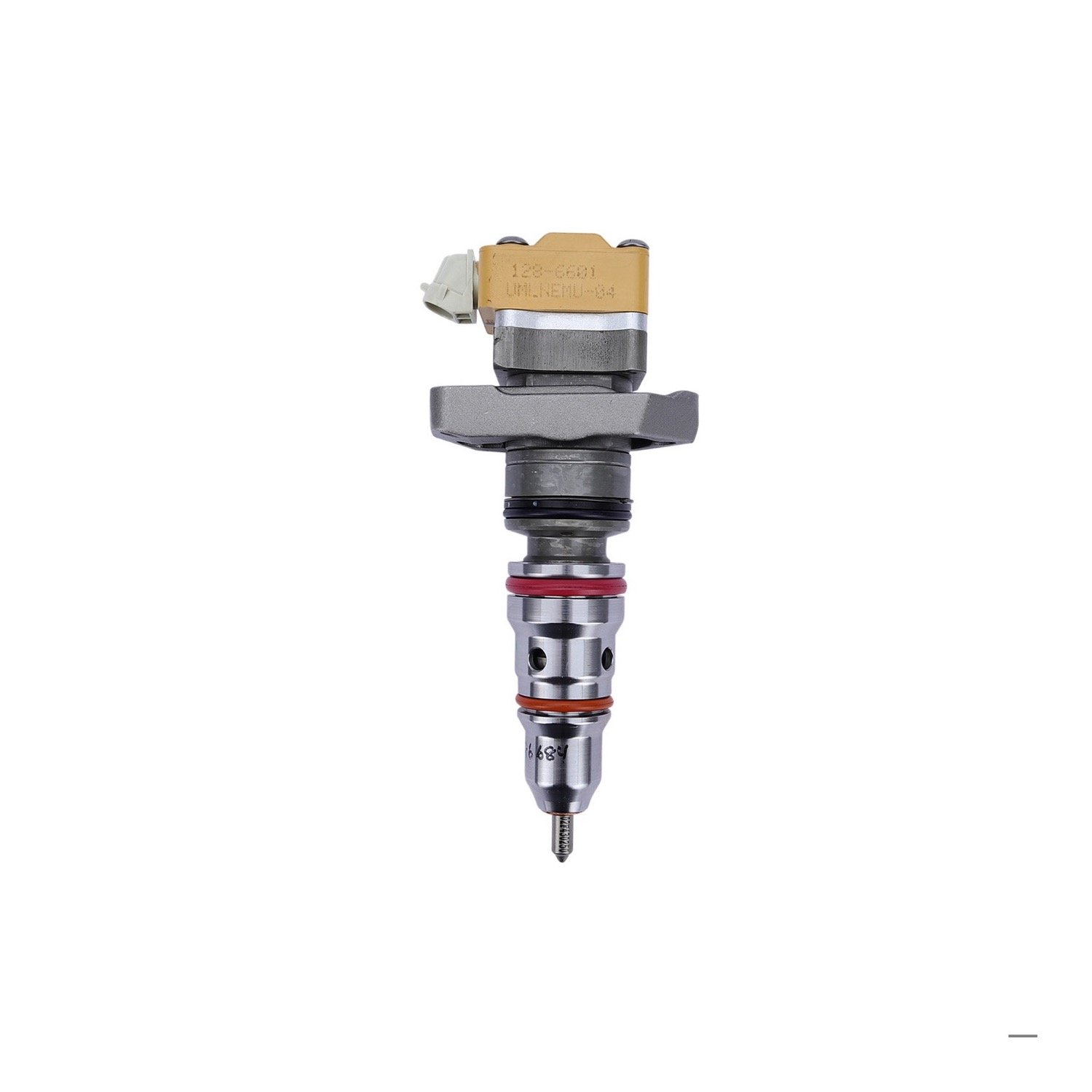

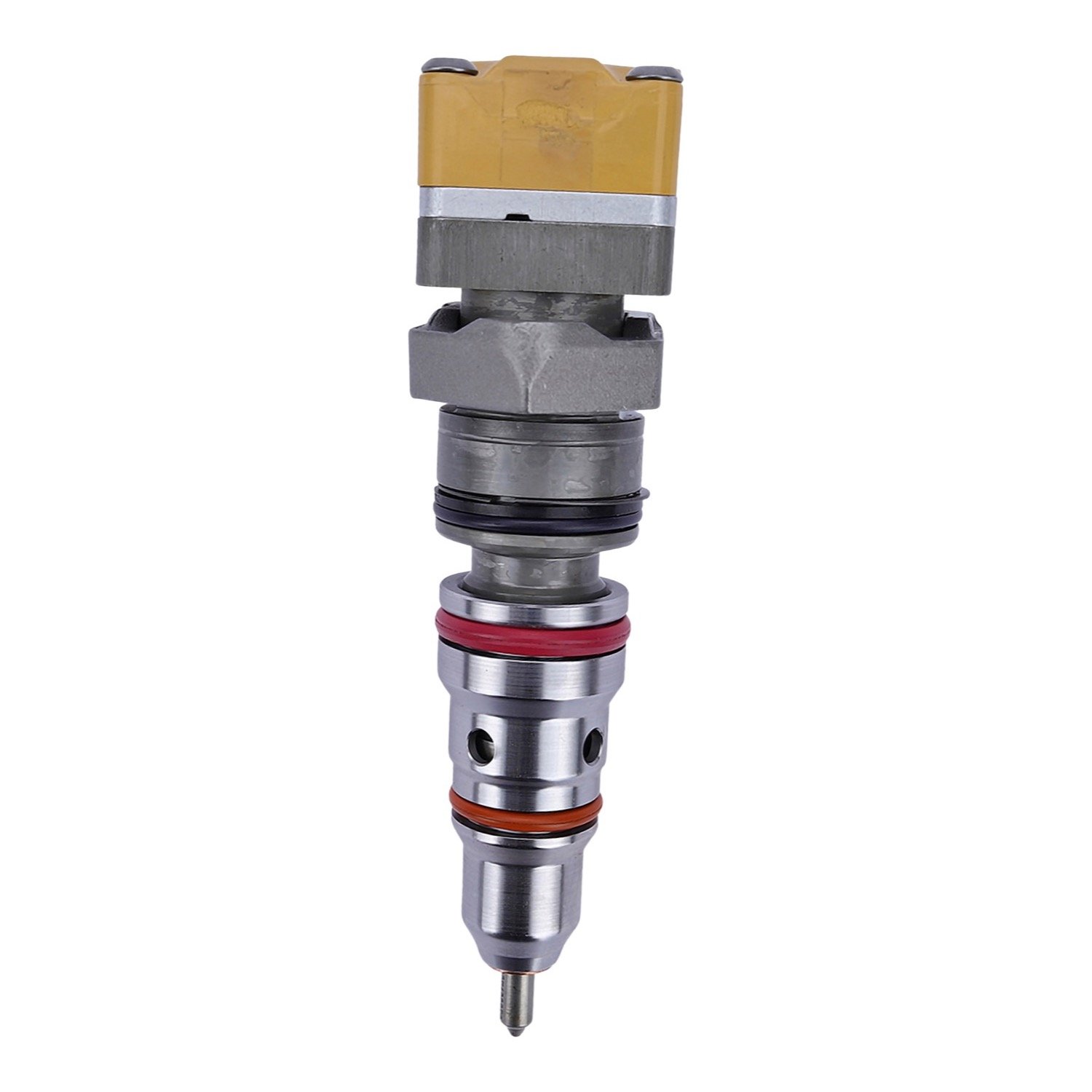

This is the Alliant Power AP63808BD, a new HEUI fuel injector, not a rebuild, for the BD code International I530E 8.7L built from 1995 to 1997 at 250 to 300 hp, up to engine serial number 1,084,028. The same injector is used on the Perkins 1300 Series EDi 8.7L of those years. It replaces Navistar 1824741C2, 1824744C94, 1824920C2, 1824931C94 and 2593591C91, and it comes with new seals and the copper chamber gasket.

BD is the first of four injector codes used on the 8.7L HEUI engine. BF and BJ followed on the later I530E, then BN on the 2000 to 2003 DT530 and HT530, each with its own serial number range. Worn injectors show up as hard starting, a miss under load, white smoke on a cold start or a cylinder contribution fault. These injectors are fired by engine oil pressure, so check oil level, oil condition and the high-pressure oil system before you buy a set. The engine takes six injectors.

Specifications

Fits / Applications

• International I530E 8.7L, 1995 to 1997, 250 to 300 hp, up to engine serial 1,084,028
• Perkins 1300 Series EDi 8.7L, 1995 to 1997
• BD code injectors only. Check the code on your old injector.
• Six injectors per engine

HEUI injectors are fired by engine oil pressure, so change the engine oil and oil filter when you fit them, and use the new copper chamber gasket supplied with each injector.

Part Numbers & Cross Reference

Alliant Power AP63808BD  ·  Navistar 1824741C2  ·  Navistar 1824744C94  ·  Navistar 1824920C2  ·  Navistar 1824931C94  ·  Navistar 2593591C91  ·  Alliant Power remanufactured version AP63908BD

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the AP63808BD fit my I530E?

It fits the 1995 to 1997 I530E at 250 to 300 hp, up to engine serial 1,084,028. Later I530E engines take the BF or BJ code, so call 530-668-0818 with your engine serial number if you are not sure.

What numbers does the AP63808BD replace?

Navistar 1824741C2, 1824744C94, 1824920C2, 1824931C94 and 2593591C91. The remanufactured version of the same injector is Alliant Power AP63908BD.

Does the BD code injector fit a DT466E?

BD is cataloged for the 8.7L I530E and the Perkins 1300 Series EDi 8.7L only. The 7.6L DT466E of the same years takes the BA, BB or BC code injector.

Is the AP63808BD new or remanufactured, and is there a core?

It is a new injector, not a rebuild. A refundable core charge applies, and it comes back in full when we receive your rebuildable old injector.
