2004-Early 2005 Ford 6.0L Power Stroke GT3782VA Turbocharger | Garrett 743250-5024S New

$1,130.00

In stock

Usually ships within 24 hours

View Core Charge & Return Policy

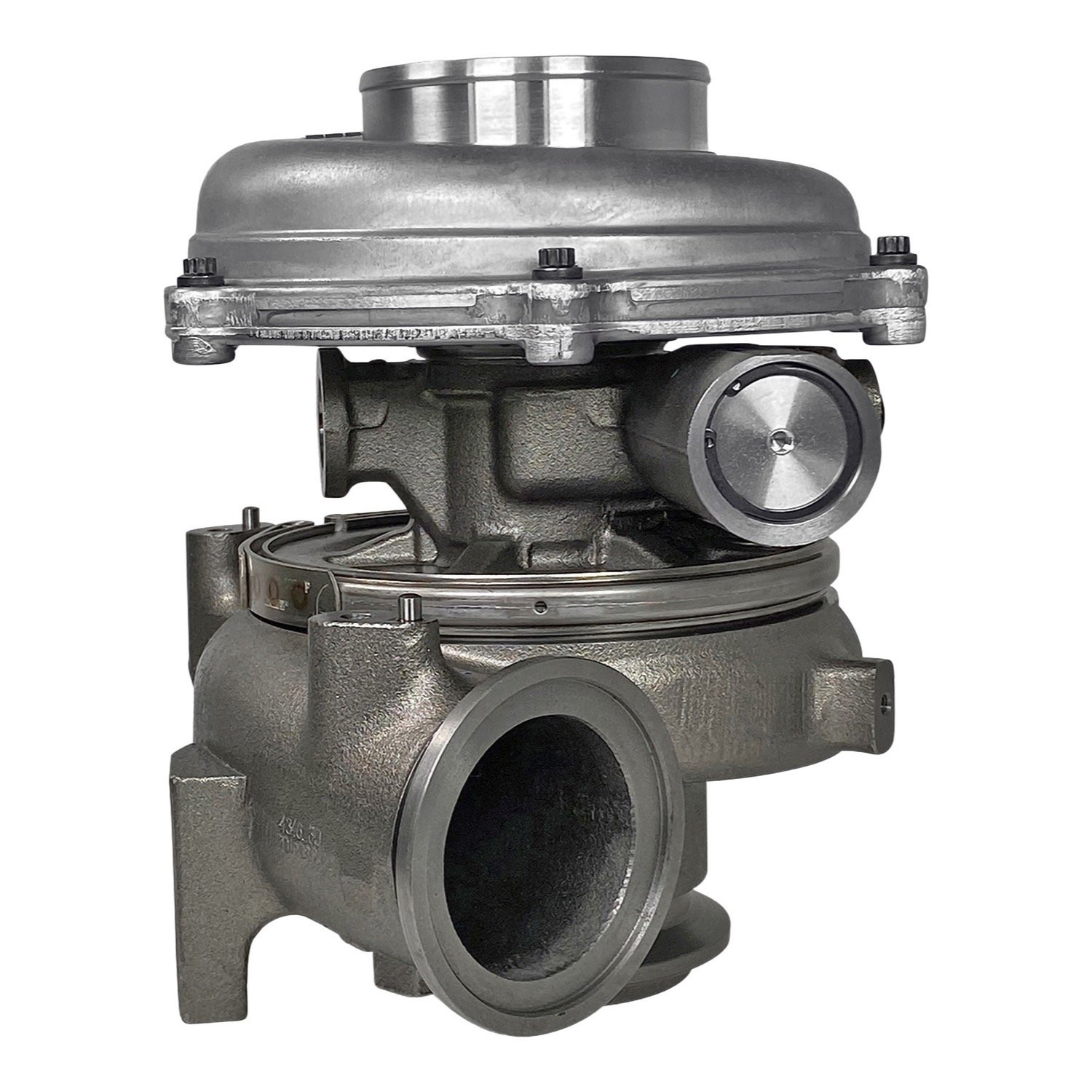

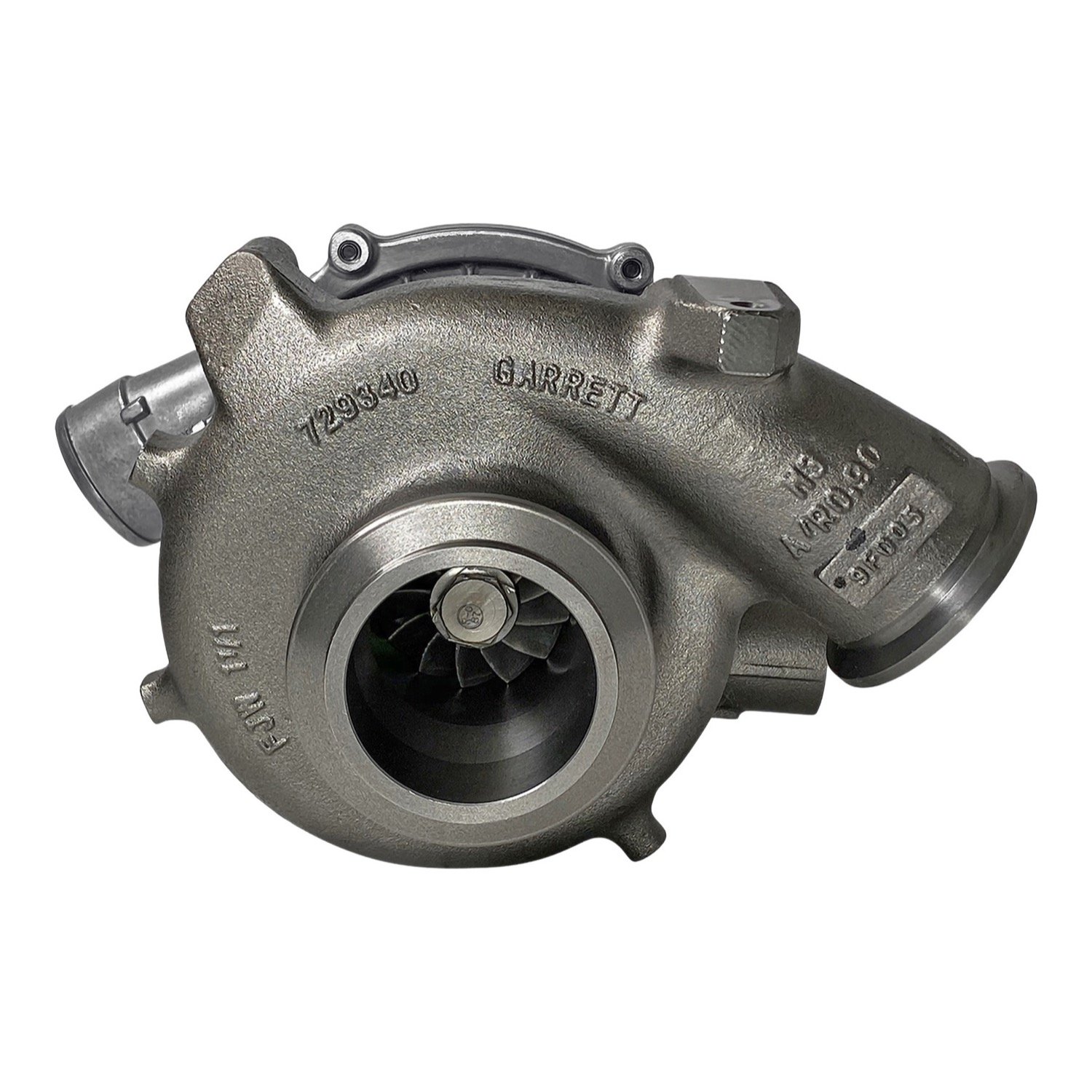

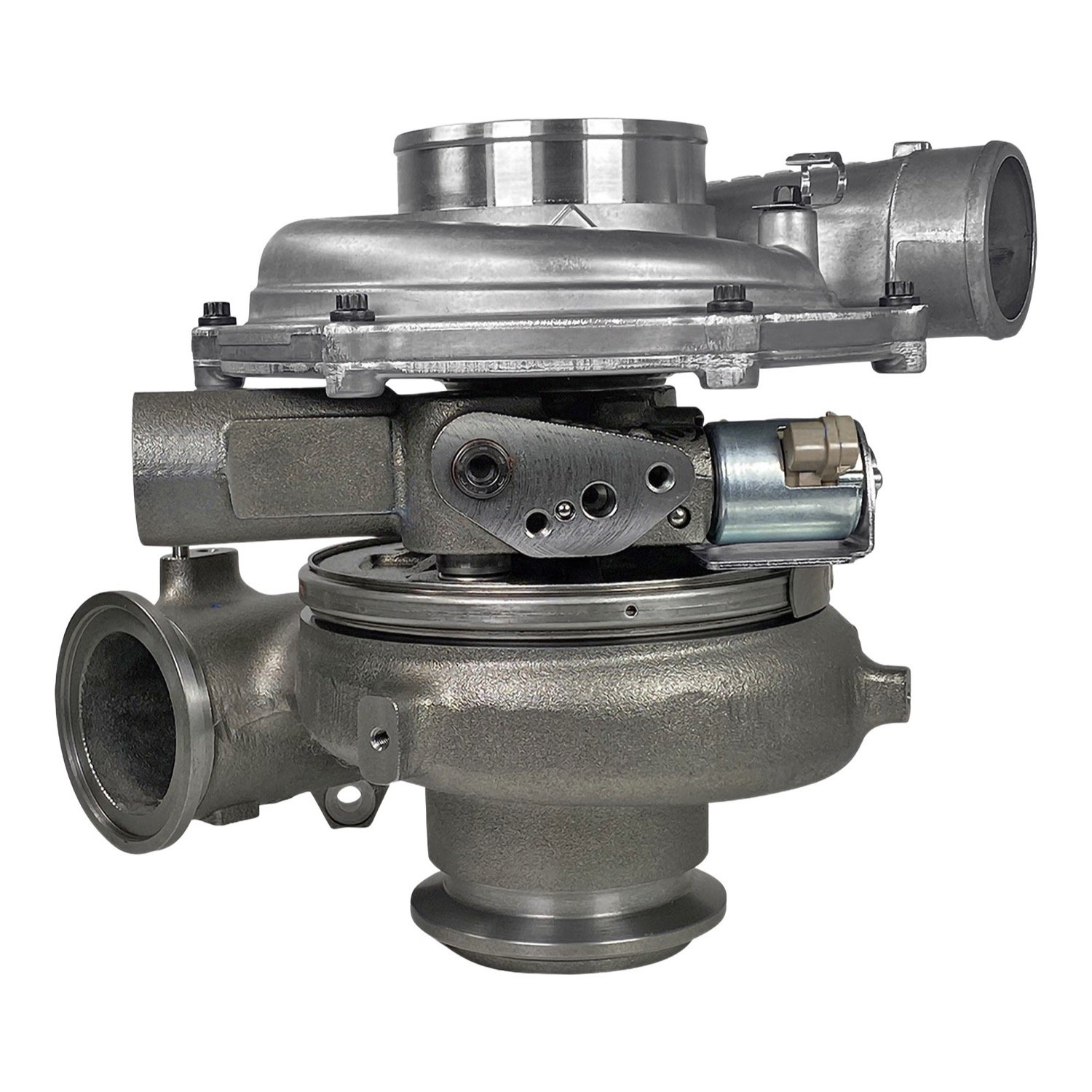

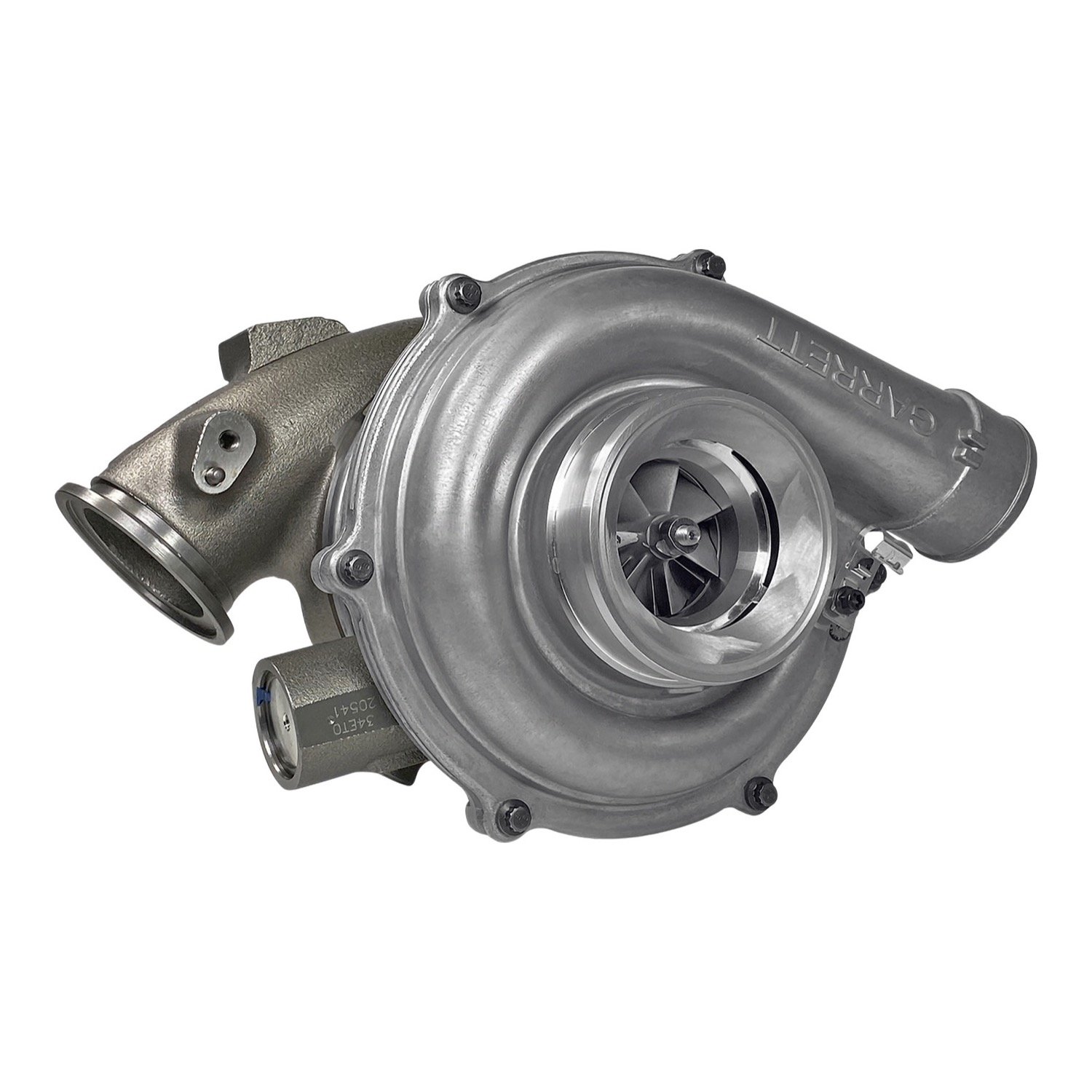

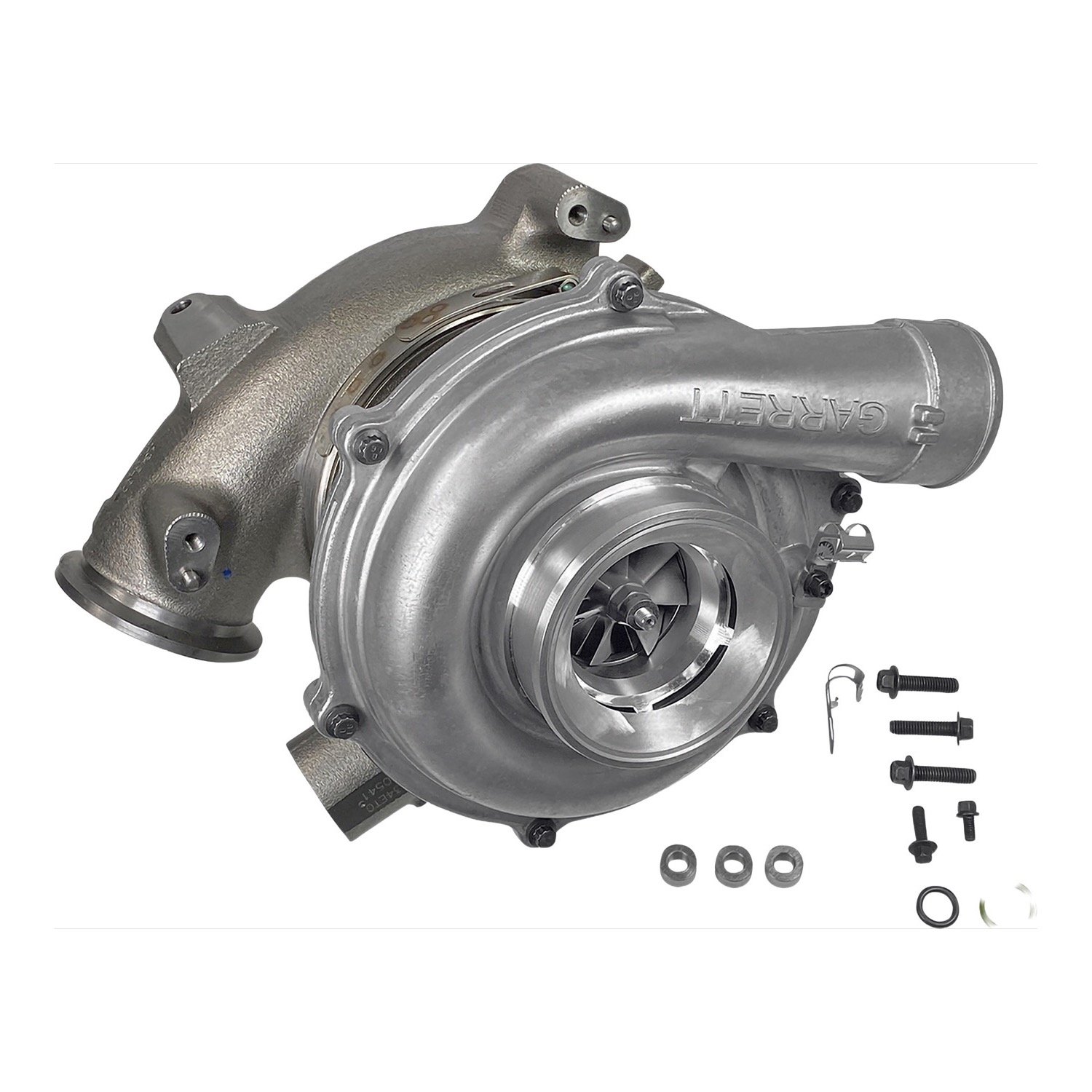

This is the Garrett 743250-5024S, a new GT3782VA turbocharger from the original maker for the 2004 to early 2005 Ford 6.0L Power Stroke. It covers a build date of 9/29/2003 to 11/3/2004, engine serial numbers 6155637 to 6344942, in the F-250, F-350, F-450 and F-550 Super Duty and the Excursion. It is the variable-vane (AVNT) unit with nine moving vanes and hydraulic vane control, and it comes with the VGT solenoid and an install gasket kit. It replaces Ford 4C3Z-6K682-AA, CC and CD, and Navistar 1832159C91 and 1845178C98.

On the 6.0L the usual reasons for a turbo change are sticking vanes from soot and rust in the unison ring, surging or a flutter at steady throttle, low boost, slow spool and worn shaft bearings with oil in the intake. Check the VGT solenoid, the EGR system and the exhaust back pressure sensor first, since they cause the same complaints. Garrett lists the 6.0L replacement turbo by build date. A build date of 9/28/2003 or earlier takes 725390-5006S (new) or 725390-9006S (remanufactured). A build date of 11/4/2004 or later takes 743250-5025S (new) or 743250-9025S (remanufactured).

Confirm Fitment Before You Order

The 6.0L turbo changed by build date. This one is for a build date of 9/29/2003 to 11/3/2004, engine serial 6155637 to 6344942. Later trucks take 743250-5025S or 743250-9025S, and trucks built 9/28/2003 or earlier take 725390-5006S or 725390-9006S. Send us the build date from the door jamb label and the engine serial number, and tell us if the serial number falls outside this range. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.

Specifications

Part number743250-5024S
BrandGarrett
ConditionNew, genuine, in original packaging
WarrantyManufacturer’s own warranty applies. Call us and we handle the claim.
TypeVariable geometry turbocharger, nine moving vanes, hydraulic vane control
Turbo modelGarrett GT3782VA (AVNT)
EngineFord 6.0L Power Stroke V8 diesel
VehiclesFord F-250, F-350, F-450 and F-550 Super Duty, Excursion
Model years2004 to early 2005 (also sold as 2004.5 to 2005)
Build dates9/29/2003 to 11/3/2004
Engine serial numbers6155637 to 6344942
IncludedVGT solenoid, install gasket kit
Shipping weight43 lb

Fits / Applications

  • Ford 6.0L Power Stroke, 2004 to early 2005, build date 9/29/2003 to 11/3/2004
  • Engine serial numbers 6155637 to 6344942
  • Ford F-250, F-350, F-450 and F-550 Super Duty in that build range
  • Ford Excursion with the 6.0L in that build range
  • Build date 11/4/2004 and later, serial 6344943 and up: Garrett 743250-5025S (new) or 743250-9025S (remanufactured) instead
  • Build date 9/28/2003 and earlier: Garrett 725390-5006S (new) or 725390-9006S (remanufactured) instead

Find out why the old turbo failed before you fit this one. Change the engine oil and filter, make sure the oil feed and drain tubes are clean and clear, and prime the turbo with clean oil before the first start. Check the EGR valve and cooler and the exhaust back pressure sensor and its tube, since soot and coolant in the exhaust are what stick the vanes.

Part Numbers & Cross Reference

Garrett 743250-5024S  Â·  Garrett remanufactured version 743250-9024S  Â·  Ford 4C3Z-6K682-A  Â·  Ford 4C3Z-6K682-AA  Â·  Ford 4C3Z-6K682-BA  Â·  Ford 4C3Z-6K682-CB  Â·  Ford 4C3Z-6K682-CC  Â·  Ford 4C3Z-6K682-CD  Â·  Ford remanufactured 4C3Z-6K682-AARM  Â·  Ford remanufactured 4C3Z-6K682-BARM  Â·  Ford remanufactured 4C3Z-6K682-CBRM  Â·  Ford remanufactured 4C3Z-6K682-CCRM  Â·  Motorcraft TC-15-RM  Â·  Navistar 1832159C91  Â·  Navistar 1843761C93  Â·  Navistar 1843761C94  Â·  Navistar 1845178C94  Â·  Navistar 1845178C95  Â·  Navistar 1845178C98  Â·  Navistar 1845322C91  Â·  Navistar 1846765C91  Â·  Navistar 1846767C91  Â·  Navistar 1854480C91  Â·  Navistar 1854824C91  Â·  Navistar 1876549C91  Â·  Navistar 1877832C91  Â·  Navistar 1877832C92  Â·  Navistar 1877832C93  Â·  Garrett, earlier numbers 743250-0001  Â·  Garrett, earlier numbers 743250-0002  Â·  Garrett, earlier numbers 743250-0004  Â·  Garrett, earlier numbers 743250-0013  Â·  Garrett, earlier numbers 743250-0017  Â·  Garrett, earlier numbers 743250-0020  Â·  Garrett, earlier numbers 743250-0024  Â·  Garrett, earlier numbers 743250-5001  Â·  Garrett, earlier numbers 743250-5002  Â·  Garrett, earlier numbers 743250-5004  Â·  Garrett, earlier numbers 743250-5013S  Â·  Garrett, earlier numbers 743250-5017  Â·  Garrett, earlier numbers 743250-5020

337-0038
100TBC514S
100TBC524
100TBC524S
1700250111
1700251179
1700251894
1700702633
1843761C
1843761C91
1843761C92
184518C98
1858116C91
1882379C1
1882379C2
2T202
4C349T428AE
4C349T482AE
4C3Z6K682CDRM
50047
50049
500490
5010115R96
57739900001
7356PP
743250-0005
743250-0008
7432505005
7432505008
7432505013
7432505024
7432509001
7432509002
7432509004
7432509005
7432509008
7432509013
7432509017
7432509020
7432509024
8299738106
A8370102R
AP90001
BBBD1004
D1004
DA2251334
DT4C3Z6K682CCR
DT600006
GAR 7432505013S
GAR 7432505024S
TBC514S
TRA 7432505013
TRA 7432505013S
TRA 7432505024S
TS7432505004
TS7432505013
TS7432505017
TS7432509004R
TS7432509013R
TS7432509017R
TUR0260202R

Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 743250-5024S fit my 2005 6.0L Power Stroke?

Only if the build date is 11/3/2004 or earlier and the engine serial number is 6344942 or lower. A build date of 11/4/2004 or later takes Garrett 743250-5025S or the remanufactured 743250-9025S.

What numbers does the 743250-5024S replace?

Ford 4C3Z-6K682-A, AA, BA, CB, CC and CD, the Ford remanufactured numbers ending in AARM, BARM, CBRM, CCRM and CDRM, Navistar 1832159C91 and 1845178C98, and the earlier Garrett numbers 743250-5001, 743250-5002, 743250-5004 and 743250-5013S. The cross reference section has the full list.

Is it new or remanufactured?

It is a new turbo made by Garrett, the original maker. The remanufactured version of the same turbo is Garrett 743250-9024S.

How do I check that my truck takes this turbo?

Read the build date on the driver door jamb label and the engine serial number. This turbo covers a build date of 9/29/2003 to 11/3/2004, serial 6155637 to 6344942. Call 530-668-0818 if you are not sure.
