2005-2007 Ford F-650/F-750 6.0L & International VT365 GT3571VA Turbocharger | Garrett 734852-5009S New

$1,655.00

In stock

Usually ships within 24 hours

View Core Charge & Return Policy

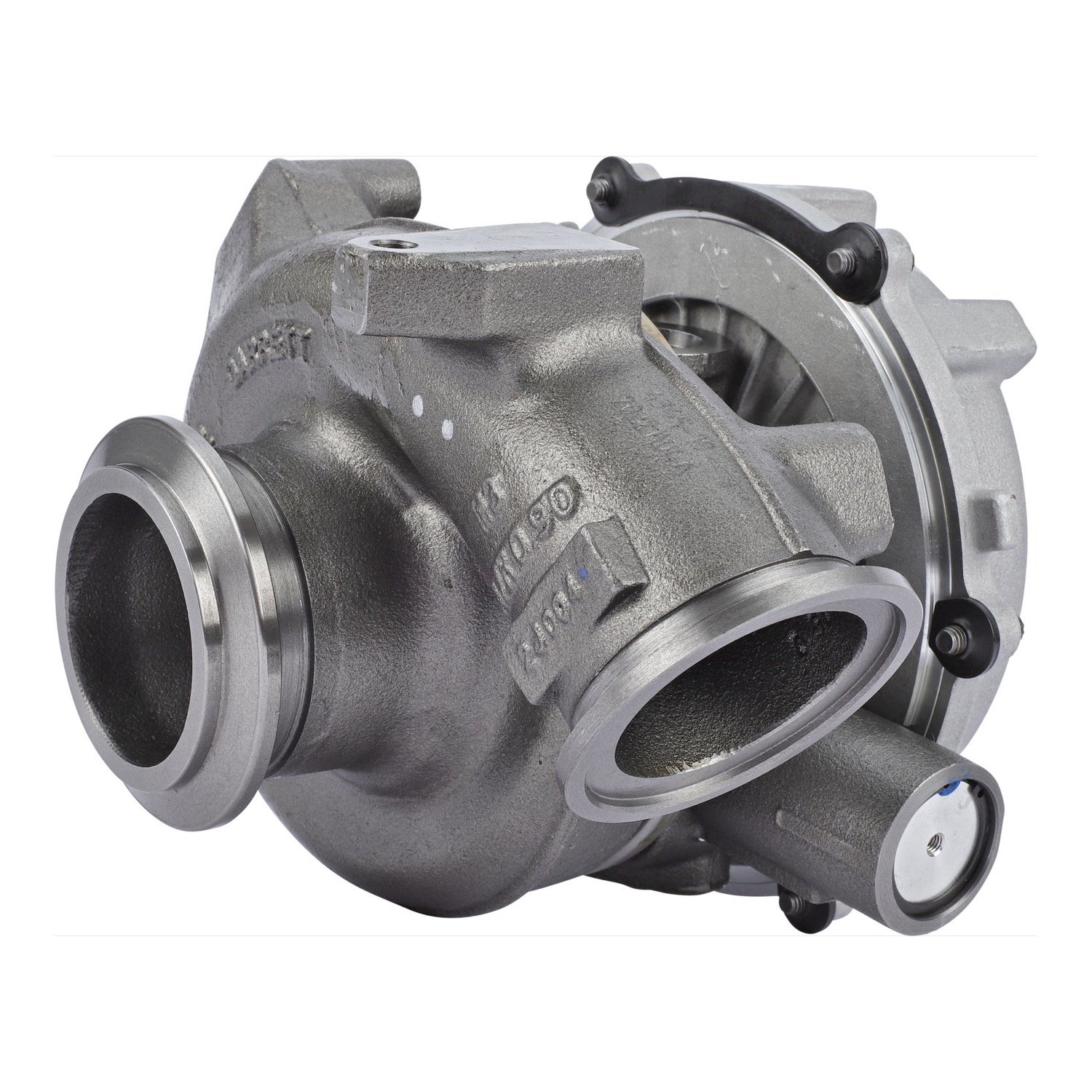

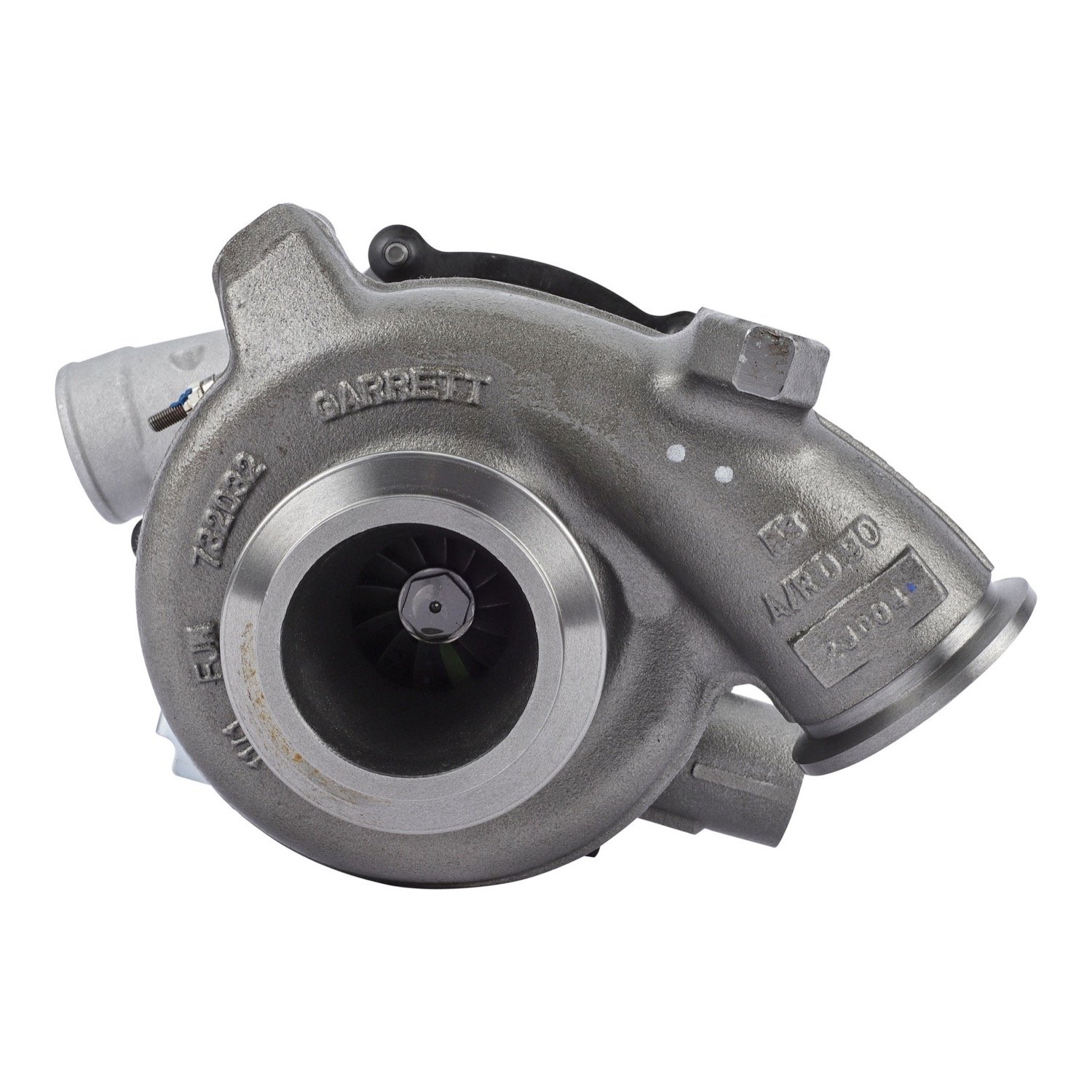

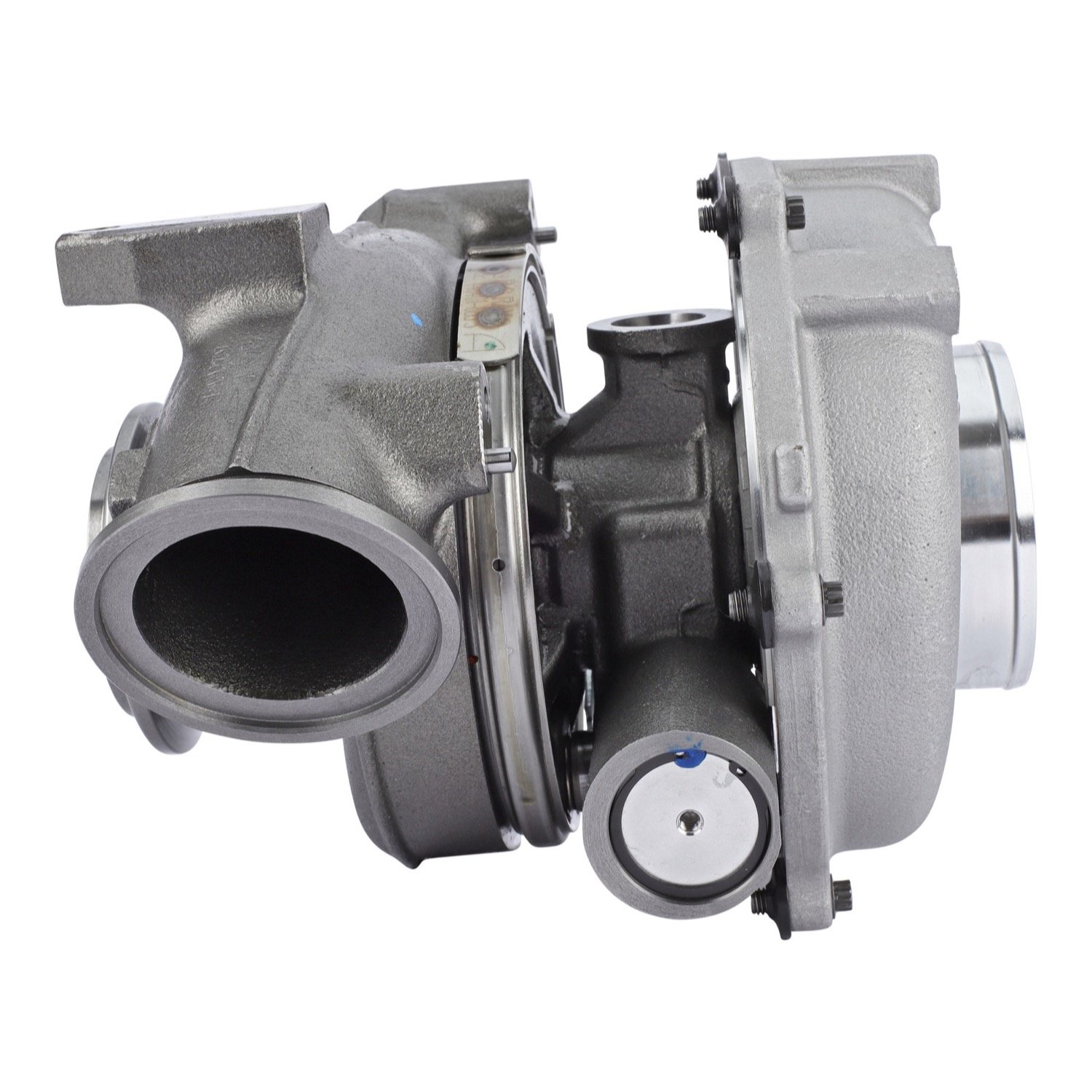

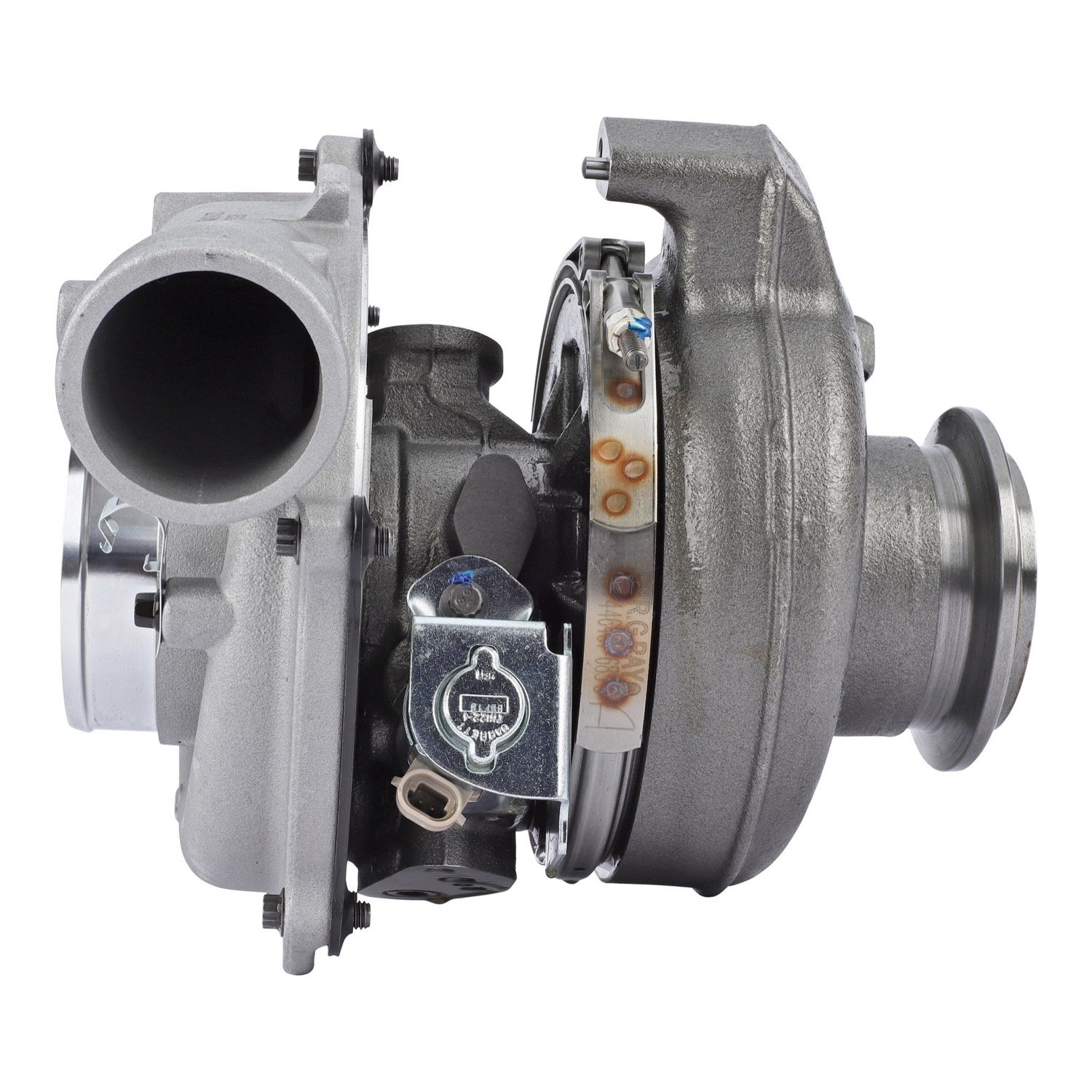

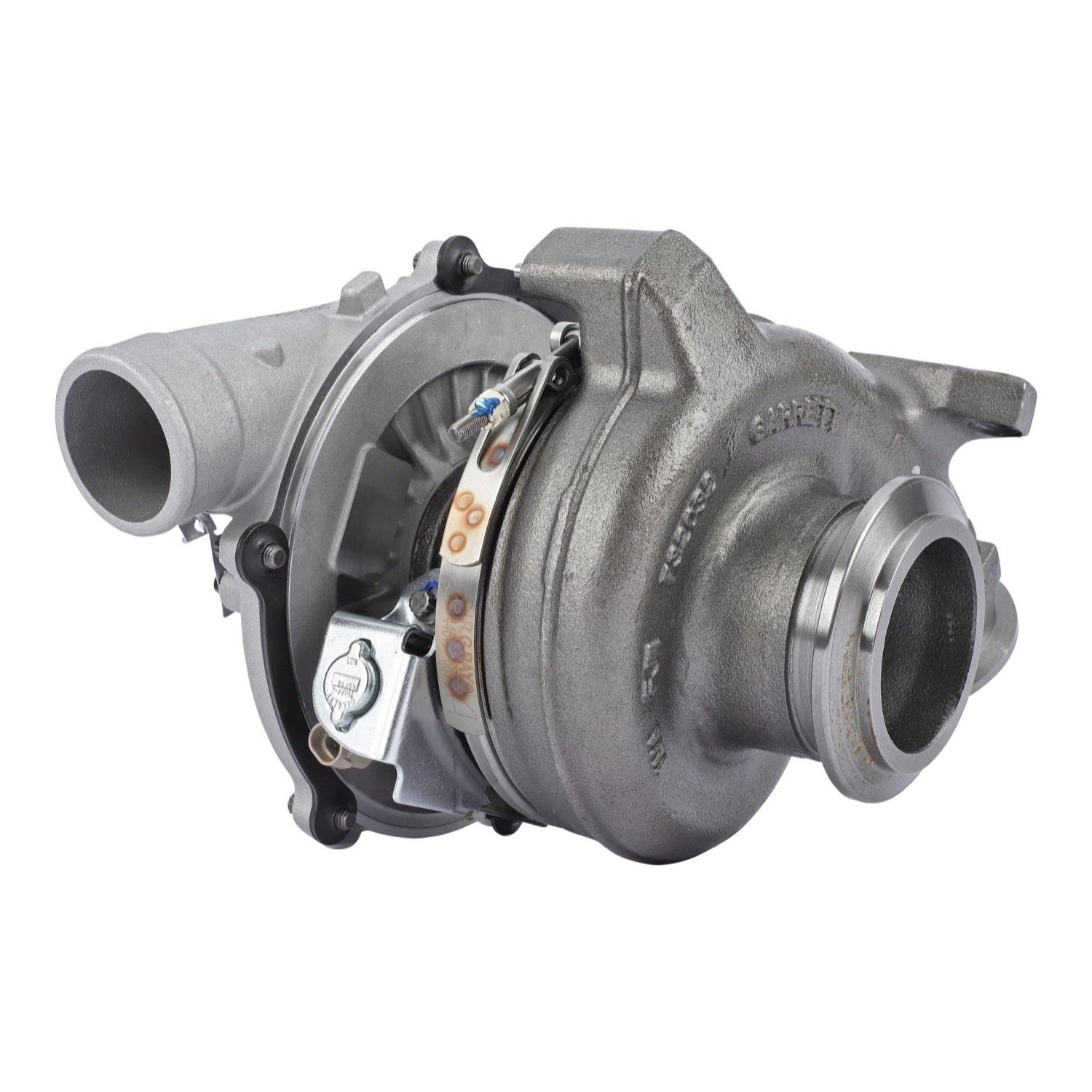

This is the Garrett 734852-5009S, a new GT3571VA variable vane turbocharger for the International VT365, the medium duty 6.0L V8. Catalogs list it for 2004 to 2007 International trucks with the VT365 and for the 2005 to 2007 Ford F-650 and F-750 with the 6.0L Power Stroke, which is the same engine. It replaces International 1856152C91, 1844127C91 and 1846768C91 and Ford 5C4Z-6K682-BA. The Garrett remanufactured version is 734852-9009.

This is not the turbo for the F-250 to F-550 Super Duty 6.0L. Those trucks take the Garrett GT3782VA, a different turbo. Sticking vanes, slow spool, low boost and oil in the intake are the usual reasons a 6.0L turbo comes off. Check the oil feed, the drain tube and the EGR system before the new one goes on.

Confirm Fitment Before You Order

The 6.0L in the F-650 and F-750 uses a different turbo from the 6.0L in the F-250 to F-550. International VT365 engines carried several turbo numbers over the years. Send us your VIN or engine serial number and the number on the tag of your old turbo. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.

Specifications

Part number734852-5009S
BrandGarrett
ConditionNew, genuine, in original packaging
WarrantyManufacturer’s own warranty applies. Call us and we handle the claim.
TypeVariable vane (VGT) turbocharger
Turbo modelGarrett GT3571VA
EngineInternational VT365 6.0L V8 (the 6.0L Power Stroke in the F-650 and F-750)
VehiclesInternational trucks with the VT365, Ford F-650 and F-750
Model years2004 to 2007 International, 2005 to 2007 Ford
Not forFord F-250 to F-550 6.0L Power Stroke
Shipping weight41 lb

Fits / Applications

  • 2005 to 2007 Ford F-650 and F-750, 6.0L Power Stroke (International VT365)
  • 2004 to 2007 International trucks with the VT365 6.0L V8
  • Not for the Ford F-250 to F-550 Super Duty 6.0L, which takes the Garrett GT3782VA

Use new gaskets and a clean oil feed line, check that the oil drain tube is clear, and prime the turbo with clean engine oil before the first start.

Part Numbers & Cross Reference

Garrett 734852-5009S  Â·  Garrett 734852-5009  Â·  Garrett original equipment number 734852-0009  Â·  Garrett remanufactured version 734852-9009  Â·  Ford 5C4Z-6K682-BA  Â·  International / Navistar 1856152C91  Â·  International / Navistar 1844127C91  Â·  International / Navistar 1844127C92  Â·  International / Navistar 1845323C92  Â·  International / Navistar 1845323C93  Â·  International / Navistar 1846766C91  Â·  International / Navistar 1846768C91  Â·  International / Navistar 5010448R91  Â·  International / Navistar 5010448R92  Â·  International / Navistar 5010448R93

100TBC593S
1700250050
1700251173
1837975C93
1844127X93
1845323C94
1856152X91
1879341C92
1879341C98
19700176D
433517
433549
500111
5010133R91
5010133R92
5010133R93
5010448R
5010448R9
5010448R94
5010449R91
5010449R92
5010449R93
5010449R94
5C4Z6K682AA
5C4Z6K682BRM
5C4Z6K682CA
5C4Z9T428A
5C4Z9T428AA
734852-0003
7348520004
7348520005
7348520006
7348520011
7348525004
7348525005
7348525006
7348525011
7348529004
7348529005
7348529006
7348529011
8299738825
8299739939
DA2251344
TBC593S
TRA7348529009
TS7348525009
TS7348529009R
VT365 TURBO

Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 734852-5009S fit my F-350 6.0L Power Stroke?

No. It is for the 2005 to 2007 F-650 and F-750 with the 6.0L and for International trucks with the VT365. The F-250 to F-550 take the Garrett GT3782VA turbo.

What numbers does the 734852-5009S replace?

International 1856152C91, 1844127C91 and 1846768C91 and Ford 5C4Z-6K682-BA. The same turbo is also printed as Garrett 734852-5009 and 734852-0009.

Will it fit an International truck with a VT365?

Catalogs list it for 2004 to 2007 International trucks with the VT365. Call 530-668-0818 with your engine serial number and the tag number from your old turbo and we will match it.

Is it new or remanufactured?

It is a new Garrett GT3571VA turbocharger, not a rebuild. The Garrett remanufactured version is 734852-9009.

Related Parts

Why Buy From Valley Fuel Injection

We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. We verify fitment against your engine serial, VIN or build date before anything ships, so the right part arrives the first time.

Shipping:
UPS to all 50 states, including Alaska and Hawaii. Your rate shows at checkout. Questions on fitment? Call 530-668-0818.

Pricing covers the unit itself. Any applicable sales tax is additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
