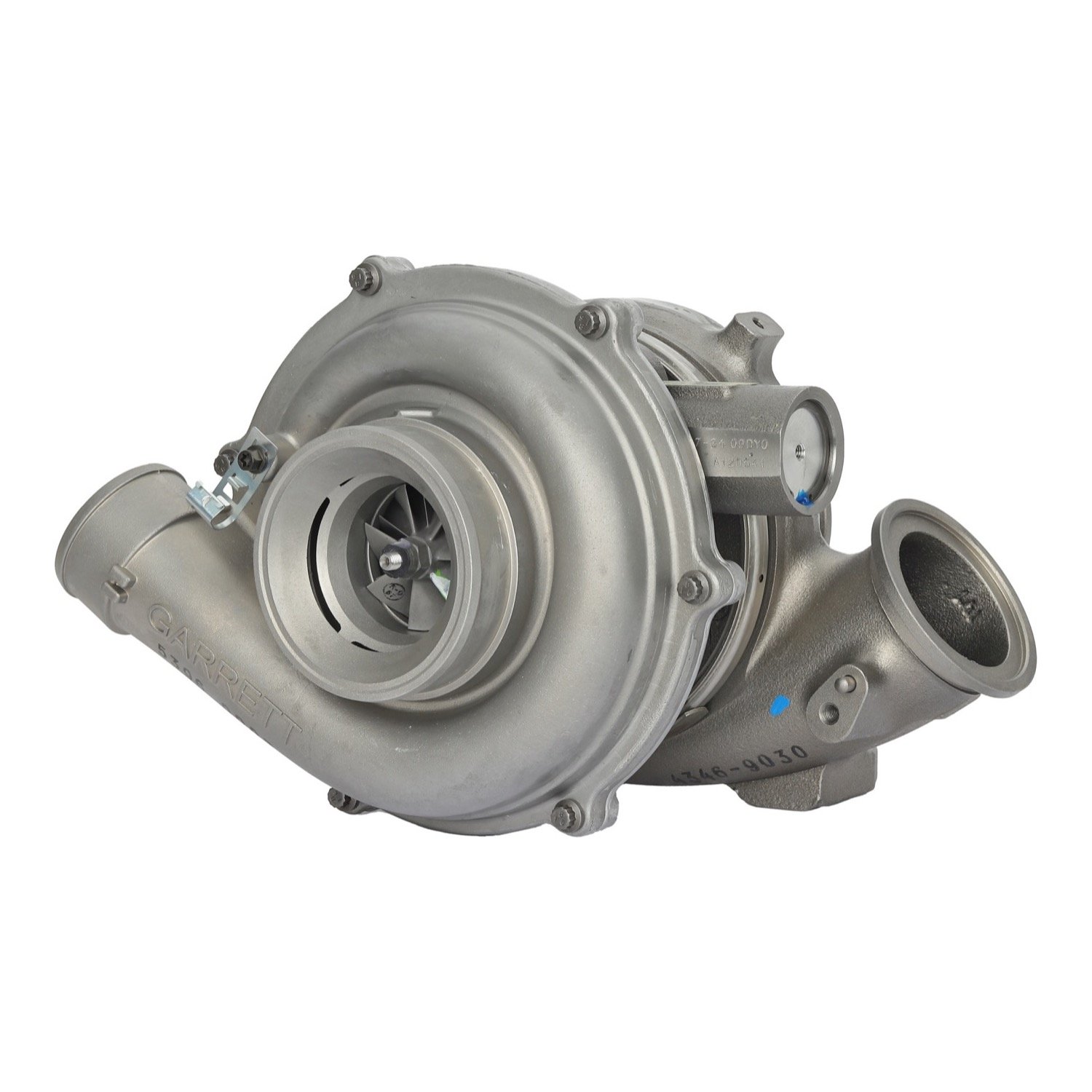

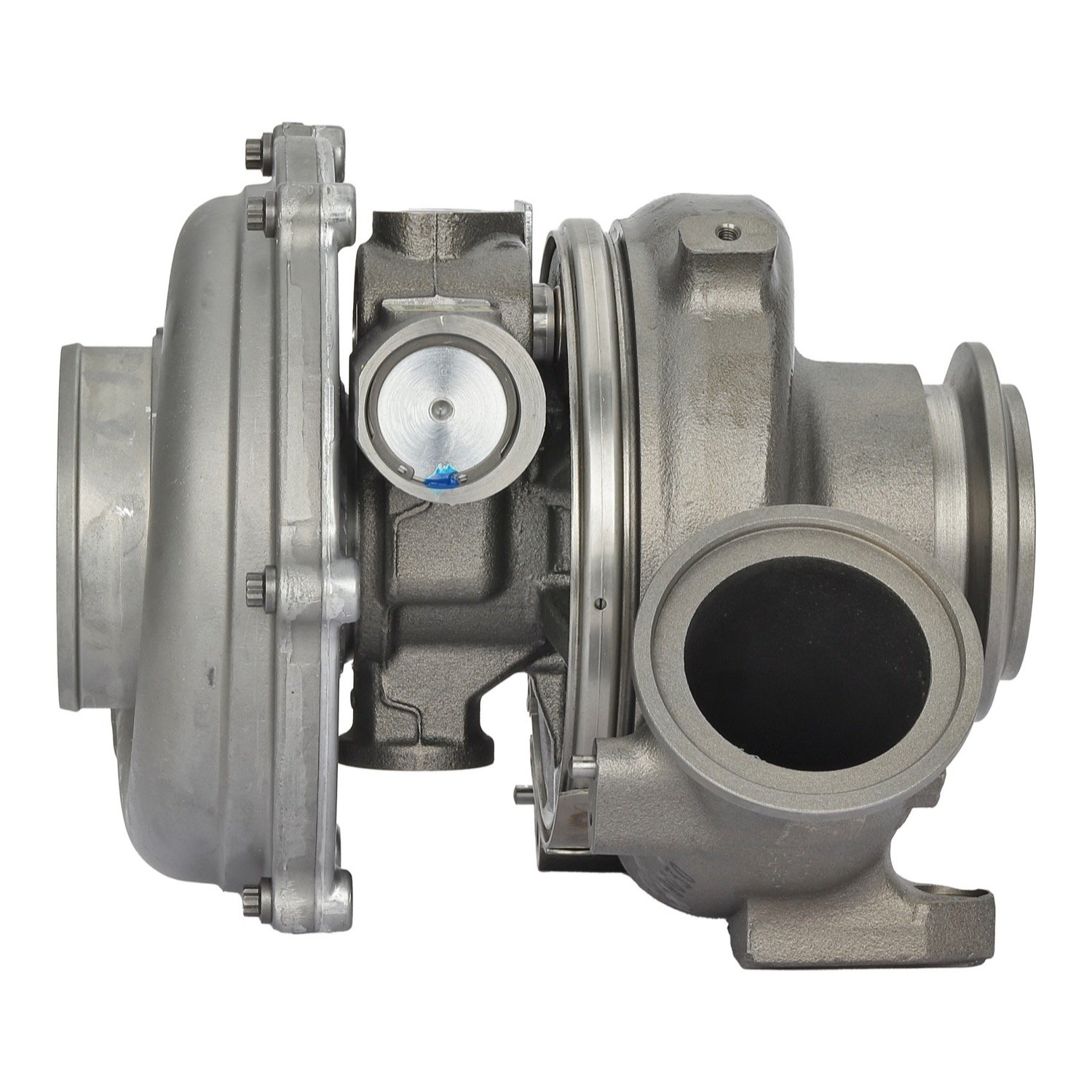

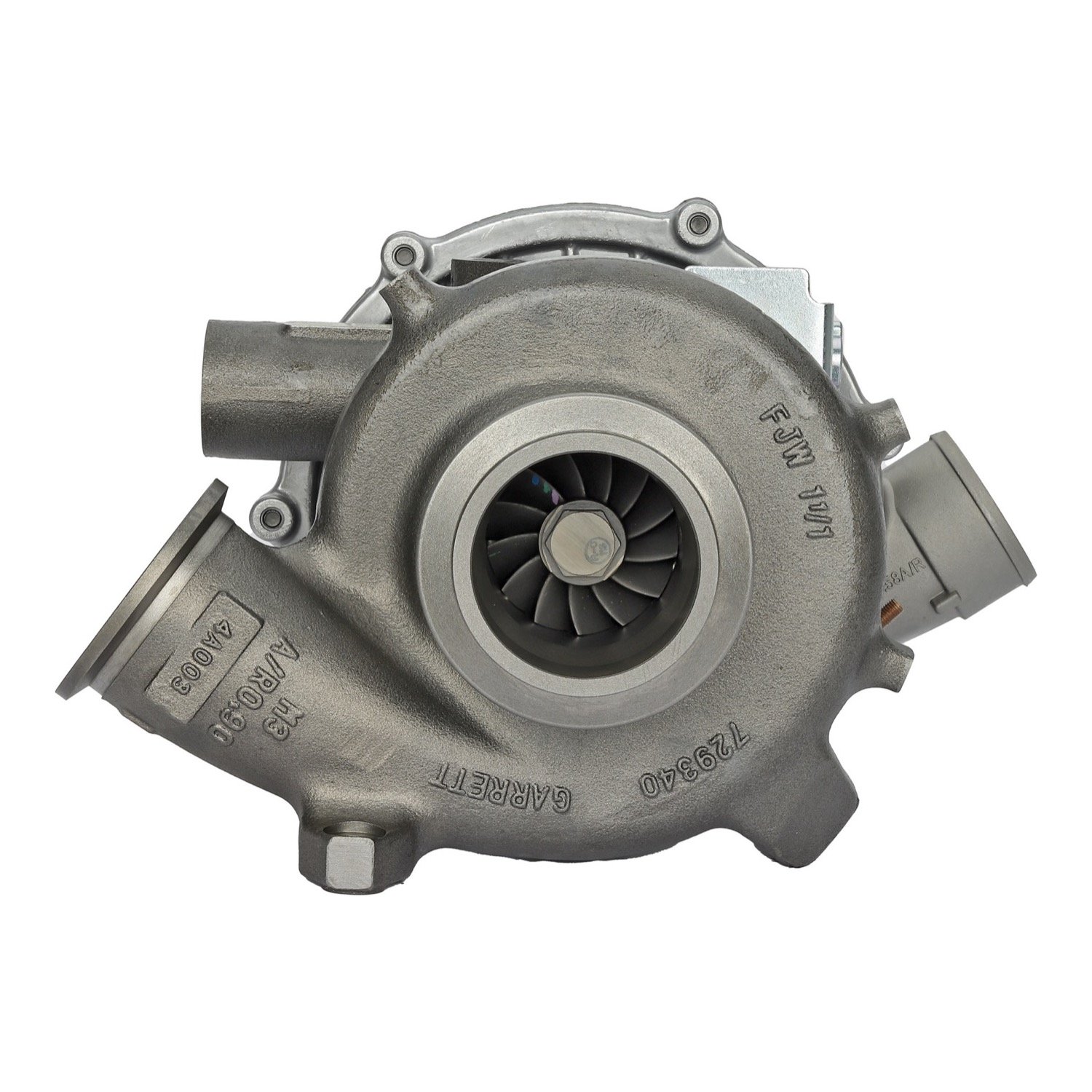

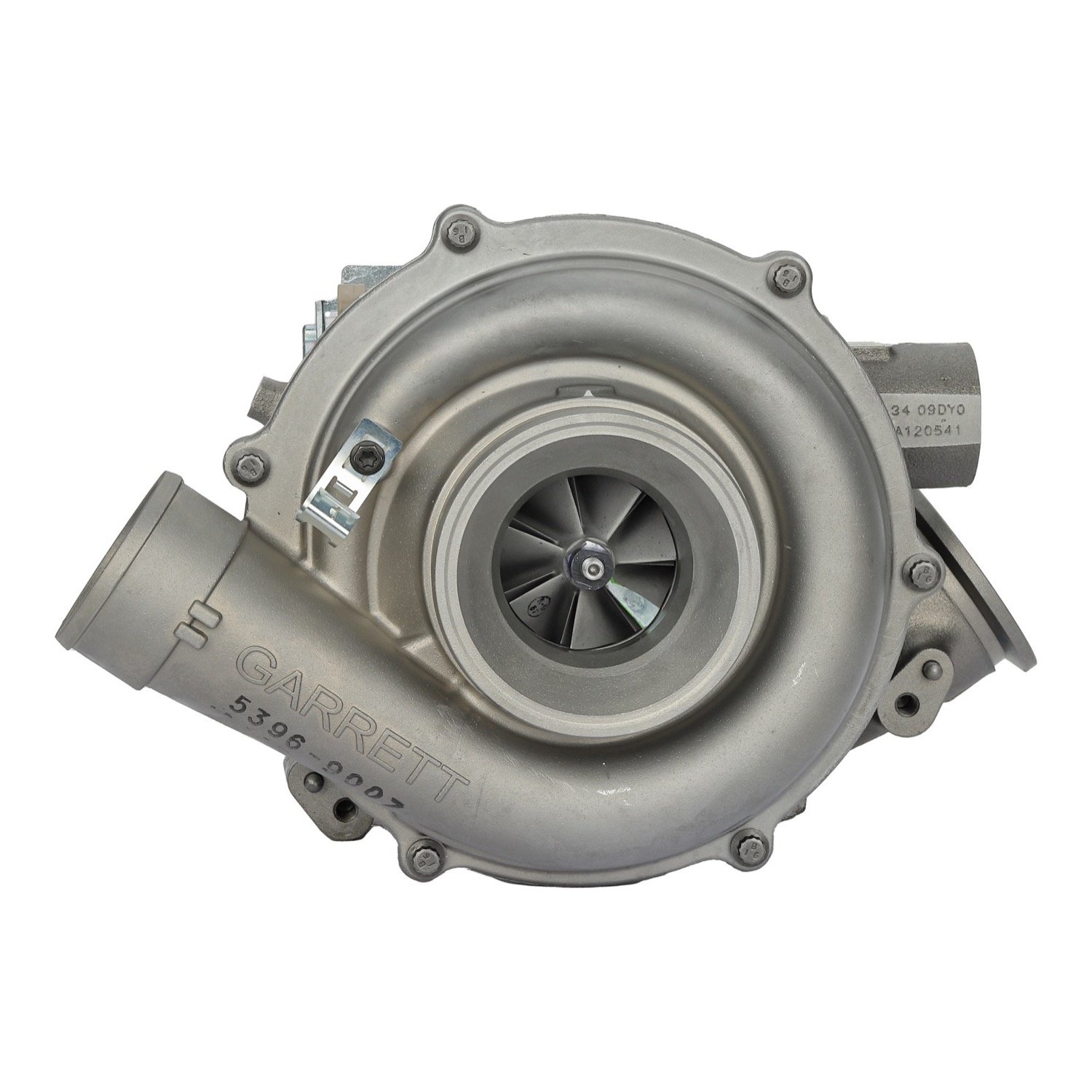

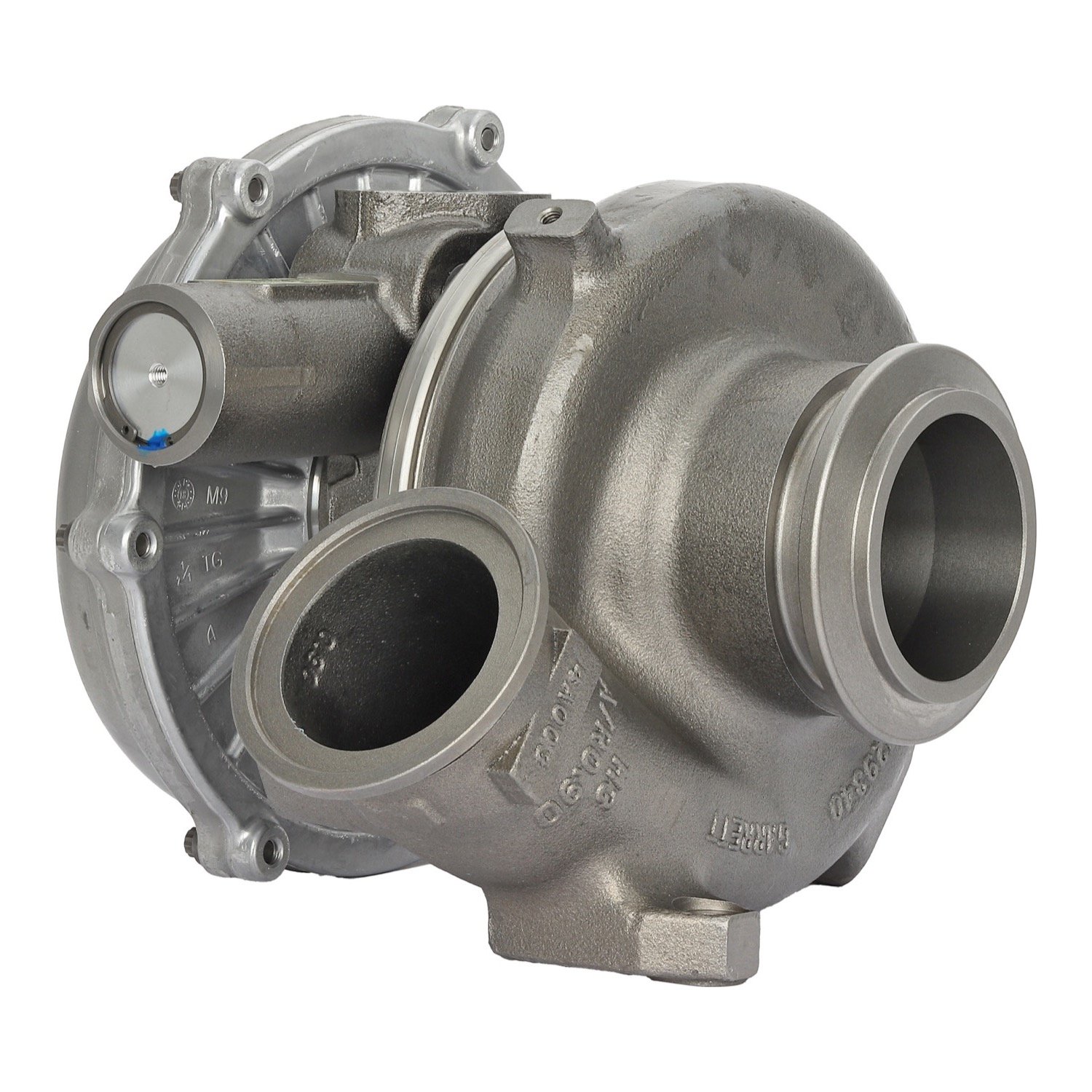

2005.5-2010 Ford 6.0L Power Stroke GT3782VA Turbocharger | Garrett 743250-9025S Remanufactured
This is the Garrett 743250-9025S, a GT3782VA turbocharger remanufactured by Garrett, the original maker, for the late Ford 6.0L Power Stroke. It covers a build date of 11/4/2004 and later, engine serial numbers 6344943 and up: the 2005.5 to 2007 F-250, F-350, F-450 and F-550 Super Duty and the E-350 and E-450 vans through 2010. It is the variable-vane (AVNT) unit with nine moving vanes and hydraulic vane control, and it comes with the VGT solenoid. It replaces Ford 5C3Z-6K682-A, AA, BA, CA and DA, the Ford remanufactured number 5C3Z-6K682-CCRM and Navistar 1832255C91. A refundable core applies.
On the 6.0L the usual reasons for a turbo change are sticking vanes from soot and rust in the unison ring, surging or a flutter at steady throttle, low boost, slow spool and worn shaft bearings with oil in the intake. Check the VGT solenoid, the EGR system and the exhaust back pressure sensor first, since they cause the same complaints. Garrett lists the 6.0L replacement turbo by build date. A build date of 9/29/2003 to 11/3/2004 takes 743250-5024S (new) or 743250-9024S (remanufactured). The new version of this turbo is Garrett 743250-5025S.
Confirm Fitment Before You Order
The 6.0L turbo changed by build date. This one is for a build date of 11/4/2004 and later, engine serial 6344943 and up. A build date of 9/29/2003 to 11/3/2004 takes 743250-5024S or 743250-9024S. Send us the build date from the door jamb label and the engine serial number. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 743250-9025S |
| Brand | Garrett |
| Condition | Remanufactured |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Variable geometry turbocharger, nine moving vanes, hydraulic vane control |
| Turbo model | Garrett GT3782VA (AVNT) |
| Engine | Ford 6.0L Power Stroke V8 diesel |
| Vehicles | Ford F-250, F-350, F-450 and F-550 Super Duty, E-350 and E-450 |
| Model years | 2005.5 to 2007 F-Series Super Duty, 2005 to 2010 E-Series |
| Build dates | 11/4/2004 and later |
| Engine serial numbers | 6344943 and up |
| Included | VGT solenoid |
| Core charge | Refundable in full when we receive your rebuildable core |
| Shipping weight | 45 lb |
Fits / Applications
- Ford 6.0L Power Stroke, build date 11/4/2004 and later, engine serial 6344943 and up
- Ford F-250, F-350, F-450 and F-550 Super Duty, 2005.5 to 2007
- Ford E-350 and E-450 with the 6.0L, 2005 to 2010
- Build date 9/29/2003 to 11/3/2004, serial 6155637 to 6344942: Garrett 743250-5024S (new) or 743250-9024S (remanufactured) instead
Find out why the old turbo failed before you fit this one. Change the engine oil and filter, make sure the oil feed and drain tubes are clean and clear, and prime the turbo with clean oil before the first start. Check the EGR valve and cooler and the exhaust back pressure sensor and its tube, since soot and coolant in the exhaust are what stick the vanes.
Part Numbers & Cross Reference
Garrett 743250-9025S · Garrett new version 743250-5025S · Ford 5C3Z-6K682-A · Ford 5C3Z-6K682-AA · Ford 5C3Z-6K682-BA · Ford 5C3Z-6K682-CA · Ford 5C3Z-6K682-DA · Ford remanufactured 5C3Z-6K682-AARM · Ford remanufactured 5C3Z-6K682-ARM · Ford remanufactured 5C3Z-6K682-BARM · Ford remanufactured 5C3Z-6K682-CARM · Ford remanufactured 5C3Z-6K682-CCRM · Ford remanufactured 5C3Z-6K682-DARM · Motorcraft TC-17-RM · Navistar 1832255C91 · Navistar 1854593C91 · Navistar 1876493C91 · Navistar 1877831C91 · Navistar 1879413C91 · Navistar 1879413C92 · Navistar 1882085C91 · Garrett, earlier numbers 743250-0005 · Garrett, earlier numbers 743250-0014 · Garrett, earlier numbers 743250-0018 · Garrett, earlier numbers 743250-0021 · Garrett, earlier numbers 743250-0023 · Garrett, earlier numbers 743250-0025 · Garrett, earlier numbers 743250-5014S
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 743250-9025S fit my 2005 6.0L Power Stroke?
Only if the build date is 11/4/2004 or later and the engine serial number is 6344943 or higher. Earlier 2004 and 2005 trucks take Garrett 743250-5024S or the remanufactured 743250-9024S.
What numbers does the 743250-9025S replace?
Ford 5C3Z-6K682-A, AA, BA, CA and DA, the Ford remanufactured numbers ending in AARM, ARM, BARM, CARM, CCRM and DARM, Navistar 1832255C91 and 1876493C91, and the earlier Garrett numbers 743250-0005, 743250-0014, 743250-0018, 743250-0021, 743250-0023 and 743250-0025.
Is it new or remanufactured, and is there a core?
It is remanufactured by Garrett, the original maker. A refundable core applies. The new version of the same turbo is Garrett 743250-5025S.
Does it fit the E-Series vans?
Yes. It covers the 6.0L E-350 and E-450 from 2005 to 2010, as long as the engine serial number is 6344943 or higher. Call 530-668-0818 with the serial number if you are not sure.
Related Parts
- 2003-Early 2004 Ford 6.0L Power Stroke GT3782VA Turbocharger | Garrett 725390-9006S Remanufactured
- 2003-Early 2004 Ford 6.0L Power Stroke GT3782VA Turbocharger | Garrett 725390-5006S New
- 2004-Early 2005 Ford 6.0L Power Stroke GT3782VA Turbocharger | Garrett 743250-9024S Remanufactured
- 2004-2007 Ford 6.0L Power Stroke & VT365 EGR Cooler Kit | Alliant Power AP63446 New
Why Buy From Valley Fuel Injection
We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. We verify fitment against your engine serial, VIN or build date before anything ships, so the right part arrives the first time.
UPS Ground anywhere in the lower 48. A refundable core deposit is added at checkout and refunded in full when we receive your rebuildable core. Questions on fitment? Call 530-668-0818.
Pricing covers the unit itself. Any applicable sales tax and the refundable core charge are additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
