2011-2014 Ford 6.7L Power Stroke Pickup DualBoost Turbocharger | Garrett 851824-5001S New

$1,951.00

In stock

Usually ships within 24 hours

View Core Charge & Return Policy

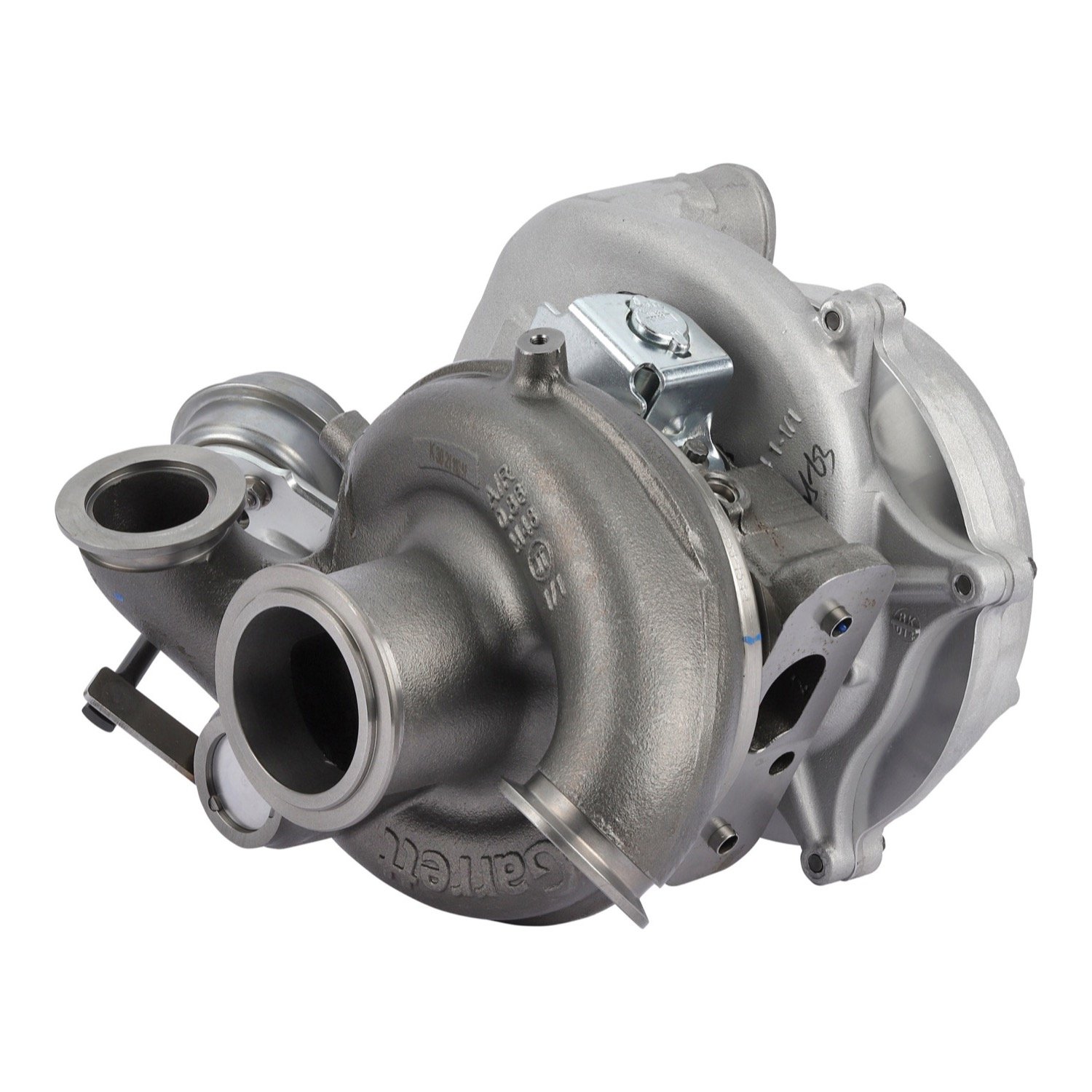

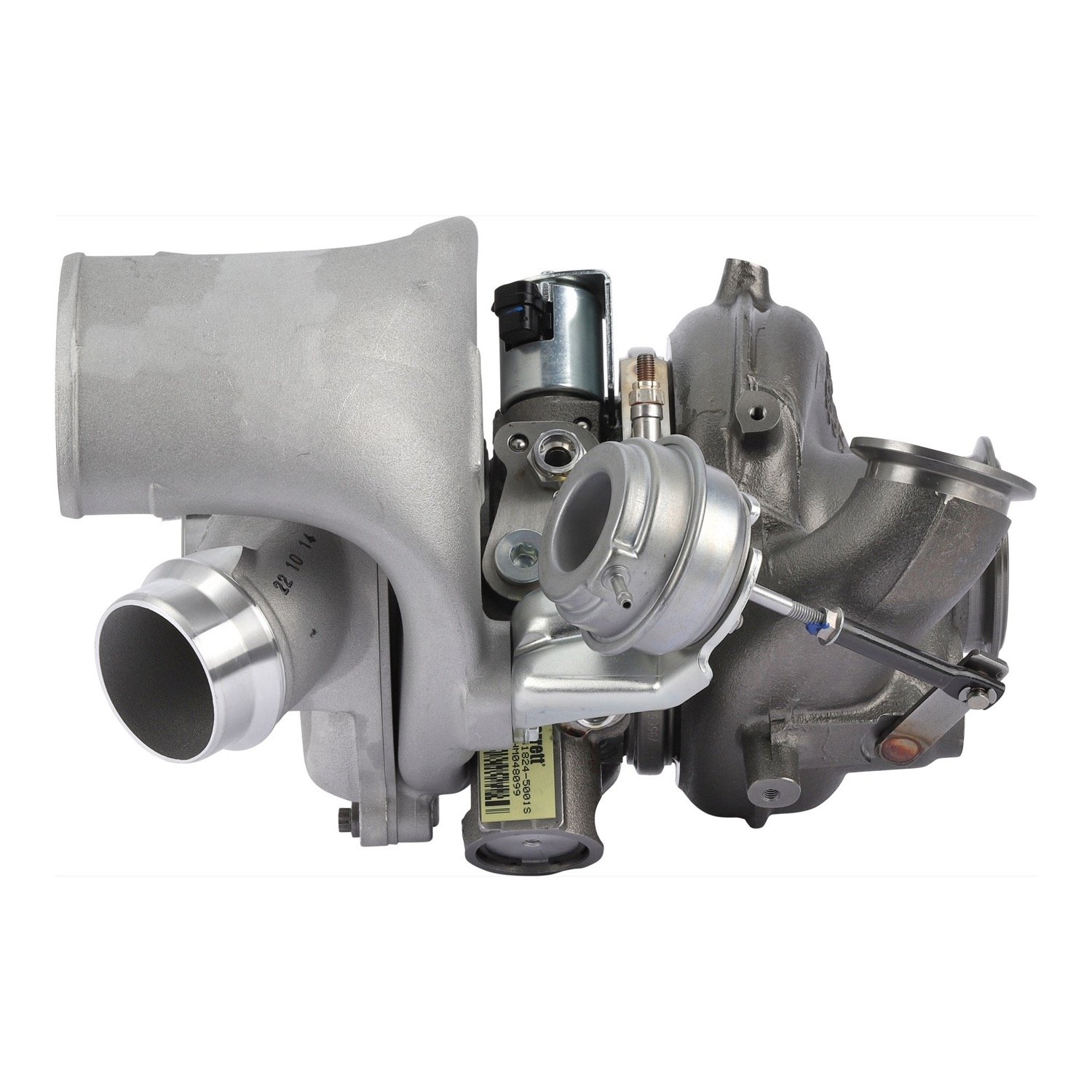

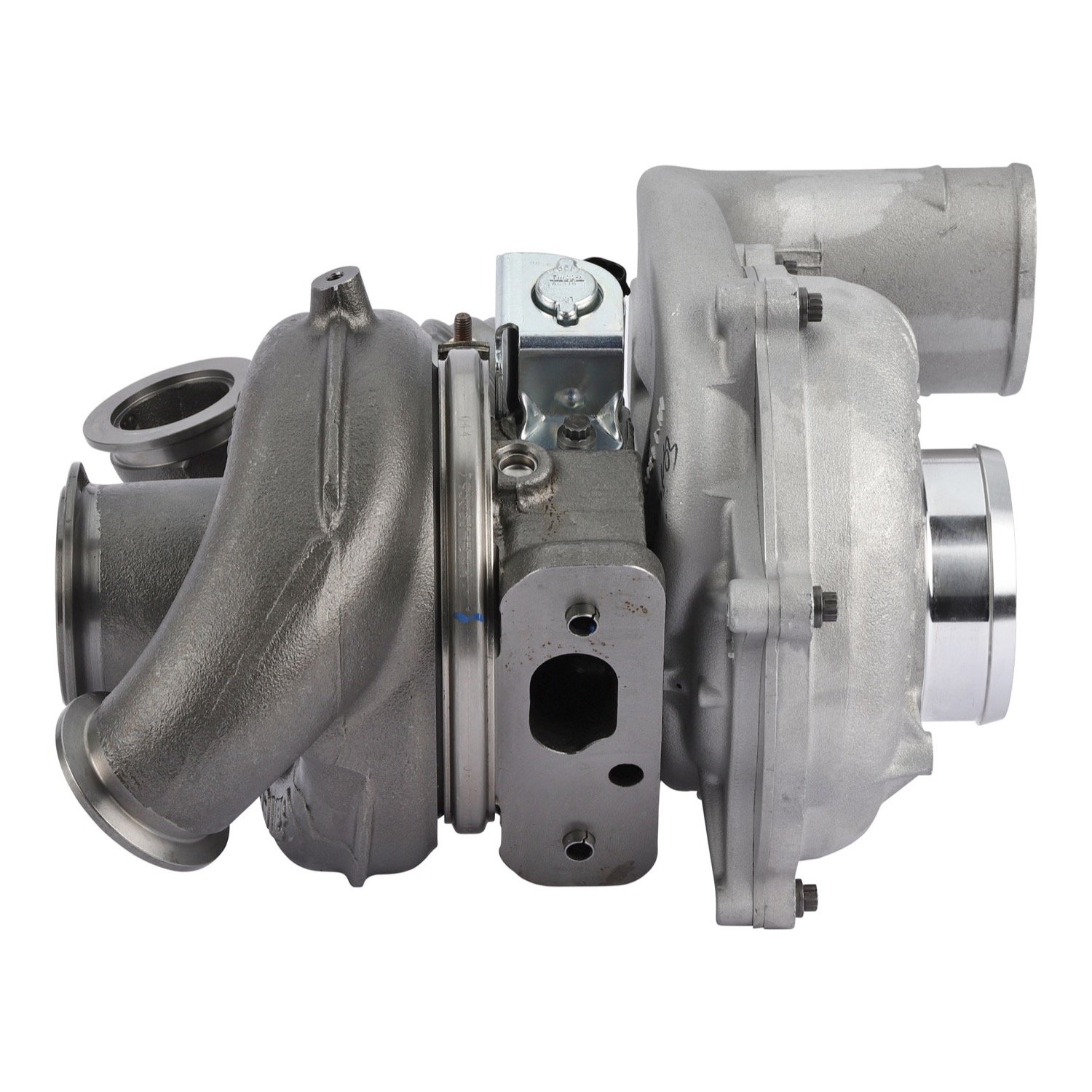

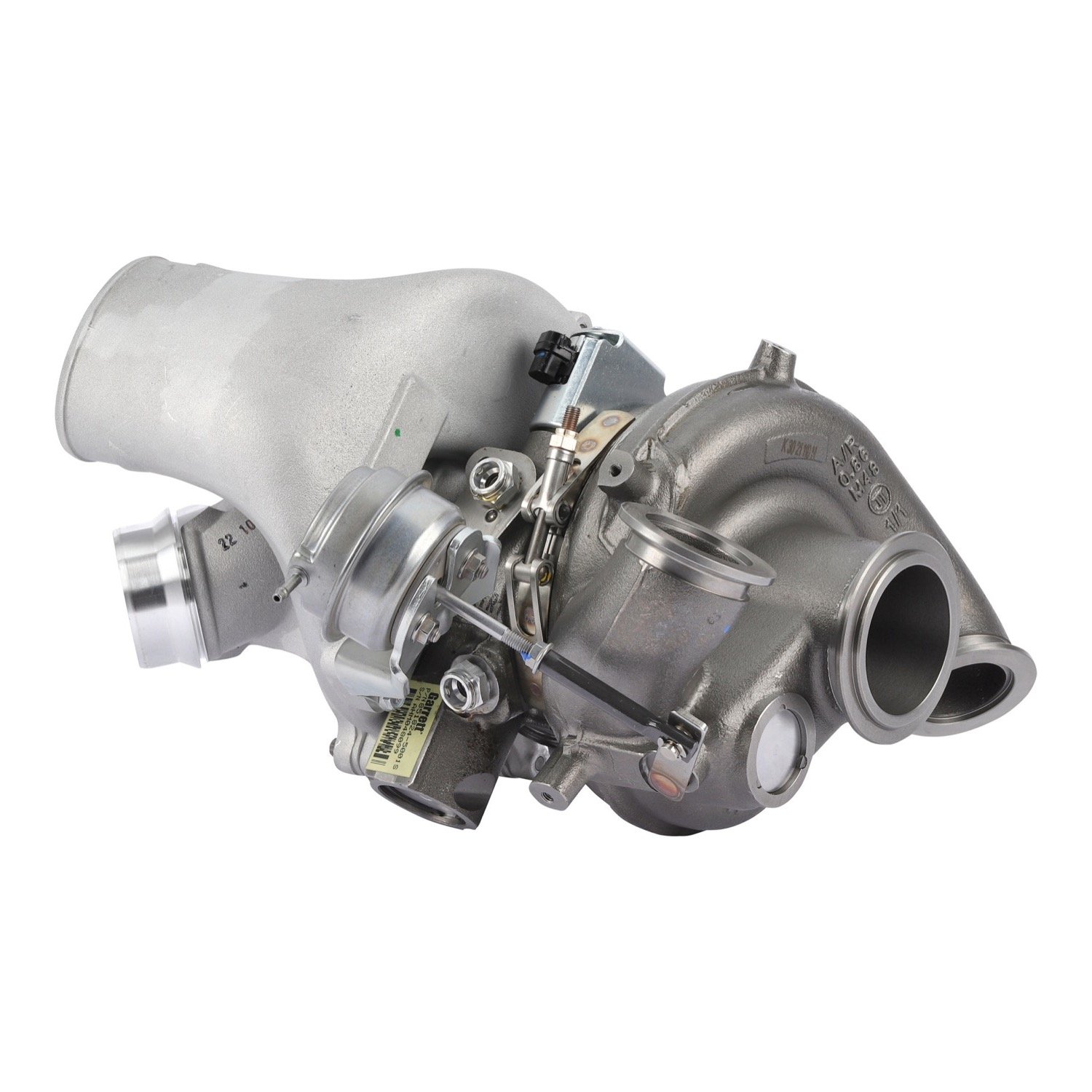

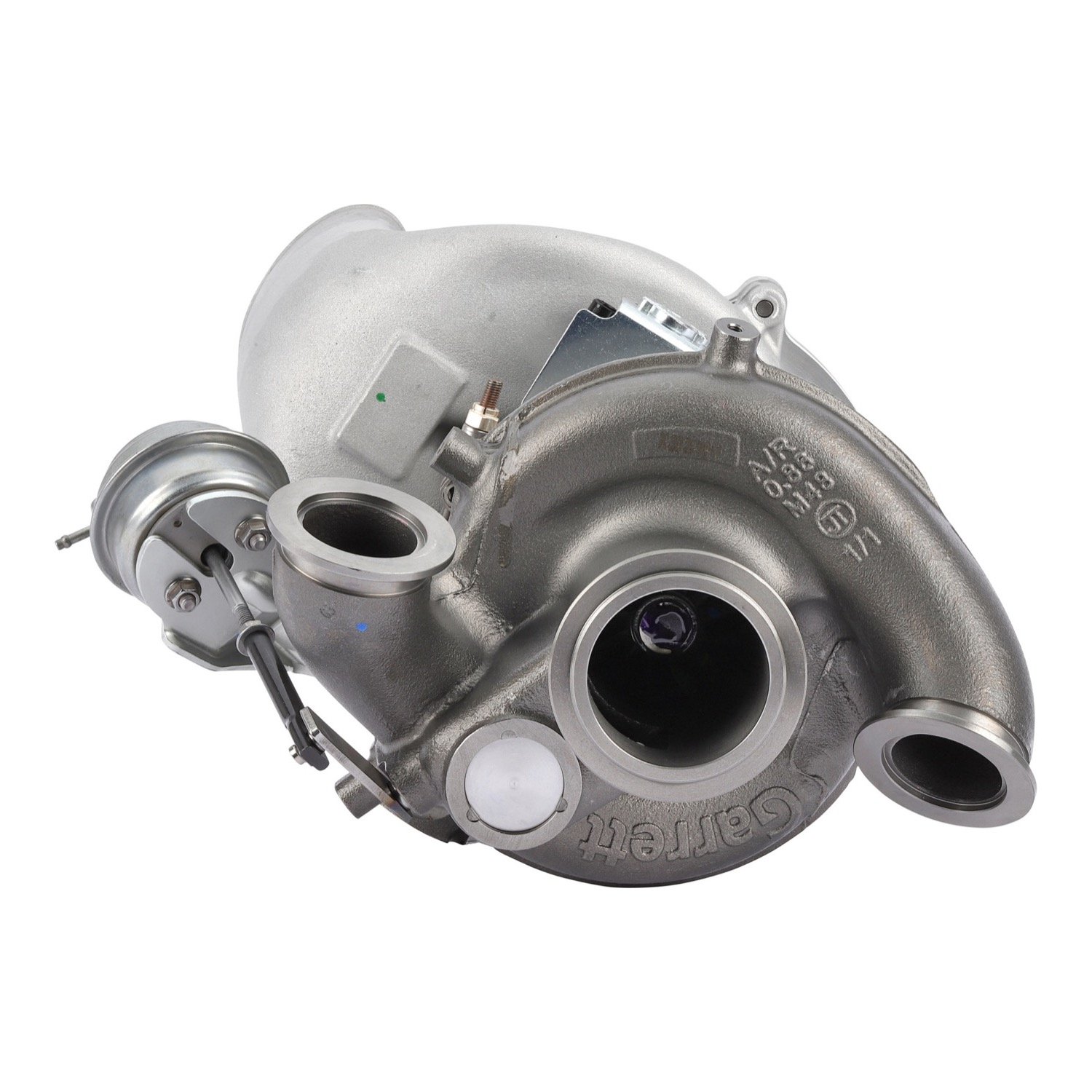

This is the Garrett 851824-5001S, a new Garrett turbocharger, not a rebuild. It is the stock DualBoost variable geometry turbo, with the double-sided compressor wheel and ball bearing center section, for 2011 to 2014 Ford F-250, F-350 and F-450 wide frame pickups with the 6.7L Power Stroke. It replaces Ford BC3Z-6K682-A and BC3Z-6K682-C. It does not fit cab and chassis trucks.

These turbos come off for bearing failure, shaft play, a howl or siren under boost, oil in the charge pipes, sticking vanes and low boost codes. Find out why the old one failed before you fit this one: check the oil feed and drain, the air filter and intake for debris, and the charge air cooler for oil and metal. The turbo comes with its VGT solenoid. Installation gaskets, hardware and the pedestal are not in the box.

Confirm Fitment Before You Order

Ford used different turbos on the pickup and the cab and chassis, and changed the pickup turbo for 2015. This one is for 2011 to 2014 pickups only. The 2011 to 2016 cab and chassis takes Garrett 854572-5001S, 2015 and 2016 pickups take the 892147 turbo and 2017 to 2019 pickups take the 888143 turbo. F-450 owners: the F-450 came as a pickup and as a cab and chassis, so check your old turbo tag. Send us your VIN and that number. Call 530-668-0818. We will confirm the exact match at no charge before anything ships.

Specifications

Part number851824-5001S
BrandGarrett
ConditionNew, genuine, in original packaging
WarrantyManufacturer’s own warranty applies. Call us and we handle the claim.
TypeVariable geometry turbocharger, Garrett DualBoost, double-sided compressor wheel
Center sectionBall bearing
EngineFord 6.7L Power Stroke V8 diesel
Model years2011 to 2014
TrucksF-250, F-350 and F-450 pickup (wide frame)
Does not fitCab and chassis trucks
IncludedVGT solenoid
Not includedInstallation gaskets, hardware and pedestal
Shipping weight44 lb
Turbo modelSST3266VJLNRSUB

Fits / Applications

  • 2011 to 2014 Ford F-250 Super Duty pickup, 6.7L Power Stroke
  • 2011 to 2014 Ford F-350 Super Duty pickup, 6.7L Power Stroke
  • 2011 to 2014 Ford F-450 Super Duty pickup, 6.7L Power Stroke
  • Not for cab and chassis trucks. Those take Garrett 854572-5001S.
  • Not for 2015 and later pickups. Those take other Garrett turbos.

Order the installation gasket kit separately and reuse or replace your pedestal. Change the engine oil and filter, check the oil feed and drain for restriction, and clean the charge air cooler and pipes of oil and debris from the old turbo. Prime the turbo with clean oil before first start.

Part Numbers & Cross Reference

Garrett 851824-5001S  Â·  Ford BC3Z-6K682-A  Â·  Ford, newer number BC3Z-6K682-C  Â·  Ford, older number BC3Z-6K682-EA  Â·  Ford remanufactured number G2MZ-6K682-ARM  Â·  Garrett, base number 851824-0001  Â·  Garrett remanufactured version 851824-9001S

1700251308
1700251897
2T231
7857000001
7857005001
7857009001
7956550001
7956550002
7956550003
7956550004
7956550005
7956550006
7956550007
7956550008
7956550014
7956550015
7956550016
7956550017
7956550018
7956550019
7956555001
7956555002
7956555003
7956555004
7956555005
7956555006
7956555007
7956555008
7956555008S
7956555014
7956555015
7956555016
7956555017
7956555017S
7956555018
7956555019
7956555019S
7956559001
7956559002
7956559003
7956559004
7956559005
7956559006
7956559007
7956559008
7956559014
7956559015
7956559016
7956559017
7956559018
7956559019
8299738102
8518245001
8518249001
A8670102R
BBBD1027
BC3Q9G438AC
BC3Q9G438AD
BC3Q9G438AE
BC3Q9G438AF
BC3Q9G438AG
BC3Q9G438AH
BC3Q9G438AJ
BC3Q9G438AK
BC3Q9G438AL
BC3Q9G438AM
BC3Z6K682AFC
D1027
DA2251064
GAR 7956559006
GAR 8518245001S
NTC5RM
TRA 7956559006
TRA 8518245001S
TUR0267202R

Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 851824-5001S fit my 2011 to 2014 F-350 cab and chassis?

No. This turbo is for pickups only. The 2011 to 2016 cab and chassis 6.7L takes Garrett 854572-5001S, Ford BC3Z-6K682-B.

What Ford number does the 851824-5001S replace?

Ford BC3Z-6K682-A and the number Ford replaced it with, BC3Z-6K682-C. Ford’s remanufactured number for this turbo is G2MZ-6K682-ARM, and the Garrett remanufactured version is 851824-9001S.

Is it new or remanufactured?

It is a new Garrett turbocharger, not a rebuild. Garrett also offers it remanufactured as 851824-9001S.

Does it come with gaskets?

No. The turbo comes with its VGT solenoid but without installation gaskets, hardware or the pedestal, so order the install kit with it. Call 530-668-0818 and we will match the kit to your truck.
