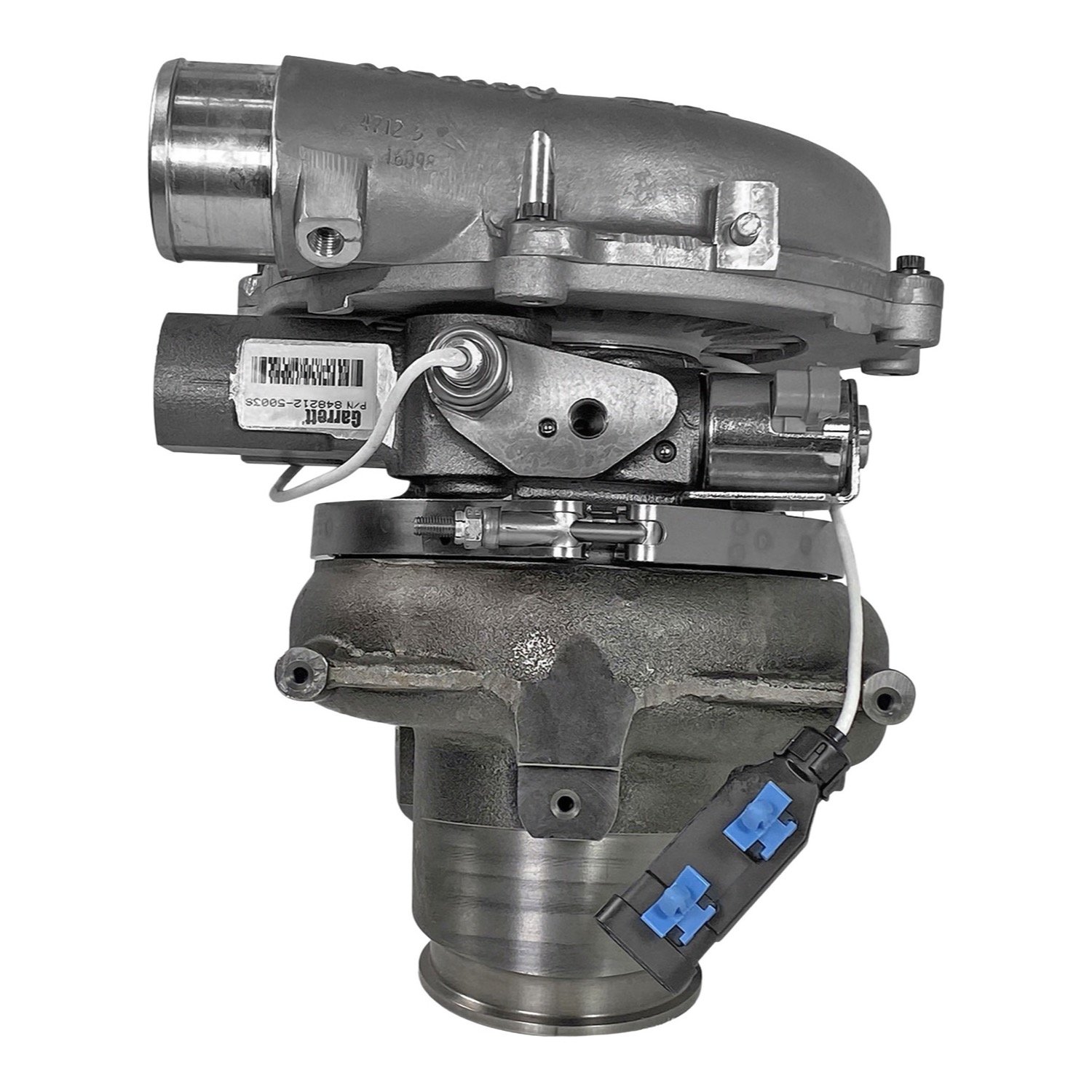

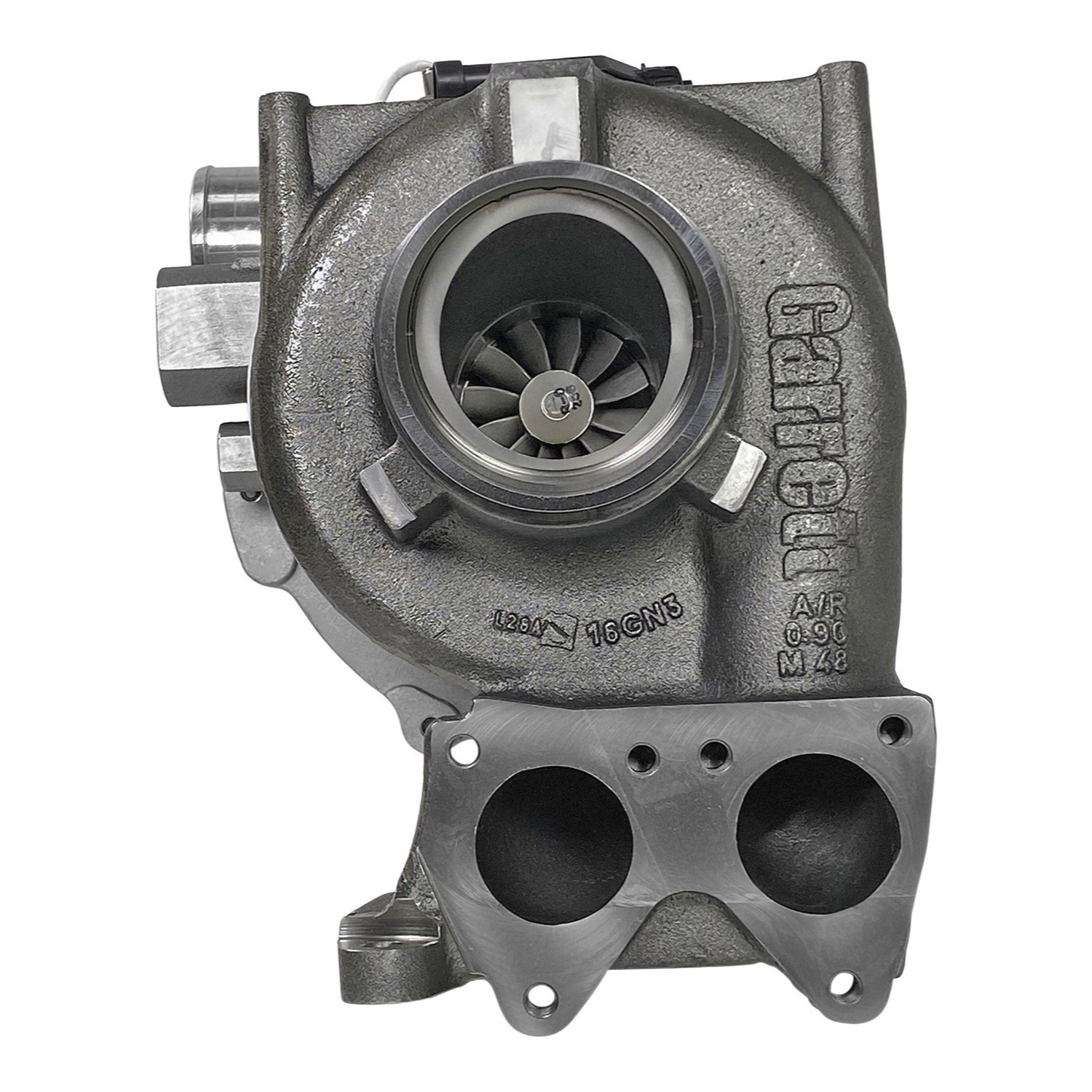

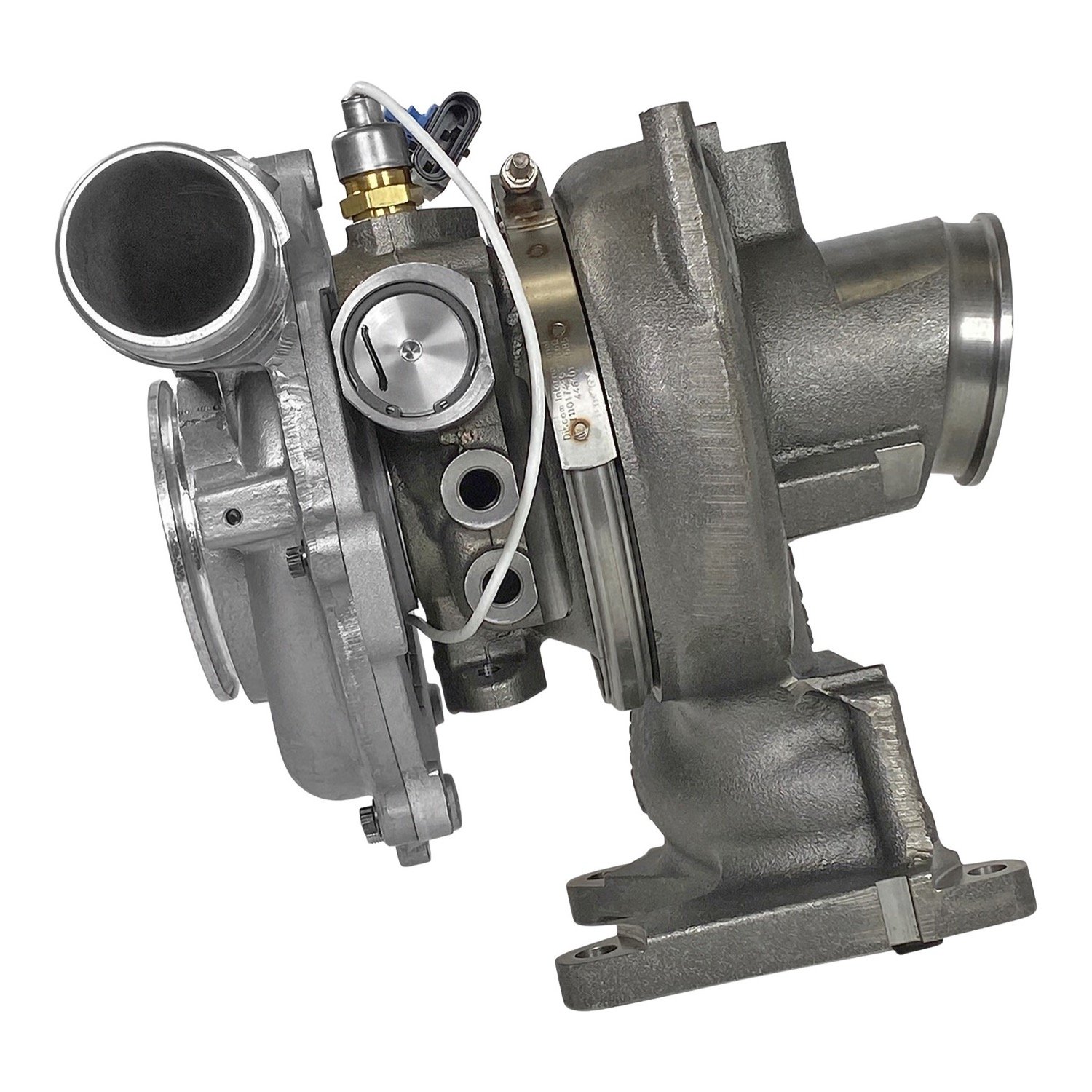

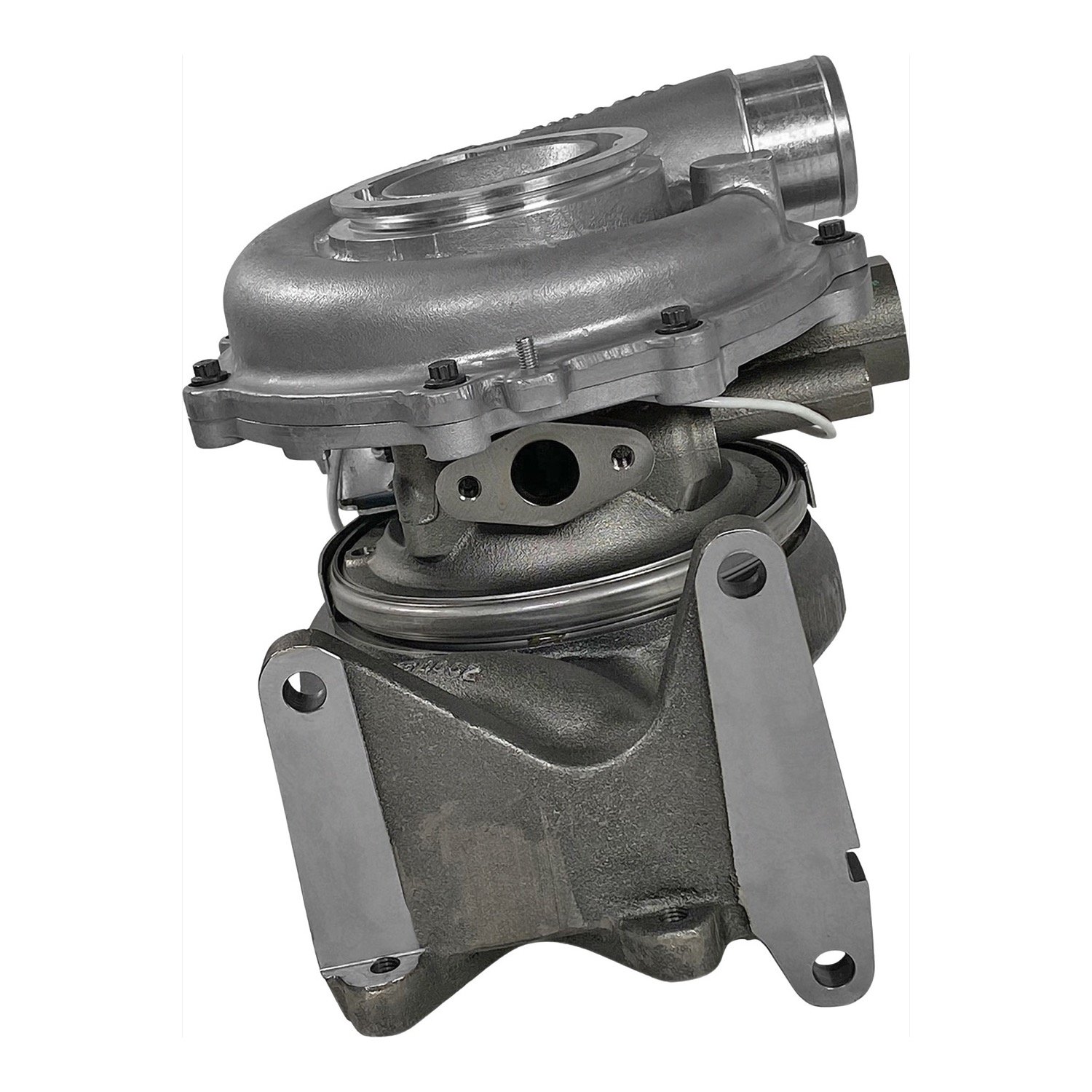

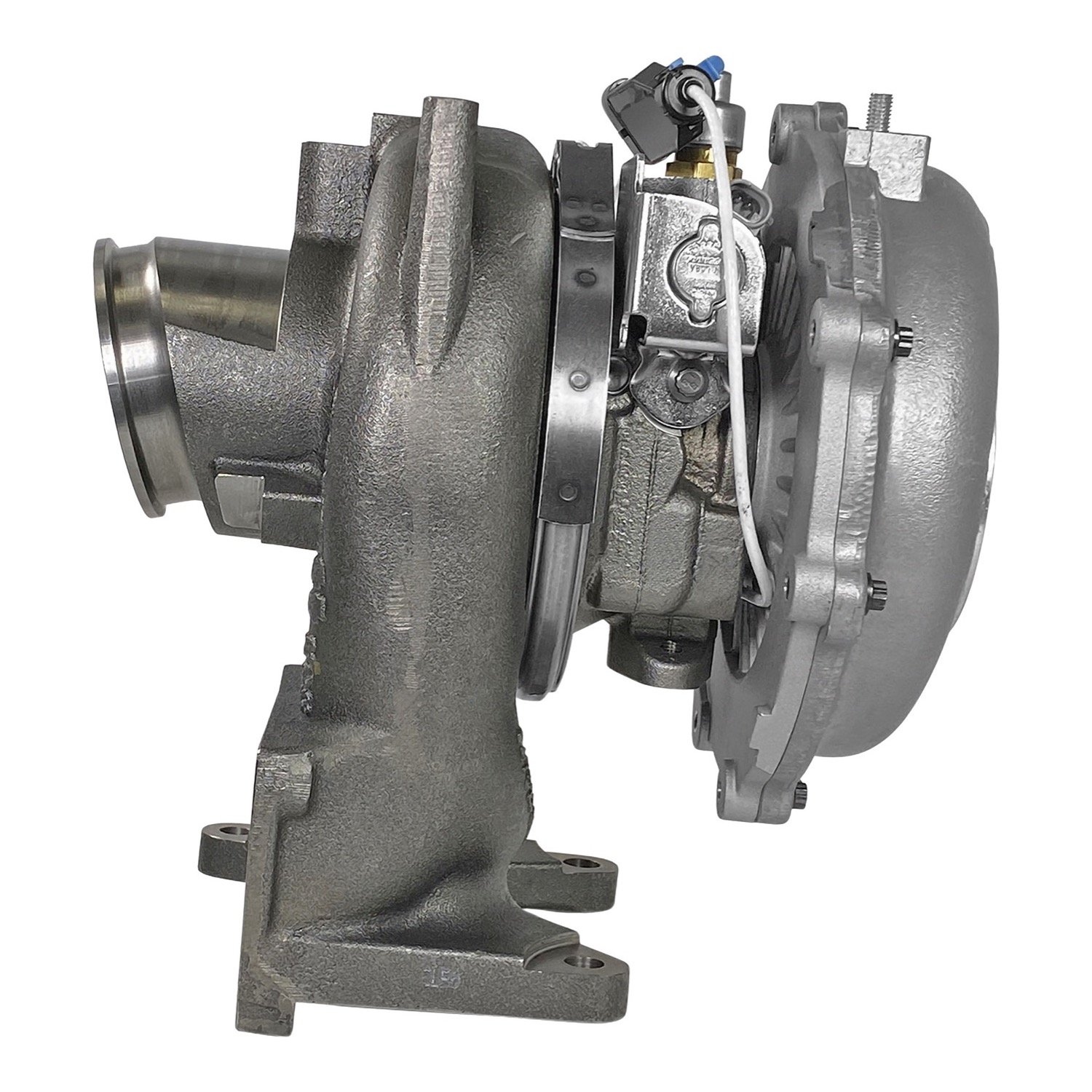

This is the Garrett 848212-5003S, a new turbocharger, not a rebuild, for the GM 6.6L Duramax with RPO code LGH, which has L as the eighth digit of the VIN. The LGH is the Duramax used in 2011 to 2016 Chevrolet Express and GMC Savana vans, in late 2010 vans built with that engine, and in some Silverado and Sierra HD trucks, cab and chassis included. Catalogs list the turbo model as GT3582VA. It replaces GM 12640123 and 12642130 and Garrett 785580-0006 and 800563-0002. The Garrett remanufactured version of the same turbo is 848212-9003S.

The LGH turbo is not the LML pickup turbo. The two engines share the model years, but the turbos are different part numbers and do not interchange: the LML takes Garrett 848212-5002S. On a cab and chassis truck, read the number on the tag of your old turbo or check the RPO code before you order. Sticking vanes, low boost, oil in the intake and shaft play are the usual reasons these come off, so check the oil feed, the drain and the intake tract before the new one goes on.

Specifications

Fits / Applications

• 2011 to 2016 Chevrolet Express and GMC Savana vans, 6.6L Duramax LGH
• Late 2010 Chevrolet Express and GMC Savana vans built with the LGH
• Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks built with the LGH (VIN 8th digit L), cab and chassis included
• Not for the LML pickup engine, which takes Garrett 848212-5002S
• Not for the 2004.5 to 2010 LLY, LBZ and LMM, which take Garrett 848212-5001S

Use new gaskets and a clean oil feed line, and prime the turbo with clean engine oil before the first start. The Alliant Power AP0165 turbo install kit is listed for the 2011 to 2016 6.6L Duramax, LML and LGH.

Part Numbers & Cross Reference

Garrett 848212-5003S  ·  GM 12640123  ·  GM 12642130  ·  GM earlier number 12635325  ·  GM earlier number 12642313  ·  Garrett earlier number 785580-0006  ·  Garrett earlier number 800563-0002  ·  Garrett remanufactured version 848212-9003S

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 848212-5003S fit my 2011 to 2016 Duramax pickup?

Only if the truck has the LGH engine, which shows as L in the eighth digit of the VIN. The LGH is found in vans and some cab and chassis trucks. LML pickups take a different turbo, Garrett 848212-5002S.

How do I tell an LGH from an LML?

The eighth digit of the VIN is L on an LGH, and the RPO code on the build sticker says LGH or LML. Call 530-668-0818 with your VIN and we will check it.

What numbers does the 848212-5003S replace?

GM 12640123 and 12642130, the older GM numbers 12635325 and 12642313, and Garrett 785580-0006 and 800563-0002.

Is it new or remanufactured?

It is a new Garrett turbocharger, not a rebuild. The Garrett remanufactured version of the same turbo is 848212-9003S.
