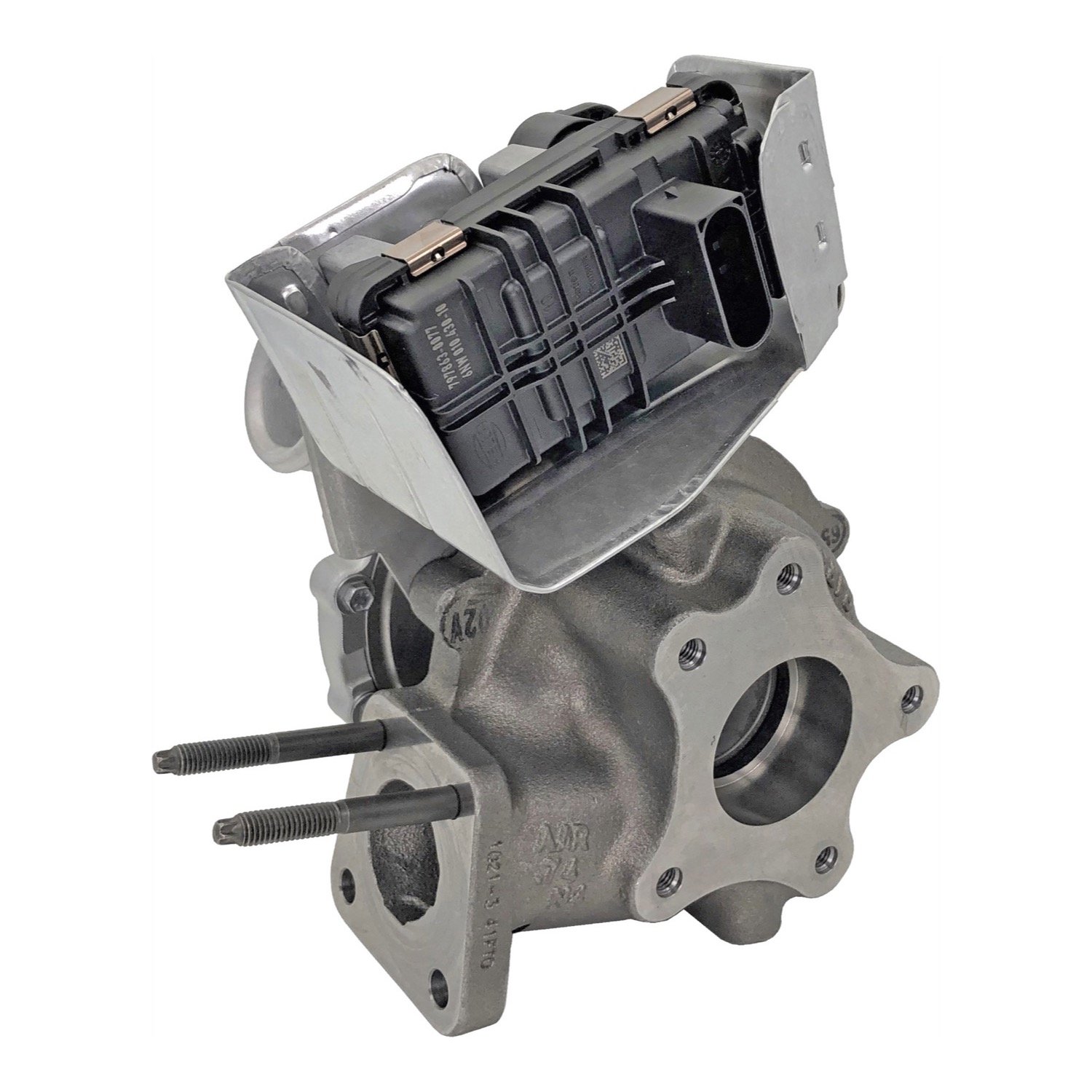

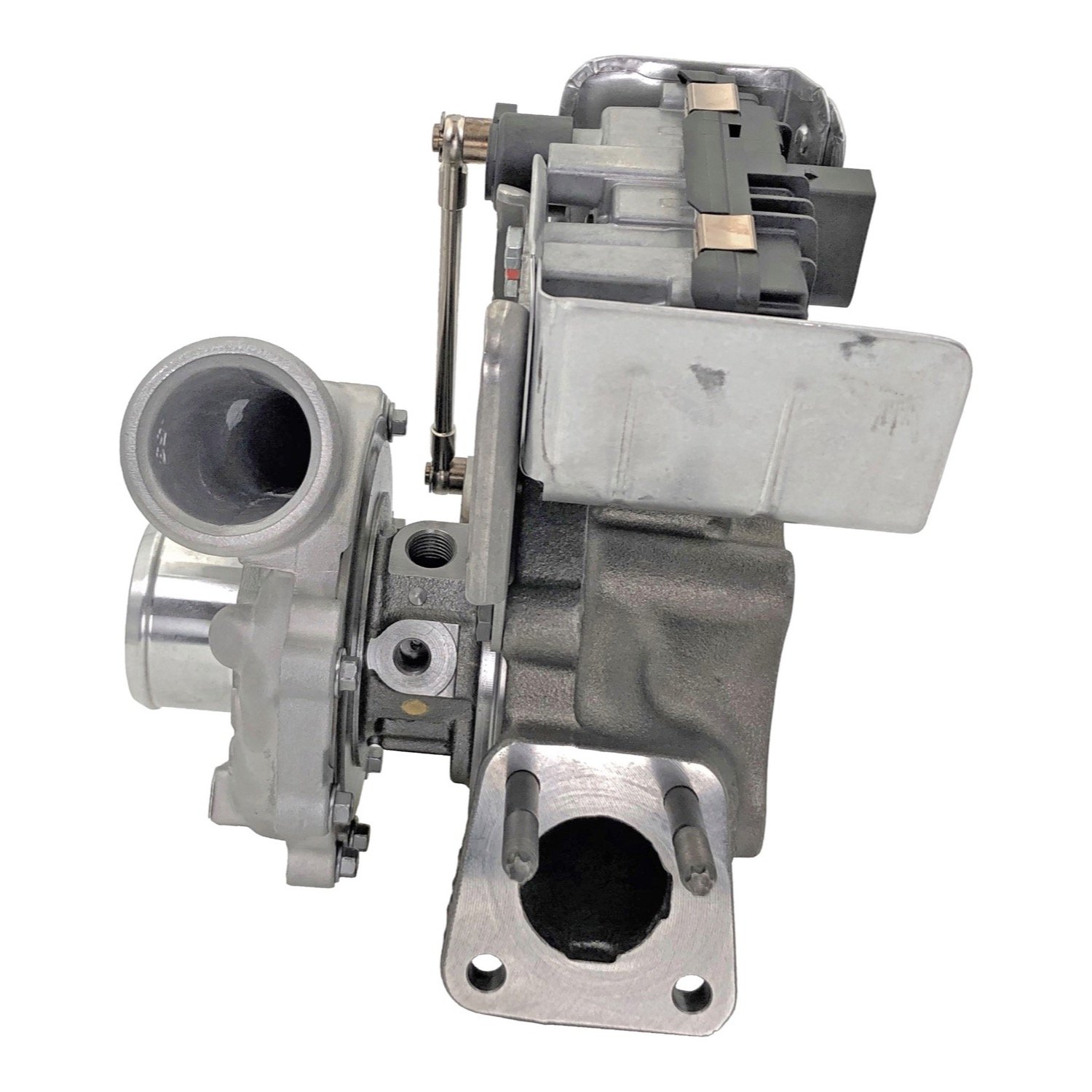

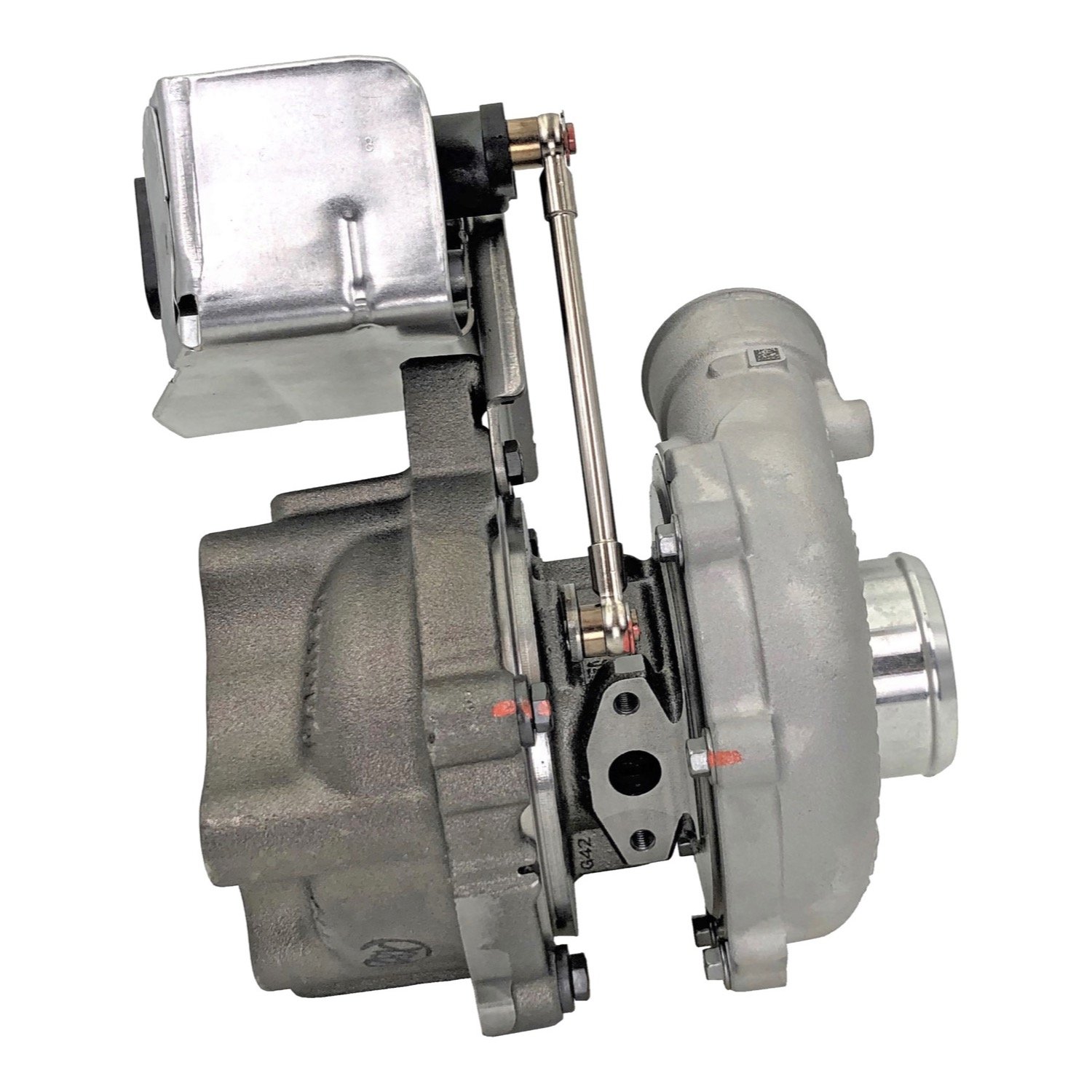

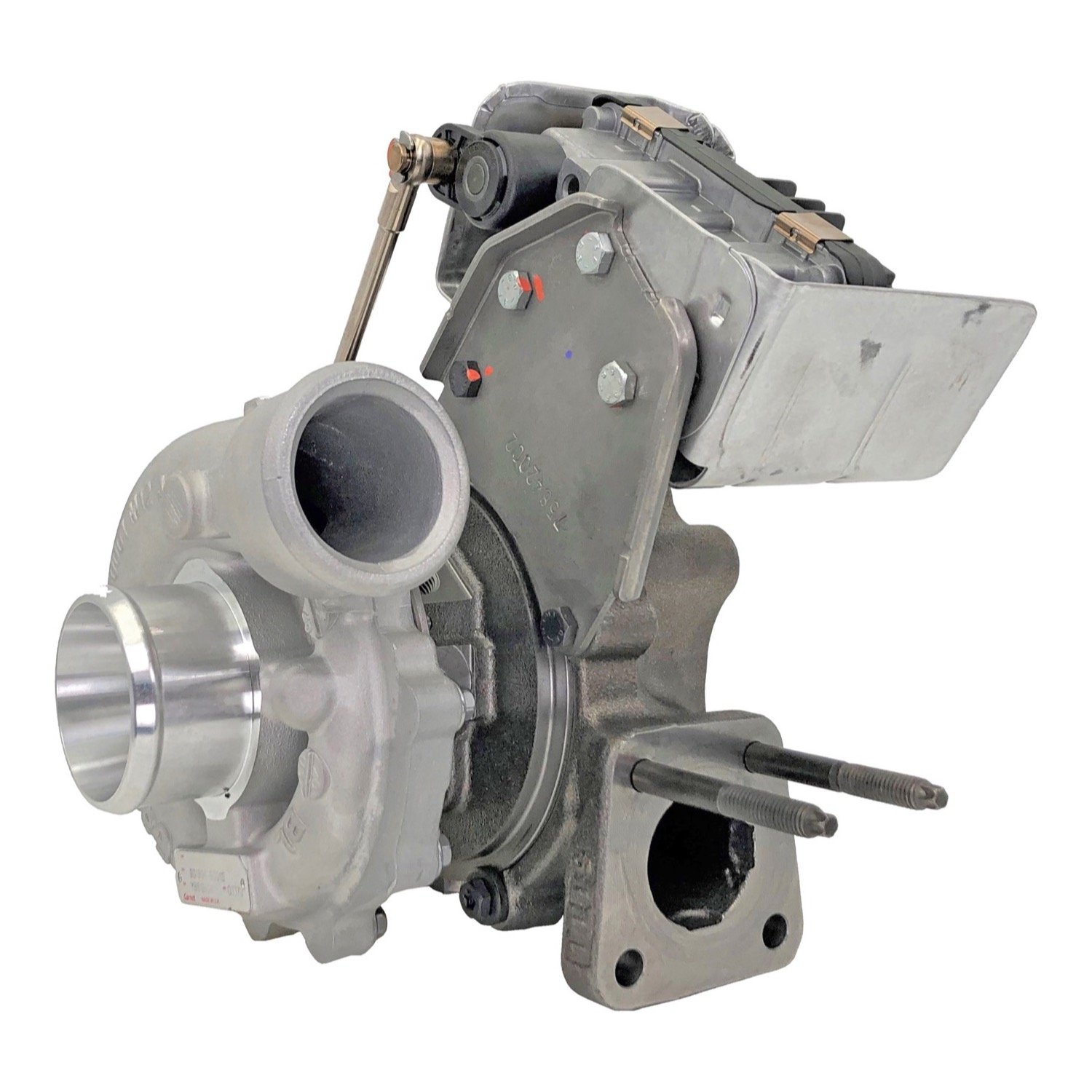

2016-2018 Chevy Colorado & GMC Canyon 2.8L Duramax GT17V Turbocharger with Actuator | Garrett 901994-5001S New
This is the Garrett 901994-5001S, a new GT17V variable-geometry turbocharger, not a rebuild. It is the stock replacement for the 2016 to 2018 Chevrolet Colorado and GMC Canyon with the 2.8L four-cylinder Duramax diesel. The electronic actuator is fitted to the turbo. It replaces GM 55486935, 55486936, 55506039, 55506040, 55510314, 55598230 and 12641882 and Garrett 814068-5005S.
Low boost, a boost or actuator code, a whine that was not there before, or oil in the charge pipes are the usual reasons this turbo is replaced. The actuator comes on the unit, so there is nothing to swap over from the old turbo. Catalogs agree on 2016 to 2018 and do not agree on 2019 and later trucks, so check a later truck with us before you order.
Confirm Fitment Before You Order
This turbo is for the 2.8L Duramax diesel in the 2016 to 2018 Colorado and Canyon, not the gas engines. Catalogs do not agree on 2019 and later trucks, and it is not listed for the 2.8L Express or Savana vans. For a 2019 or later truck or a van, send us your VIN before you order. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 901994-5001S |
| Brand | Garrett |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Variable-geometry turbocharger, stock replacement |
| Turbo model | Garrett GT17V |
| Engine | GM 2.8L Duramax diesel, four cylinder |
| Trucks | Chevrolet Colorado and GMC Canyon |
| Model years | 2016 to 2018. Send your VIN for 2019 and later. |
| Included | Electronic actuator, fitted |
| Shipping weight | 40 lb |
Fits / Applications
- 2016 to 2018 Chevrolet Colorado, 2.8L Duramax diesel
- 2016 to 2018 GMC Canyon, 2.8L Duramax diesel
- 2019 and later 2.8L trucks: catalogs do not agree, call with your VIN
- Not listed for the 2.8L Chevrolet Express or GMC Savana vans
- Electronic actuator included
Find out why the old turbo failed before the new one goes on. Check the oil feed and drain, change the engine oil and filter, clean the charge pipes and intercooler of oil, and prime the turbo with clean oil before first start. Fit new mounting gaskets.
Part Numbers & Cross Reference
Garrett 901994-5001S · GM 55486935 · GM 55486936 · GM 55506039 · GM 55506040 · GM 55510314 · GM 55598230 · GM 12641882 · Garrett earlier number 814068-5005S
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 901994-5001S fit my Colorado or Canyon?
It fits the 2016 to 2018 Chevrolet Colorado and GMC Canyon with the 2.8L Duramax diesel. It is a new Garrett turbocharger, not a rebuild.
Will it fit a 2019 or later truck?
Do not assume so. Catalogs agree on 2016 to 2018 only: some sellers list it through 2019 and others stop at 2018. Call 530-668-0818 with your VIN and we will check it before you order.
Does it come with the actuator?
Yes. The electronic actuator is fitted to the turbo.
What numbers does it replace?
GM 55486935, 55486936, 55506039, 55506040, 55510314, 55598230 and 12641882, and Garrett 814068-5005S.
