Cat C4.4 & C6.6, Perkins 1104D & 1106D Common-Rail Fuel Injector | Alliant Power AP55002 Remanufactured

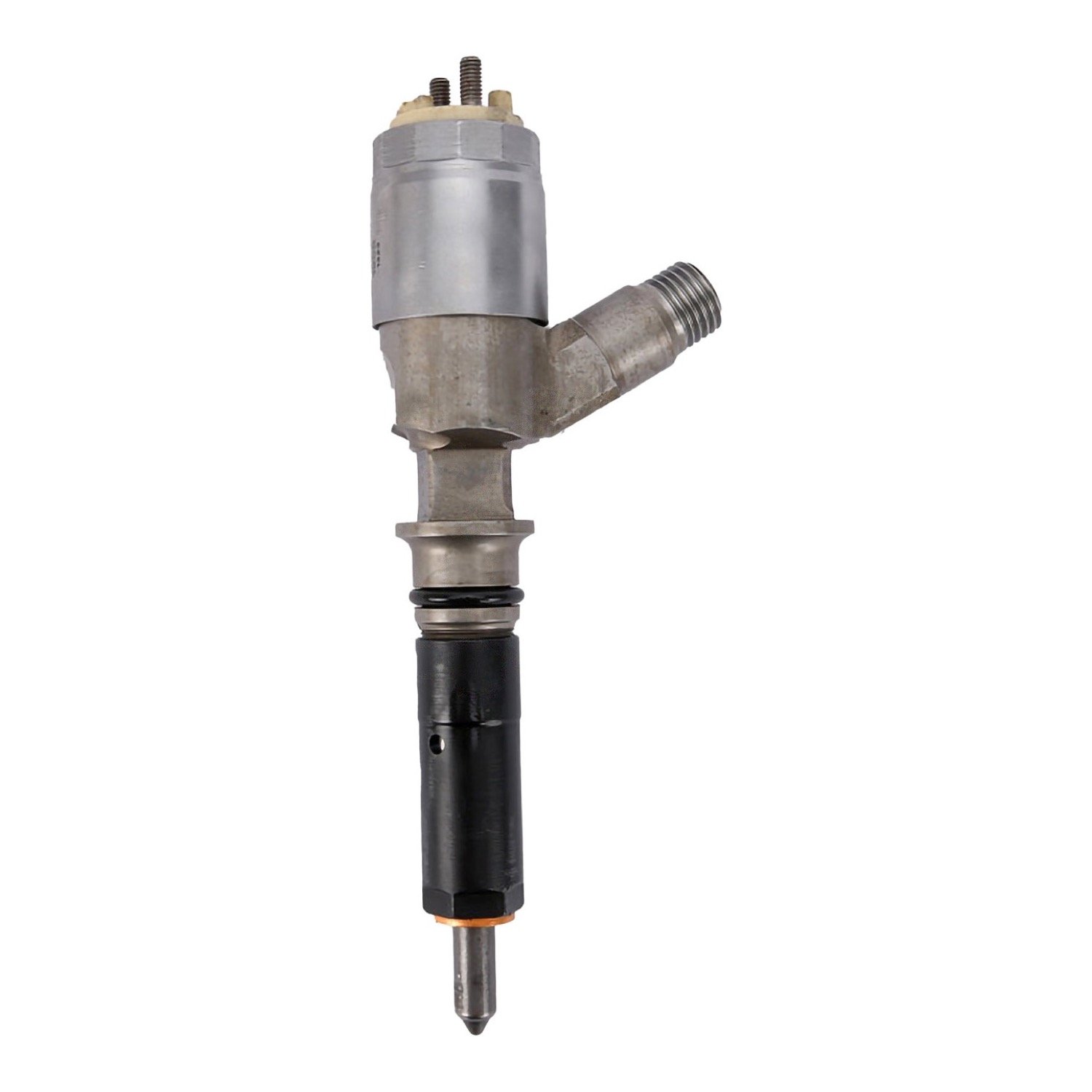

The Alliant Power AP55002 is a remanufactured common-rail fuel injector for Caterpillar C4.4 and C6.6 and Perkins 1104D-E44TA and 1106D-E66TA Tier 3 engines. It replaces Cat 10R-7672 and 320-0680 (earlier 292-3780 and 306-9380), Perkins 2645A747 (earlier 2645A734 and 2645A718) and 4226779M1.
Each injector is rebuilt with a new control valve and nozzle, then calibrated. It comes with a new nozzle tip gasket and sealing O-ring installed, plus its trim code on a USB drive. The trim code must be loaded into the engine ECM after install. These engines use several injectors that look alike, so match the number on your old injector before you order.
Confirm Fitment Before You Order
Lookalike C4.4 / C6.6 injectors carry different numbers: Cat 10R-7670 (Perkins 2645A745, Alliant Power AP55000), 10R-7671 (2645A746, AP55001), 10R-7672 (2645A747, this part), 10R-7673 (2645A749) and 10R-7674 (2645A751). Send us the Perkins or Cat number on your old injector, or your engine serial number. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | AP55002 |
| Brand | Alliant Power |
| Condition | Remanufactured |
| Warranty | Alliant Power 24-month, unlimited-mileage warranty. |
| Type | Common-rail fuel injector |
| Engines | Caterpillar C4.4 and C6.6; Perkins 1104D-E44TA and 1106D-E66TA |
| Emissions | Tier 3 |
| Replaces | Cat 10R-7672 / 320-0680; Perkins 2645A747 |
| Injectors per engine | 4 (C4.4, 1104D) or 6 (C6.6, 1106D) |
| Coding | Trim code on USB drive; program it to the ECM after install |
| In the box | Injector, nozzle tip gasket and sealing O-ring (installed), USB drive with trim code |
| Core charge | Refundable in full when we receive your rebuildable core |
| Shipping weight | 2 lb |
Fits / Applications
- Caterpillar C4.4 Tier 3 engines
- Caterpillar C6.6 Tier 3 engines
- Perkins 1104D-E44TA Tier 3 engines
- Perkins 1106D-E66TA Tier 3 engines
Load the trim code from the included USB drive into the engine ECM after install, using a service tool that supports Cat or Perkins injector trim codes. The nozzle tip gasket and O-ring come installed. Clean the injector bore, cap open fuel lines while you work, and change the fuel filters.
Part Numbers & Cross Reference
Caterpillar 10R-7672 · Caterpillar 320-0680 · Caterpillar 292-3780 · Caterpillar 306-9380 · Perkins 2645A747 · Perkins 2645A747R · Perkins (superseded) 2645A734 · Perkins (superseded) 2645A718 · Other OE 4226779M1
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
What Cat and Perkins numbers does Alliant Power AP55002 replace?
It replaces Cat 10R-7672 and 320-0680 (earlier 292-3780 and 306-9380), Perkins 2645A747 (earlier 2645A734 and 2645A718) and 4226779M1.
My old injector is a Cat 10R-7670 or 10R-7671. Is AP55002 the right part?
Those are different numbers: Cat 10R-7670 is Perkins 2645A745 (Alliant Power AP55000) and 10R-7671 is 2645A746 (AP55001), while AP55002 is 10R-7672 (2645A747). Call 530-668-0818 with the number on your old injector or your engine serial number and we confirm the match at no charge.
What comes with AP55002, and does it need a trim code?
It comes with a new nozzle tip gasket and sealing O-ring installed, plus its trim code on a USB drive. The trim code must be loaded into the engine ECM after install, using a service tool that supports Cat or Perkins injector trim codes.
Is AP55002 remanufactured, and how does the core work?
Yes. Each injector is rebuilt with a new control valve and nozzle, then calibrated. A refundable core charge is added at checkout and refunded when we receive your rebuildable core.
