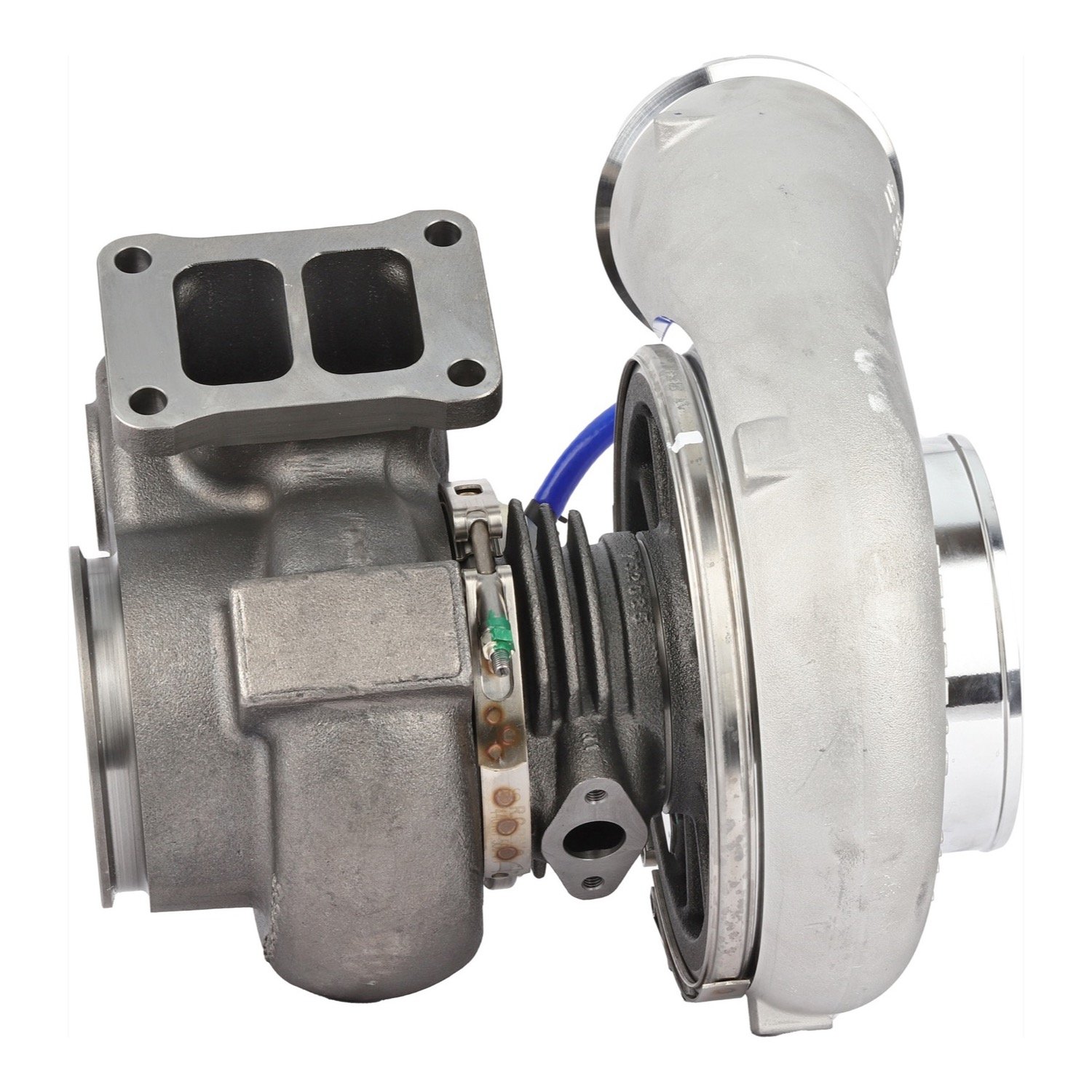

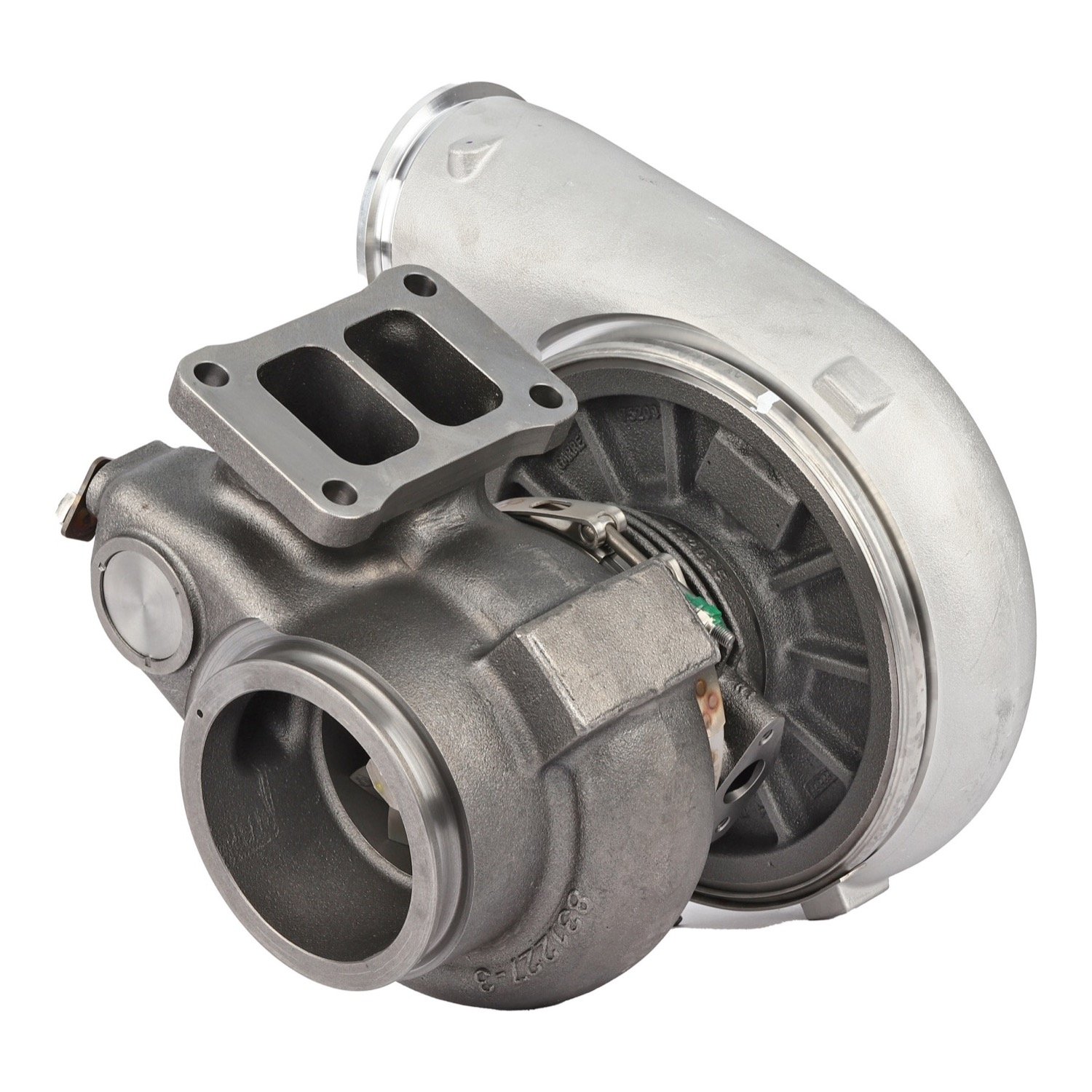

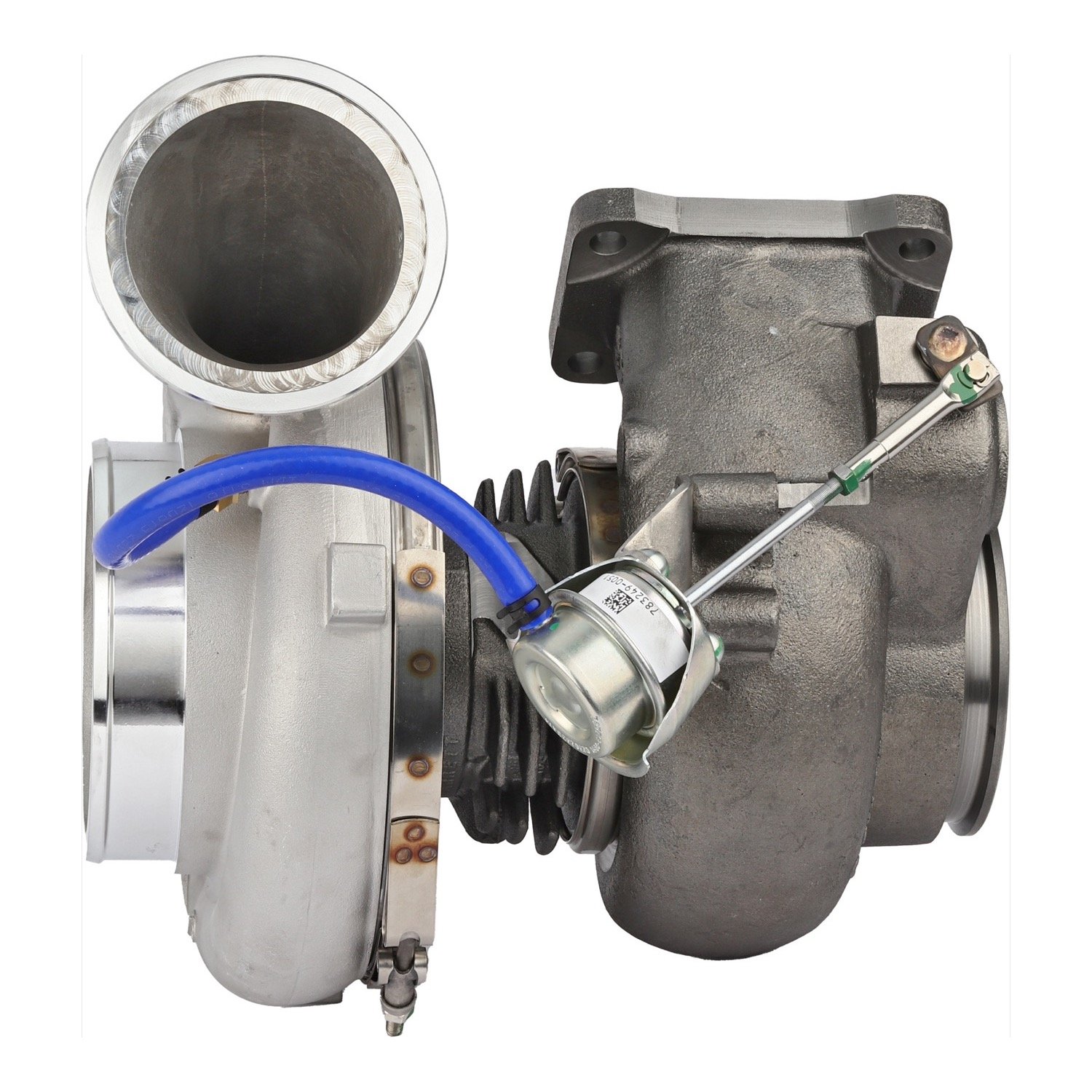

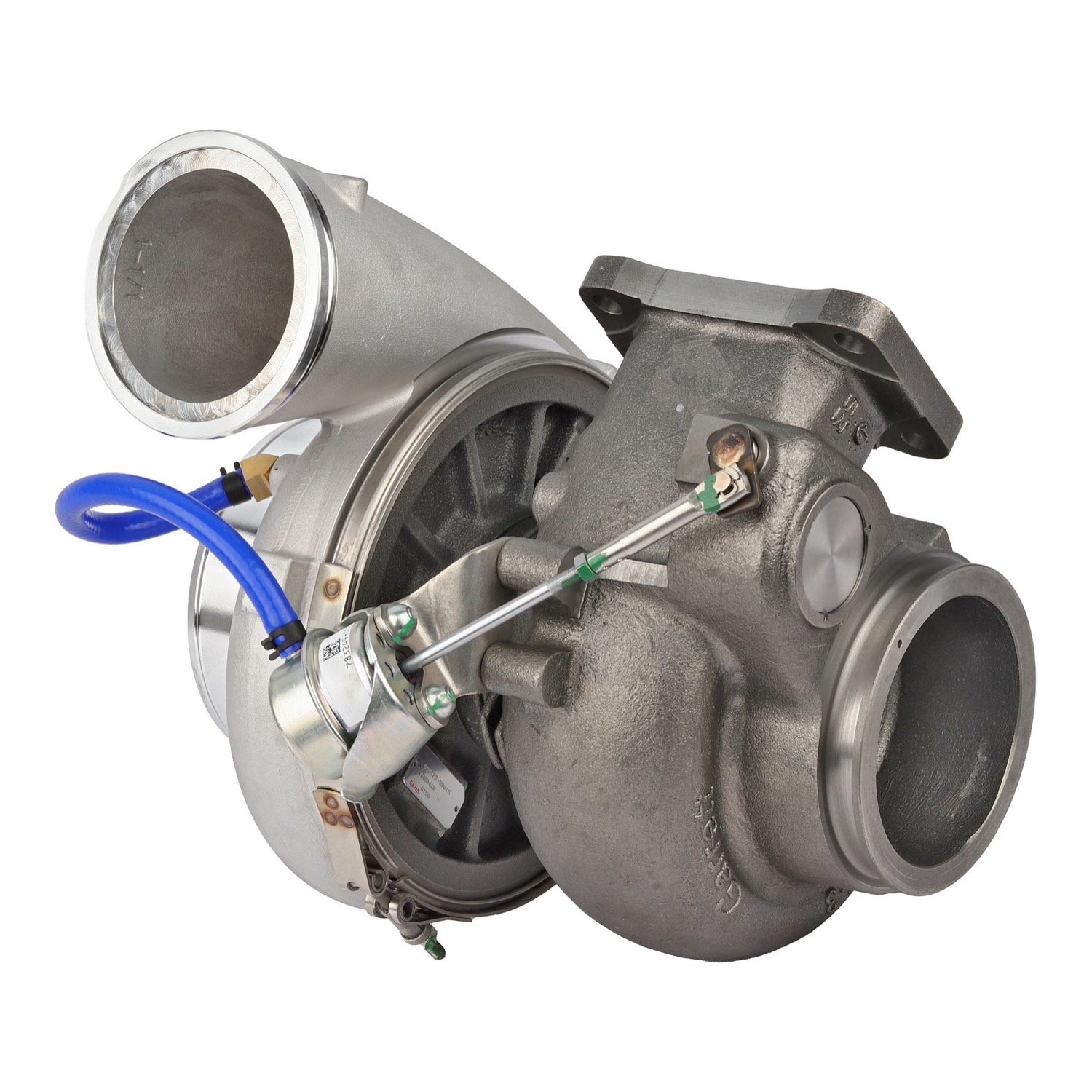

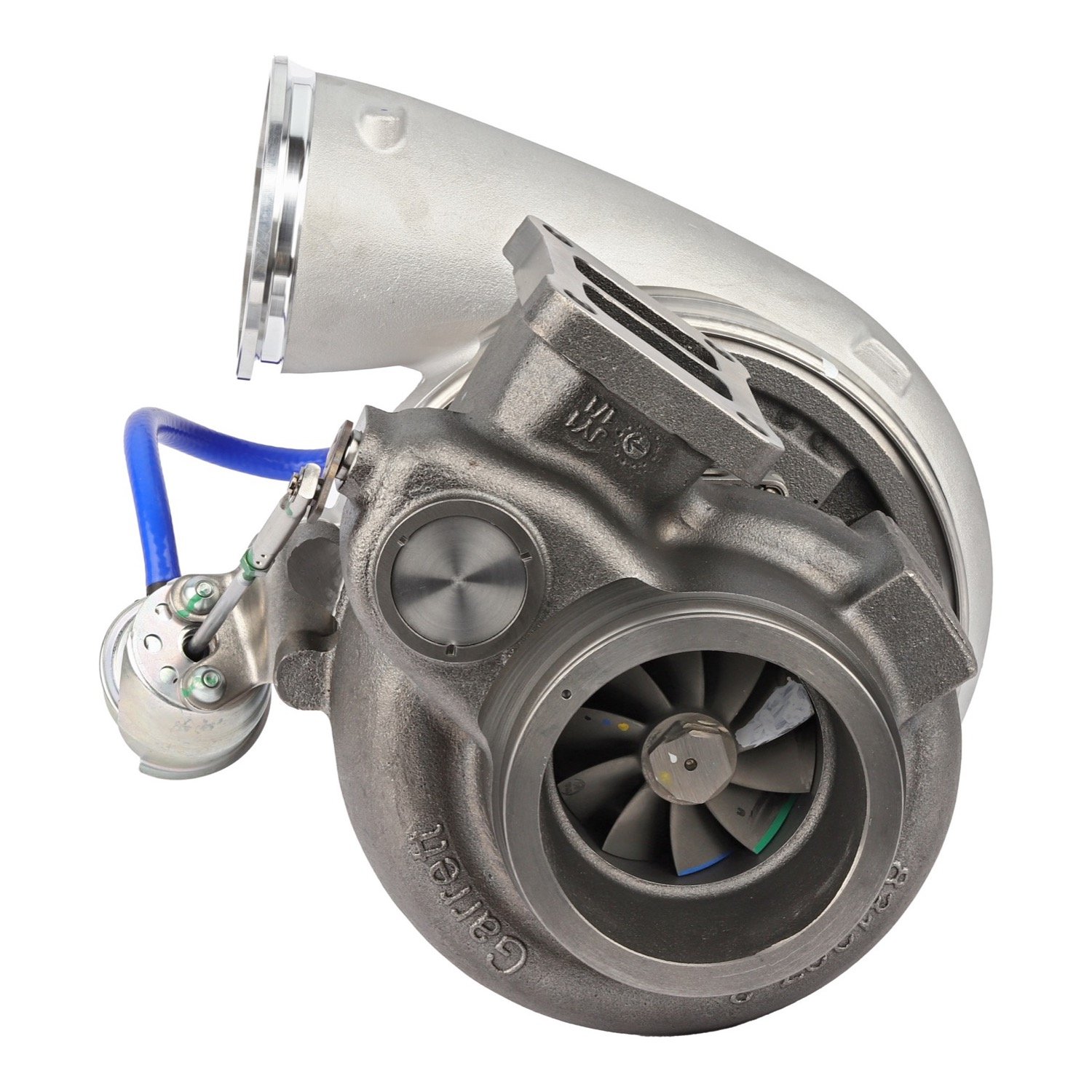

This is the Garrett 895473-5001S, a new GT5018 turbocharger made by Garrett for the Case New Holland (FPT) Cursor 16 15.9L diesel. Catalogs list it for CNH combine harvesters under CNH part number 5802744142. It replaces the earlier Garrett numbers 828370-0015 and 828370-0007 (CNH 5802052268 and 5801826779), and the turbo it replaces carries Garrett number 895473-0001 on its tag.

Garrett has since issued 895473-5003S (tag 895473-0003, CNH 5802872741), and catalogs list that later number as the replacement for this one. If your old turbo reads 895473-0003, order the 895473-5003S. Garrett 895473-5002S (CNH 5802744143) is a different part number for the same engine family. Turbos on these engines are replaced for shaft play, oil in the charge air cooler, low boost or wheel damage. Fix the cause of the old failure first.

Specifications

Fits / Applications

• Case New Holland (CNH) machines with the FPT Cursor 16 15.9L diesel and the Garrett GT5018 turbocharger. Catalogs list it for combine harvesters.
• Old turbo tag reads 895473-0001 or 895473-5001S
• Old turbo tag reads 828370-0015, 828370-5015S, 828370-0007 or 828370-5007S
• Parts book calls for CNH 5802744142, 5802052268 or 5801826779
• If the old turbo reads 895473-0003, or the parts book calls for CNH 5802872741, order Garrett 895473-5003S
• Confirm by turbo tag number, machine serial number and engine serial number

This is a large turbo, so support it properly when you lift it into place. Fit new gaskets, prime it with clean engine oil, and check the oil feed and drain lines for restriction. Change the oil and filters and clean the air intake and charge air cooler of oil and debris from the old turbo before you start the engine.

Part Numbers & Cross Reference

Garrett 895473-5001S  ·  Garrett tag number 895473-0001  ·  CNH 5802744142  ·  CNH, earlier number 5802052268  ·  CNH, earlier number 5801826779  ·  Garrett, earlier number 828370-5015S (828370-0015)  ·  Garrett, earlier number 828370-5007S (828370-0007)  ·  Garrett, later number 895473-5003S (895473-0003)

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Has 895473-5001S been replaced by 895473-5003S?

Catalogs list 895473-5003S (tag 895473-0003) as Garrett’s later number for this turbo. This listing is the 895473-5001S, which matches an old turbo that reads 895473-0001. Call 530-668-0818 with your turbo tag number and engine serial number if you are not sure which to order.

What numbers does the 895473-5001S replace?

CNH 5802744142 and the earlier CNH numbers 5802052268 and 5801826779. On the Garrett side it replaces 828370-0015 and 828370-0007.

Is 895473-5002S the same turbo?

It is a different part number. Catalogs list 895473-5002S under CNH 5802744143 and 5802042883, not under the numbers this turbo replaces. Order by the number on your old turbo.

Is this a new turbo?

Yes. It is a new turbocharger made by Garrett, not a remanufactured unit.
