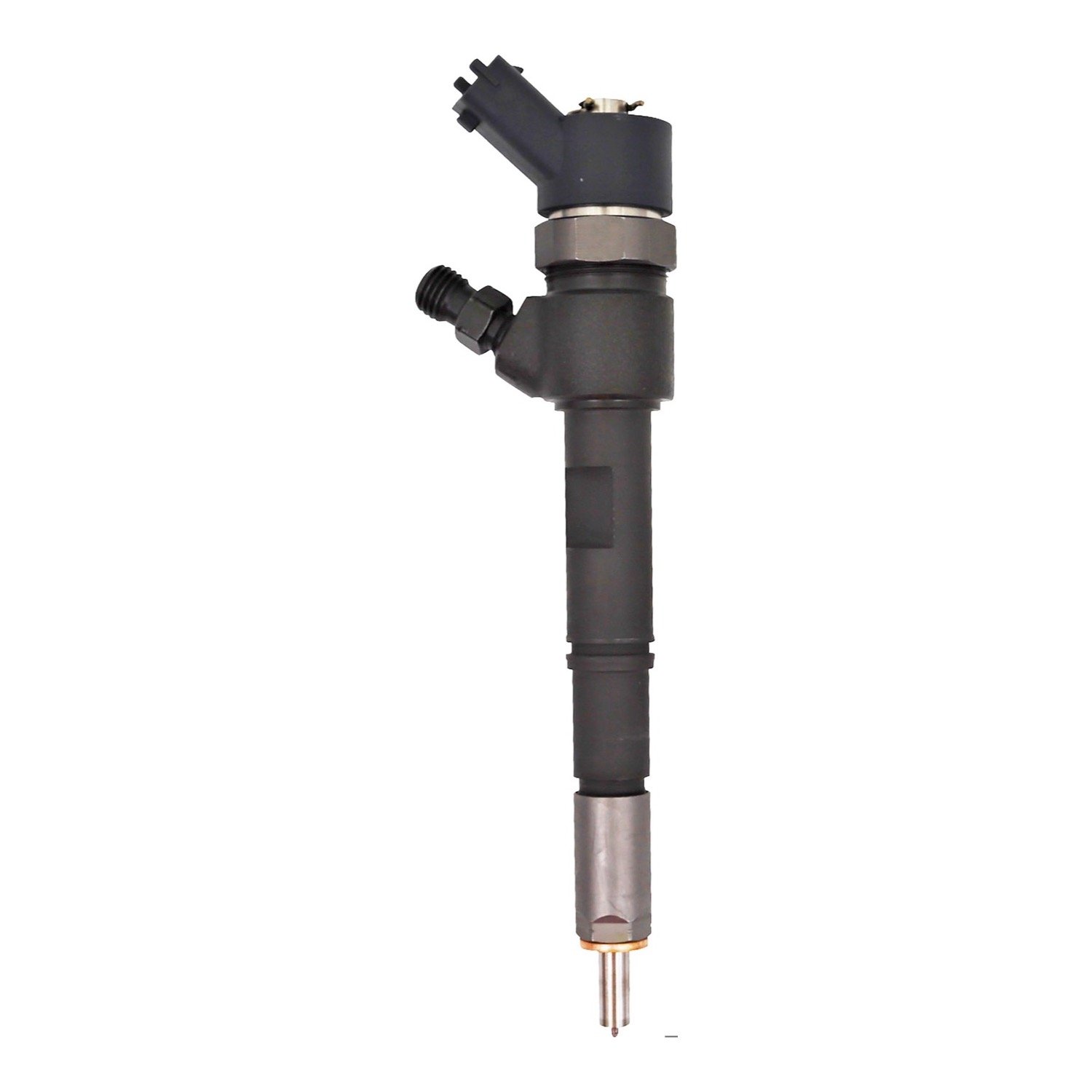

This is the Bosch 0986435254, a common-rail fuel injector remanufactured by Bosch. It is the remanufactured version of the new Bosch 0445110457 and replaces CNH 5801470098 and the earlier CNH number 5801376566. It fits the Tier 4A FPT F5 3.4L four cylinder (F5H and F5D) in Case SR220, SR250, SV250 and SV300 skid steers, TR320 and TV380 track loaders, 580SN and 590SN backhoes and the 750M dozer, in Case IH Farmall 85C to 115C, 95U to 115U and N series tractors, and in New Holland T4 and T5 tractors, C232 and C238 track loaders, L225 and L230 skid steers and the B95C backhoe. A refundable core applies.

Hard starting, a rough idle, white smoke, a rail pressure fault or a cylinder that drops out are the usual reasons these get changed. This engine is fed by a CP4 high-pressure pump, and a failing pump can send metal through the rail and take the injectors with it, so check the fuel for metal before you fit new ones. Many of these machines were also built as Tier 3 and as later Tier 4B models that take other injectors, so match the number first. The engine takes four injectors.

Specifications

Fits / Applications

• Case SR220, SR250, SV250 and SV300 skid steer loaders (Tier 4A)
• Case TR320 and TV380 compact track loaders (Tier 4A)
• Case 580SN and 590SN backhoe loaders (Tier 4A) and 586H forklift
• Case 750M crawler dozer
• Case IH Farmall 85C, 95C, 105C and 115C
• Case IH Farmall 95U, 105U and 115U
• Case IH Farmall 80N, 100N and 110N
• New Holland T4.75, T4.85, T4.95, T4.105 and T4.115 tractors
• New Holland T4.80, T4.90, T4.100 and T4.110 F and V specialty tractors
• New Holland T5.95, T5.105 and T5.115 tractors
• New Holland C232 and C238 track loaders, L225 and L230 skid steers and B95C backhoe loader
• New Holland TK4.80, TK4.100 and TK4.110 crawler tractors
• FPT F5 3.4L Tier 4A engines that list CNH 5801470098
• Four injectors per engine

If the old injectors failed along with the high-pressure pump, flush or replace the rail and lines and clean the tank before fitting these, or the new injectors will not last. Use new sealing washers, keep the connections clean and change the fuel filters.

Part Numbers & Cross Reference

Bosch remanufactured 0986435254  ·  Bosch new version 0445110457  ·  CNH / FPT 5801470098  ·  CNH remanufactured 5801470098R  ·  CNH / FPT (earlier number) 5801376566

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the Bosch 0986435254 fit my Case TR320?

Yes, if it is a Tier 4A machine. Four catalogs list it for the Case TR320, along with the SR220, SR250, SV250, SV300 and TV380. Check that your old injector reads 0445110457 or 0986435254.

What numbers does it replace?

Bosch 0445110457 (the new version of the same injector), CNH 5801470098 and the earlier CNH number 5801376566. The remanufactured number at CNH is 5801470098R.

Is it new or remanufactured, and is there a core?

It is remanufactured by Bosch. A refundable core applies, and it comes back when we receive your old injector.

Does it fit a New Holland T4 or a Case IH Farmall C?

Catalogs list it for the Tier 4A New Holland T4.75 to T4.115 and T5.95 to T5.115 and the Case IH Farmall 85C to 115C. Later builds take a different injector, so call 530-668-0818 with your engine serial number to confirm.
