Caterpillar 3304 & 3306 7000 Series Fuel Injector Nozzle (Cat 8N7005) | Alliant Power D8N7005 New

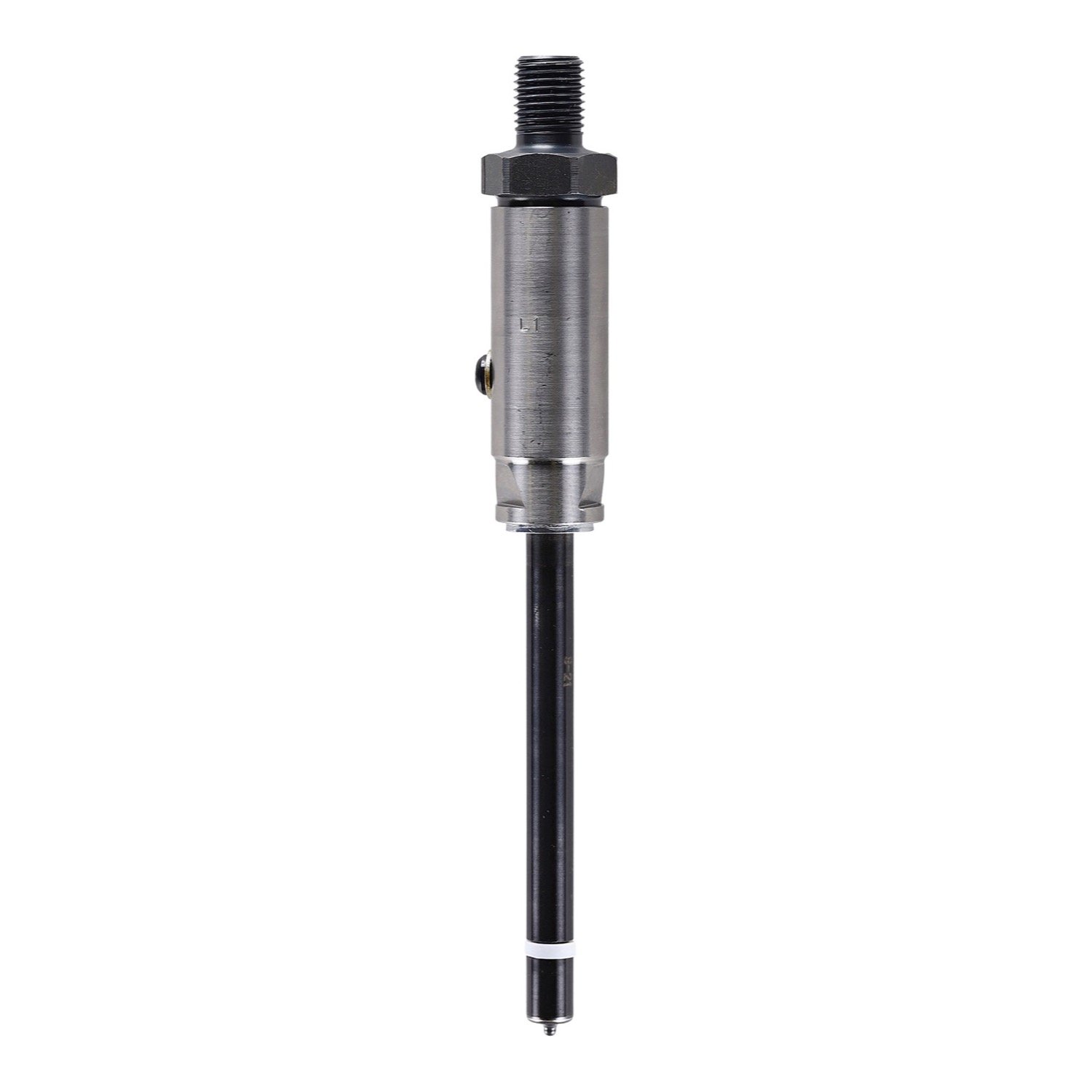

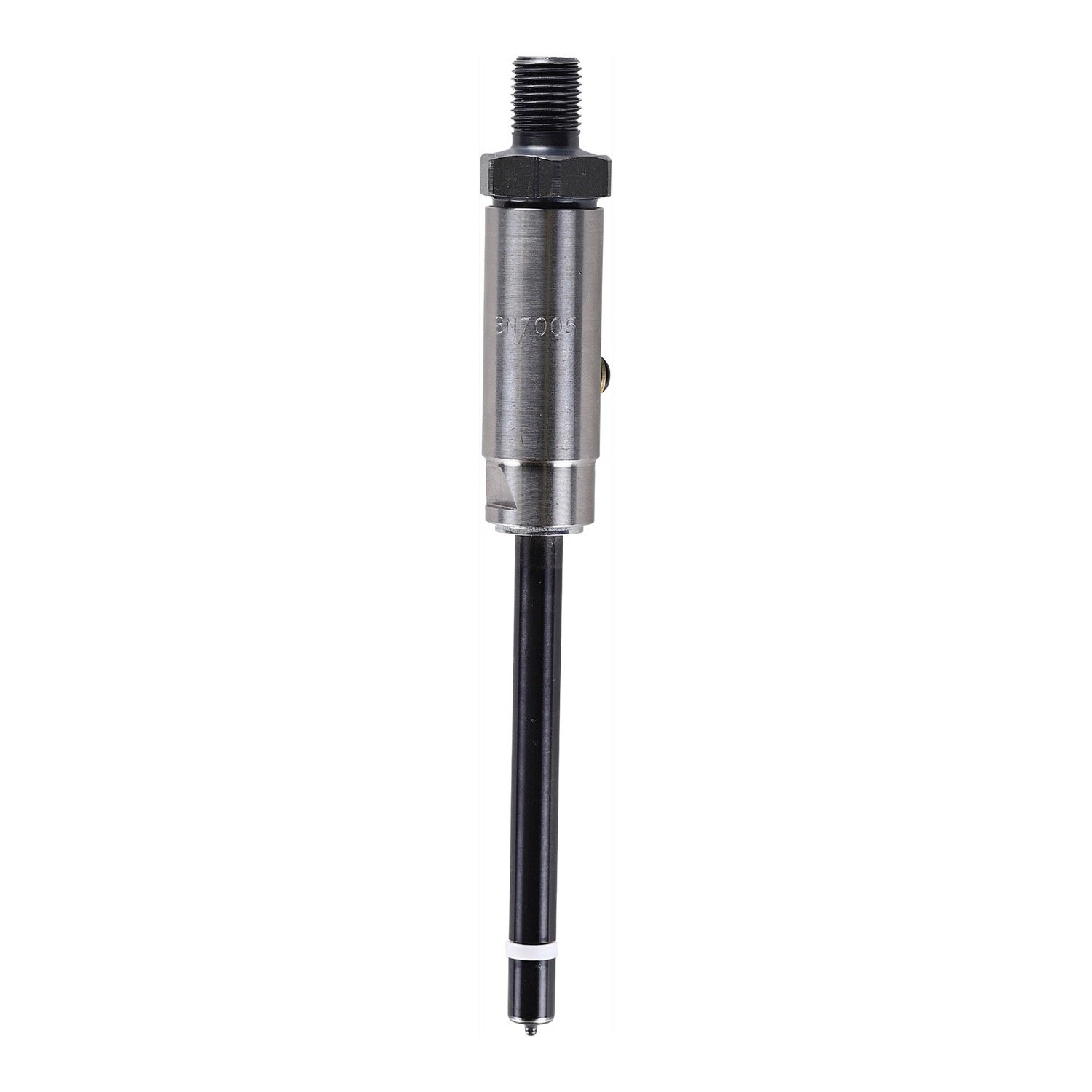

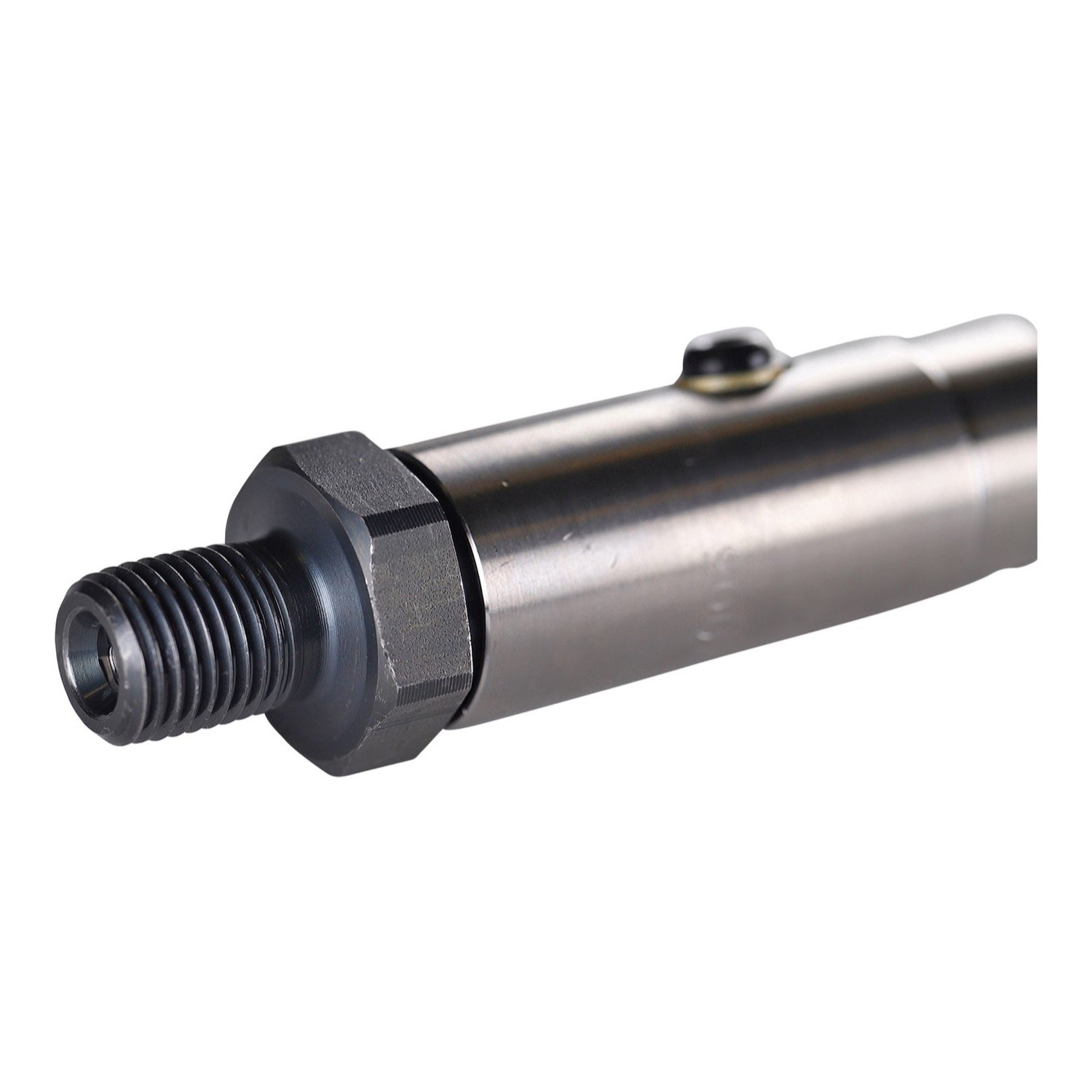

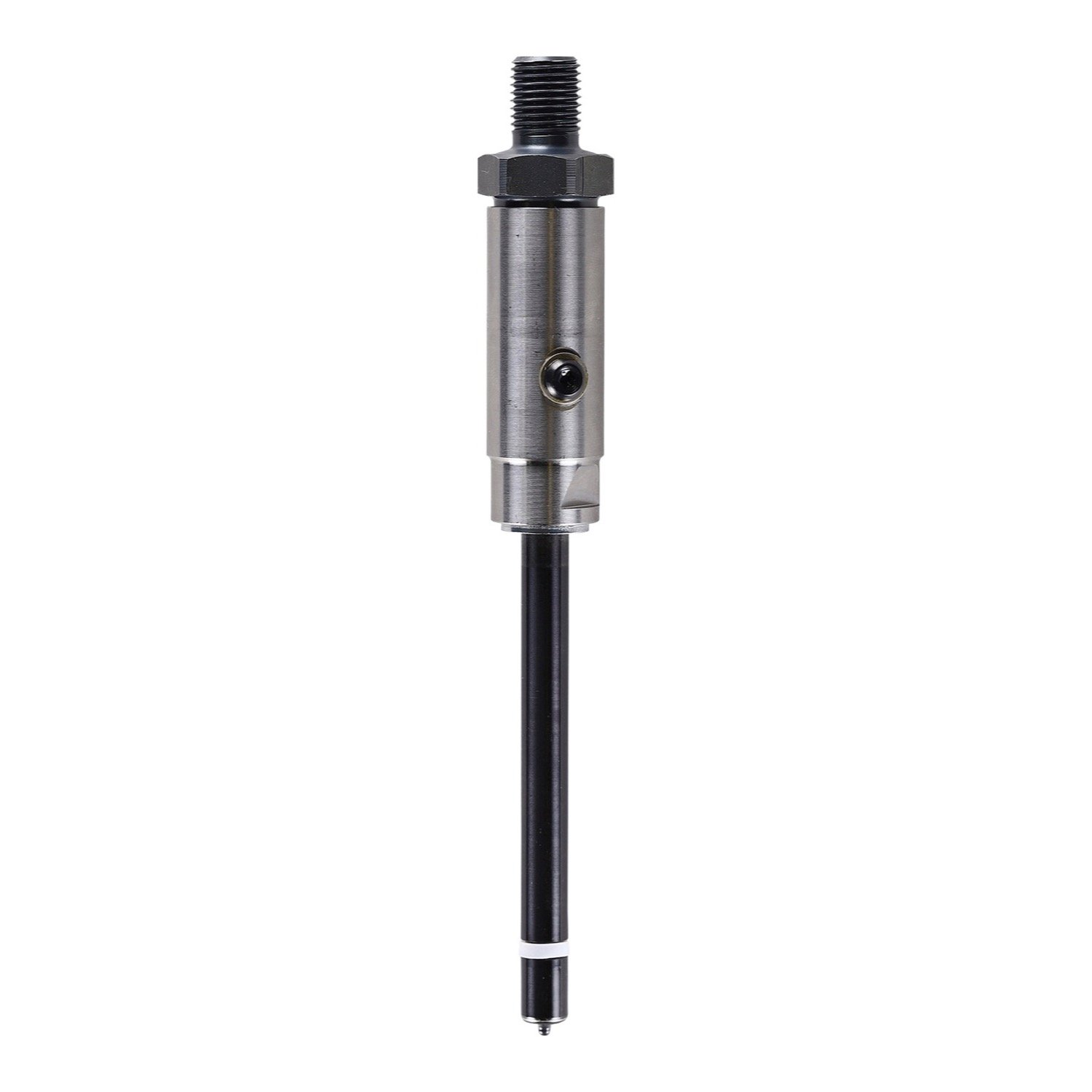

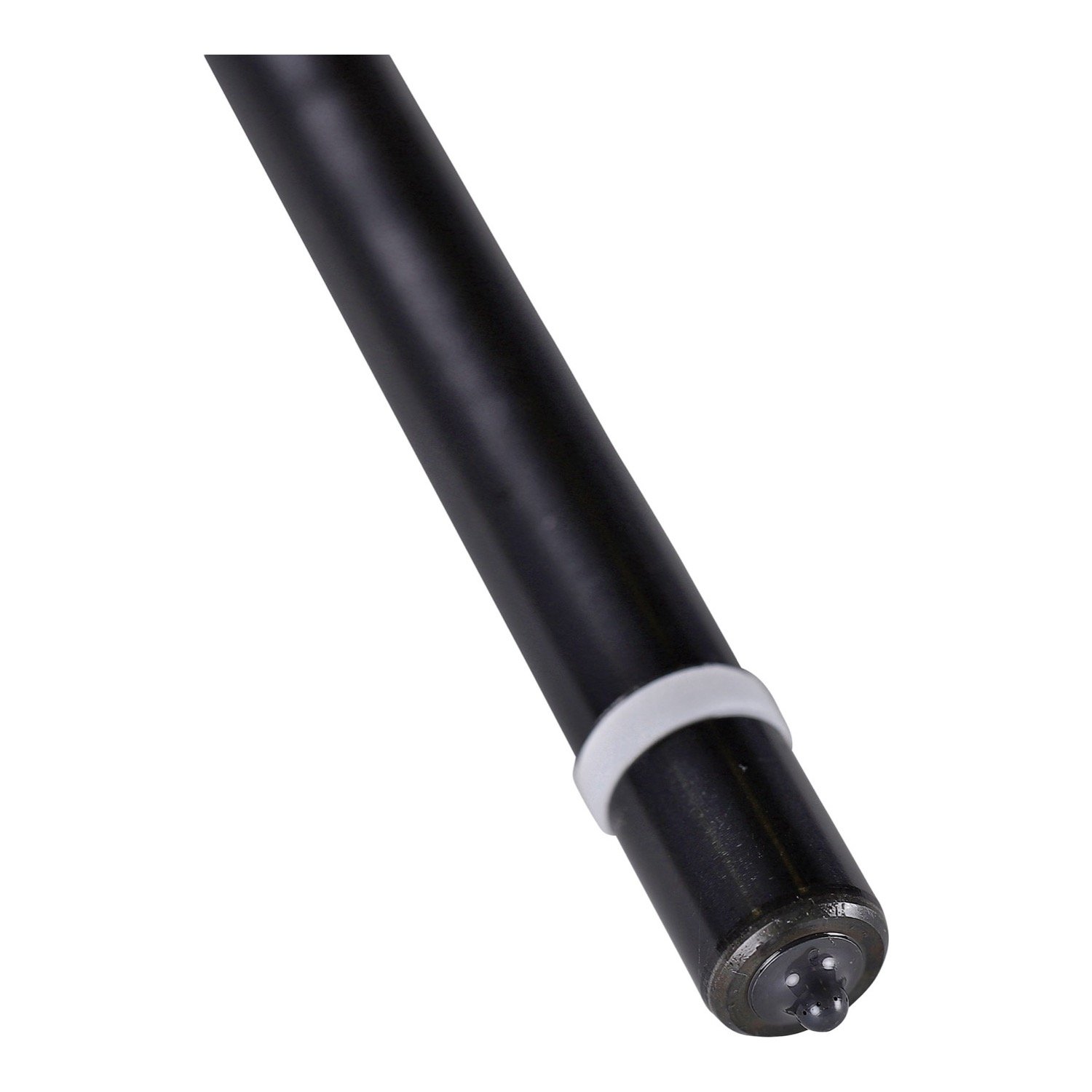

This is the Alliant Power D8N7005, a new 7000 Series fuel injector nozzle for Caterpillar 3304 and 3306 mechanical engines. It is a new pencil nozzle, not a rebuild. It takes the place of Cat 8N7005, which replaced the older Cat 8N7001. Cat’s own remanufactured numbers for this nozzle are 0R3418 and 0R1740. Catalogs list Cat 8N7005 for a long run of machines, among them the D4E, D5B, D6D, D6H and D7G tractors, the 936E, 950B and 966D wheel loaders, the 12G and 140G motor graders and the Challenger 65 farm tractor. It is sold each: four for a 3304, six for a 3306.
Hard starting, a miss at idle, black or white smoke, fuel in the oil and high fuel use all point at worn nozzles on these mechanical engines. Nozzles wear as a set, so most shops change every cylinder at the same time and check the injection pump and lines while they are in there. This is a mechanical nozzle with no electrical connector, so there is nothing to code.
Confirm Fitment Before You Order
The 3304 and 3306 were built in more than one fuel system version, and catalogs show some machines with more than one nozzle, so the machine model alone does not settle it. This one is Cat 8N7005 (8N7001, 0R3418, 0R1740). The 3400 series nozzles Cat 4W7017 and 4W7018 are different part numbers, sold here as D4W7017 and D4W7018. Send us the number on your old nozzle and the engine serial number before you order. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | D8N7005 |
| Brand | Alliant Power |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | 7000 Series mechanical pencil nozzle, no electrical connector |
| Engines | Caterpillar 3304 and 3306 |
| Replaces Cat | 8N7005, 8N7001 |
| Cat remanufactured numbers | 0R3418, 0R1740 |
| Nozzles per engine | 4 on the 3304, 6 on the 3306 |
| Sold as | Each |
| Shipping weight | 2 lb |
Fits / Applications
- Caterpillar 3304 engines that use nozzle 8N7005 or 8N7001
- Caterpillar 3306 engines that use nozzle 8N7005 or 8N7001
- Track-type tractors: D4E, D5B, D5H, D6D, D6E, D6H, D7G, D7H
- Wheel loaders: 936E, 936F, 950B, 950E, 966D, 966E, 966F. Track loader: 963
- Motor graders: 12G, 120G, 130G, 140G
- Excavators: 225D, 235B, 235C, 330, 350L, EL240
- Skidders 515, 518 and 518C, D300D articulated truck, Challenger 65, 65B, 65C and 65D farm tractors
- 627E and 627F scrapers: listed for the 3306 engine (the 3406 engine takes Cat 4W7017)
- Catalogs show some of these machines with more than one nozzle. Match the number on your old nozzle and check the engine serial number with us.
Clean the nozzle bore and seat before fitting, renew the seals, keep the fuel line connections clean while they are open and torque the nozzle and line nuts to the Caterpillar figures for your engine. Bleed the fuel system before starting.
Part Numbers & Cross Reference
Alliant Power D8N7005 · Caterpillar 8N7005 · Caterpillar, older number 8N7001 · Caterpillar remanufactured 0R3418 · Caterpillar remanufactured 0R1740
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Which engines and machines does the D8N7005 fit?
Caterpillar 3304 and 3306 engines built with nozzle 8N7005 or 8N7001. Catalogs list it for machines such as the D4E, D5B, D6D, D6H and D7G tractors, 950B and 966D loaders and 12G and 140G graders. Call 530-668-0818 with your engine serial number and we will confirm it.
What Caterpillar numbers does the D8N7005 replace?
Cat 8N7005 and the older 8N7001. Cat sells the same nozzle remanufactured as 0R3418 and 0R1740.
Will it fit a 3406?
Order by nozzle number. Catalogs list the 3406B, 3408 and 3412 with Cat 4W7017 or 4W7018, sold here as D4W7017 and D4W7018, and list Cat 8N7005 for the 3304 and 3306.
How many do I need?
It is sold each and every cylinder takes one: four on a 3304 and six on a 3306. It is a new Alliant Power nozzle, not a rebuild.
