Kubota V1903, V2003, V2203 & V2403 IDI Fuel Injector | Denso 093500-5060 New (Kubota 16454-53905)

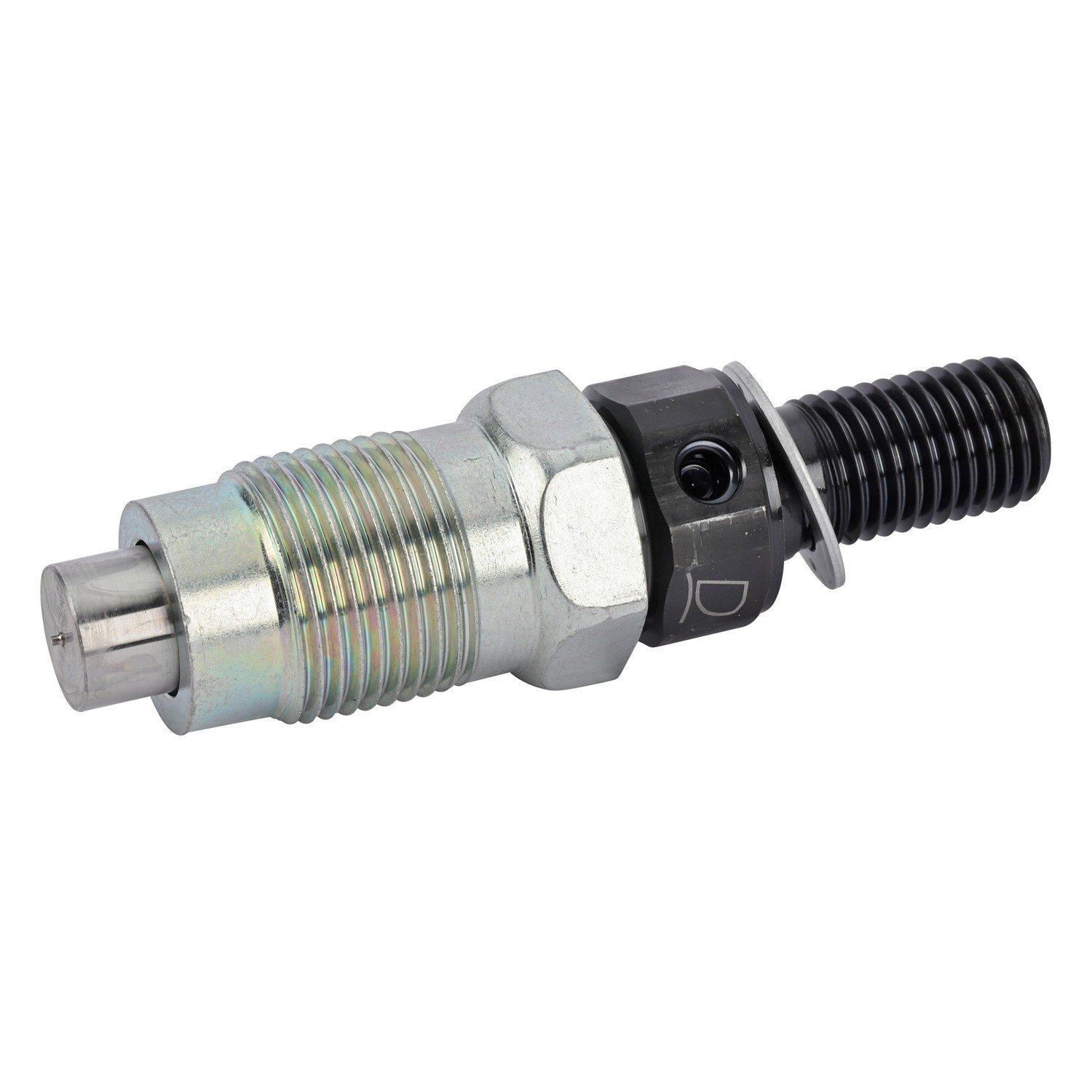

Denso 093500-5060 is a new Denso nozzle holder assembly, the complete injector, sold by Kubota as 16454-53905 (earlier 16454-53900, 16454-53903 and 16454-53000). It fits Kubota’s 4-cylinder indirect-injection V1903, V2003, V2203 and V2403 engines, 4 per engine. It is listed for Kubota KX121-2, KX121-3, KX161-2, KX161-3 and U45S excavators, the R520 wheel loader, L3600 and L3940 tractors, M4700, M4900, M5400 and M5700 tractors, and MX4700 and MX5000 tractors. Bobcat lists it as 6722147 and 7023120 for the 753, 763 and 773.
These get replaced for hard starting, smoke, knock, loss of power or a failed pop test. Kubota used more than one injector on the V2203 family. The 16082-series injector (Denso 093500-4540) also appears on V2203 engines and on some of the same generator and loader models, so match the number on your old injector.
Confirm Fitment Before You Order
Some V2203 engines take the 16082-series injector (Denso 093500-4540) instead, and the M-DI and CR versions of these engines use different injectors again. Send us the engine model and serial number, the machine model and serial, or the number on your old injector. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 093500-5060 |
| Brand | Denso |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Complete injector (nozzle holder with nozzle) |
| Combustion system | Indirect injection (IDI) |
| Engines | Kubota V1903, V2003, V2203, V2403 (IDI) |
| Injectors per engine | 4 |
| Kubota number | 16454-53905 (replaces 16454-53000, 16454-53900, 16454-53903) |
| Bobcat numbers | 6722147, 7023120 |
| Price | $112.00 |
| Shipping weight | 2 lb |
Fits / Applications
- Kubota V1903, V2003, V2203 and V2403 indirect-injection engines
- Kubota KX121-2, KX121-3, KX161-2, KX161-3 and U45S excavators
- Kubota R520 wheel loader
- Kubota L3600 and L3940 tractors
- Kubota M4700, M4900, M5400 and M5700 tractors
- Kubota MX4700 and MX5000 tractors
- Bobcat 753, 763 and 773 skid-steer loaders
Kubota’s 03-M workshop manual lists 13.73 to 14.70 MPa (1992 to 2133 psi) opening pressure for its IDI V2003-M, V2203-M and V2403-M engines, set with a washer inside the holder. Check the manual for your exact engine. Replace the heat seal and gasket under the injector and bleed the fuel system after installation.
Part Numbers & Cross Reference
Kubota (current) 16454-53905 · Kubota (earlier) 16454-53900, 16454-53903, 16454-53000 · Kubota (also listed) 16454-53001, 16454-53002, 16454-53003, 16454-53012 · Bobcat 6722147 · Bobcat 7023120
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Is Denso 093500-5060 the same injector as Kubota 16454-53905?
Yes. Denso 093500-5060 is the complete injector Kubota sells as 16454-53905. Earlier Kubota numbers are 16454-53900, 16454-53903 and 16454-53000.
Does 093500-5060 fit the Bobcat 753, 763 and 773?
Yes. Bobcat lists it as 6722147 and 7023120 for the 753, 763 and 773. Match the number on your old injector, or call 530-668-0818 with the engine model and serial number and we will confirm it at no charge.
My engine is a V2203. Do I need 093500-5060 or 093500-4540?
Kubota used more than one injector on the V2203 family. The 16082-series injector (Denso 093500-4540) also appears on V2203 engines and on some of the same generator and loader models, so match the number on your old injector.
How many 093500-5060 injectors per engine, and is there a core charge?
The V1903, V2003, V2203 and V2403 indirect-injection engines take 4. Each is a new Denso complete injector, so no core charge applies and nothing has to be returned.
