Deutz BF3L1011F & BF3M1011F 3-Cylinder S100 Turbocharger | BorgWarner 317206 New (Deutz 04272501)

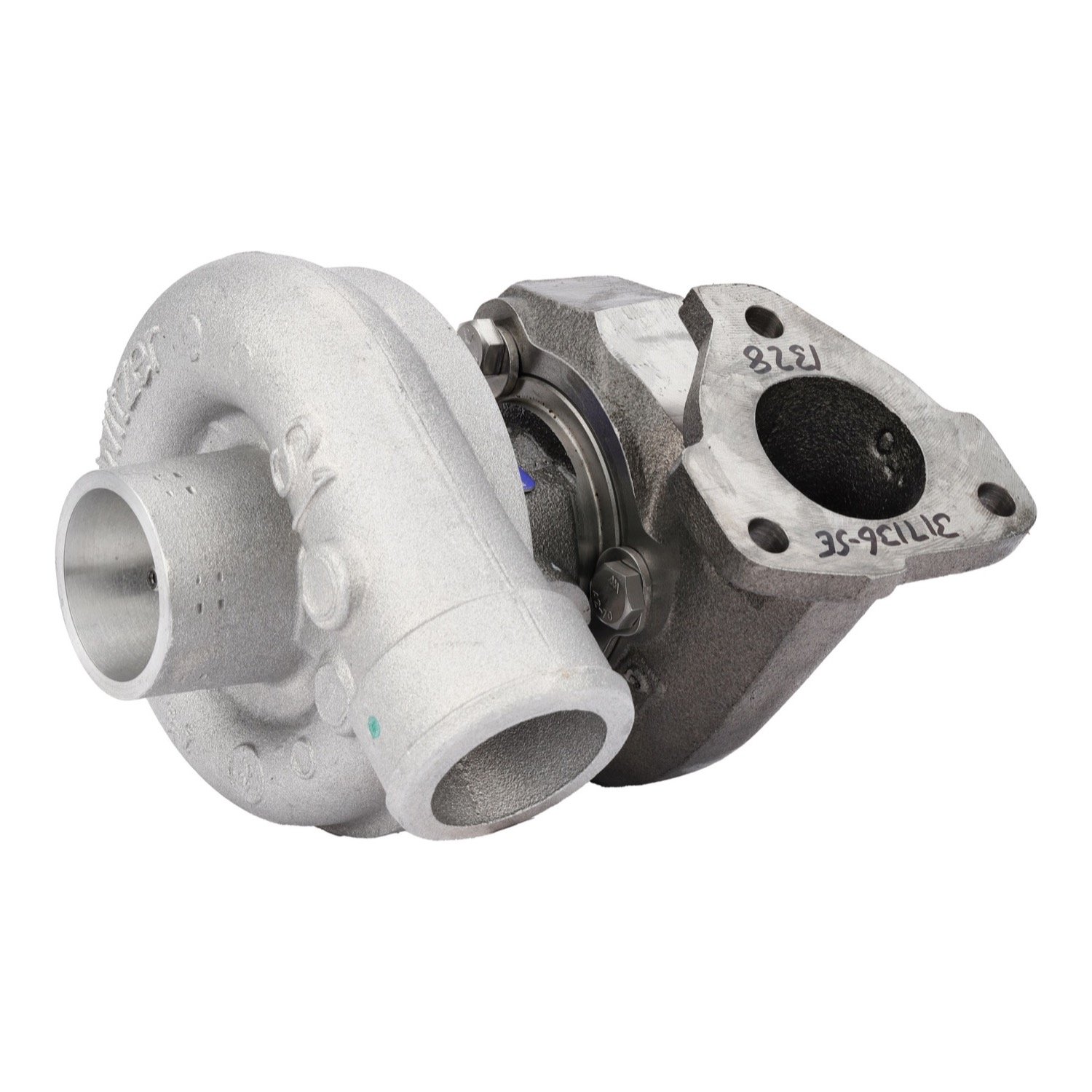

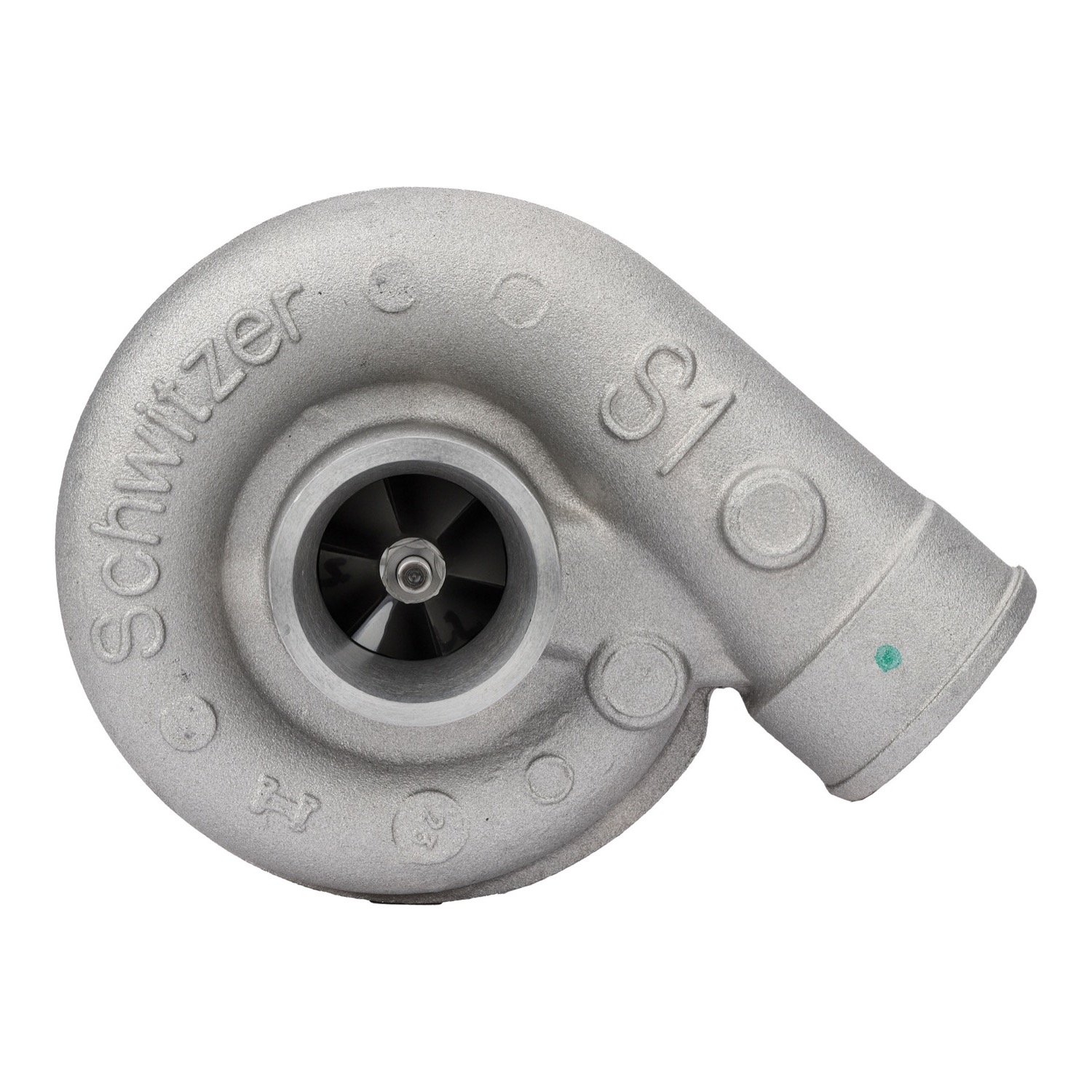

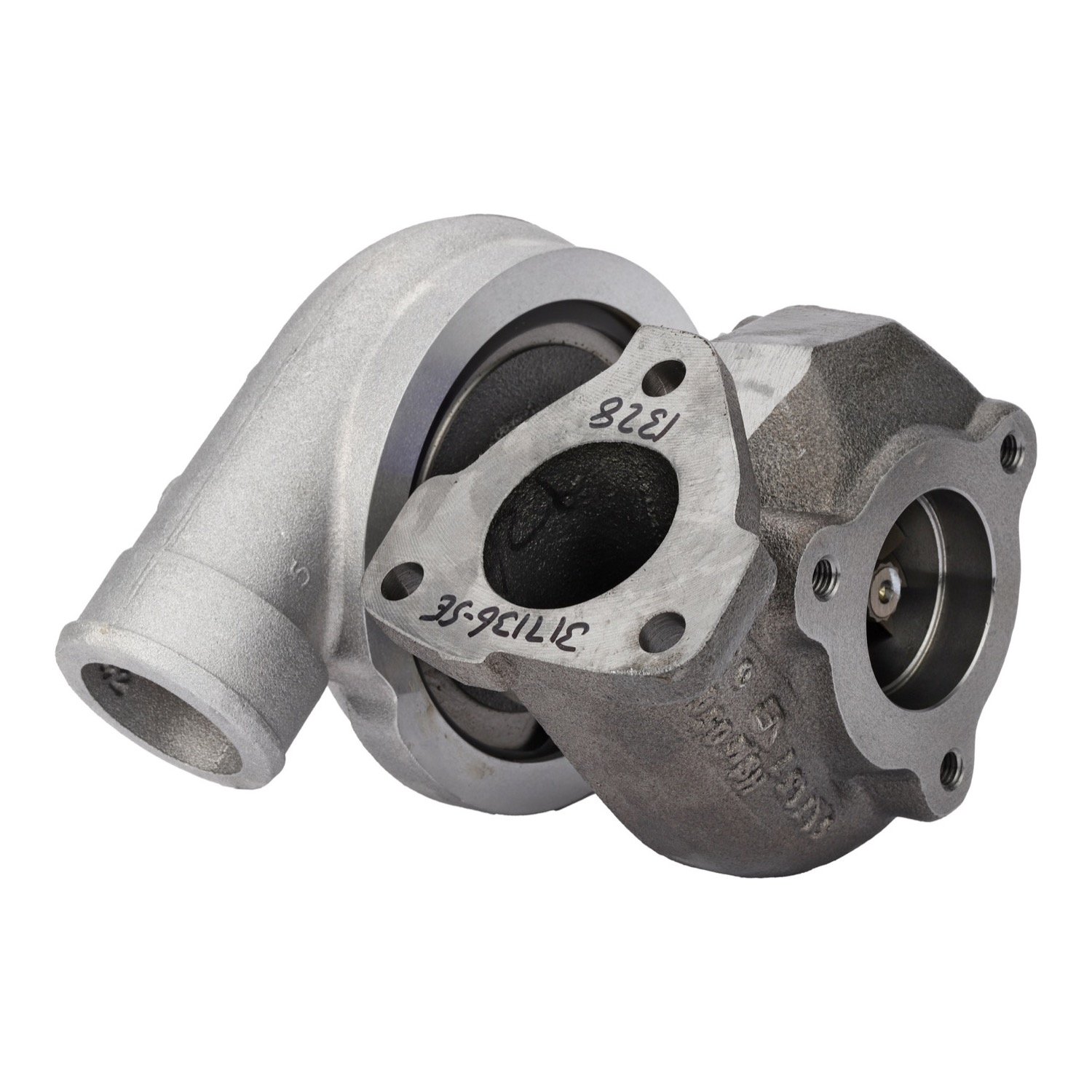

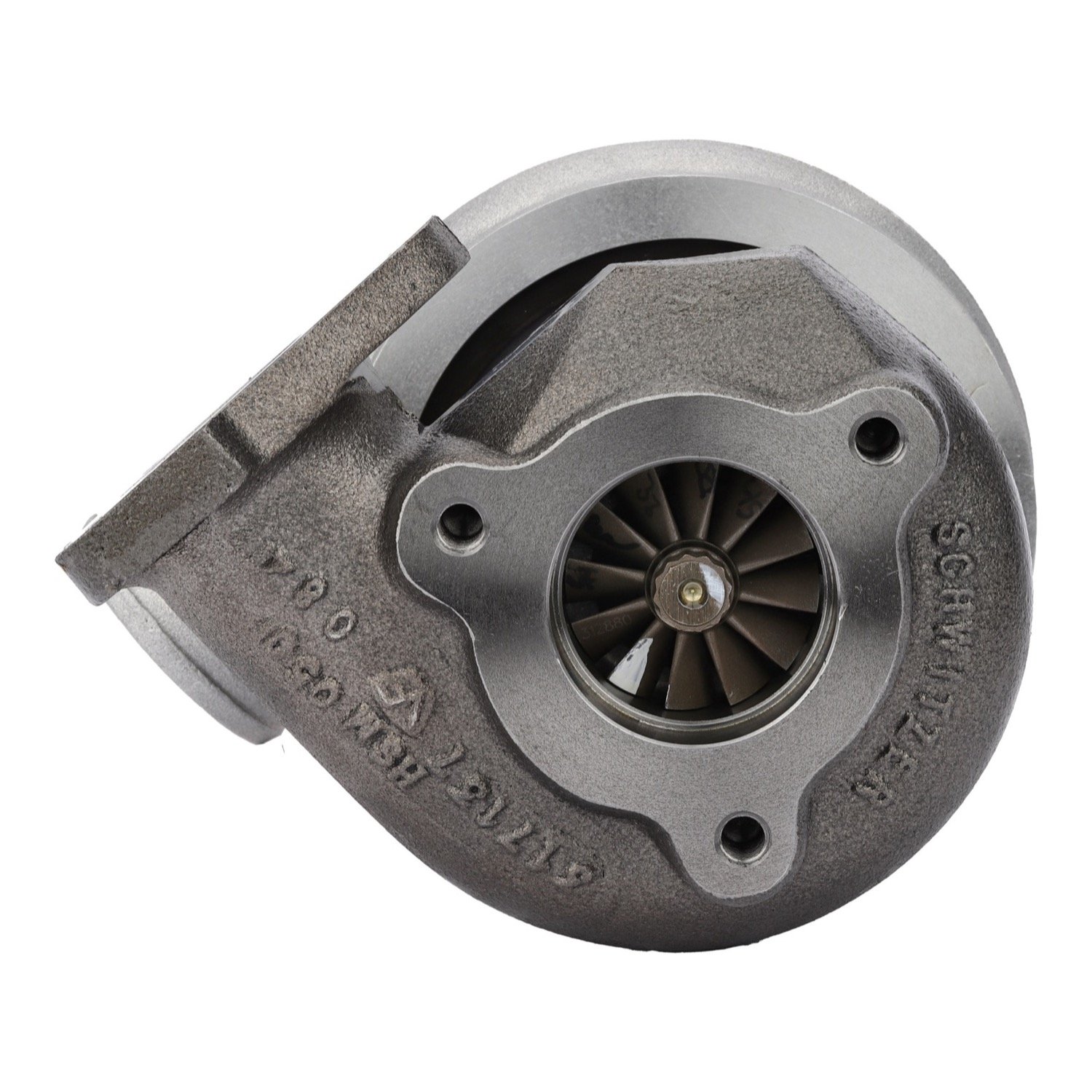

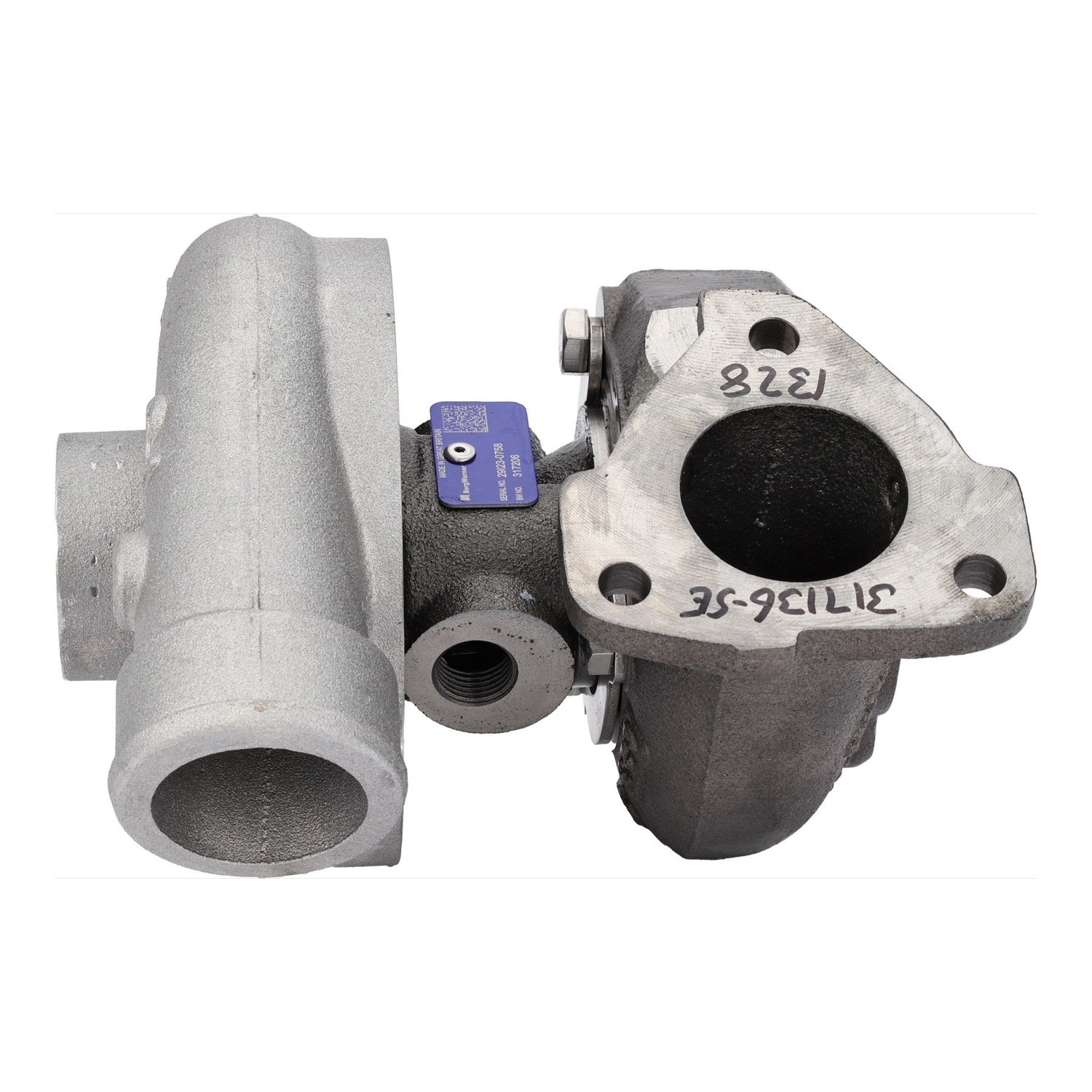

This is the BorgWarner 317206, a new S100 turbocharger made by BorgWarner, the company behind the Schwitzer turbos Deutz fitted at the factory. Catalogs list it for the Deutz three-cylinder 1011 series turbo diesels: BF3L1011, BF3L1011F, BF3M1011 and BF3M1011F, rated at about 51 kW (68 to 69 hp) and dated 1999 to 2008. It crosses to Deutz 04272501, 04272460, 04271768, 04271744 and 04102711.
These small oil-cooled Deutz engines turn up in skid steers and other compact equipment. The turbo is replaced for shaft play, oil in the intake, low boost, black smoke under load or a damaged wheel. Oil condition matters more than usual here because the engine oil also does the cooling. This is the three-cylinder turbo. Catalogs list the four-cylinder BF4M1011F with a different BorgWarner turbo, the S1B 317959, so match the number on the turbo tag or the Deutz part number before you order.
Confirm Fitment Before You Order
The Deutz 1011 and 2011 turbo engines used several small Schwitzer and BorgWarner turbos, and the four-cylinder engines are catalogued with other part numbers. Send us the number from the turbo tag (317206, 317125, 317126, 317901 or 317902 for this one), the Deutz part number if you have it, and the engine model and serial number from the engine data plate. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 317206 |
| Brand | BorgWarner |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Turbocharger |
| Turbo model | BorgWarner (Schwitzer) S100 |
| Engines | Deutz BF3L1011, BF3L1011F, BF3M1011 and BF3M1011F (three-cylinder, turbocharged) |
| Engine rating in catalogs | About 51 kW (68 to 69 hp) |
| Years in catalogs | 1999 to 2008 |
| Deutz numbers | 04272501, 04272460, 04271768, 04271744, 04102711 |
| Other BorgWarner numbers | 317125, 317126, 317901, 317902, 11479700007 |
| Shipping weight | 10 lb |
Fits / Applications
- Deutz BF3L1011 and BF3L1011F three-cylinder turbo diesel
- Deutz BF3M1011 and BF3M1011F three-cylinder turbo diesel
- Deutz part numbers 04272501, 04272460, 04271768, 04271744 and 04102711
- Old turbo tag reads 317206, 317125, 317126, 317901 or 317902
- Not listed for the four-cylinder BF4M1011F, which catalogs show with BorgWarner 317959
- Confirm by engine model and serial number
Fit new gaskets, prime the turbo with clean engine oil and check the oil feed and drain lines for restriction. Change the oil and filter. On these oil-cooled engines, check the oil cooler and the cooling blower too, since overheated oil is hard on the turbo bearings.
Part Numbers & Cross Reference
BorgWarner / Schwitzer 317206 · BorgWarner, long number 11479700007 · Deutz 04272501 · Deutz 04272460 · Deutz 04271768 · Deutz 04271744 · Deutz 04102711 · Deutz exchange numbers 04272501KZ, 04272460KZ, 04271768KZ, 04271744KZ · BorgWarner, other listed numbers 317125, 317126, 317901, 317902
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Which Deutz engines take the BorgWarner 317206?
Catalogs list it for the three-cylinder turbo engines of the 1011 series: BF3L1011, BF3L1011F, BF3M1011 and BF3M1011F. Check the Deutz part number or the turbo tag before you order.
Will it fit a four-cylinder BF4M1011F?
It is not listed for that engine. Catalogs show the four-cylinder BF4M1011F with a different BorgWarner turbo, the S1B 317959. Call 530-668-0818 with the engine model and serial number and the number on your turbo tag and we will match it.
What Deutz part numbers does it replace?
Deutz 04272501, 04272460, 04271768, 04271744 and 04102711, and the exchange numbers that end in KZ.
My turbo tag says Schwitzer, not BorgWarner. Is this the same turbo?
Yes. Schwitzer is a BorgWarner brand, and catalogs list this turbo as BorgWarner (Schwitzer) 317206. Tag numbers 317125, 317126, 317901 and 317902 cross to it as well.
