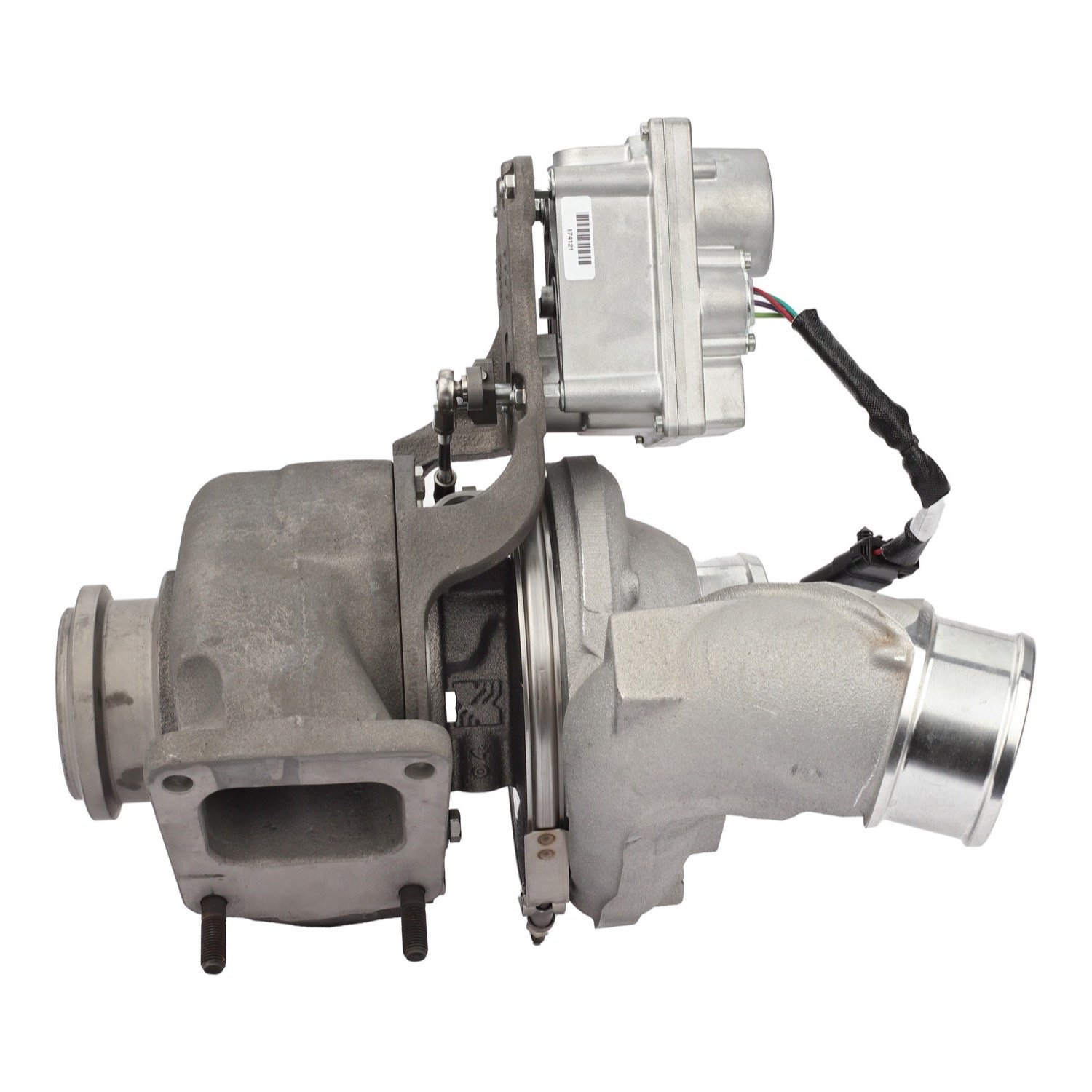

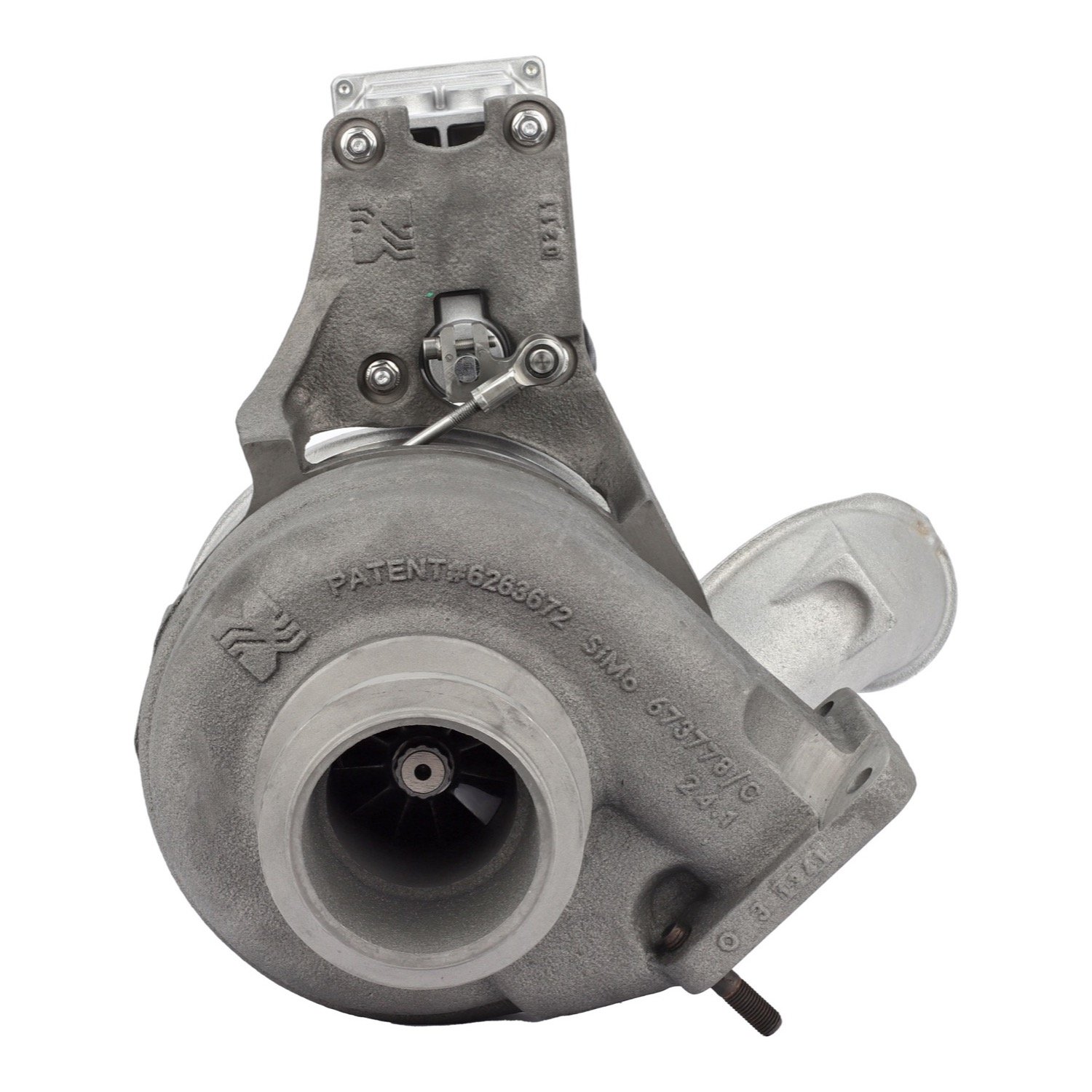

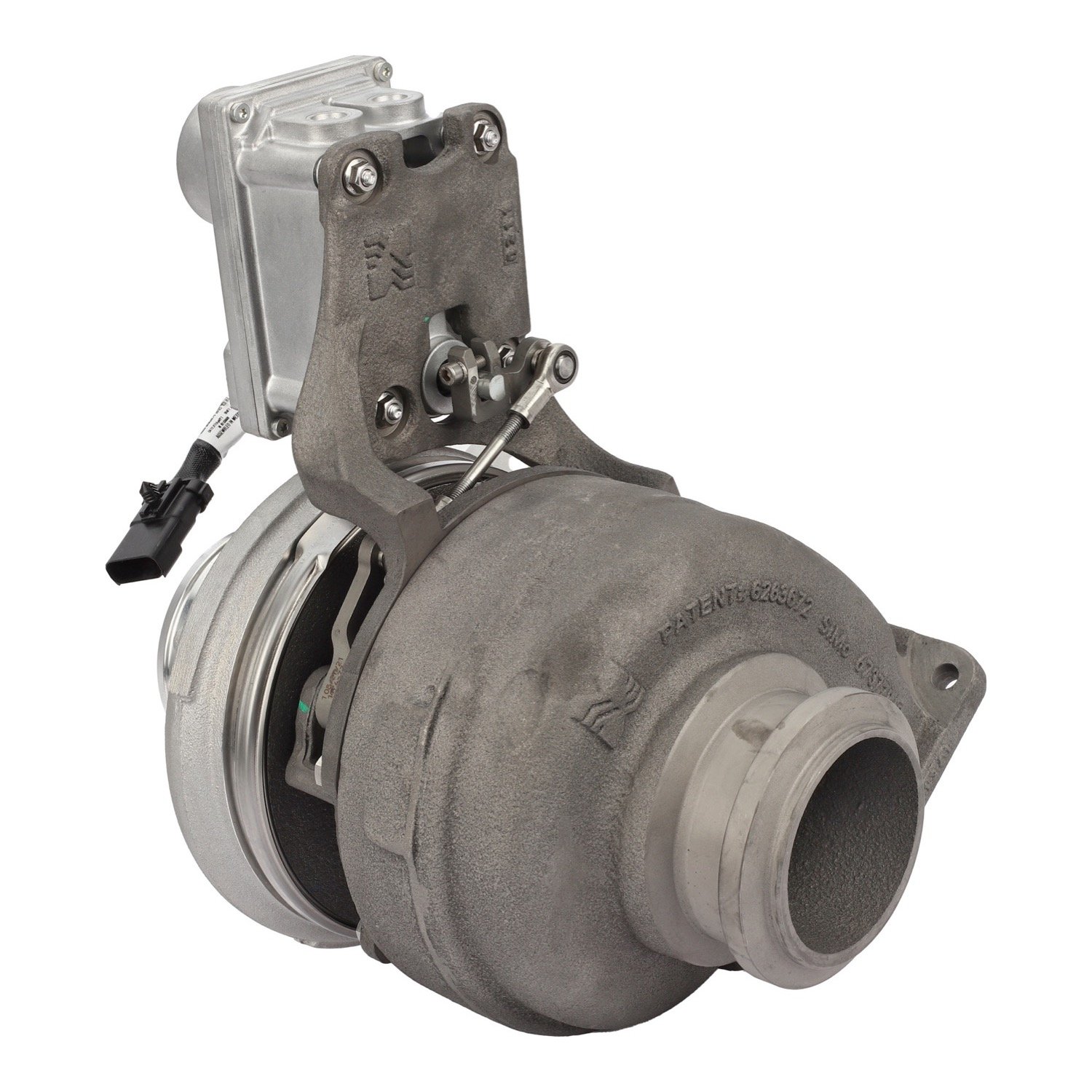

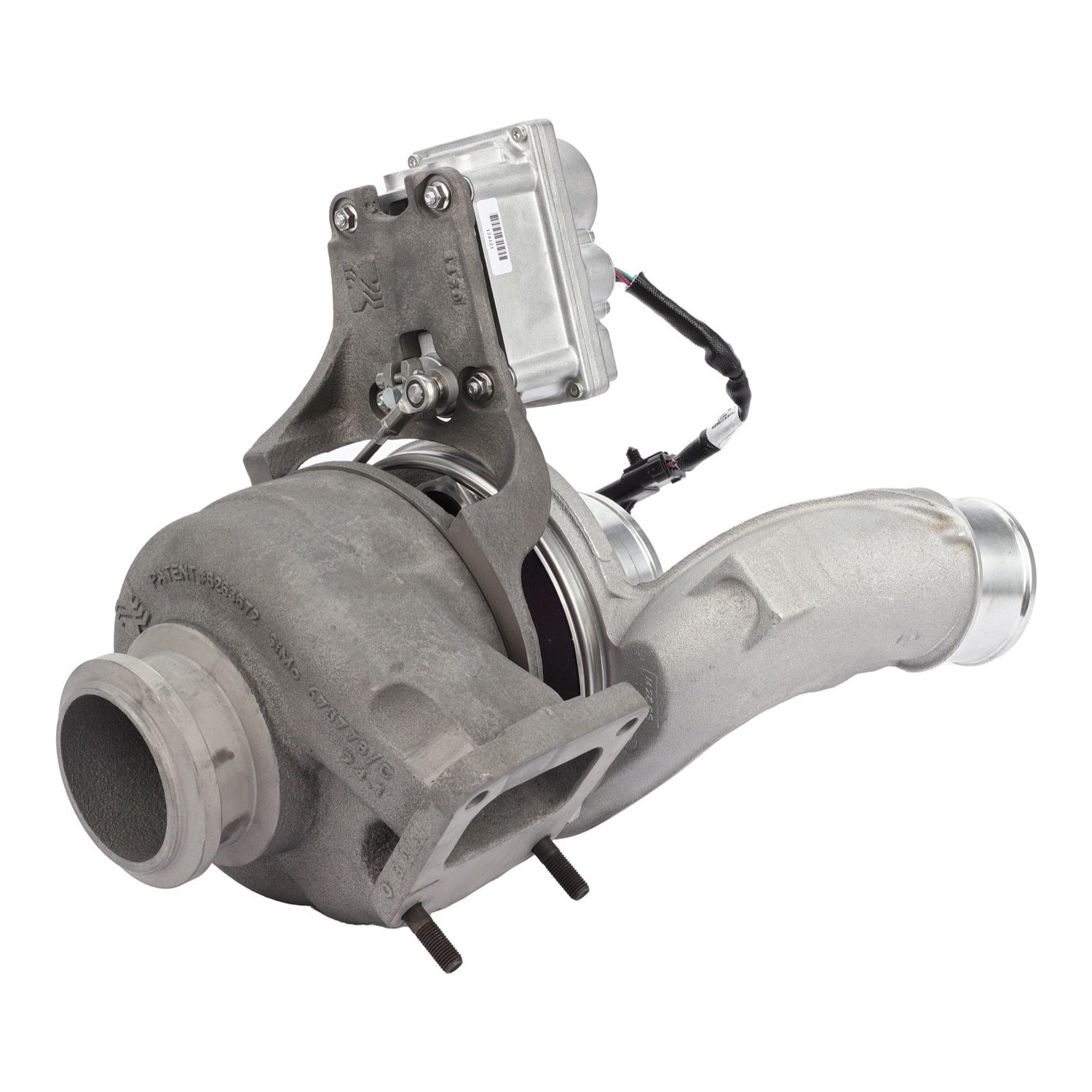

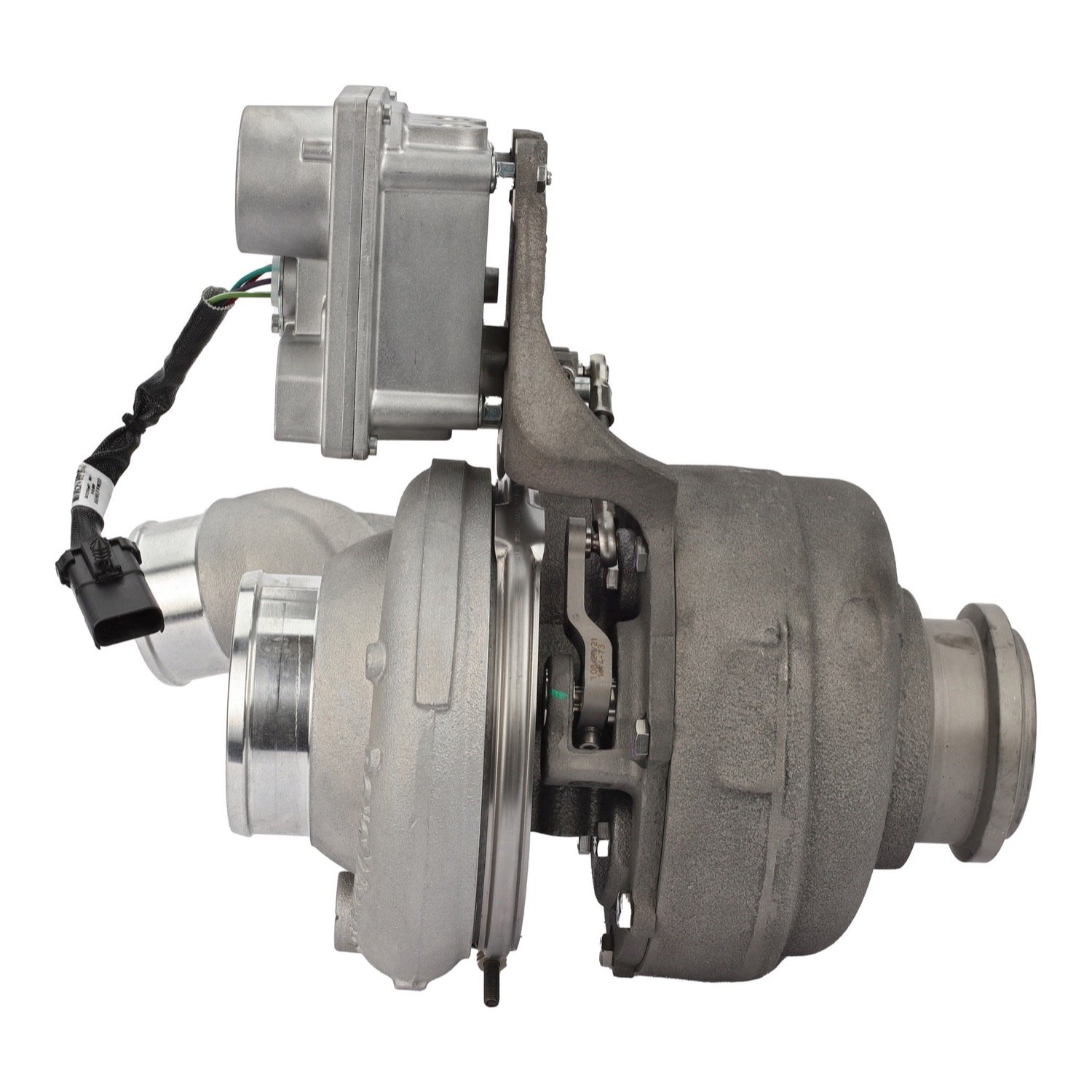

This is the BorgWarner 479032, an S300V variable geometry turbocharger remanufactured by BorgWarner, model S300V111. It is the low mount turbo for the International / Navistar DT466 7.6L inline six, which some catalogs also file under MaxxForce DT466, and it comes as a complete unit with the electronic actuator fitted. It replaces Navistar 1842216C91 to C95, 1842580C91 to C98, 1870931C91 to C94, 5010313R91 to R96, 5010574R91 and 5010575R91. The new version of the same turbo is BorgWarner 179032, with the same fitment. Heavy and medium duty turbos are matched by the number on the turbo tag, not by engine model alone.

Low boost, a boost control or actuator fault code, sticking vanes, oil in the charge pipes or shaft play are the usual reasons this unit comes off. Soot in the vanes and a failed actuator give the same low power complaint, so check for exhaust leaks, a split charge air cooler and wiring faults before you condemn the turbo. Find out why the old one failed as well: check the oil feed and drain, the air filter and the intake piping. A refundable core applies, so keep your old turbo complete with its actuator.

Specifications

Fits / Applications

• International / Navistar DT466 7.6L with the low mount S300V turbo, BorgWarner 179032 / 479032 family
• International trucks and buses, 2003 to 2008. Two catalogs run it to 2012.
• Turbos tagged Navistar 1842216C91 to C95, 1842580C91 to C98, 1870931C91 to C94, 5010313R91 to R96, 5010574R91 or 5010575R91
• Complete turbocharger with the electronic actuator
• Match by the number on your turbo tag

Flush or replace the oil feed line, check the oil drain for restriction, change the engine oil and filter, clean the charge air cooler and piping of oil and debris, and prime the turbo with clean oil before the first start. Use new gaskets and O-rings: sellers list a separate install kit for the DT466 turbos of these years, Alliant Power AP0170. Check that the actuator plug and harness are clean and sound before you connect them.

Part Numbers & Cross Reference

BorgWarner remanufactured 479032  ·  BorgWarner new twin 179032  ·  BorgWarner 173941  ·  BorgWarner remanufactured 473941  ·  Navistar 1842216C91  ·  Navistar 1842216C92  ·  Navistar 1842216C93  ·  Navistar 1842216C94  ·  Navistar 1842216C95  ·  Navistar 1842580C91  ·  Navistar 1842580C92  ·  Navistar 1842580C93  ·  Navistar 1842580C94  ·  Navistar 1842580C95  ·  Navistar 1842580C96  ·  Navistar 1842580C97  ·  Navistar 1842580C98  ·  Navistar 1870931C91  ·  Navistar 1870931C92  ·  Navistar 1870931C93  ·  Navistar 1870931C94  ·  Navistar 5010313R91  ·  Navistar 5010313R92  ·  Navistar 5010313R93  ·  Navistar 5010313R94  ·  Navistar 5010313R95  ·  Navistar 5010313R96  ·  Navistar 5010574R91  ·  Navistar 5010575R91

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does the 479032 come with the actuator?

Yes. Catalogs list it as a complete S300V turbocharger with the electronic actuator fitted. Keep your old turbo complete, actuator included, for the core return.

What Navistar numbers does the 479032 replace?

Navistar 1842216C91 to C95, 1842580C91 to C98, 1870931C91 to C94, 5010313R91 to R96, 5010574R91 and 5010575R91. It also takes the place of BorgWarner 173941.

Is the 479032 the same as the 12639900001 or the 479030?

No. The 479032 is the low mount S300V111. The 12639900001 is a mid mount B2UV, and the 479030 is another S300V with its own Navistar numbers. Go by the number on your turbo tag.

Is it new or remanufactured, and is there a core?

It is remanufactured by BorgWarner, and a refundable core applies. The new version of the same turbo is BorgWarner 179032.
