International DT466 7.6L S300V Turbo Actuator, 12V | BorgWarner 175788 New (Navistar 1847620C93)

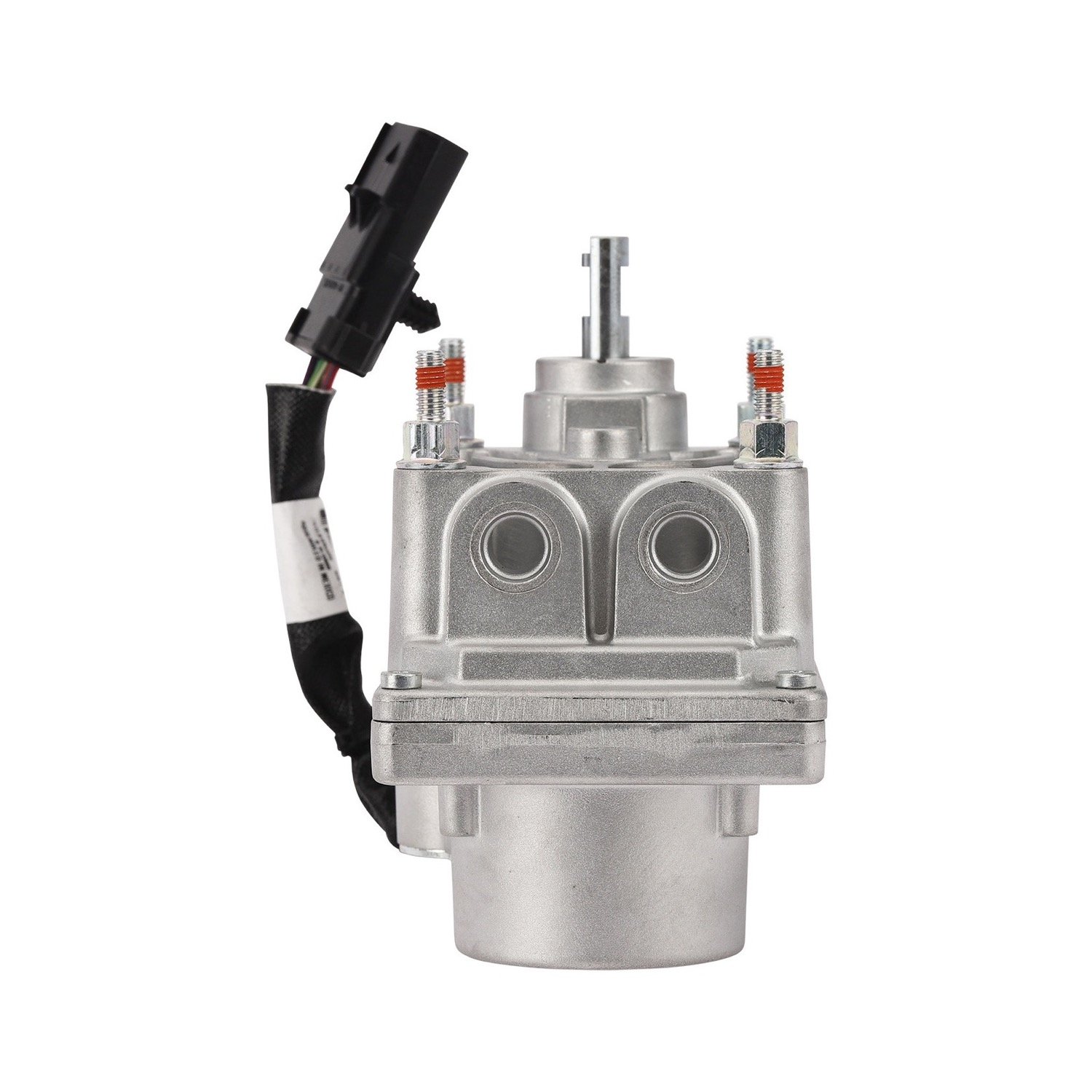

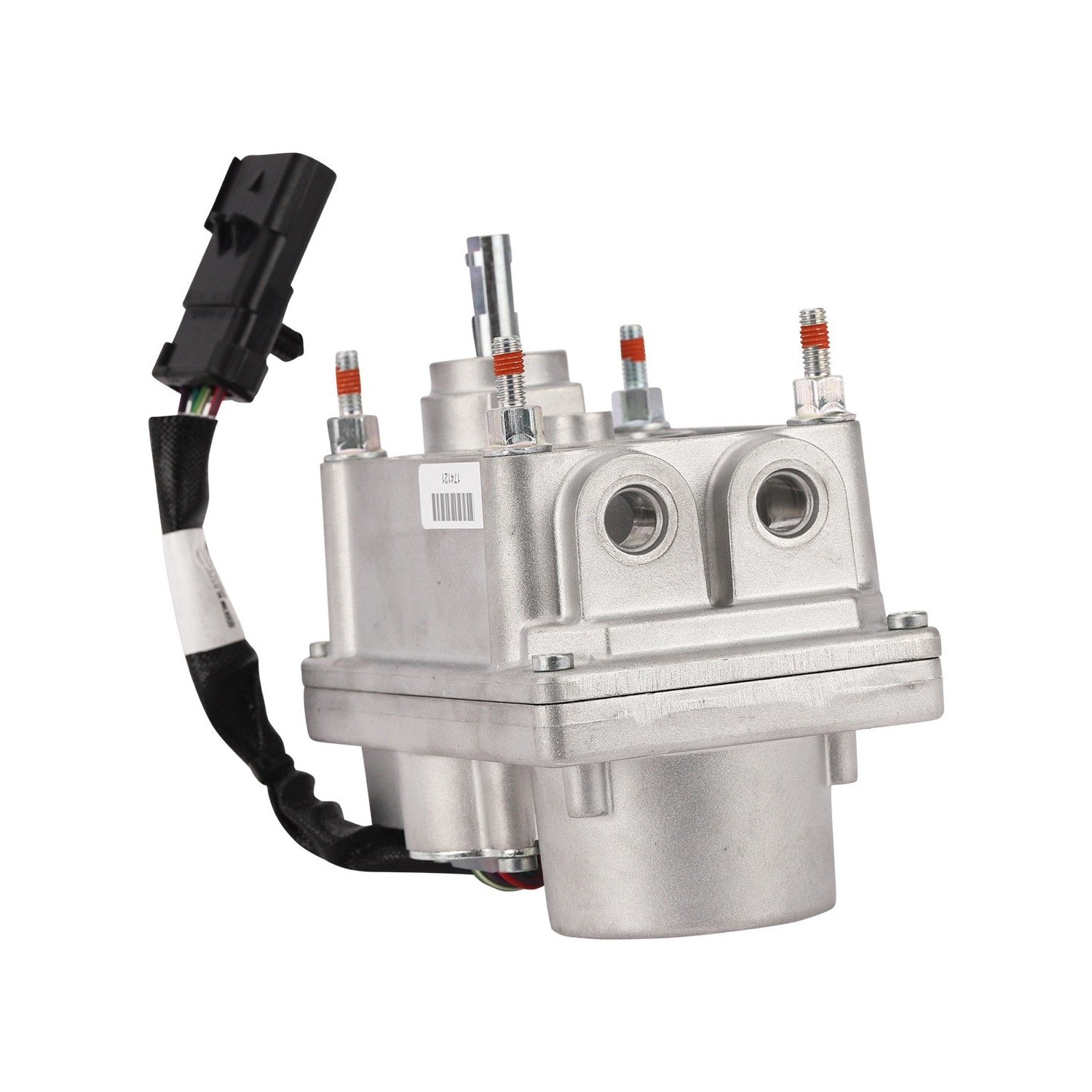

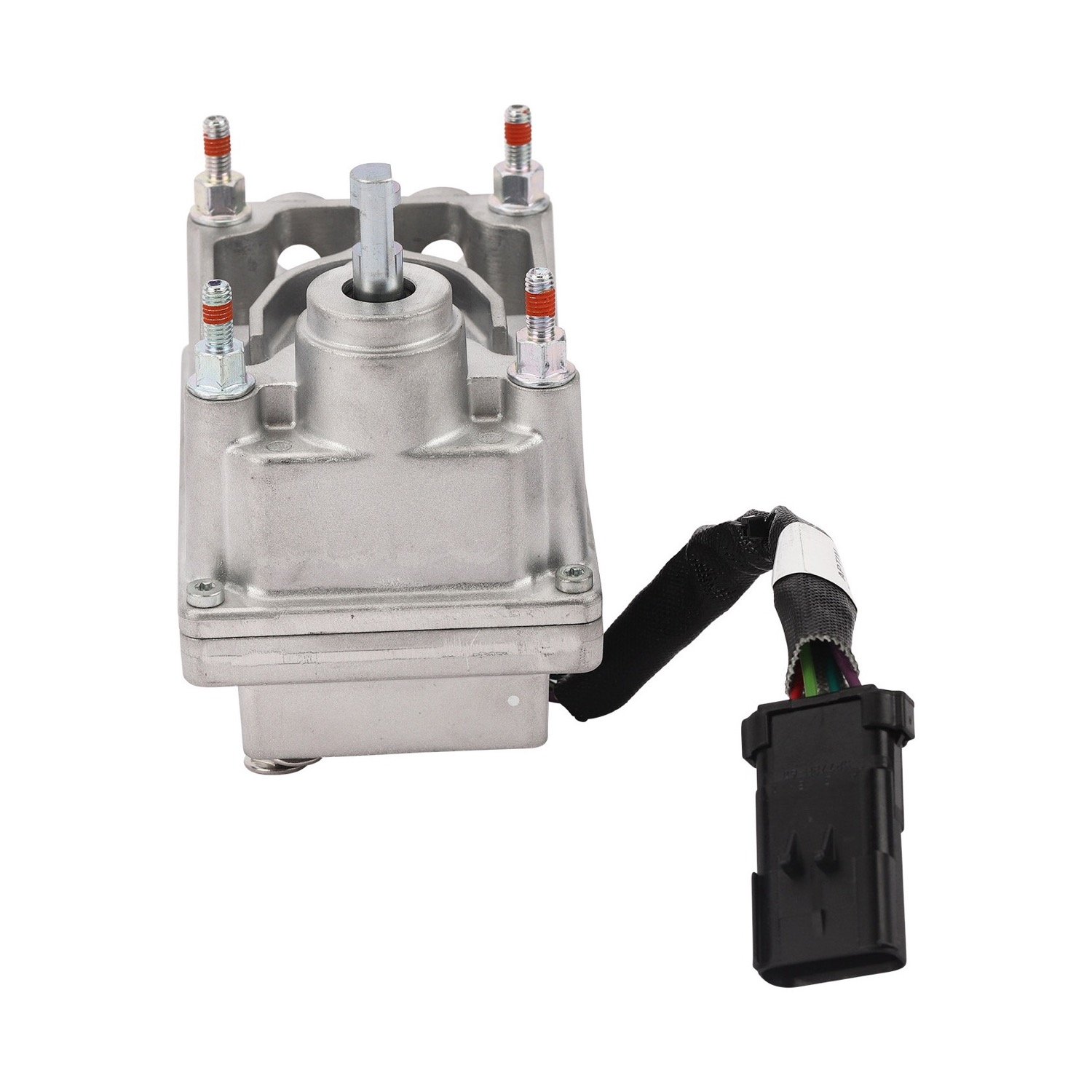

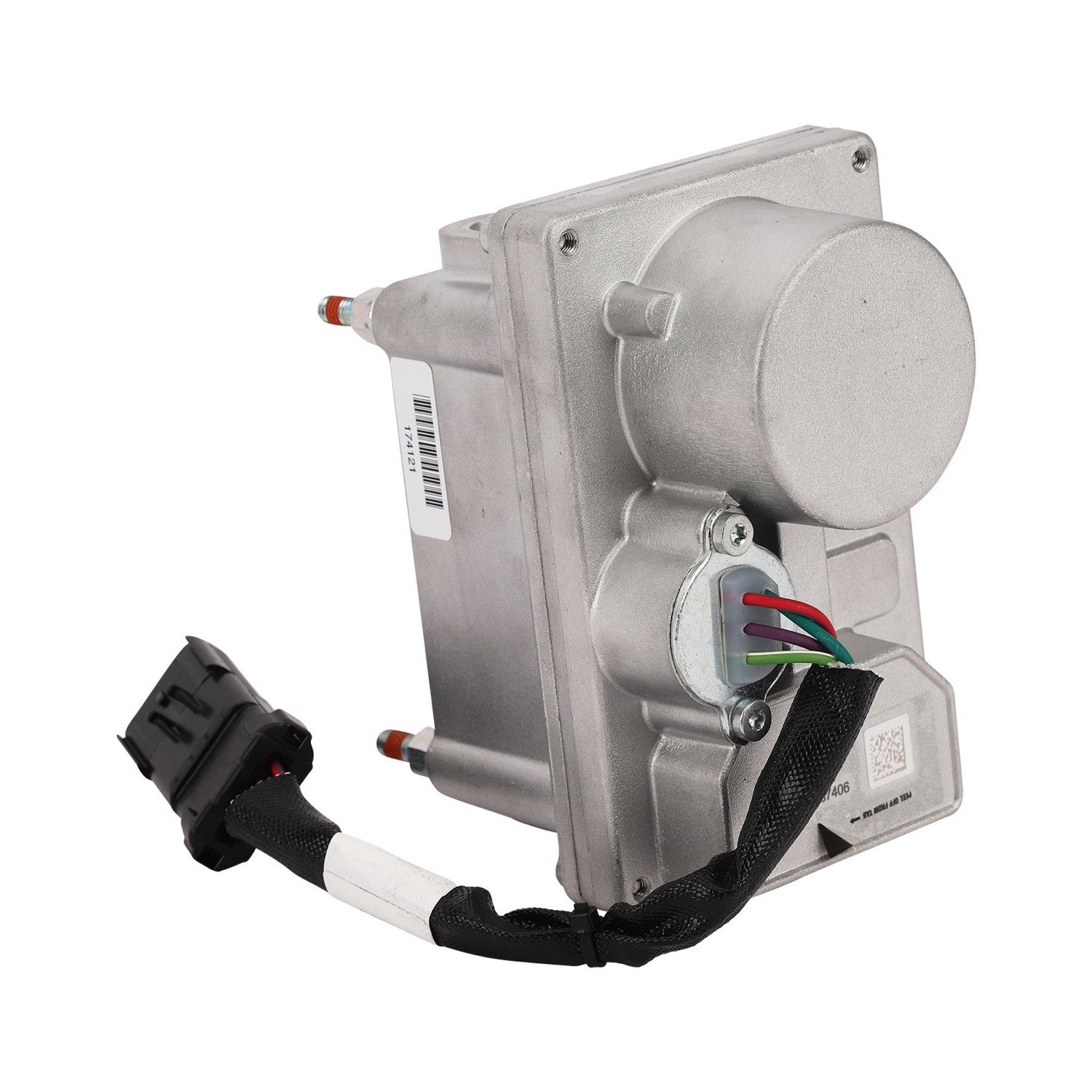

This is the BorgWarner 175788, a new 12 volt electronic actuator for the S300V variable geometry turbocharger used on the International / Navistar DT466 7.6L. It is a new BorgWarner part, not a rebuild. BorgWarner catalogs it as a 12 volt actuator kit, and parts catalogs also call it the Smart Remote Actuator. It replaces BorgWarner 174121 and Navistar 1847620C91, 1847620C92, 1847620C93, 2597513C91, 2597513C92, 2600263C1 and 5010588R91. This is the actuator only. The turbocharger is not included.
The actuator moves the vanes in the turbine housing on command from the engine computer. Low boost and turbo control fault codes are the usual reasons to replace it. Before you fit a new one, check that the vanes move freely through their full travel, and check the wiring and connector. A new actuator on a seized vane ring will fail again. Navistar also used a second BorgWarner actuator on the DT466, part 176892, with its own Navistar numbers. Match the number on your old actuator before you order.
Confirm Fitment Before You Order
Match this actuator by the number on your old one: BorgWarner 175788 or 174121, or Navistar 1847620C91, C92 or C93, 2597513C91 or C92, 2600263C1 or 5010588R91. If your old actuator reads BorgWarner 176892 or Navistar 1881150C92 or 5011180R91, that is a separate actuator and this one is not listed for it. Send us the number on the actuator, the number on the turbo tag and your engine serial number, and we will confirm it before you order. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 175788 |
| Brand | BorgWarner |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Electronic actuator for a variable geometry turbocharger (BorgWarner Smart Remote Actuator) |
| Turbo model | BorgWarner S300V |
| Engine | International / Navistar DT466 7.6L |
| Voltage | 12 V |
| Replaces BorgWarner | 174121 |
| Replaces Navistar | 1847620C91, 1847620C92, 1847620C93, 2597513C91, 2597513C92, 2600263C1, 5010588R91 |
| Supplied as | Actuator only, turbocharger not included |
| Shipping weight | 5 lb |
Fits / Applications
- International / Navistar DT466 7.6L with the BorgWarner S300V variable geometry turbocharger
- 12 volt systems
- Replaces BorgWarner 174121 and Navistar 1847620C91, 1847620C92, 1847620C93, 2597513C91, 2597513C92, 2600263C1 and 5010588R91
- Not listed for turbos that carry BorgWarner actuator 176892 (Navistar 1881150C92, 5011180R91)
- Match by the number on the old actuator and the turbo tag
Check that the turbo vanes move freely through their full travel before you fit the new actuator. Check the harness and connector for corrosion and rubbed wires. Sellers of this actuator say it may need to be paired or calibrated to the turbo with service software after fitting, so plan for that and follow the Navistar service procedure.
Part Numbers & Cross Reference
BorgWarner 175788 · BorgWarner 174121 · Navistar 1847620C93 · Navistar 1847620C92 · Navistar 1847620C91 · Navistar 2597513C91 · Navistar 2597513C92 · Navistar 2600263C1 · Navistar 5010588R91 · Interchange EX727311
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
What does the BorgWarner 175788 fit?
It fits the BorgWarner S300V variable geometry turbocharger on the International / Navistar DT466 7.6L, on 12 volt systems. Call 530-668-0818 with your engine serial number and the number on your old actuator to confirm.
What numbers does 175788 replace?
It replaces BorgWarner 174121 and Navistar 1847620C91, 1847620C92, 1847620C93, 2597513C91, 2597513C92, 2600263C1 and 5010588R91. If your old actuator carries another number, send it to us and we will check it.
Is 175788 the same as BorgWarner 176892?
No. Catalogs list 176892 as a separate DT466 actuator with its own Navistar numbers, 1881150C92 and 5011180R91. Order by the number on your old actuator, not by looks.
Does the new actuator need to be programmed?
Sellers of this actuator say it may need to be paired or calibrated to the turbo with service software after it is fitted. Check the Navistar service procedure before you start, and make sure the vanes move freely first.
