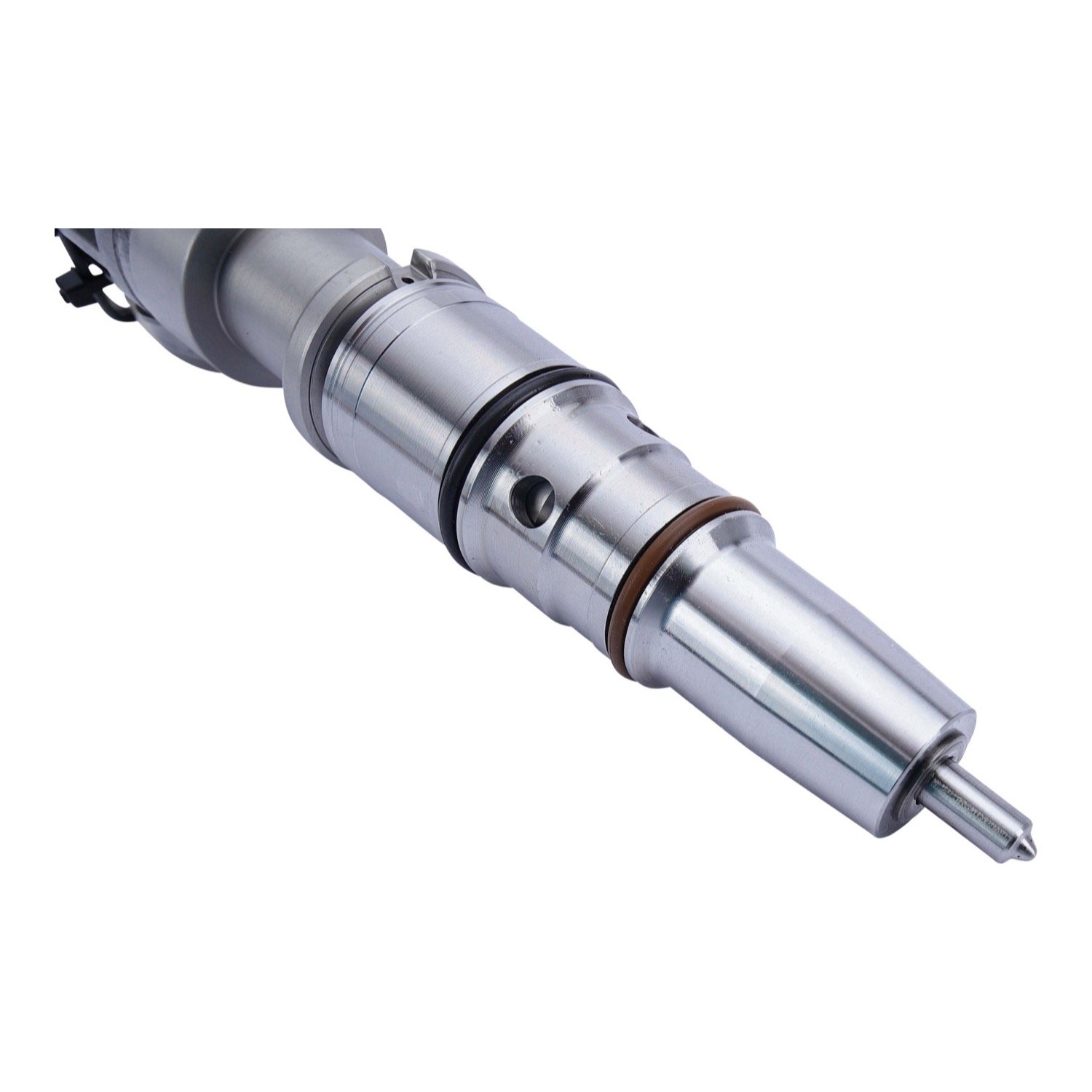

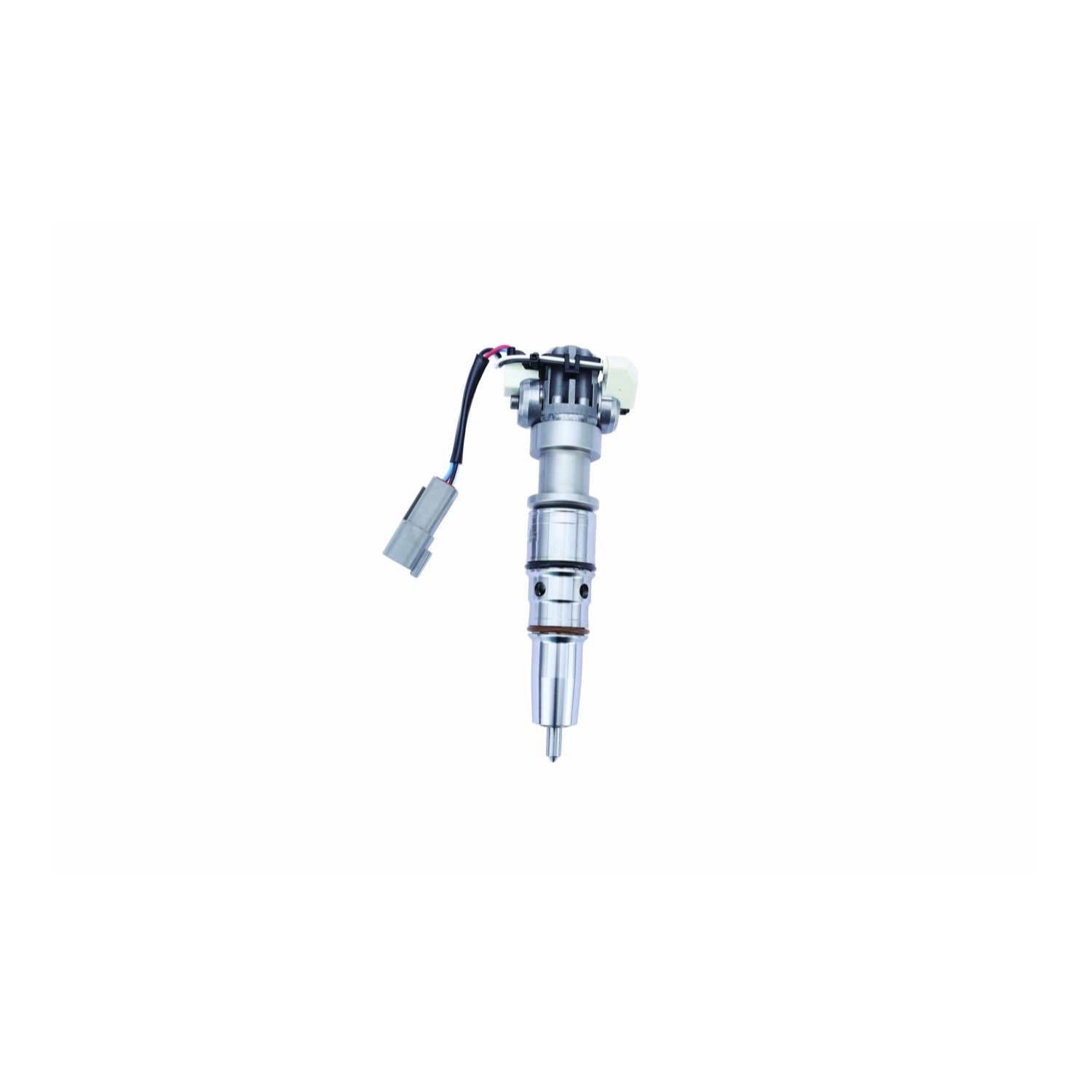

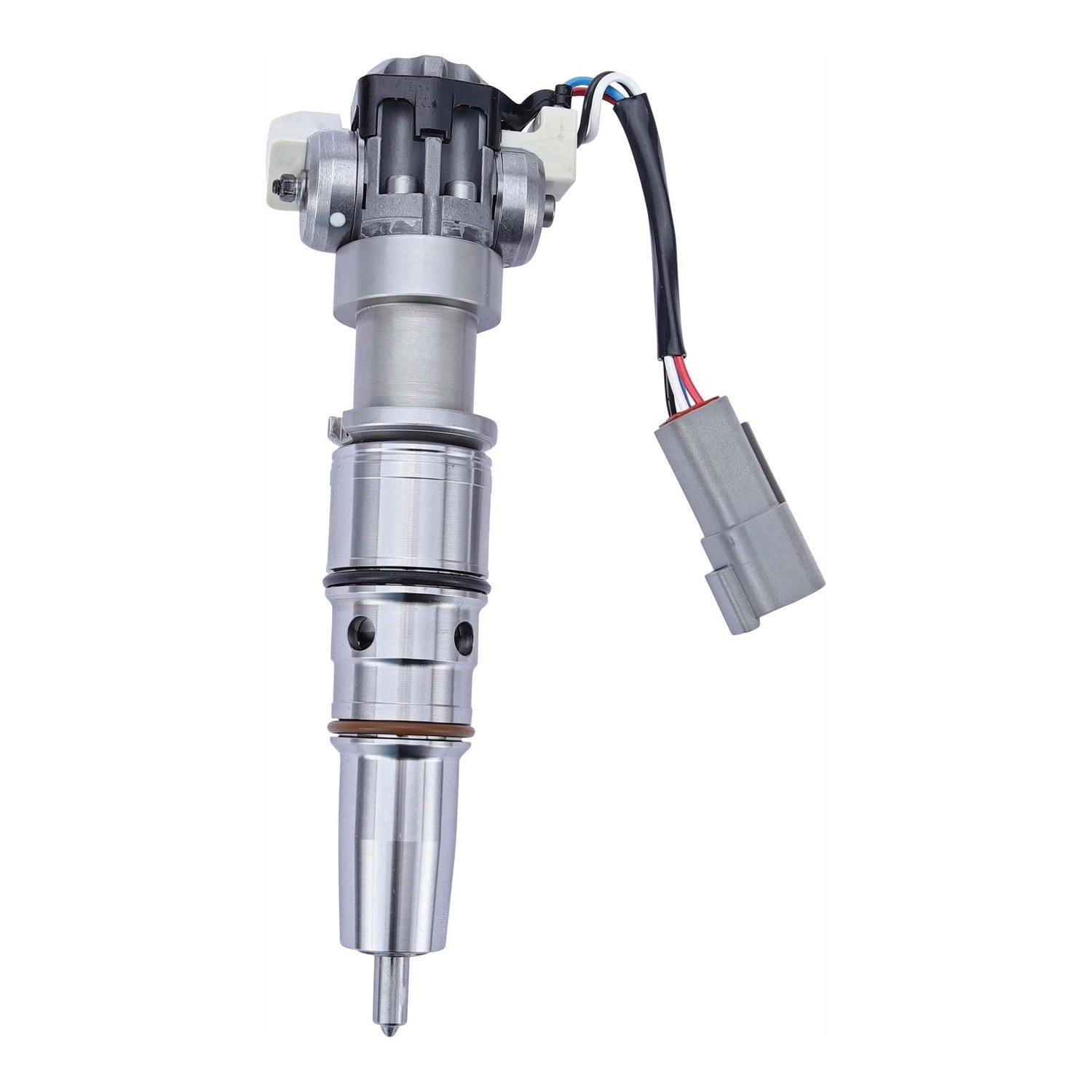

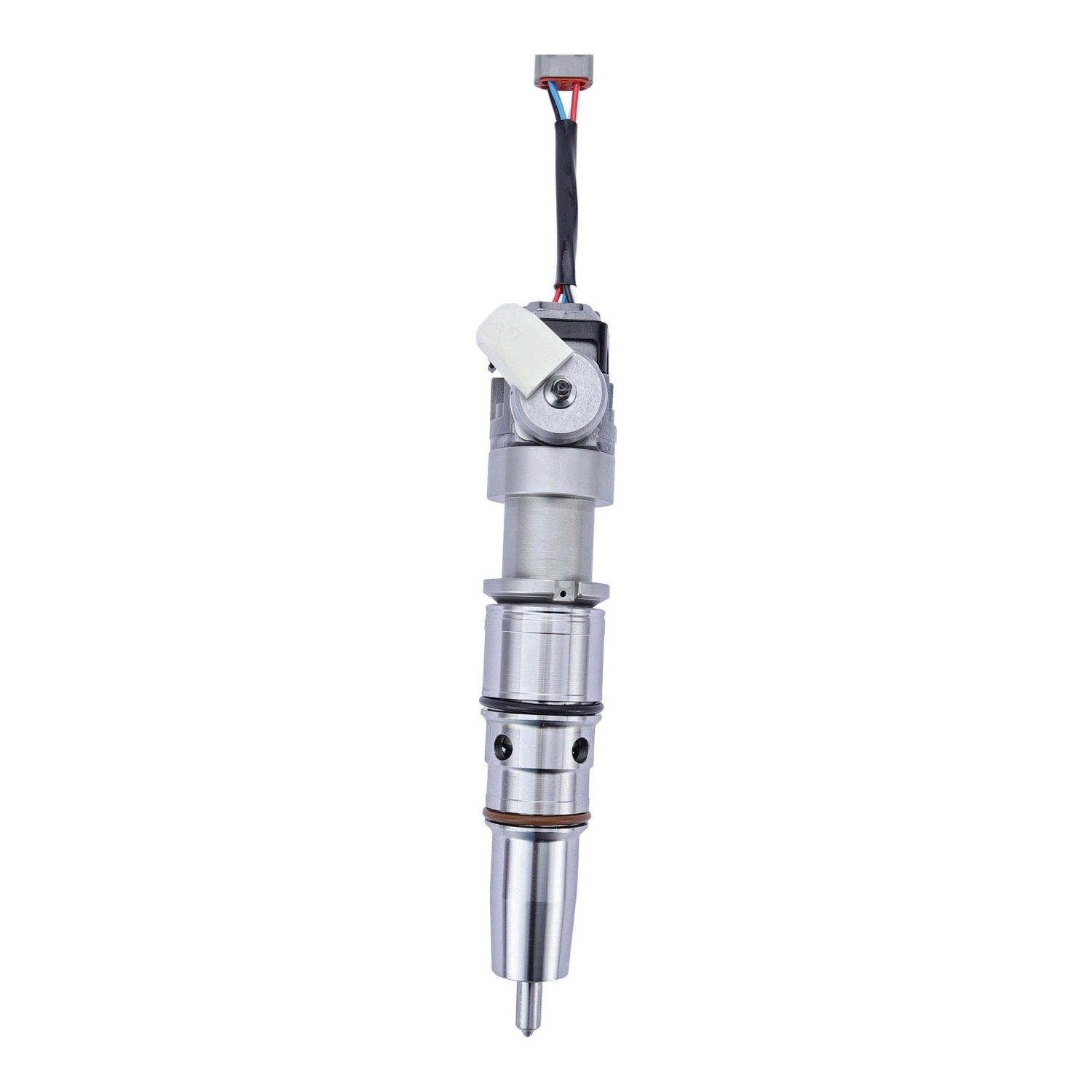

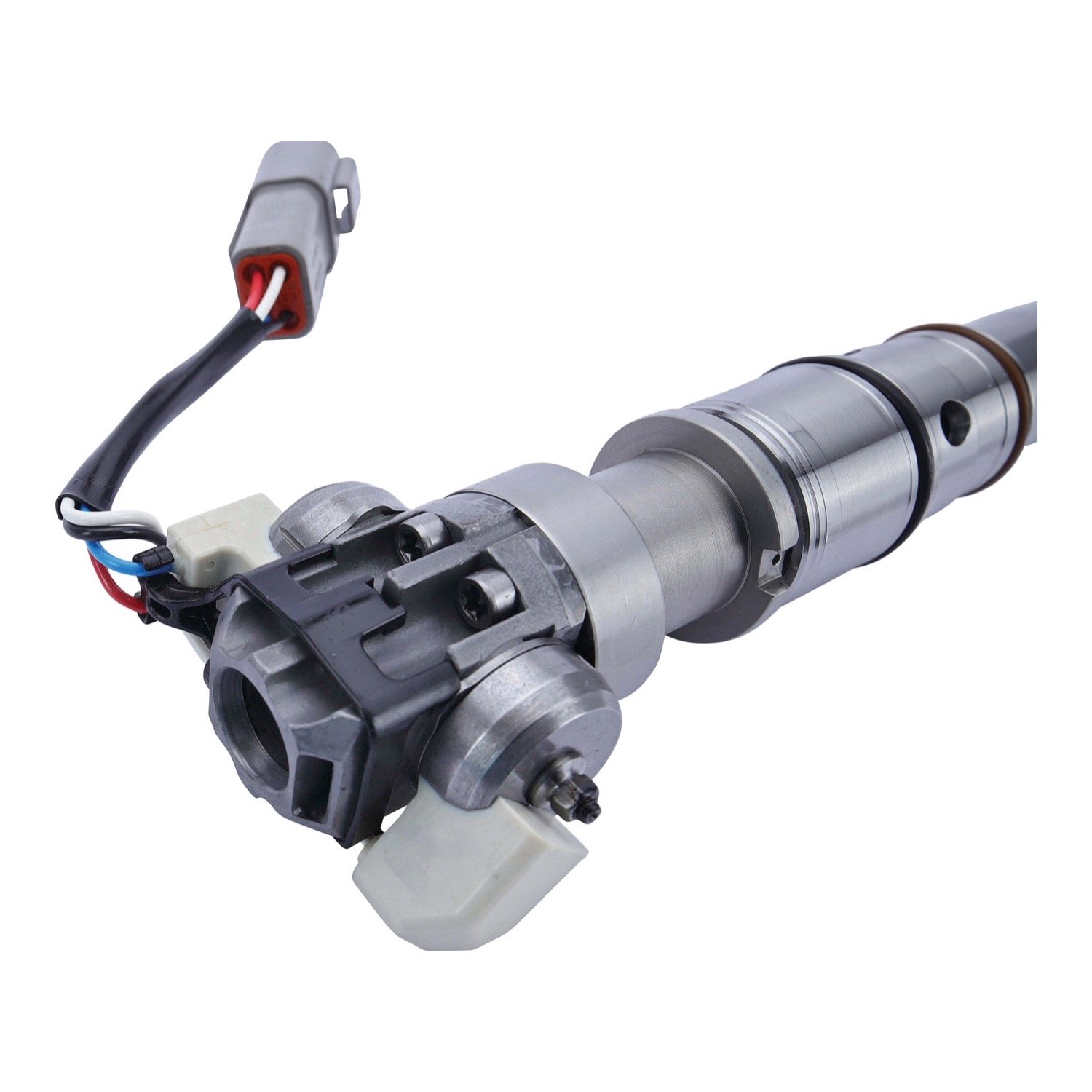

This is the Alliant Power AP66958, a remanufactured G2.9 fuel injector for the 2010 to 2014 International MaxxForce 9 (300 to 330 hp) and MaxxForce 10 (310 to 350 hp), the 9.3L (570 cu in) inline sixes, and for the Navistar N9 and N10, which catalogs list for 2015 to 2017. It replaces Navistar 1890057C92, 1890058C2 and 5010717R91. Navistar’s own service information gives 1890057C92 as the injector for the MaxxForce 9 and 10 and the N9 and N10. It is remanufactured by PurePower Technologies (PPT), the original-equipment supplier of the G2.9 to Navistar, and sold under the Alliant Power name. Each one gets a new coil, coil harness, connector and spool valve, and it comes with the chamber gasket fitted and its injector seal rings.

A miss or rough running, hard starting, low power and a check engine light with injector circuit codes are the usual reasons these come out. The G2.9 is fired by high-pressure engine oil, so a leaking oil rail seal, a weak high-pressure oil pump, low or dirty oil, or a damaged harness under the valve cover gives the same complaints. Rule those out before you replace a set. The engine takes six injectors.

Specifications

Fits / Applications

• International MaxxForce 9 & 10, 9.3L, 2010 to 2014
• MaxxForce 9: 300 to 330 hp. MaxxForce 10: 310 to 350 hp.
• Navistar N9 and N10, listed for 2015 to 2017
• Replaces Navistar 1890057C92, which Navistar lists for MaxxForce 9 and 10 and N9 and N10 (570) engines only
• Catalogs list International 4400, 4400LP, 7400, 7500 and 8500 TranStar trucks built with these engines. Order by engine, not by truck model.
• Not for the 2007 to 2010 MaxxForce 9 and 10 with engine serial 3,000,001 through 3,300,000, which take AP66921
• Not for the MaxxForce DT, which takes AP66955 in these years
• Six injectors per engine

The high-pressure oil rail has to come off to change these injectors. The rail’s injector inlet seals must be replaced before it goes back on: use the Alliant Power AP0025 high-pressure oil rail seal kit, which is not in the box. The injectors are fired by engine oil pressure, so change the engine oil and oil filter when you fit them.

Part Numbers & Cross Reference

Alliant Power AP66958  ·  Navistar 1890057C92  ·  Navistar 1890058C2  ·  Navistar 5010717R91  ·  PurePower Technologies 6933-PP  ·  Alliant Power (interchange) AP66858

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does the AP66958 fit the Navistar N9 and N10?

Yes. Catalogs list it for the 2010 to 2014 MaxxForce 9 and MaxxForce 10 and the 2015 to 2017 N9 and N10, and Navistar’s service information gives injector 1890057C92 for all four engines. Call 530-668-0818 with the engine serial number to confirm before you order.

Will the AP66958 fit a 2007 to 2010 MaxxForce 9 or MaxxForce 10?

Not the earlier build. Engines with serial numbers 3,000,001 through 3,300,000 take AP66921. The AP66958 is for the 2010 to 2014 engines and the N9 and N10.

What numbers does the AP66958 replace?

Navistar 1890057C92, 1890058C2 and 5010717R91, and PurePower 6933-PP.

Is the AP66958 new or remanufactured, and what else do I need?

It is remanufactured by PurePower Technologies for Alliant Power, and a refundable core applies. It comes with the chamber gasket fitted and its seal rings. You also need the Alliant Power AP0025 oil rail seal kit, because the high-pressure oil rail has to come off.
