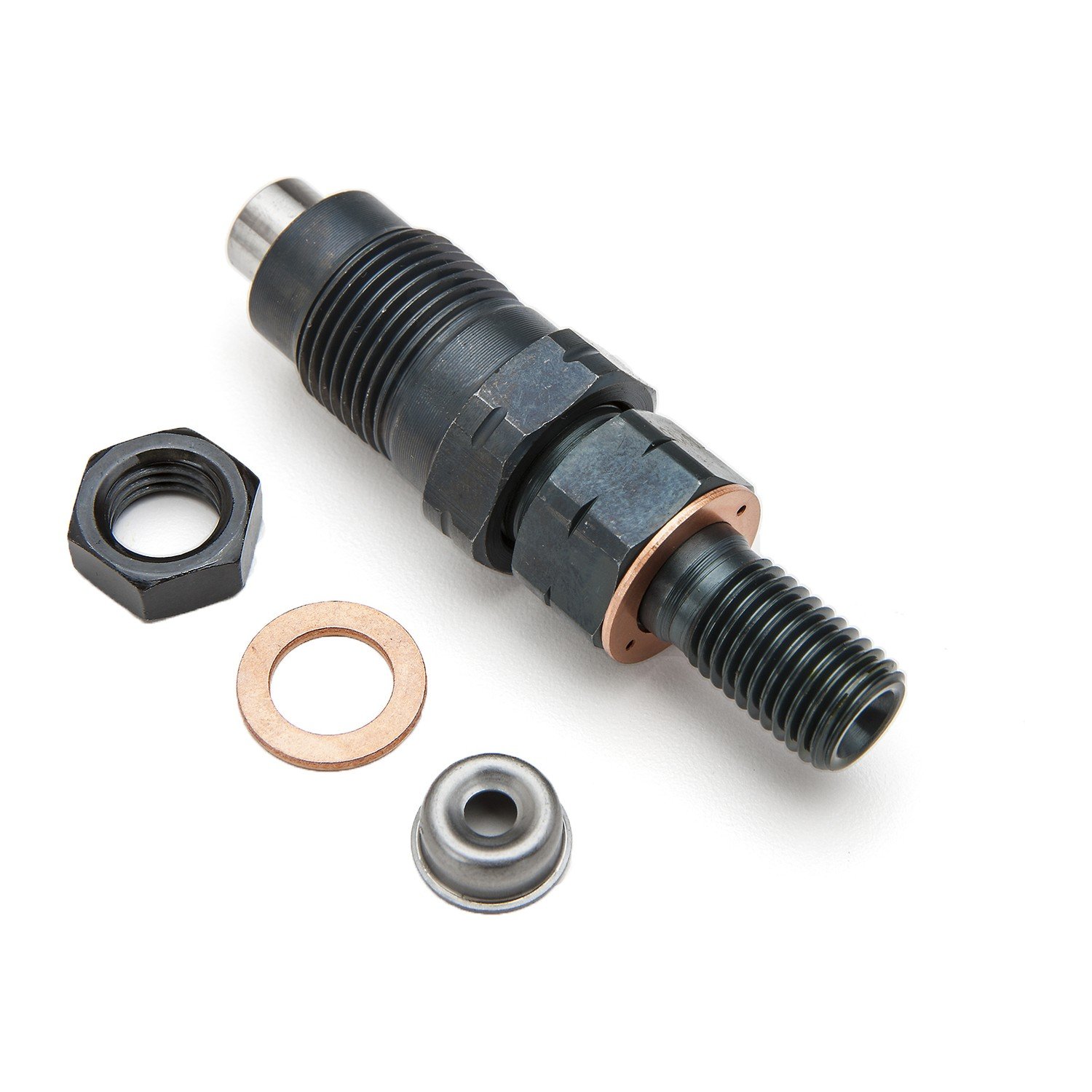

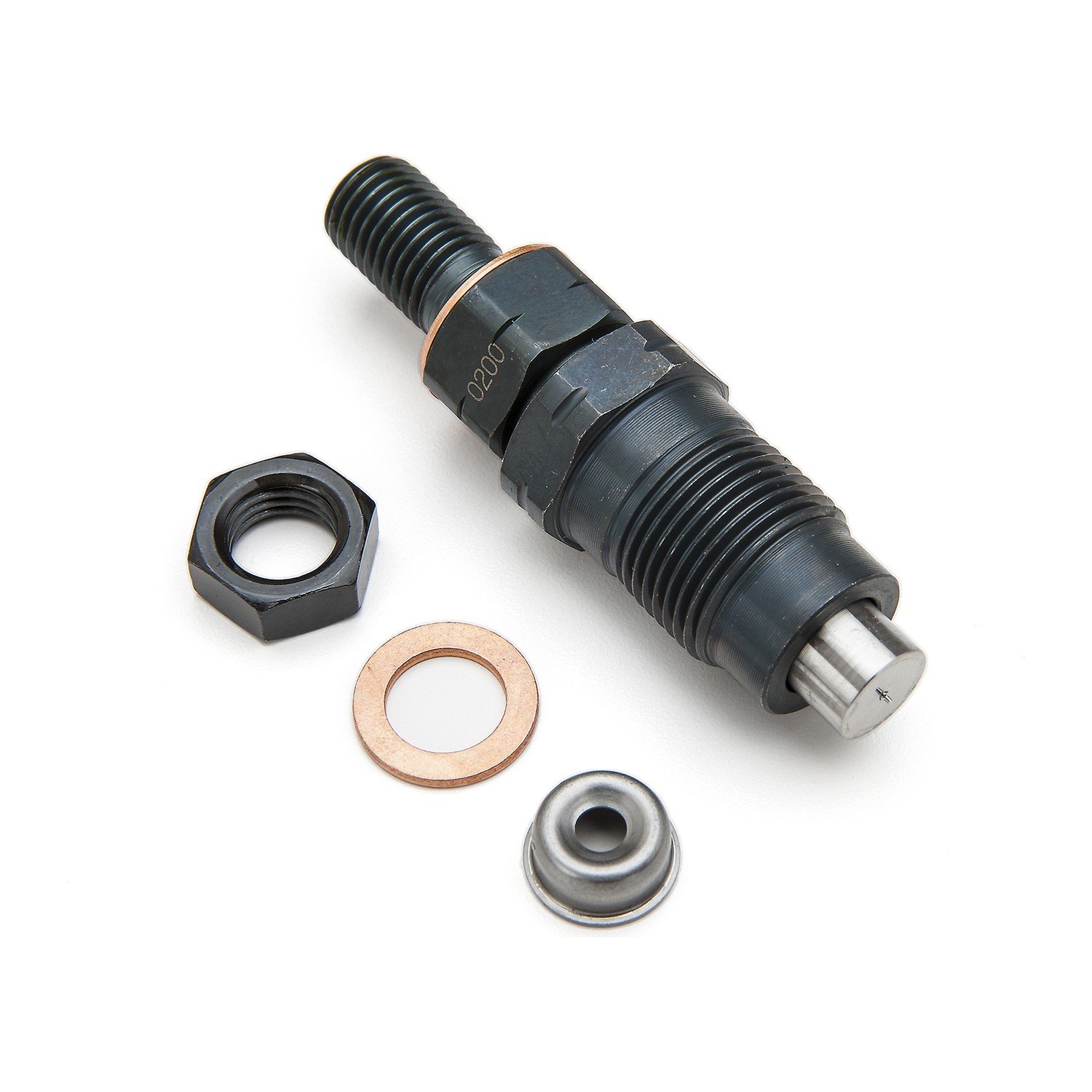

This is a new, genuine Kubota fuel injector, part number 16032-53902. Kubota calls it a nozzle holder kit (KIT HOLDER,NOZZLE). It is the complete injector, with the holder body, spring, push rod and nozzle assembled and set. It fits the earlier builds of Kubota’s 05 Series indirect-injection diesels: the three-cylinder D905, D1005 and D1105 and the four-cylinder V1305 and V1505. It replaces kit 16032-53900 and the bare injector 16032-53000.

Kubota’s parts books list it on the BX2200D, BX22D and BX23D, the B1700, B2100, B2400 and B2410, the B2710 and B2910, the B7500, B7510, B7610 and B7800, the B21, the ZD28 and the KX41-2. These injectors are replaced for hard starting, smoke, a miss at idle or a poor spray pattern on the pop tester. Kubota changed injectors on the 05 Series during production. This 16032 kit is the first type. Later engines in many of the same tractors take kit 1G065-53902, and the newest take 1G677-53903. Kubota’s parts books split them by engine serial number, so the tractor model alone will not tell you which one you need.

Specifications

Fits / Applications

• Kubota D905, D1005 and D1105 three-cylinder diesel engines, earlier builds
• Kubota V1305 and V1505 four-cylinder diesel engines, earlier builds
• Kubota BX2200D, BX22D and BX23D tractors
• Kubota B1700, B2100, B2400 and B2410 tractors
• Kubota B2710 and B2910 tractors, earlier engines (later engines take 1G065-53902)
• Kubota B7500, B7510, B7610 and B7800 tractors
• Kubota B21 tractor loader backhoe, earlier engines (later engines take 1G065-53902)
• Kubota ZD28 zero-turn mower and F2560 and F3060 front mowers
• Kubota KX41-2, KX61-2 and KX91-2 excavators

Kubota’s 05 Series workshop manual gives the injection pressure as 13.73 MPa (1,991 psi) if you pop test the old set first. Fit a new copper gasket and heat seal under every injector you remove. Kubota’s numbers for them on these engines are 15841-53622 (gasket) and 19077-53650 (heat seal). Clean the bore and seat, tighten to the torque in the Kubota workshop manual for your engine, bleed the fuel system and check the injection pipes and the overflow pipe for leaks.

Part Numbers & Cross Reference

Kubota 16032-53902  ·  Kubota (superseded) 16032-53900  ·  Kubota (superseded) 16032-53000

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the 16032-53902 fit my Kubota B7500, B7510 or B7610?

Kubota’s parts books list this kit, under its old number 16032-53900, for the B7500, B7510 and B7610. Later engines in some of these tractors take 1G065-53902 instead, so call 530-668-0818 with your engine serial number and we will confirm which one you have.

What numbers does the 16032-53902 replace?

Kubota kit 16032-53900 and the bare injector 16032-53000.

How is it different from 1G065-53902 and 1G677-53903?

All three are nozzle holder kits for 05 Series engines, but for different build ranges. 16032-53902 is the earliest, and Kubota’s parts books switch to 1G065-53902 and later to 1G677-53903 by engine serial number. They are separate part numbers, so match the number on your old injector.

Is it a complete injector or just a nozzle?

It is the complete injector: holder body, spring, push rod and nozzle, assembled and set. It is new, genuine Kubota.
